Power Seat Control Module

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2006 Dodge.

AI Repair Guides

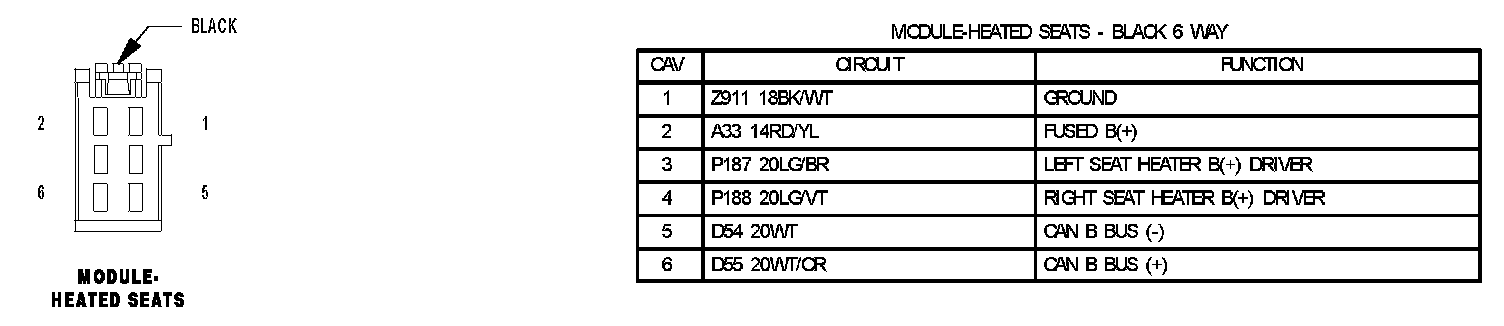

Module-Heated Seats:

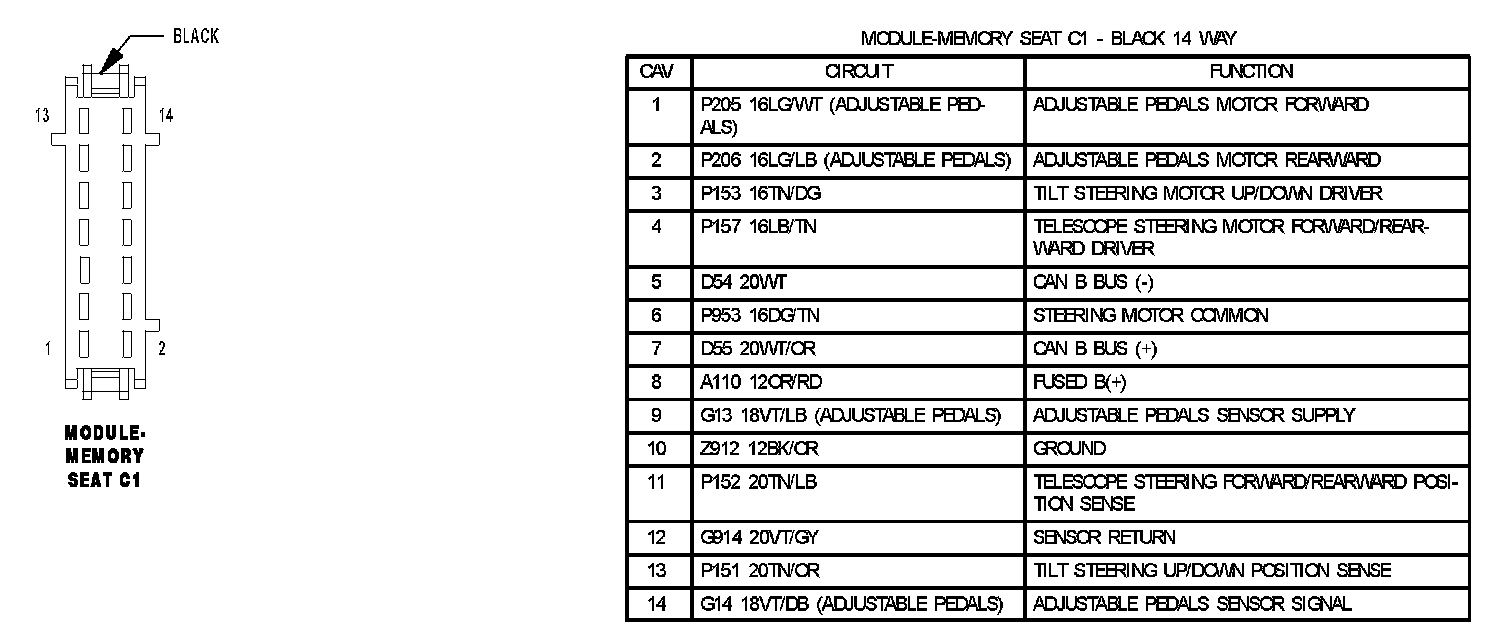

Module-Memory Seat C1:

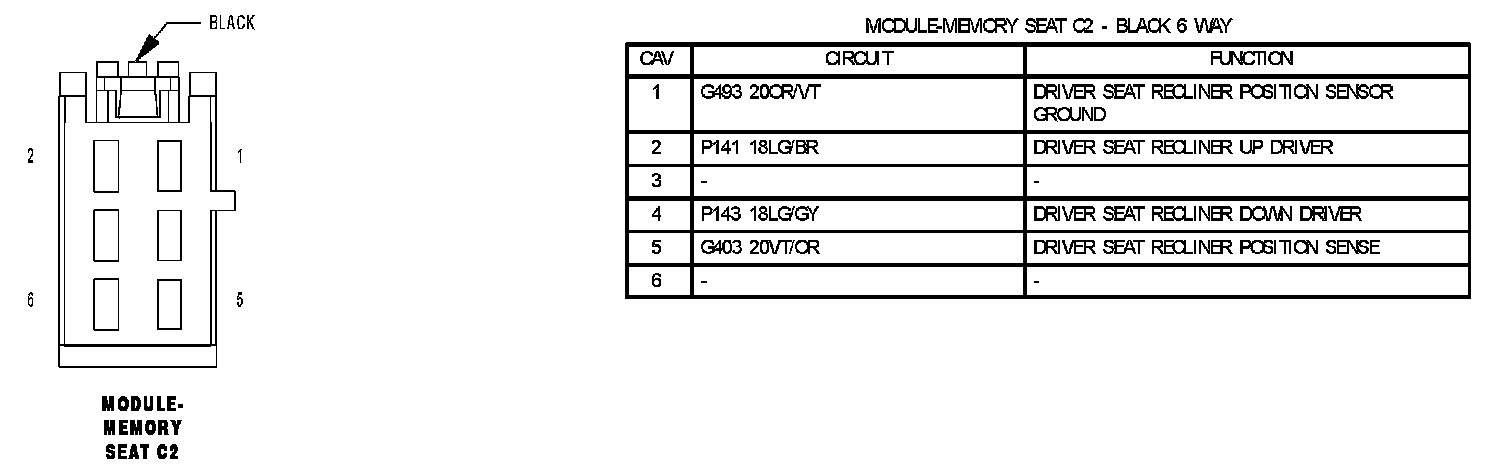

Module-Memory Seat C2:

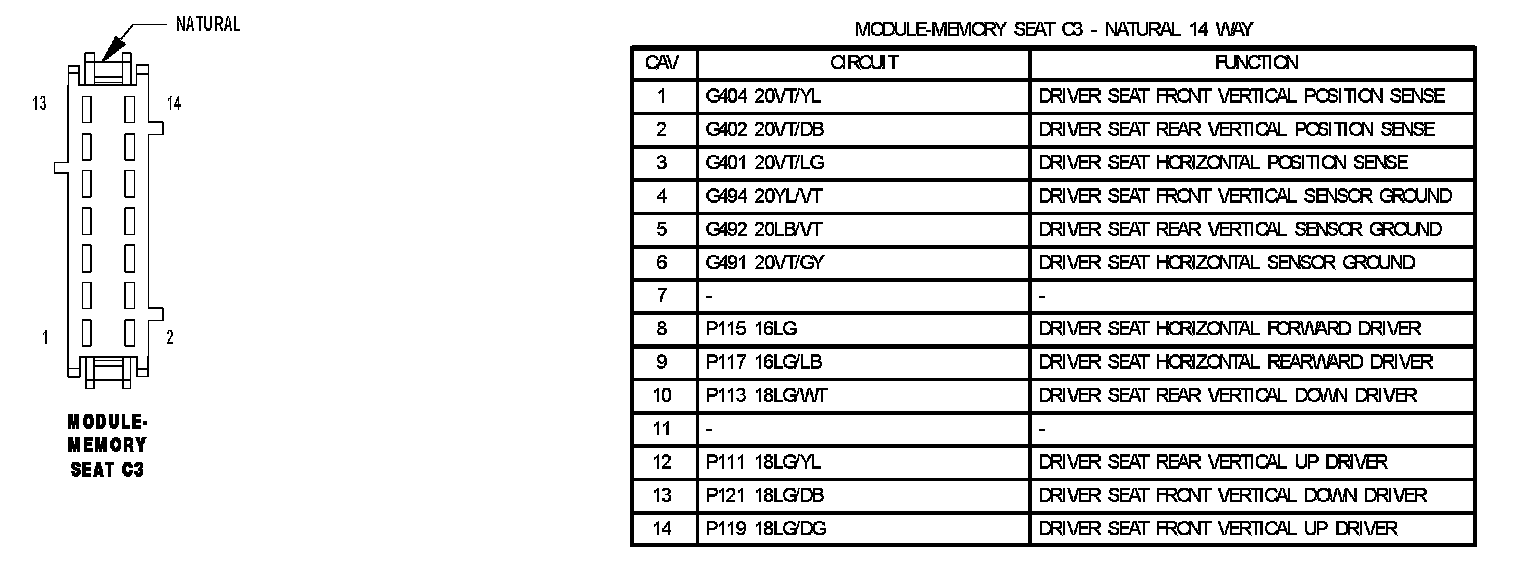

Module-Memory Seat C3:

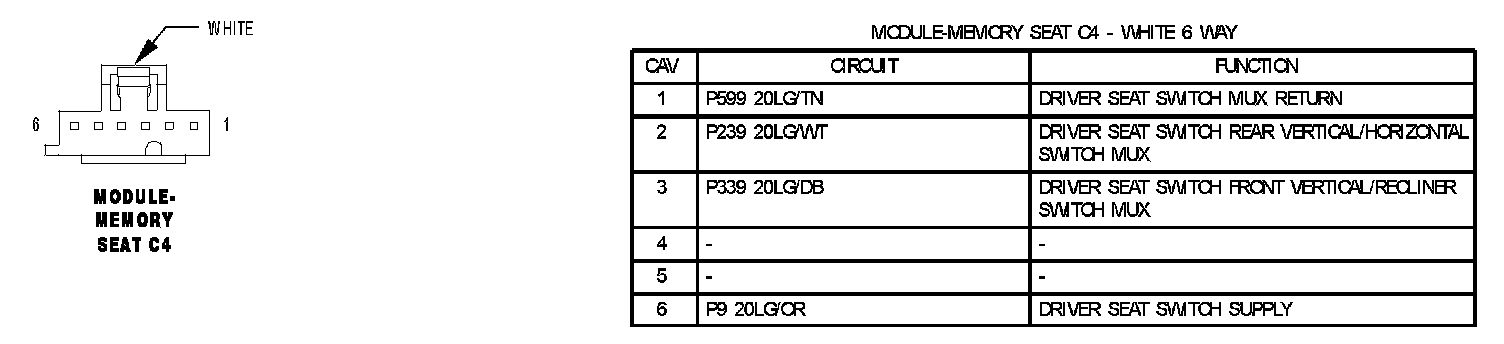

Module-Memory Seat C4:

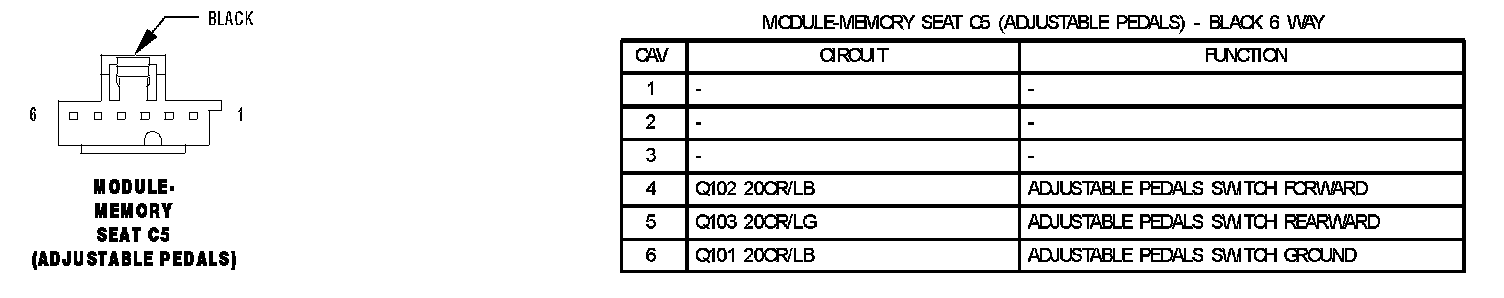

Module-Memory Seat C5 (Adjustable Pedals):
