ARMREST-REAR

REMOVAL

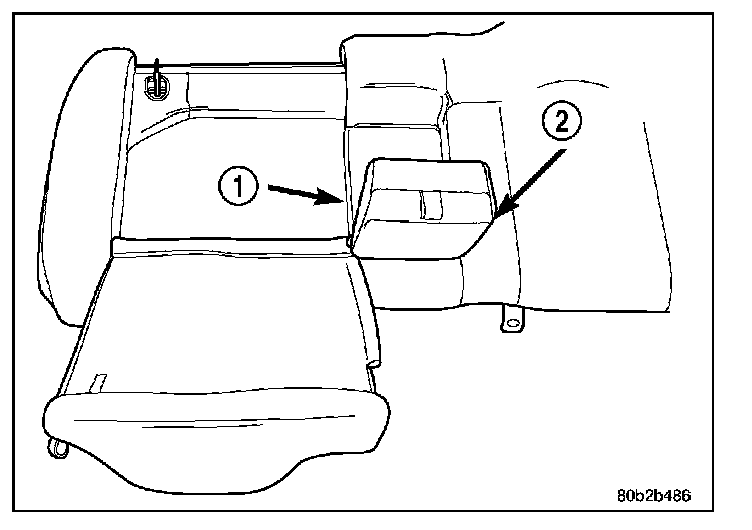

1. Fold down 40 side rear seat back.
2. Remove arm rest bolt (1).
3. Remove retaining C-clip (2).
4. Remove arm rest.

INSTALLATION

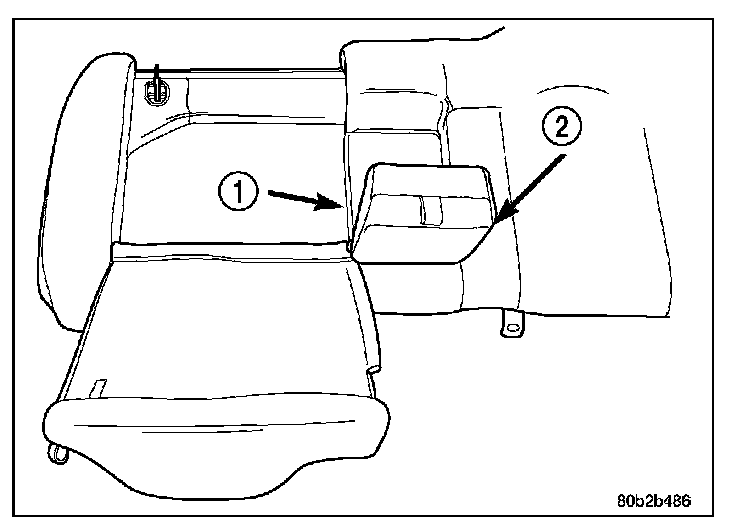

1. Place arm rest in bracket.
2. Install arm rest bolt (1). Tighten to 12 N.m (9 ft.lbs.).
3. Install retaining C-clip (2).
4. Reposition the seats.
