Harness Inspection

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 1993 Dodge.

AI Repair Guides

MFI Relay Harness Inspection:

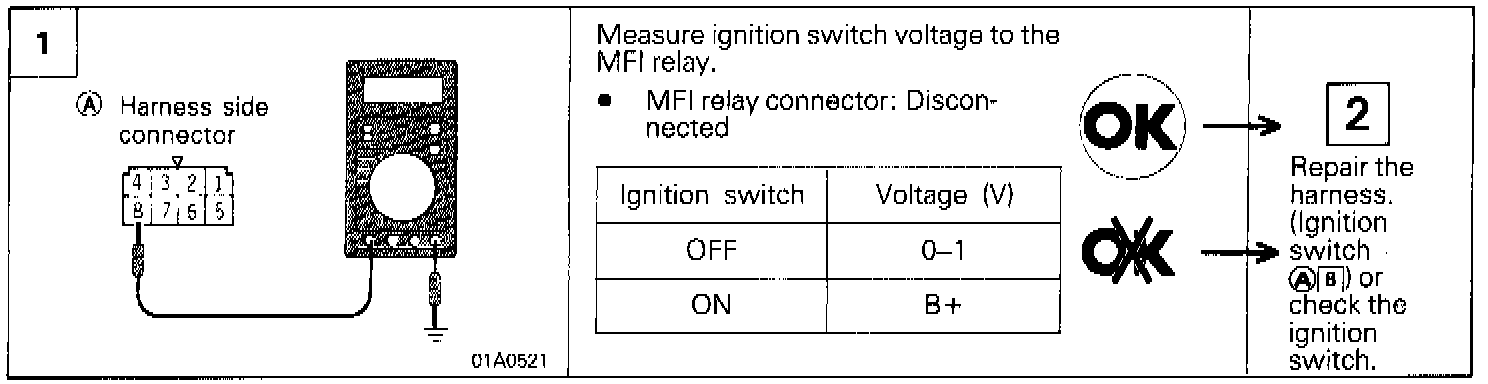

Step 1

MFI Relay Harness Inspection:

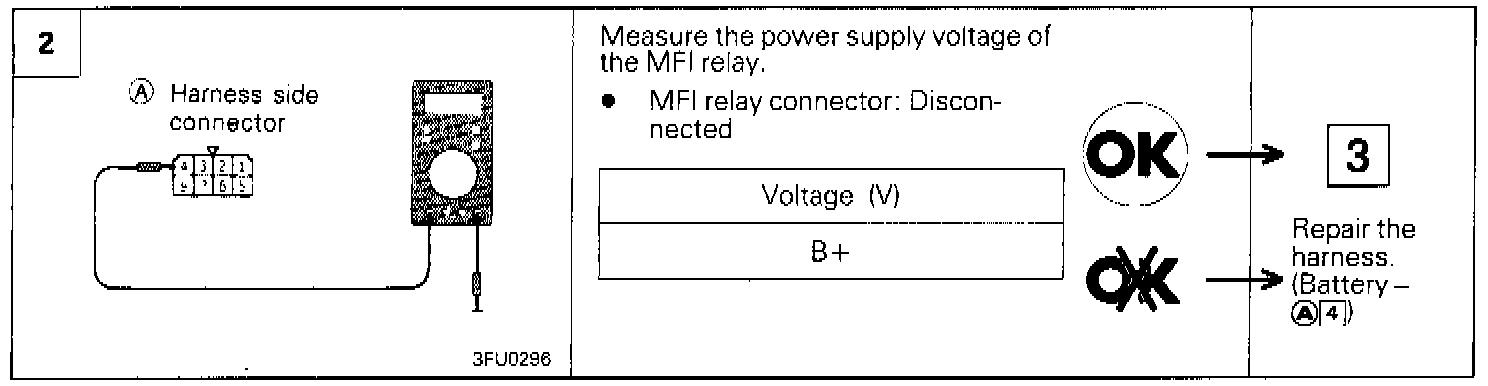

Step 2

MFI Relay Harness Inspection:

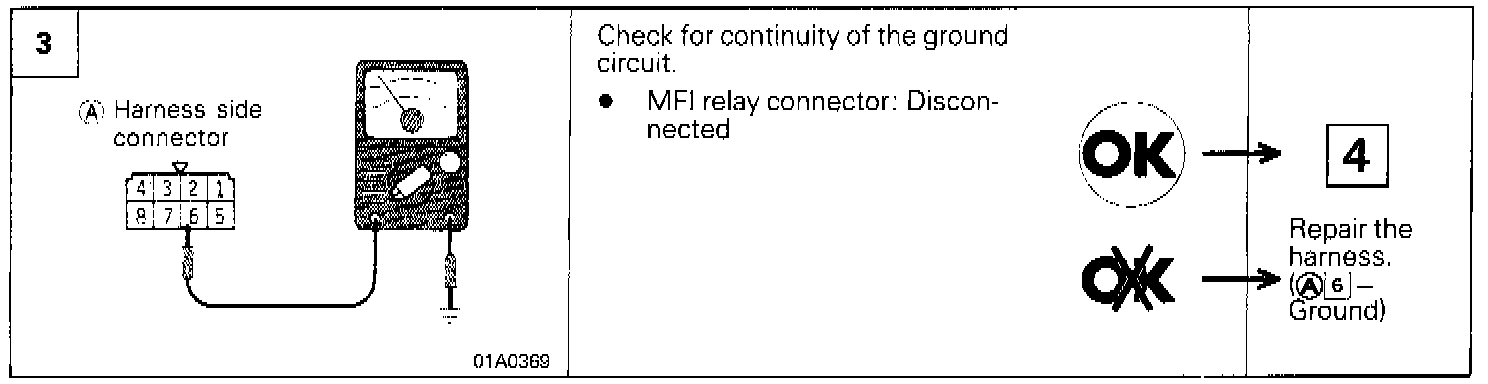

Step 3

MFI Relay Harness Inspection:

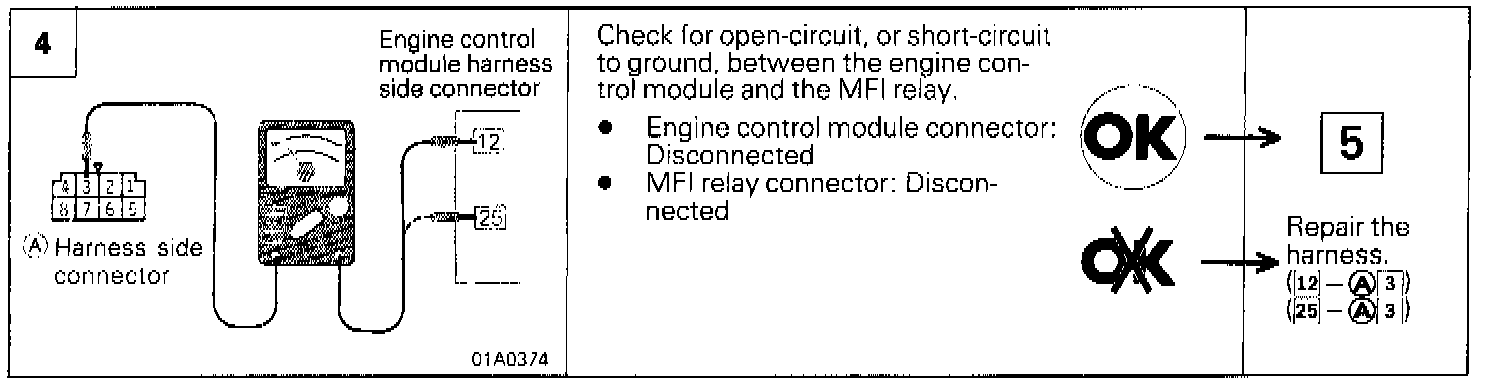

Step 4

MFI Relay Harness Inspection:

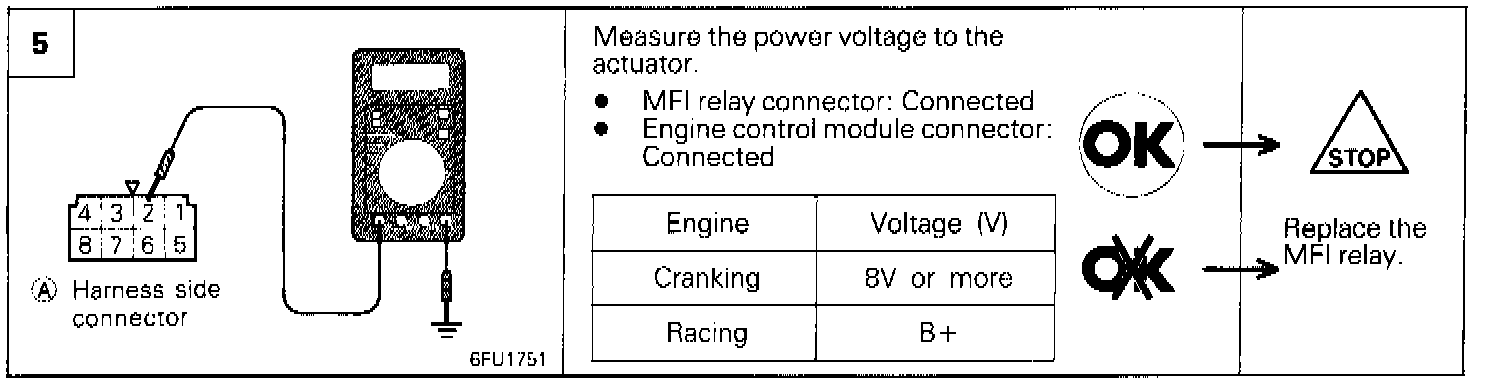

Step 5
