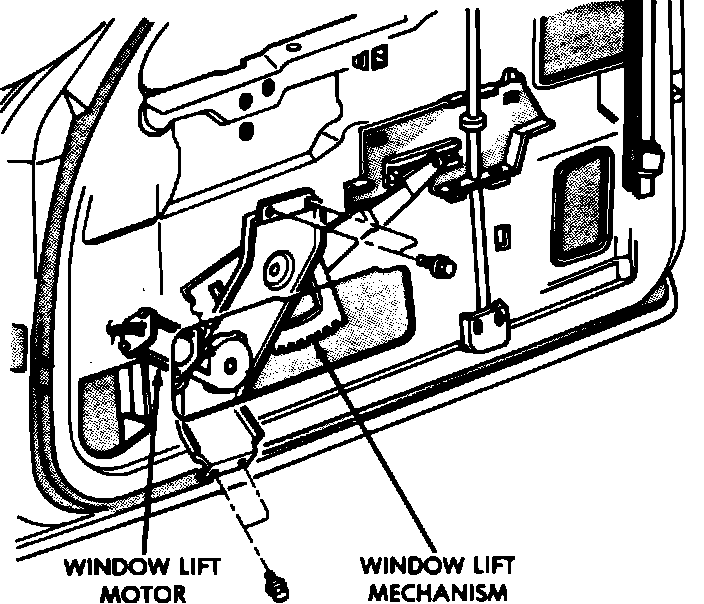

Power Window Motor Location:
The window regulator is a conventional sector gear design. The power window motor is attached to the window regulator. The window motor/regulator assembly is attached to the inner door panel of each front door.
Four Door Model

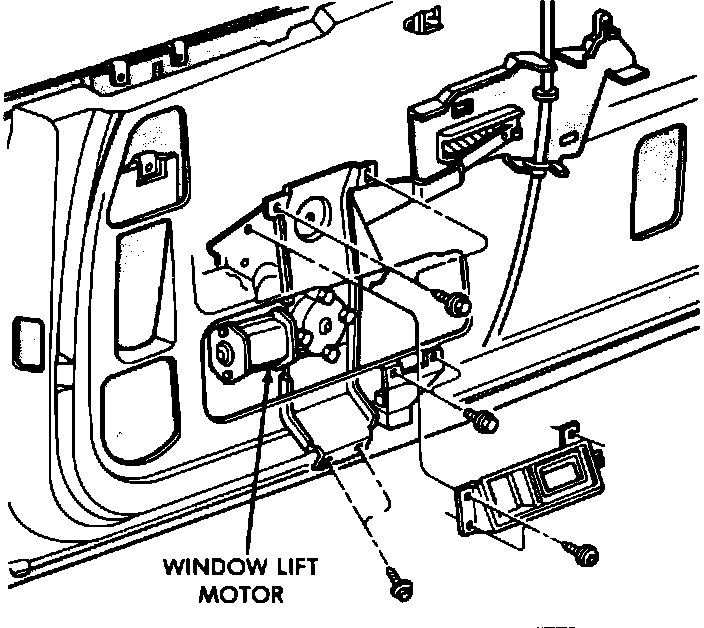

Power Window Motor Location:
Power Window Components:

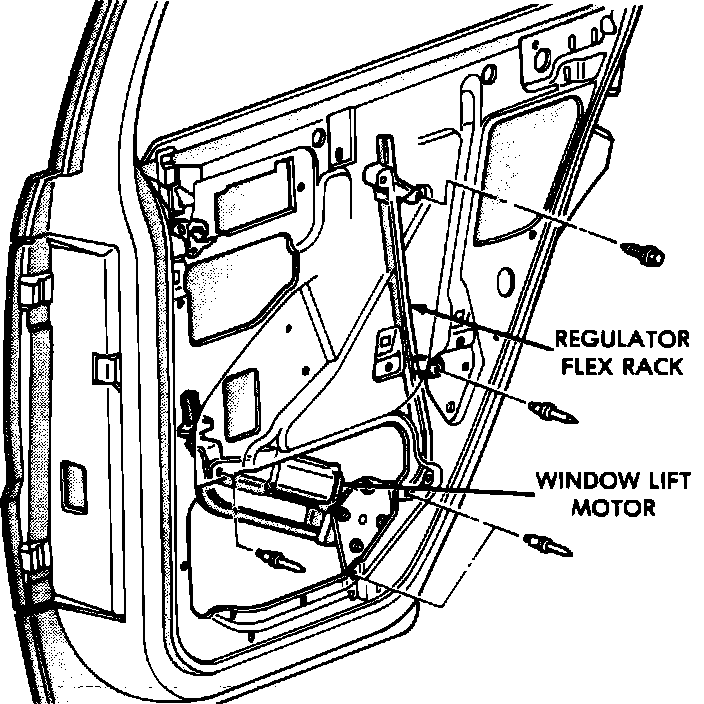

The front window regulator is a conventional sector gear design. The rear window regulator is a flex drive design. The power window motor is attached to the window regulator. The window motor/regulator assembly is attached to the inner door panel of each door.
