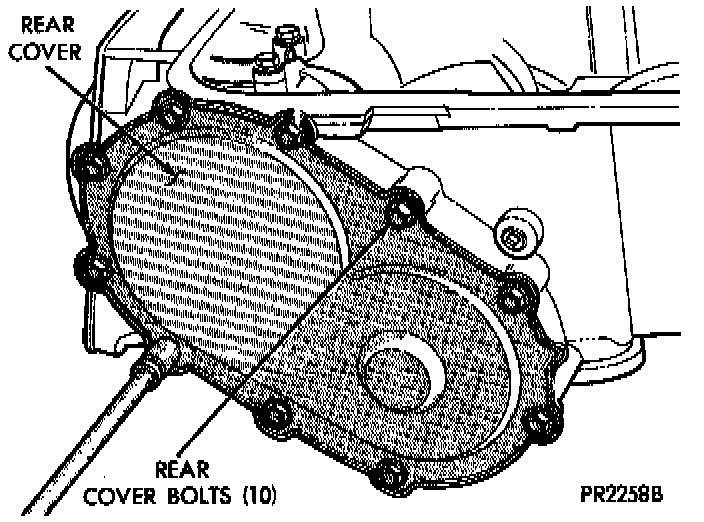

Rear Cover Bolts:

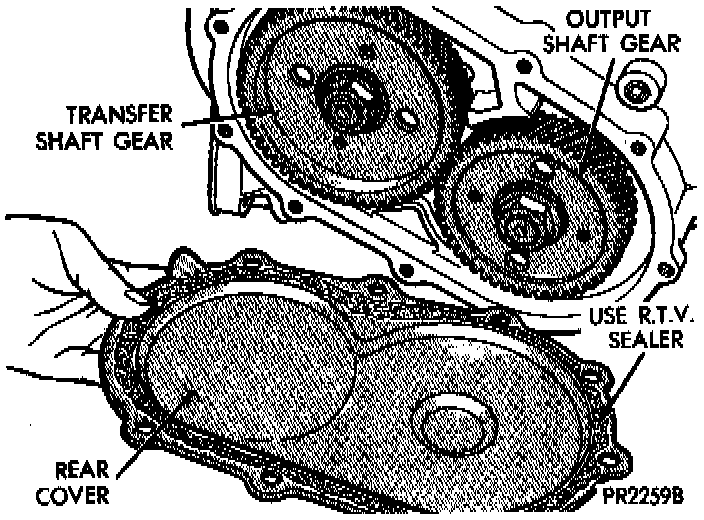

Remove Rear Cover:

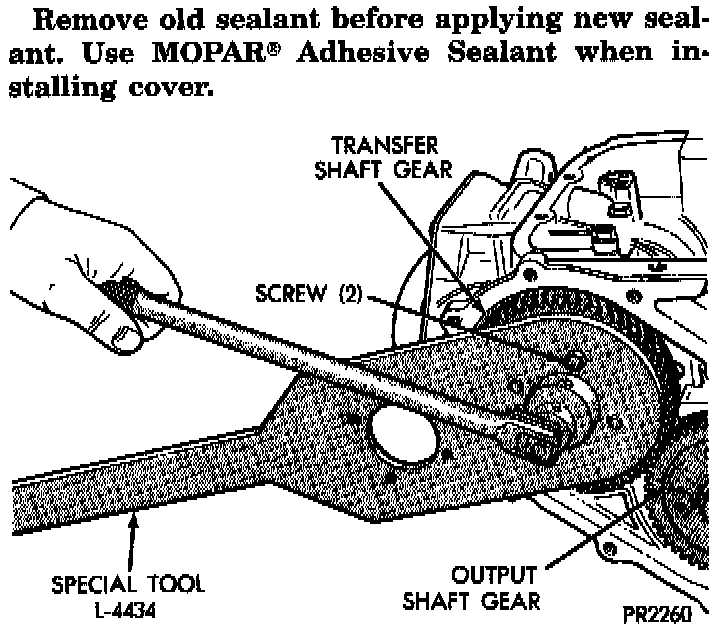

Remove Transfer Shaft Gear Retaining Nut:

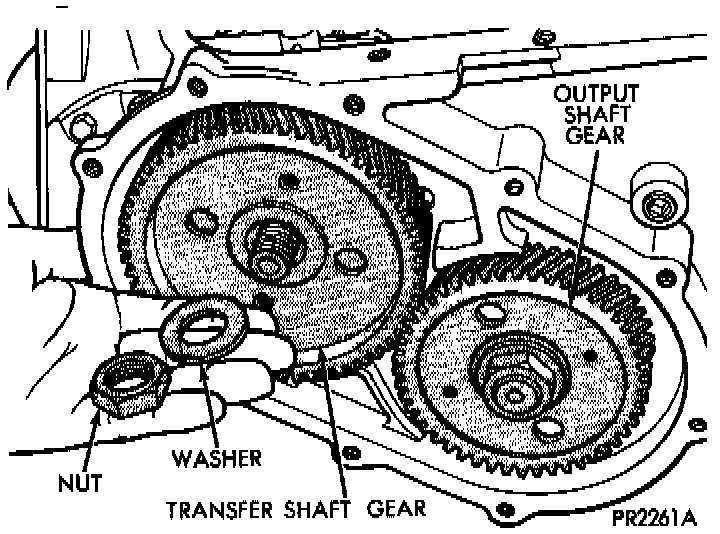

Transfer Shaft Gear Nut And Washer:

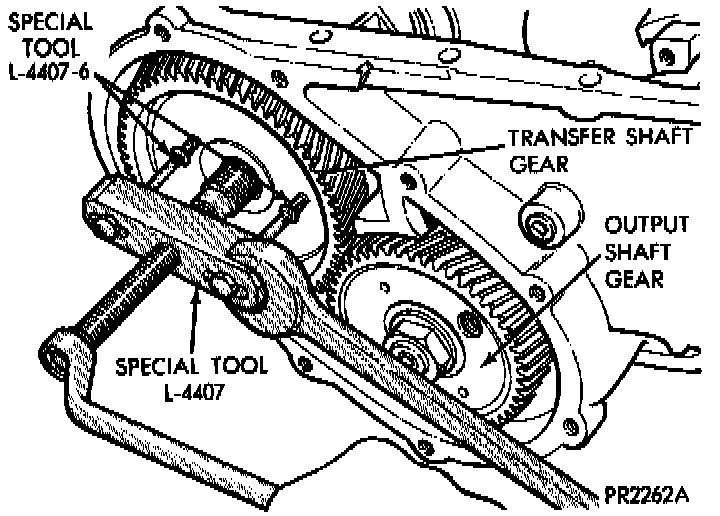

Remove Transfer Shaft Gear:

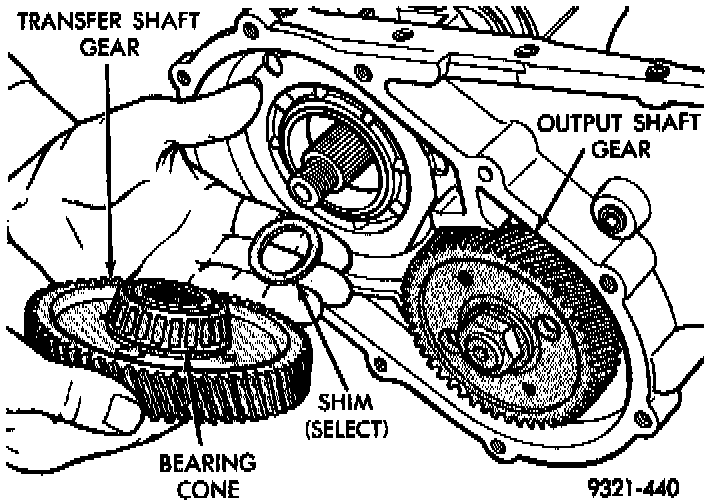

Transfer Shaft Gear And Shim:

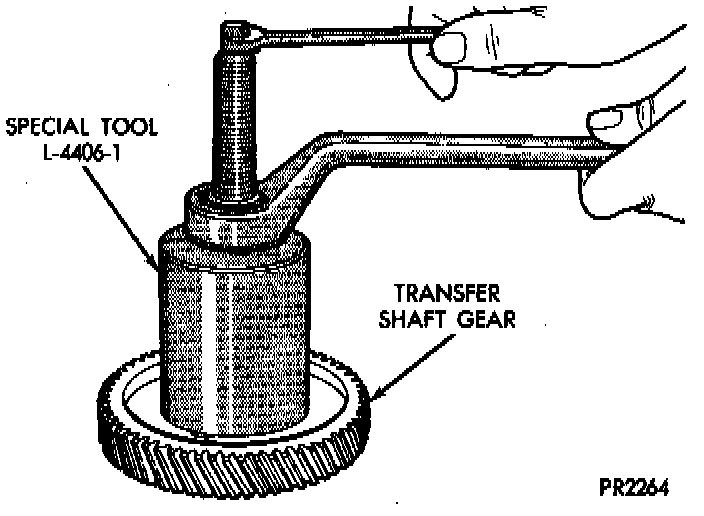

Remove Transfer Shaft Gear Bearing Cone:
NOTE: Use special tool L-4406-1 with adapter L-4406-3.

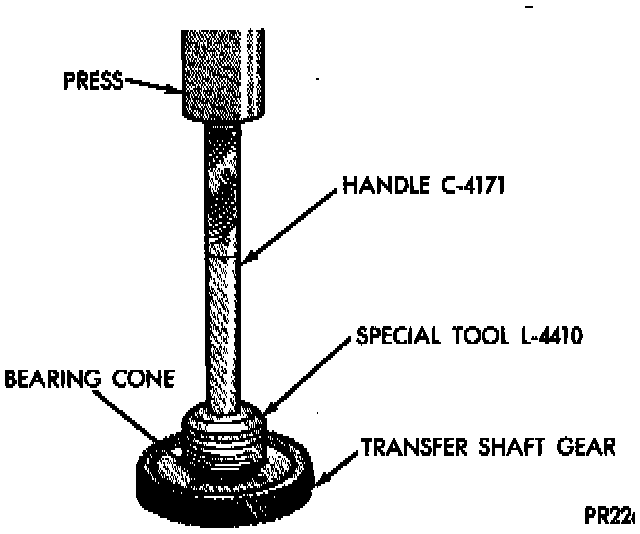

Install Transfer Shaft Gear Bearing Cone:

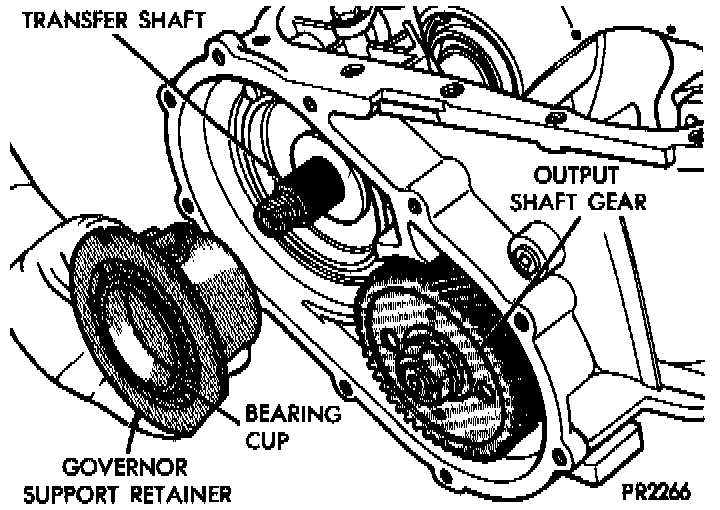

Governor Support Bearing:

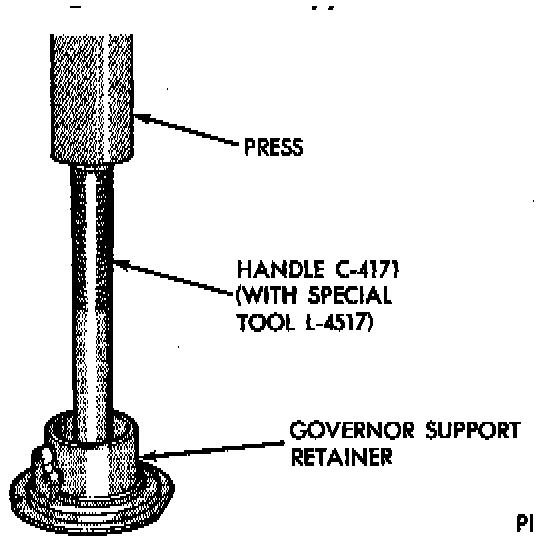

Remove Governor Support Retainer Bearing Cup:

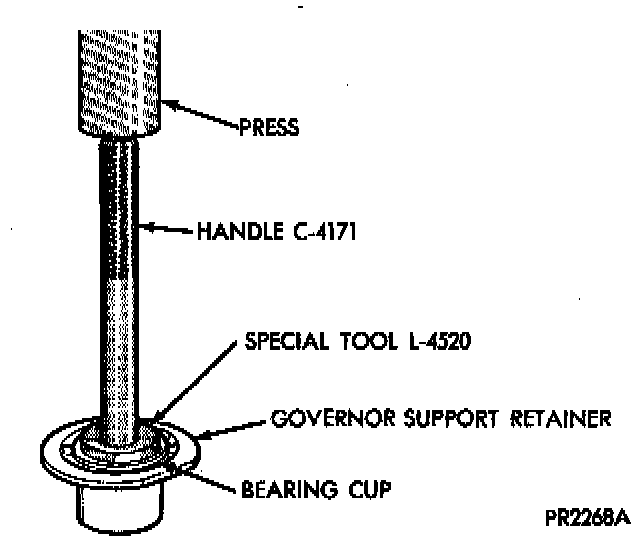

Install Governor Support Retainer Bearing Cup:

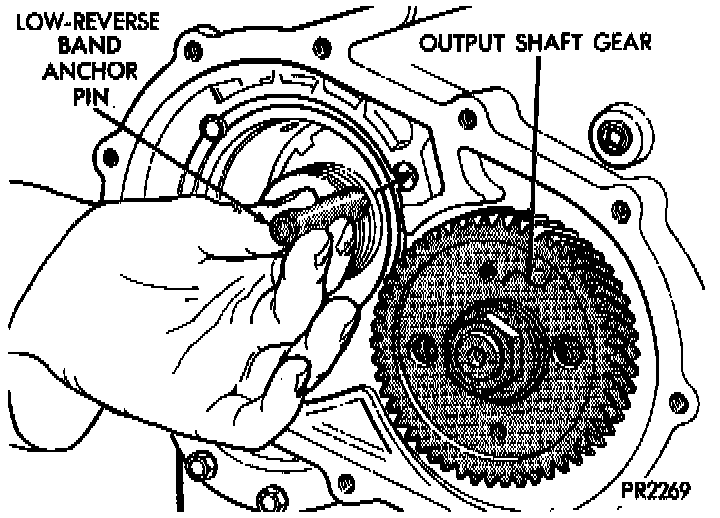

Low-Reverse Band Anchor Pin:

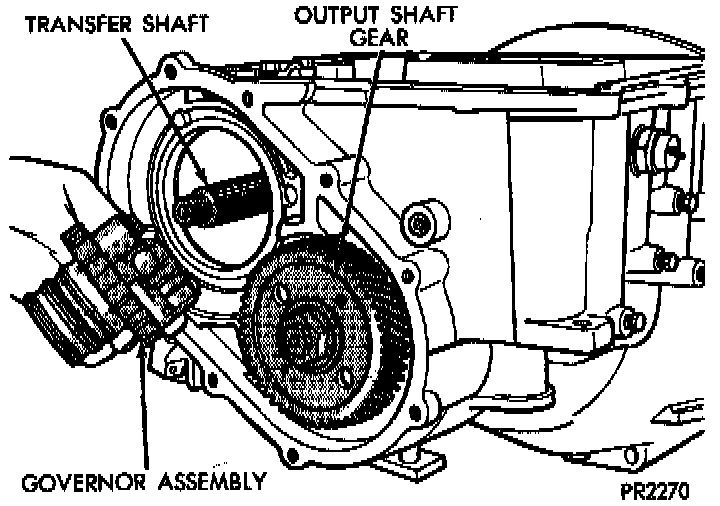

Governor Assembly:
NOTE: Remove both governor valves and governor body.

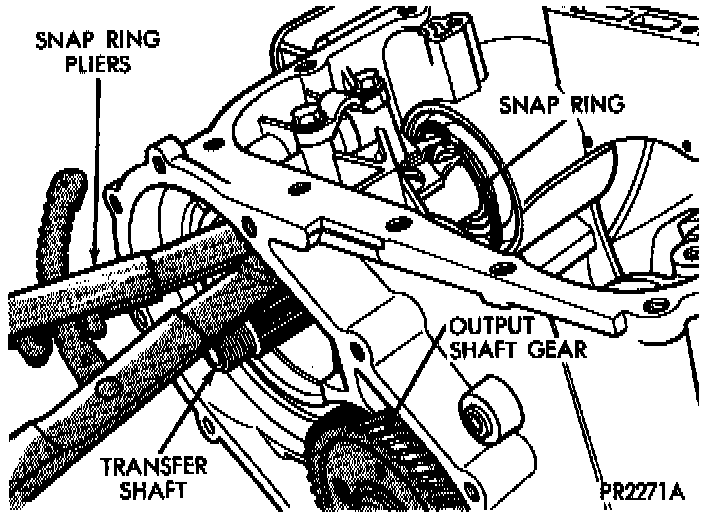

Transfer Shaft Bearing Snap Ring:

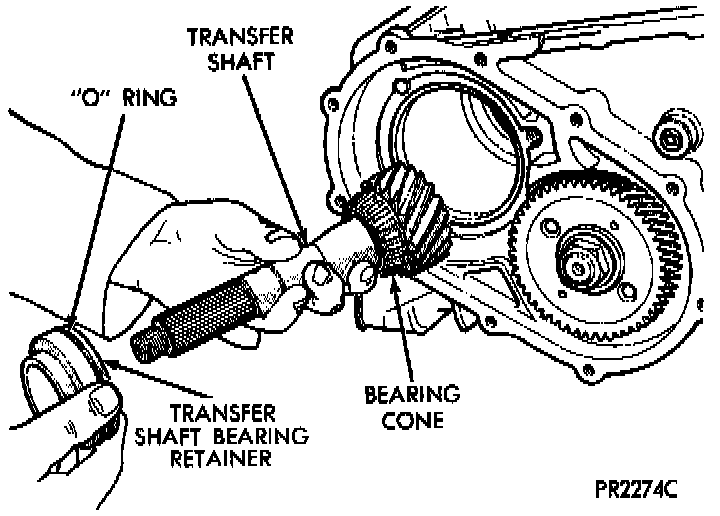

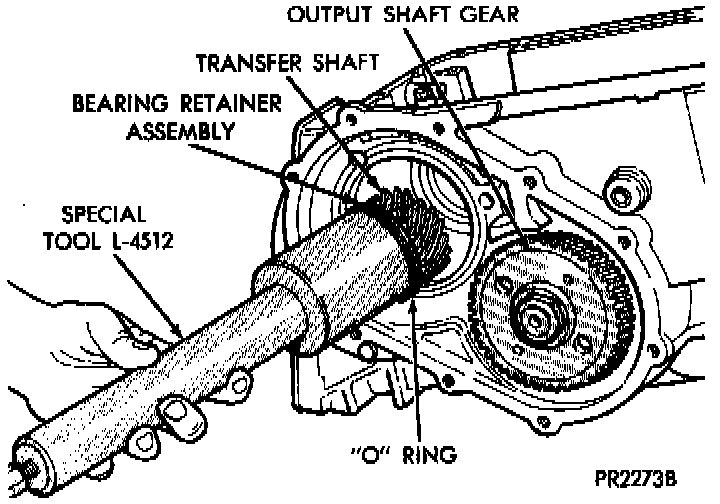

Transfer Shaft And Bearing Retainer Assembly:
Transfer Shaft And Bearing Retainer Assembly:
Transfer Shaft And Bearing Retainer:

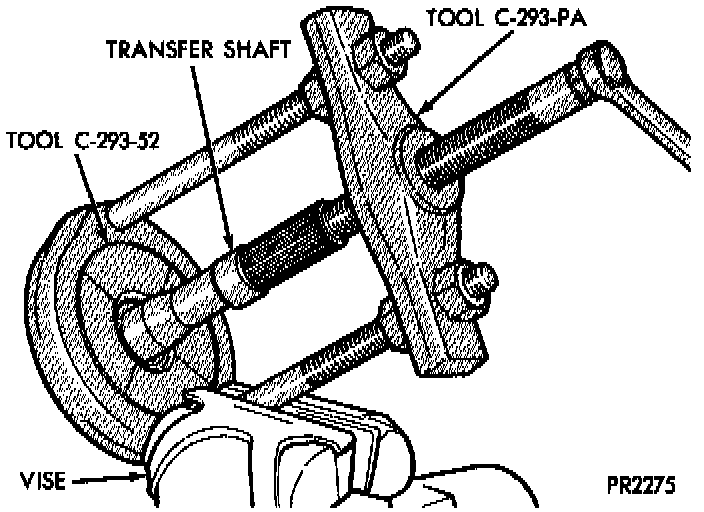

Transfer Shaft Bearing Cone:

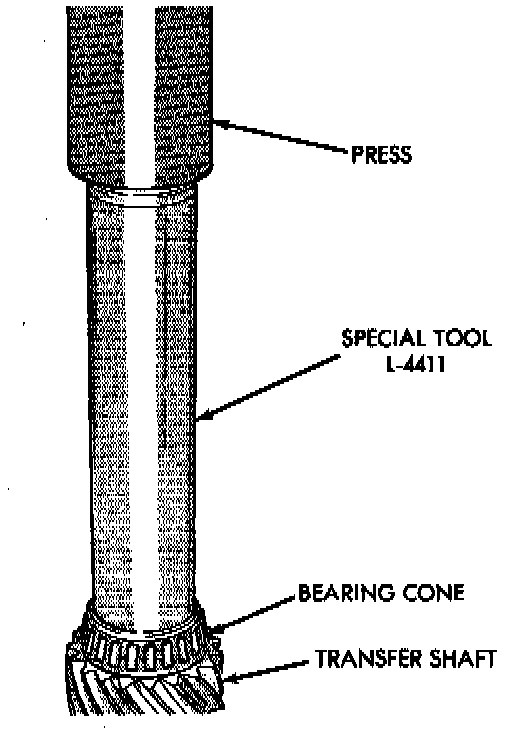

Install Transfer Shaft Bearing Cone:

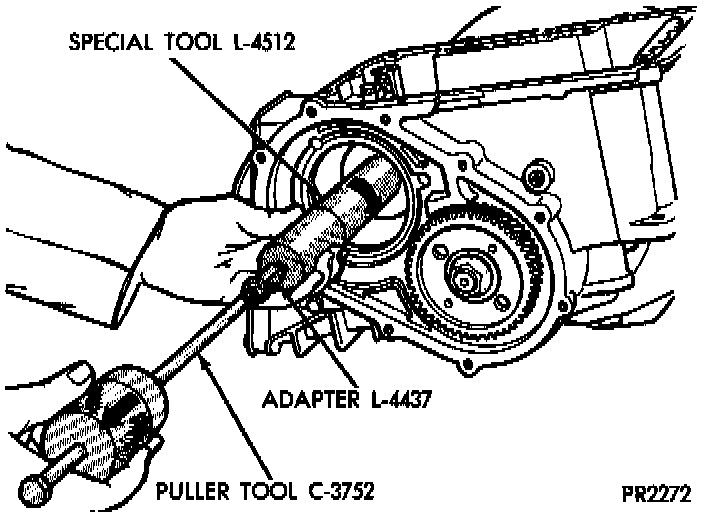

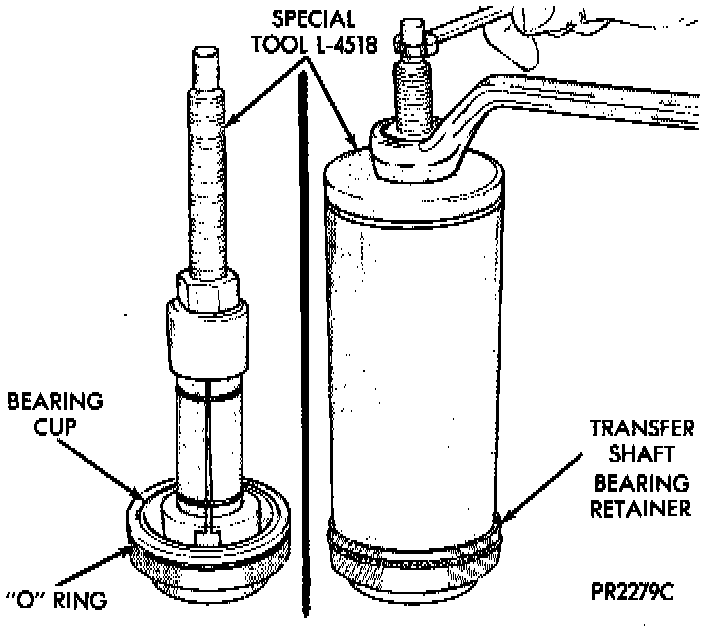

Remove Transfer Shaft Bearing Cup:

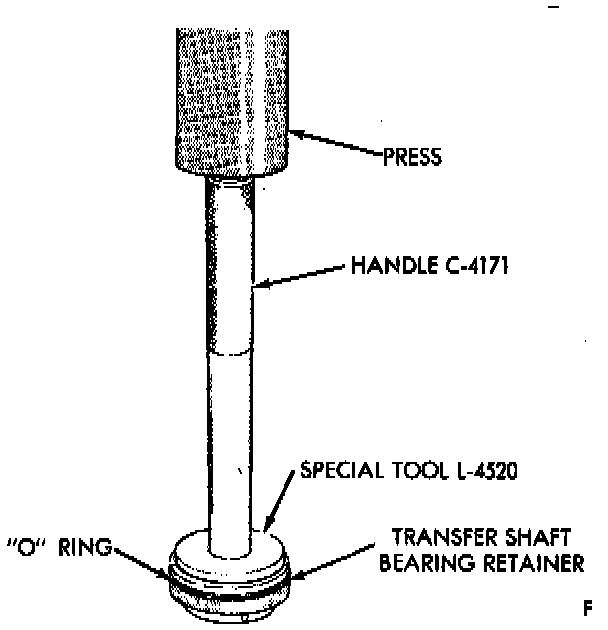

Install Transfer Shaft Bearing Cup:
DETERMINING SHIM THICKNESS
Shim thickness need only be determined if any of the following parts are replaced:
- Transaxle case
- Transfer shaft
- Transfer shaft gear
- Transfer shaft bearings
- Governor support retainer
- Transfer shaft bearing retainer
- Retainer snap ring
- Governor support
Refer to Bearing Adjustment Procedure, to determine proper shim thickness for correct end play.

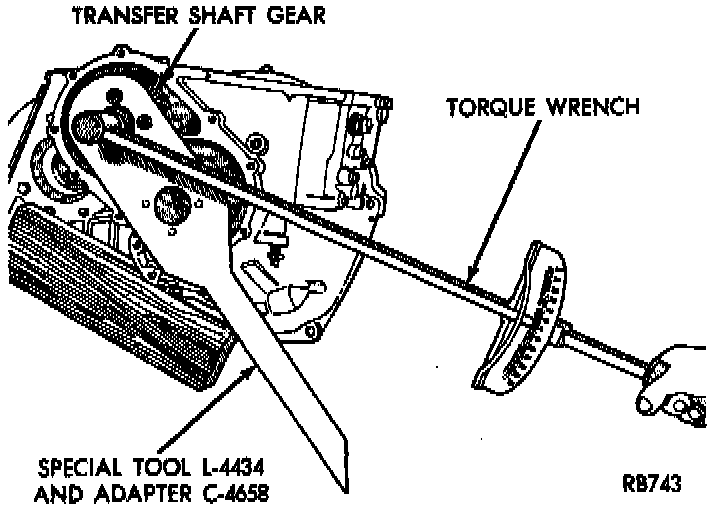

Transfer Shaft Gear Retaining Nut:
Tighten transfer shaft gear retaining nut to 271 Nm (200 ft. lbs.)

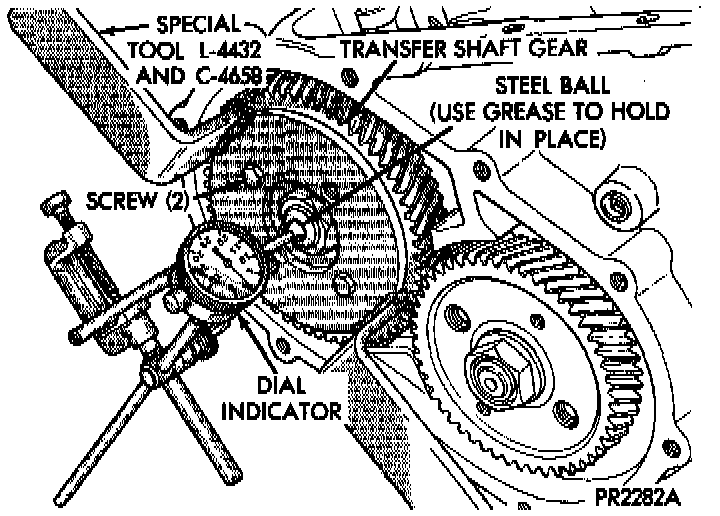

Transfer Shaft End Play:
