Throttle Position Sensor: Service and Repair

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 1991 Dodge.

AI Repair Guides

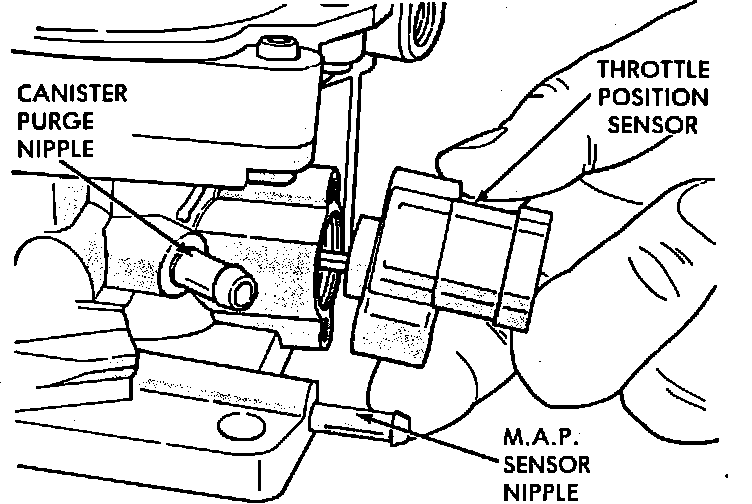

Throttle Position Sensor (TPS) Removal:




REMOVAL
1. Disconnect negative battery cable.
2. Remove air cleaner.
3. Disconnect electrical connector.
4. Remove the two Throttle Position Sensor mounting screws and remove TPS.

INSTALLATION

1. Install TPS and tighten screws to 2 Nm (20 lb-in).
2. Connect electrical connector.
3. Install air cleaner.
4. Connect negative battery cable.
