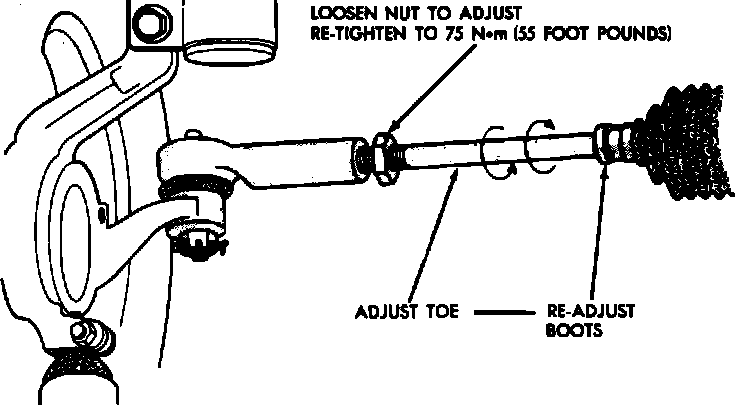

Fig. 3 Toe-in Adjustment:
To adjust toe-in, center steering wheel and hold in position with a suitable tool. Loosen tie rod locknuts and rotate the rod, to adjust toe-in to specifications. Use care not to twist steering gear rubber boots. Torque tie rod locknuts to 55 lb-ft. Adjust position of steering gear rubber boots. Remove steering wheel holding tool.
