Blower Motor Resistor and Power Module Replacement


REMOVAL AND INSTALLATION

Power Module:




1. Disconnect the negative battery cable.
2. Remove glove box/ash tray assembly.

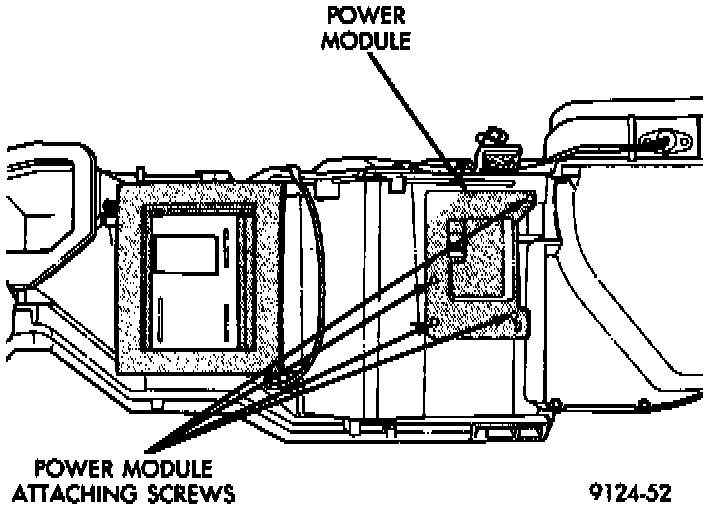

3. Remove the four PM attaching screws.
4. Disconnect electrical connector.
4. Gently extract PM (to prevent damage to A/C evaporator) from A/C.heater housing and remove from under instrument panel.

To install, reverse the preceding operation. Perform systems check.
