REMOVAL AND INSTALLATION

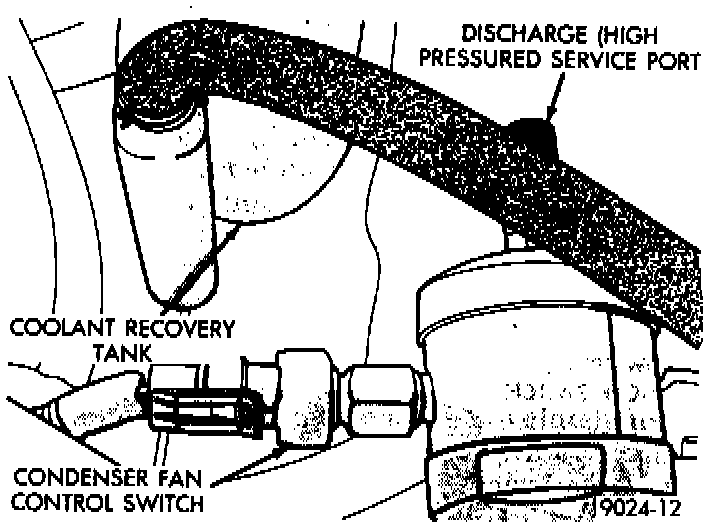

Condenser Fan Control Switch:




1. Disconnect wire connector from condenser fan control switch.
2. Loosen and quickly rotate the switch counterclockwise and separate from the high pressure line switch port.

CAUTION: A small amount of refrigerant could vent from the switch port. Review precautions and warnings.

To install, reverse the preceding operation.
