Control Assembly: Service and Repair

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 1991 Dodge.

AI Repair Guides
1. Remove the ash tray receiver.

Center Bezel:





2. Remove the center bezel by pulling it reward until the spring clips release.

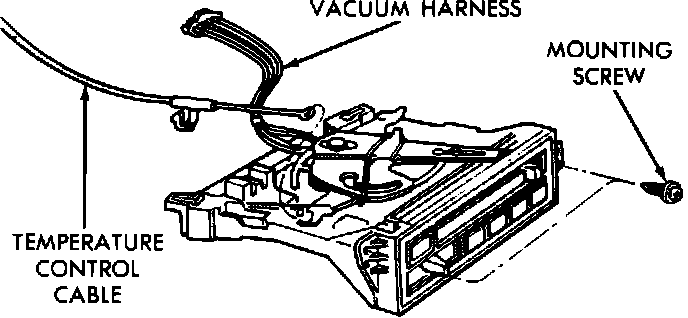

A/C Heater Control:





3. Remove the control panel retaining screws and pull the control panel reward.
4. Disconnect the temperature control cable, electrical connector, and vacuum connector.
5. Reverse procedure for installation.
