Keyless Entry Transmitter: Description and Operation

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 1991 Dodge.

AI Repair Guides


OPERATION

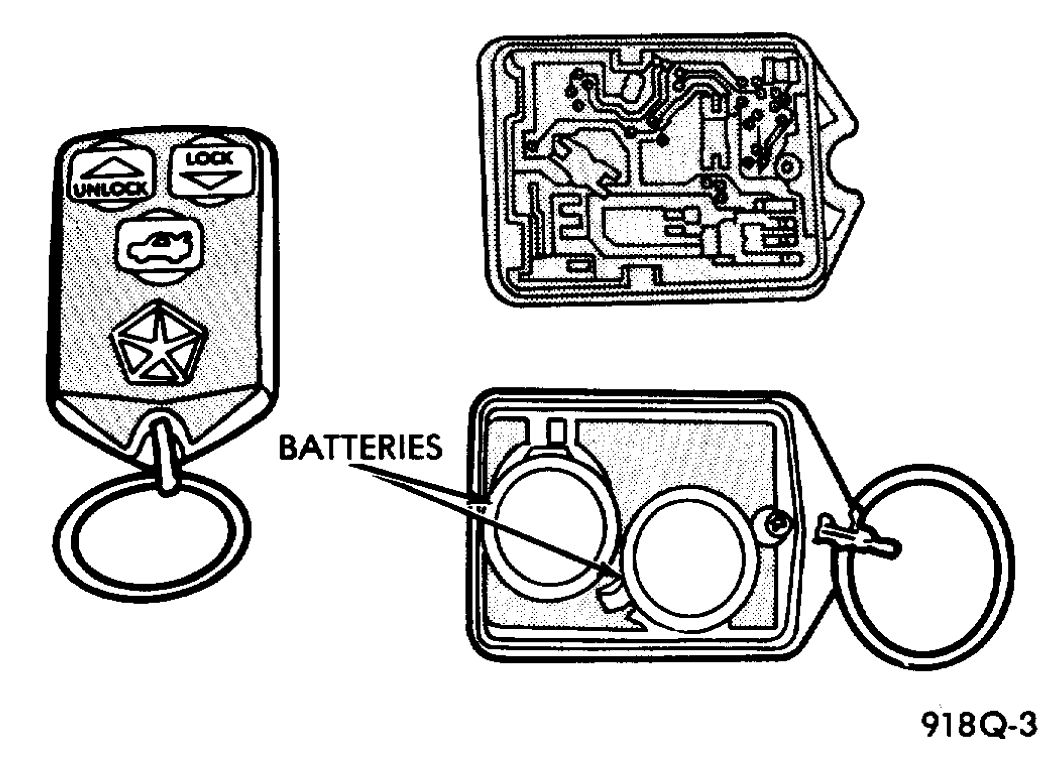

The transmitter has three buttons for operation

- UNLOCK driver's door, enable illuminated entry, and disarm the Theft Security System. Pushing and releasing the button once will unlock the driver 5 door. Two times within five seconds all doors will unlock.
- LOCK all doors, set Theft Security System and chirp horn. Chirp of horn is a short toot to notify that the alarm system is set and the indicator lamp on the instrument panel will flash for about 15 seconds.
- Unlock Trunk Lid

The receiver is capable of retaining VAC even when power is removed.

Each receiver must have at least one and no more than two transmitters.
