Keyless Entry Module: Service and Repair

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 1991 Dodge.

AI Repair Guides

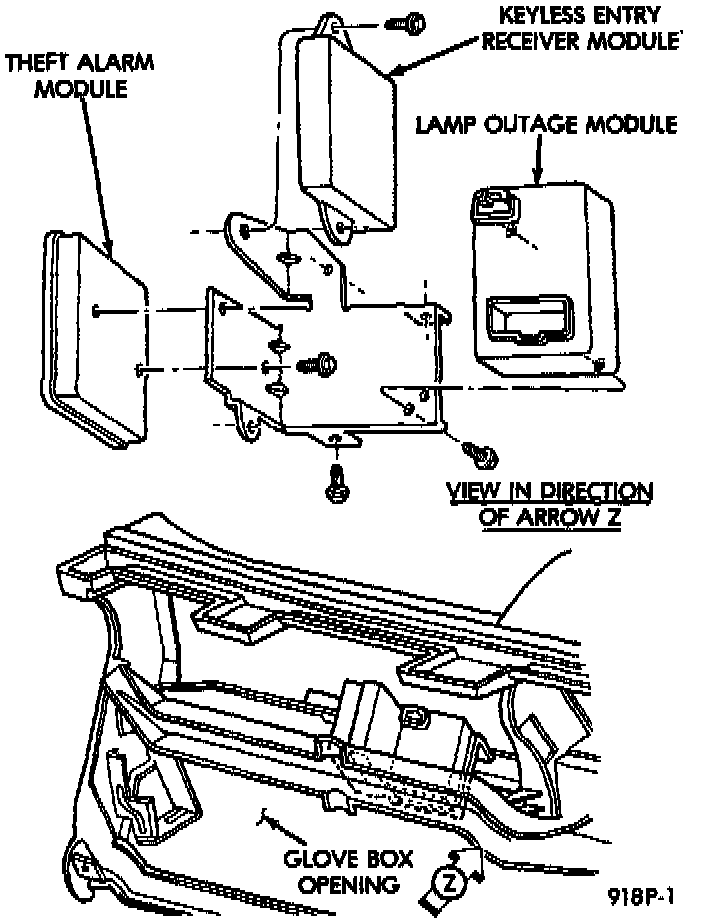

Vehicle Theft Security System Module(s):





1. Remove lower right instrument panel silencer.
2. Remove glove box assembly.
3. Remove three screws attaching the mounting bracket to instrument panel.
4. Lower bracket and module assembly, to disconnect wire connector.
5. Remove two screws attaching the Remote Keyless Entry Module to bracket.
6. Remove two screws attaching the security module to bracket.
7. To installation reverse above procedures.
