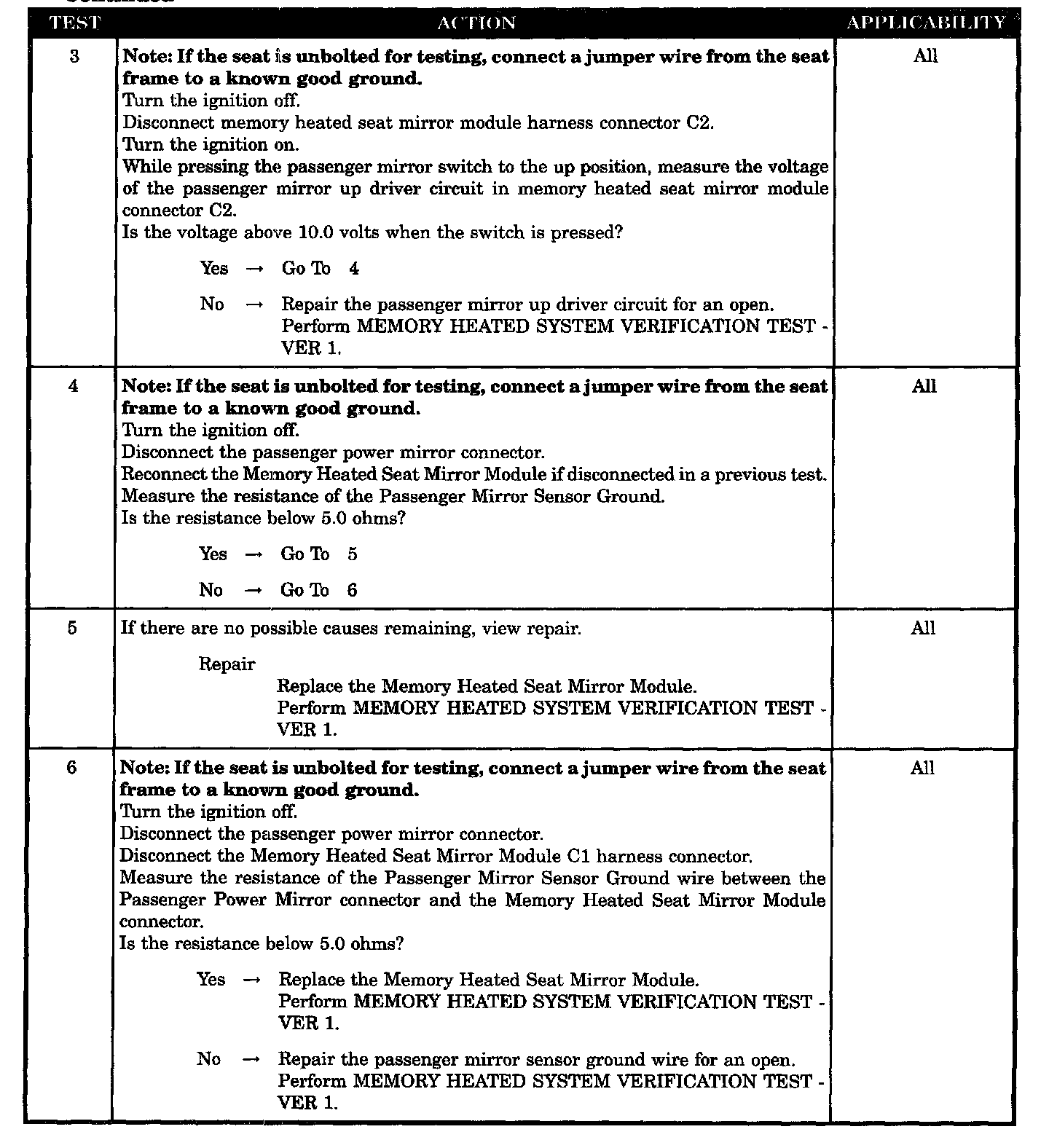

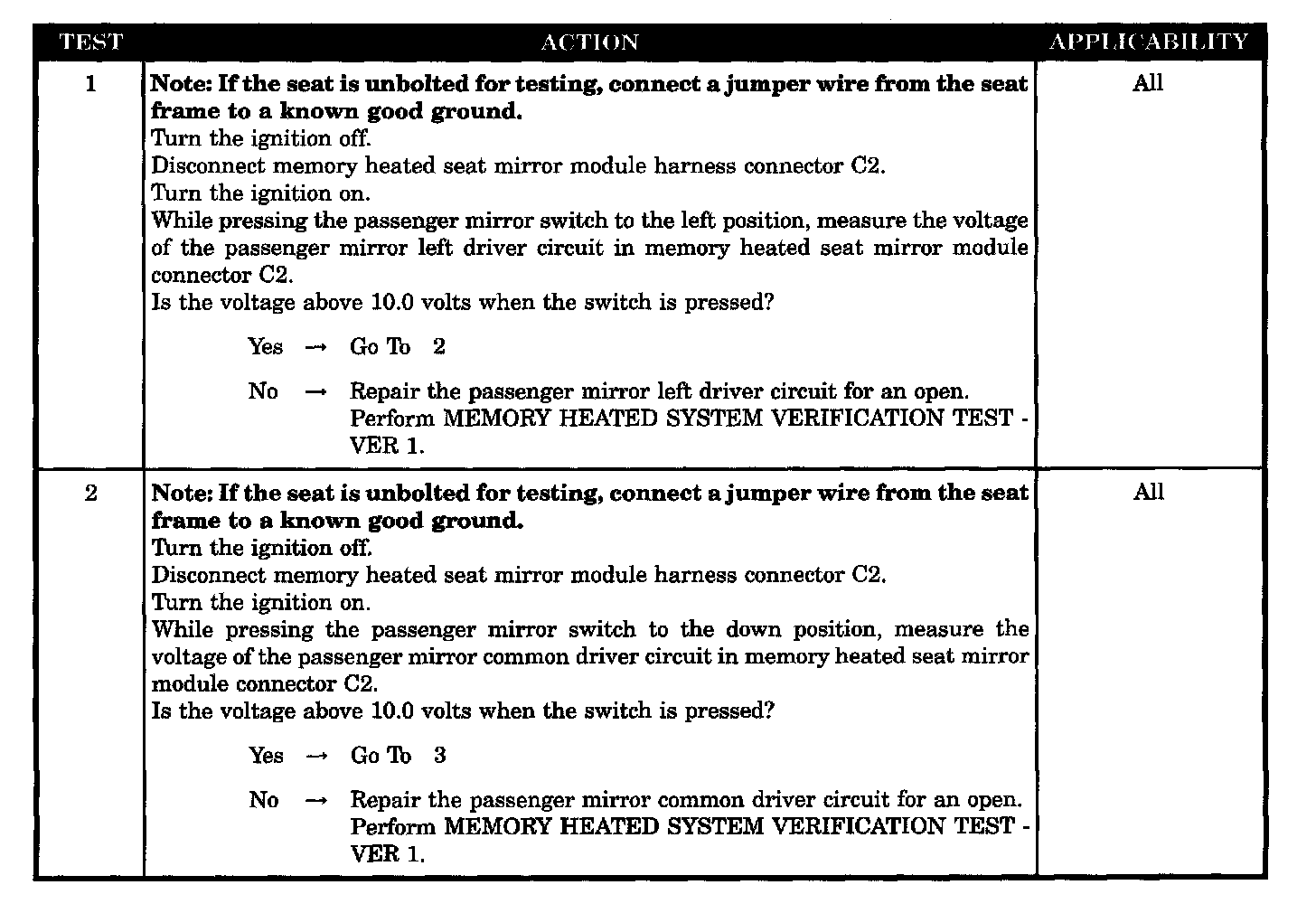

SYMPTOM
PASSENGER MIRROR INOPERATIVE FROM MEMORY (IF EQUIPPED)

POSSIBLE CAUSES
- Passenger mirror left driver circuit open
- Passenger mirror sensor ground wire open
- Passenger mirror-common driver circuit open
- Passenger mirror-up driver circuit open
- Memory heated seat mirror module
- Memory heated seat mirror module-sensor ground
