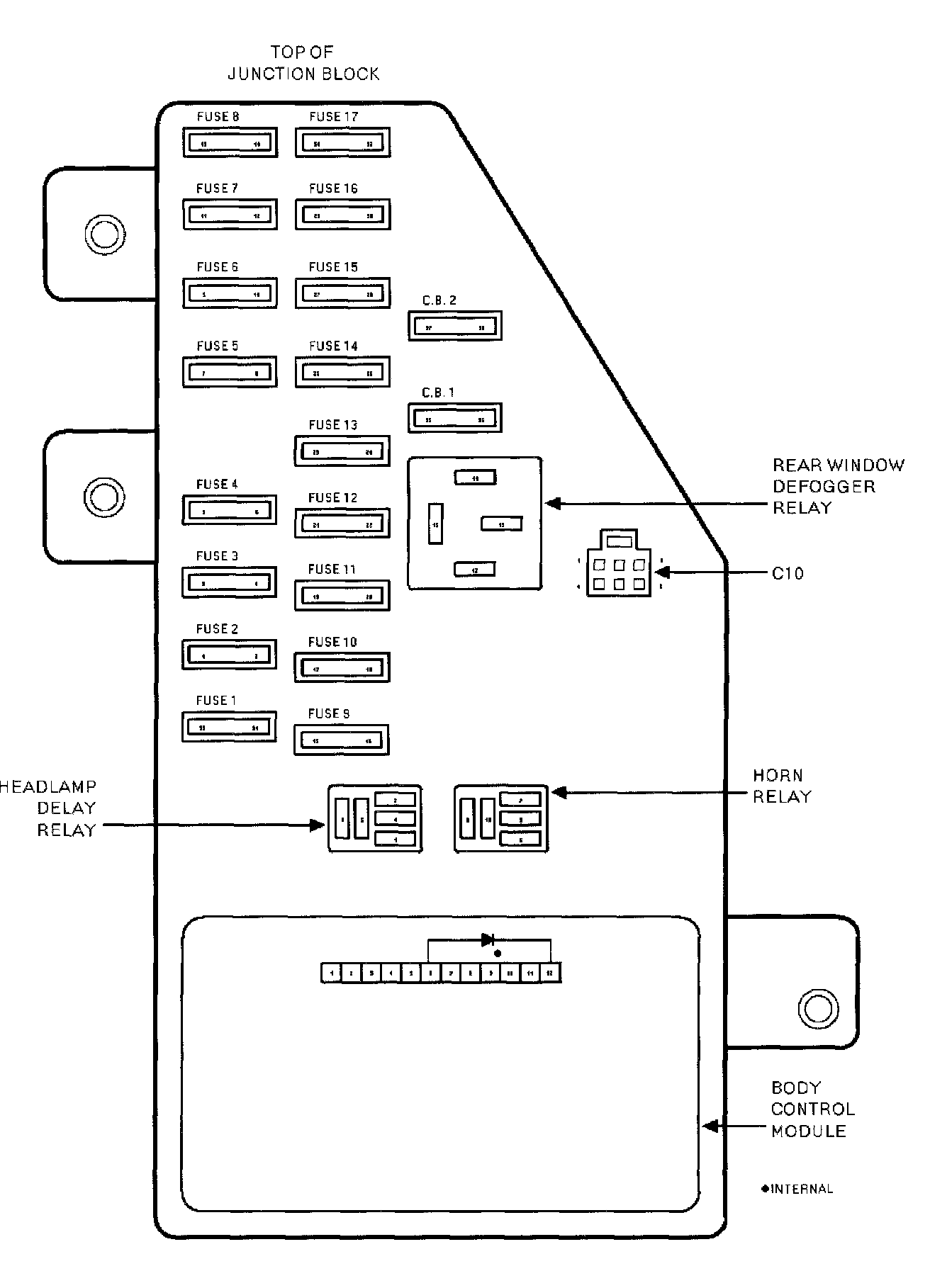

Top View:

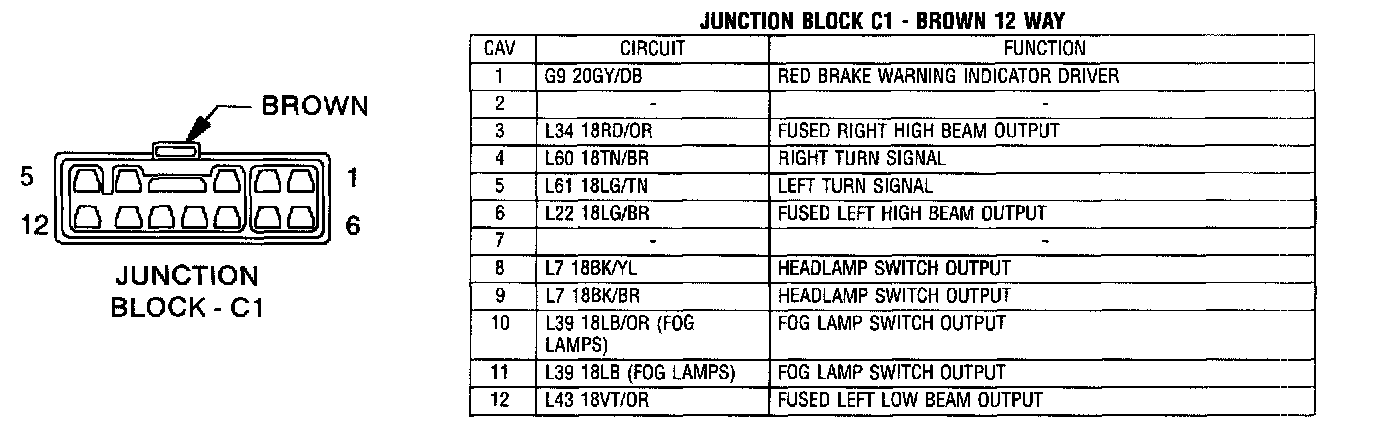

C - 1 Brown 12 Way:

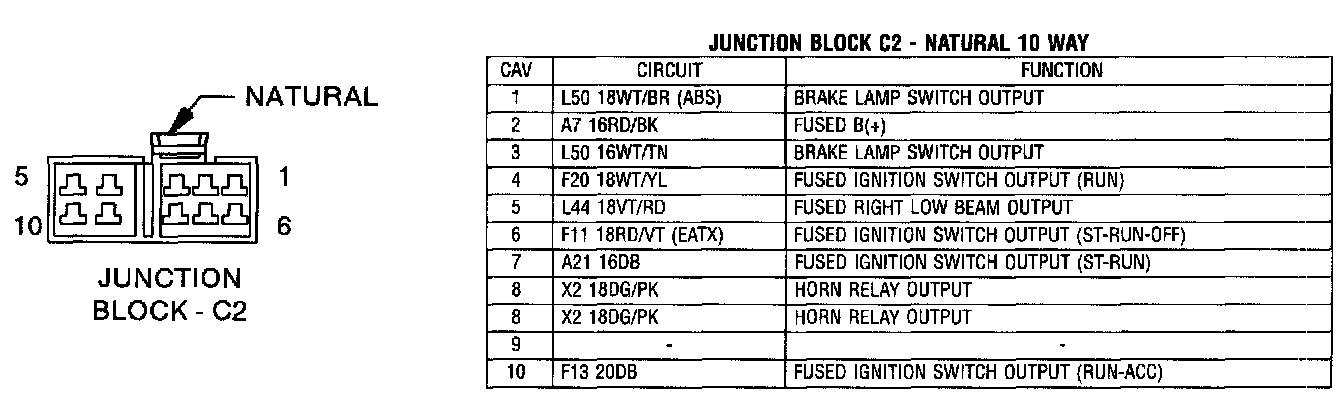

C - 2 Natural 10 Way:

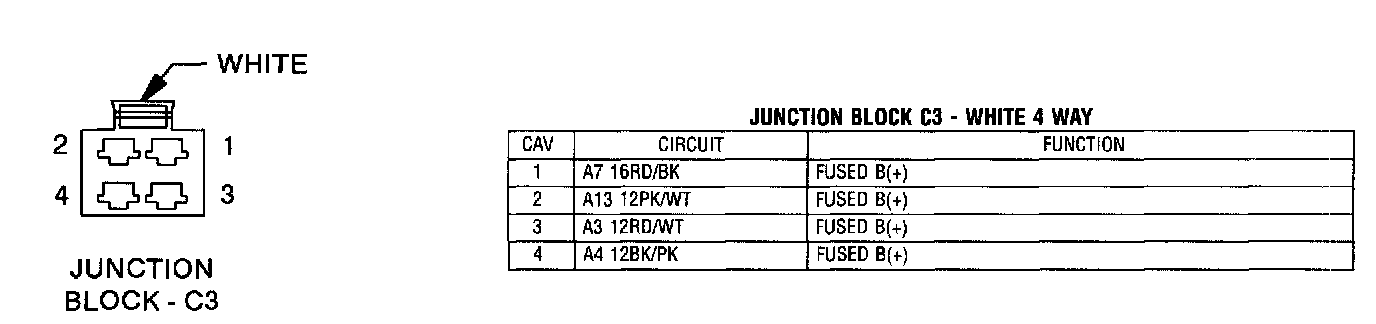

C - 3 White 4 Way:

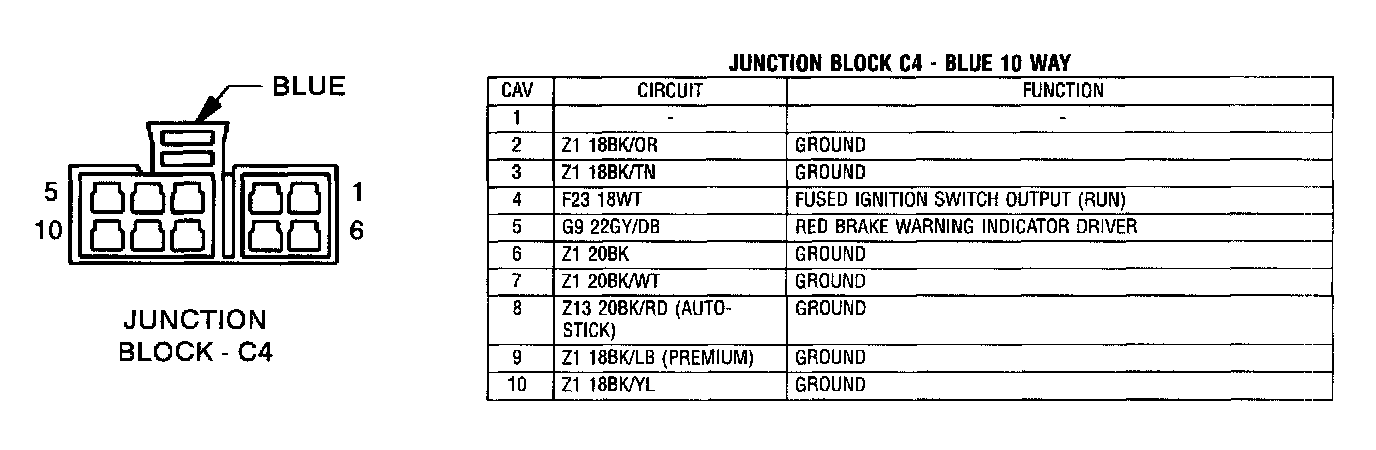

C - 4 Blue 10 Way:

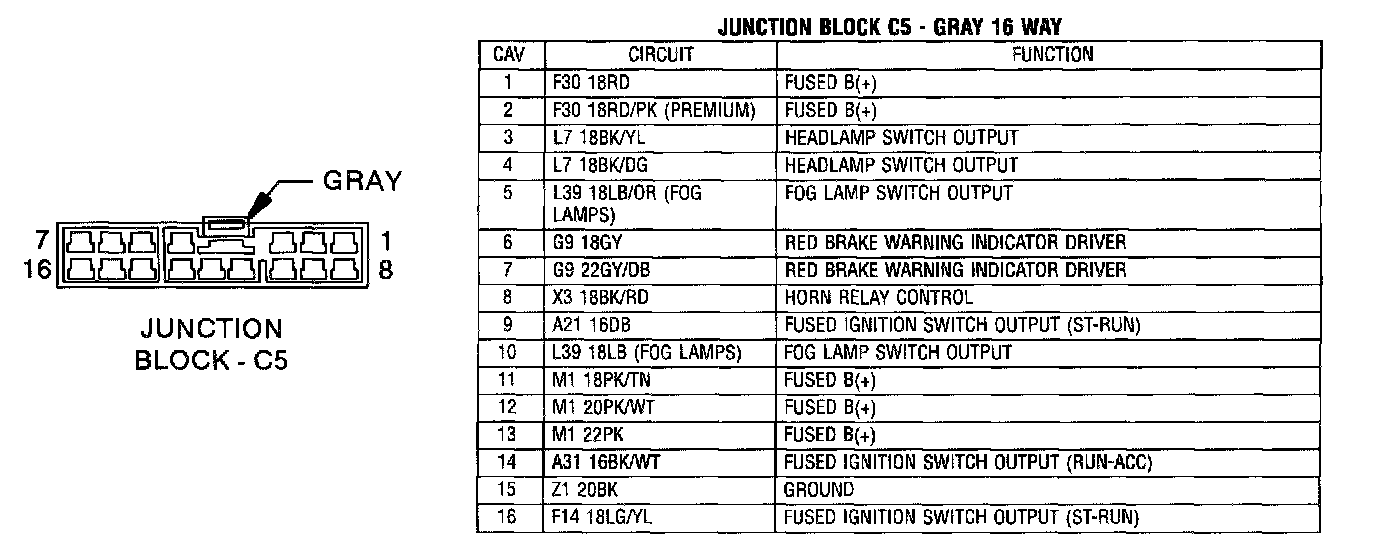

C - 5 Gray 16 Way:

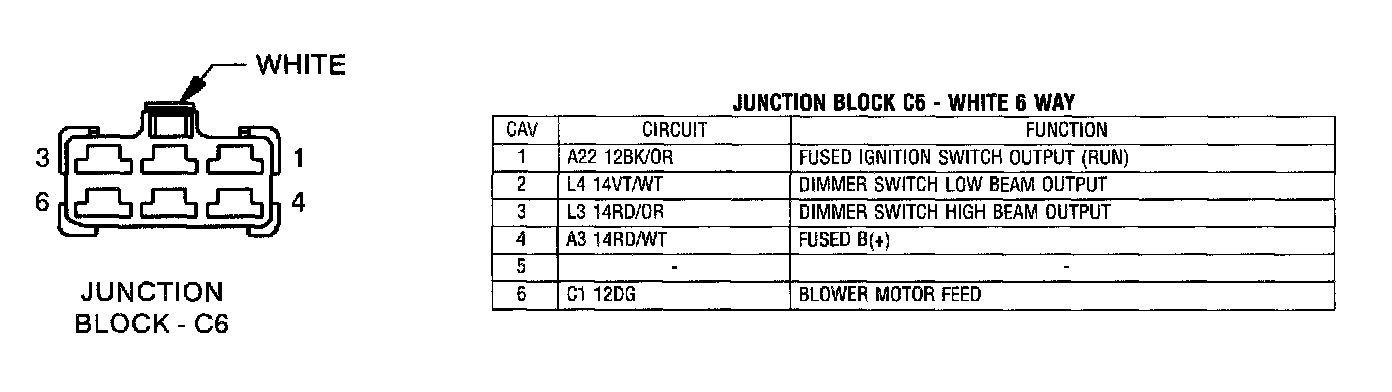

C - 6 White 6 Way:

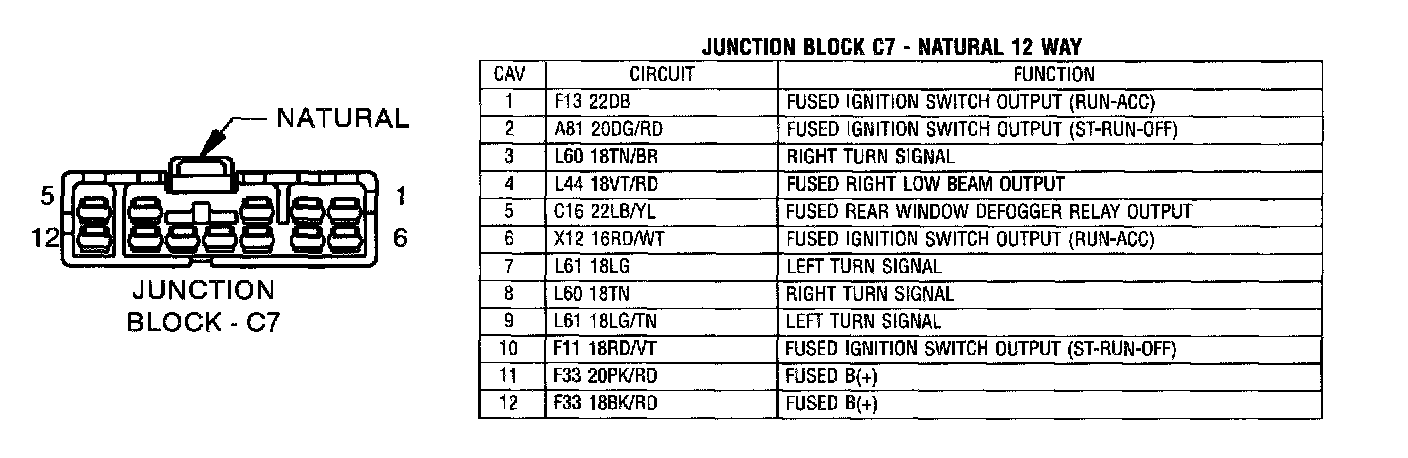

C - 7 Natural 12 Way:

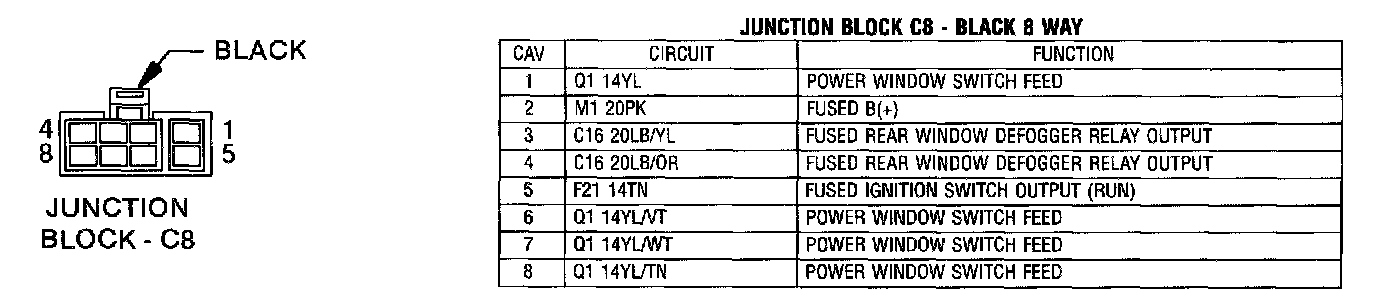

C - 8 Black 8 Way:

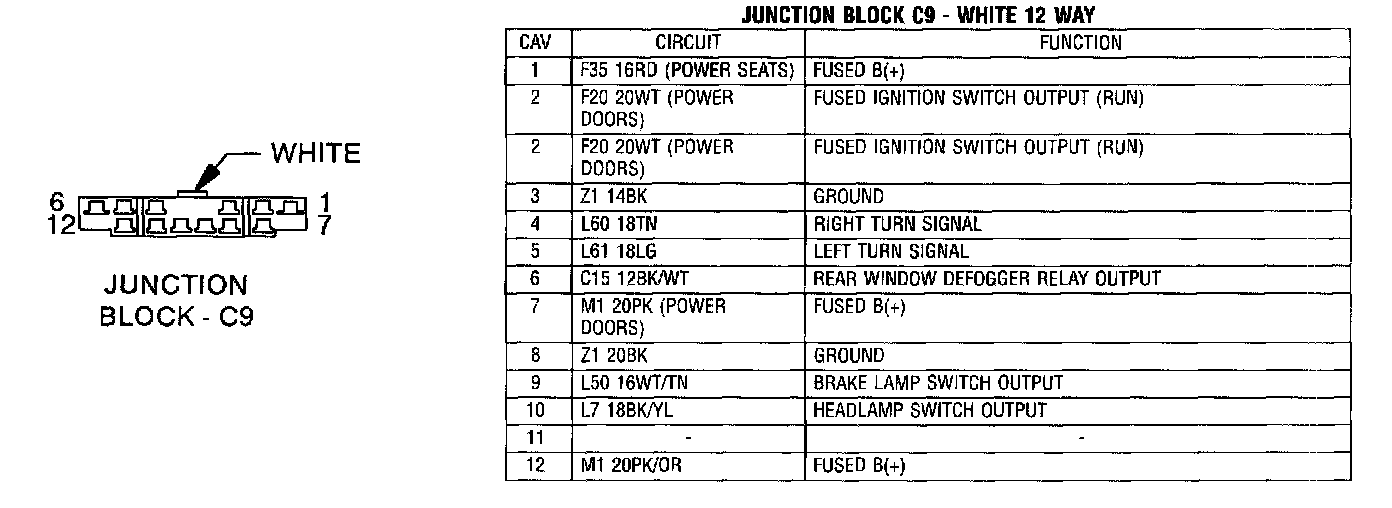

C - 9 White 12 Way:

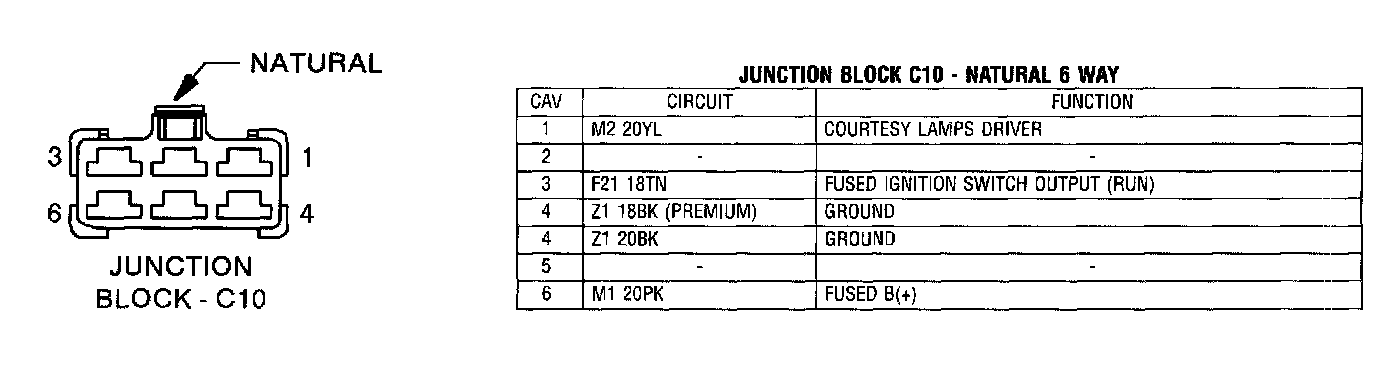

C - 10 Natural 6 Way:
Connector Terminal Views
