Manifold Pressure/Vacuum Sensor: Service and Repair

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 1999 Chrysler.

AI Repair Guides

MAP Sensor:

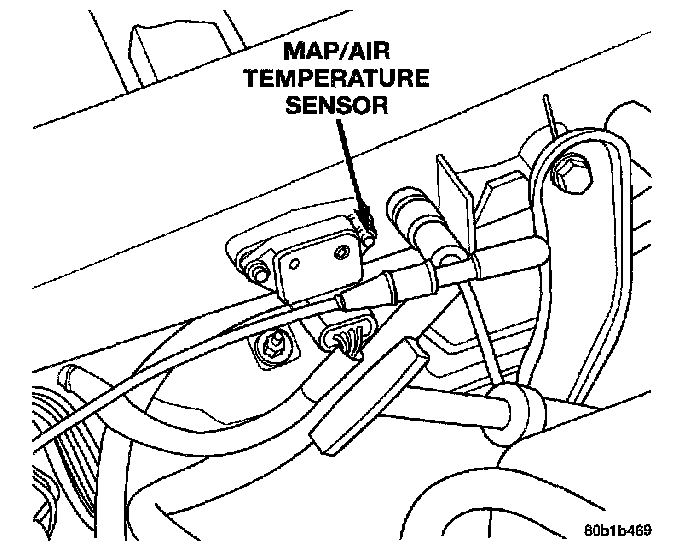

The MAP sensor mounts onto the left side of the intake manifold plenum.

REMOVAL
1. Disconnect the electrical connector from the MAP sensor.
2. Remove bolts from sensor.
3. Remove sensor.

INSTALLATION
1. Bolt sensor to intake.
2. Attach electrical connector to sensor.
