Terminal/Connector Repair-Molex Connectors

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 1999 Chrysler.

AI Repair Guides
1. Disconnect the battery.
2. Disconnect the connector from its mating half/component.

Molex Connector Repair:

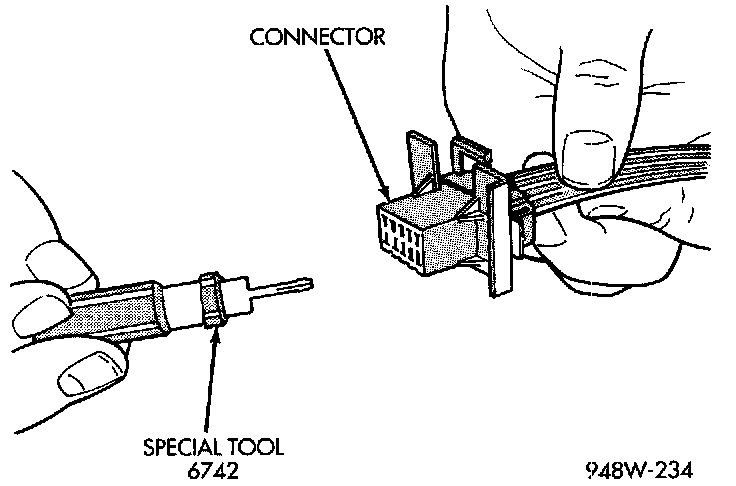

3. Insert the terminal releasing special tool 6742 into the terminal end of the connector.

Using Special Tool 6742:

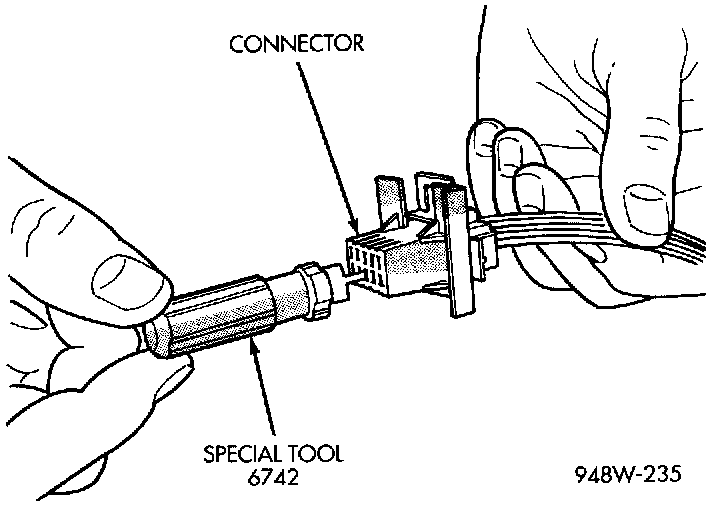

4. Using special tool 6742, release the locking fingers on the terminal.
5. Pull on the wire to remove it from the connector.
6. Repair or replace the connector or terminal, as necessary.
