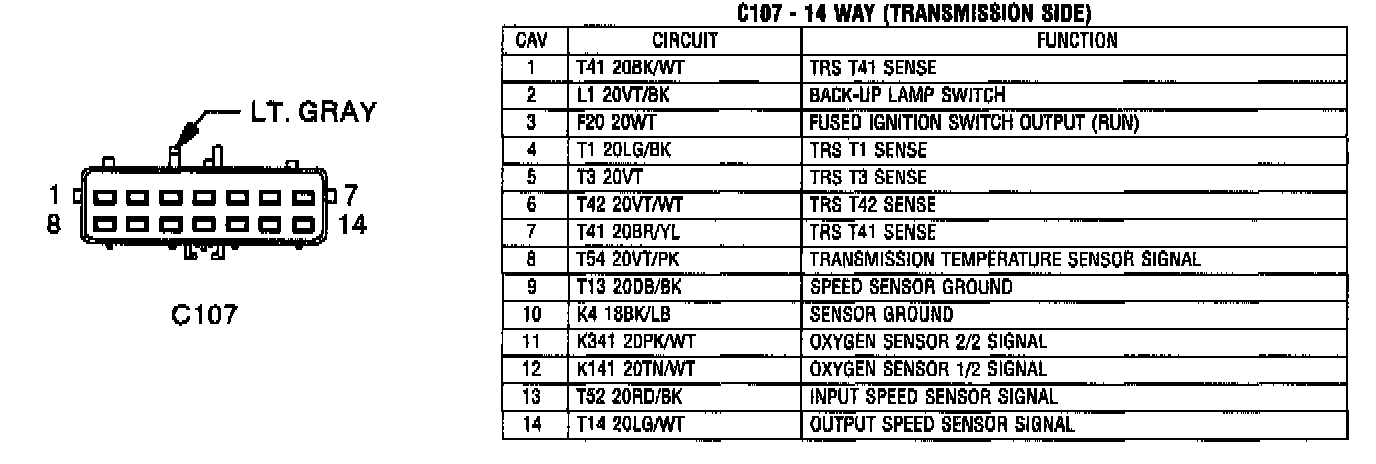

C107 - 14 Way (Transmission Side):

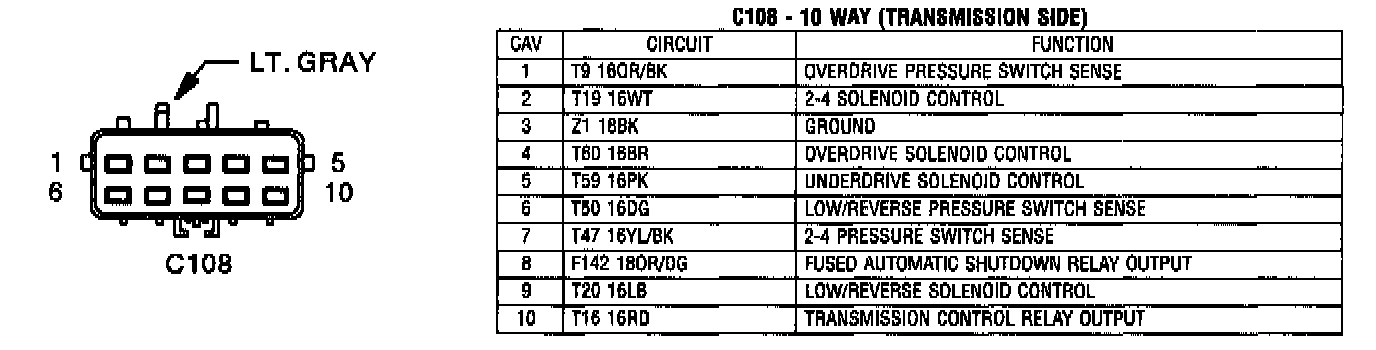

C108 - 10 Way (Transmission Side):





TRANSMISSION SIDE CONNECTOR PIN-OUTS
