Mass Airflow Sensor with Intake Air Temperature Sensor Replacement

Removal Procedure




1. Disconnect the engine wiring harness electrical connector from the mass air flow (MAF)/intake air temperature (IAT) sensor.

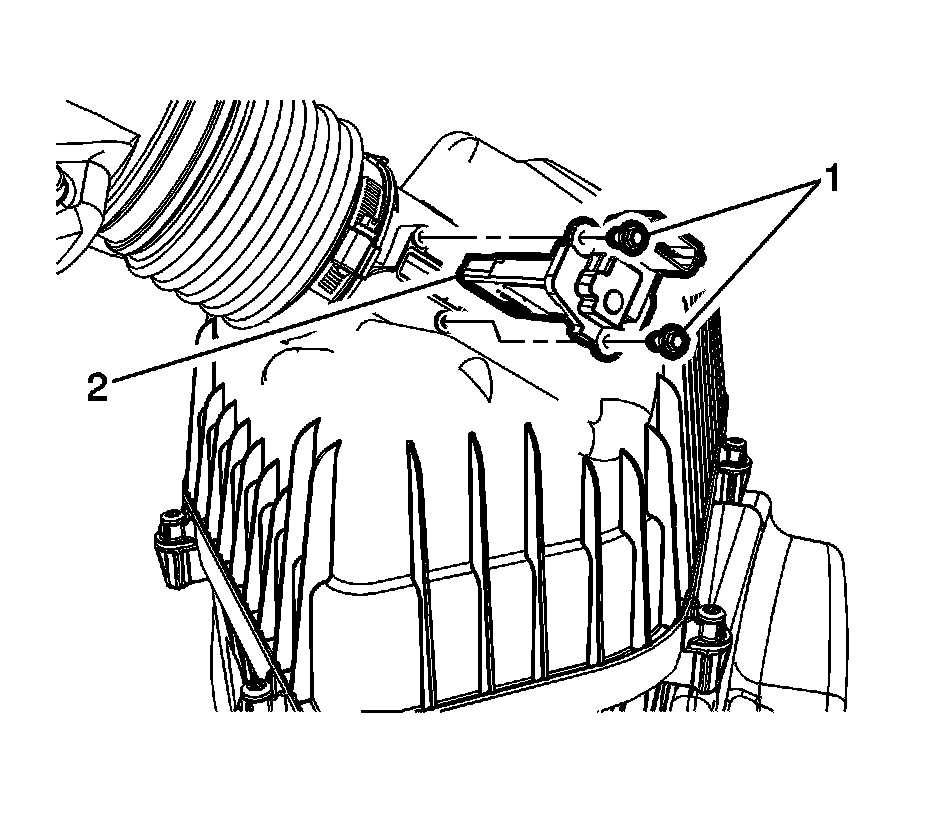

2. Remove the MAF/IAT sensor screws (1).

3. Remove the MAF/IAT sensor (2) from the air cleaner assembly.

Installation Procedure




1. Install the MAF/IAT sensor (2) to the air cleaner assembly.

Caution: Refer to Fastener Caution Fastener Caution.

2. Install the MAF/IAT sensor screws (1).

Tighten the screws to 4 Nm (35 lb in).

3. Connect the engine wiring harness electrical connector to the MAF/IAT sensor.
