Instrument Panel/Center Console Component Views

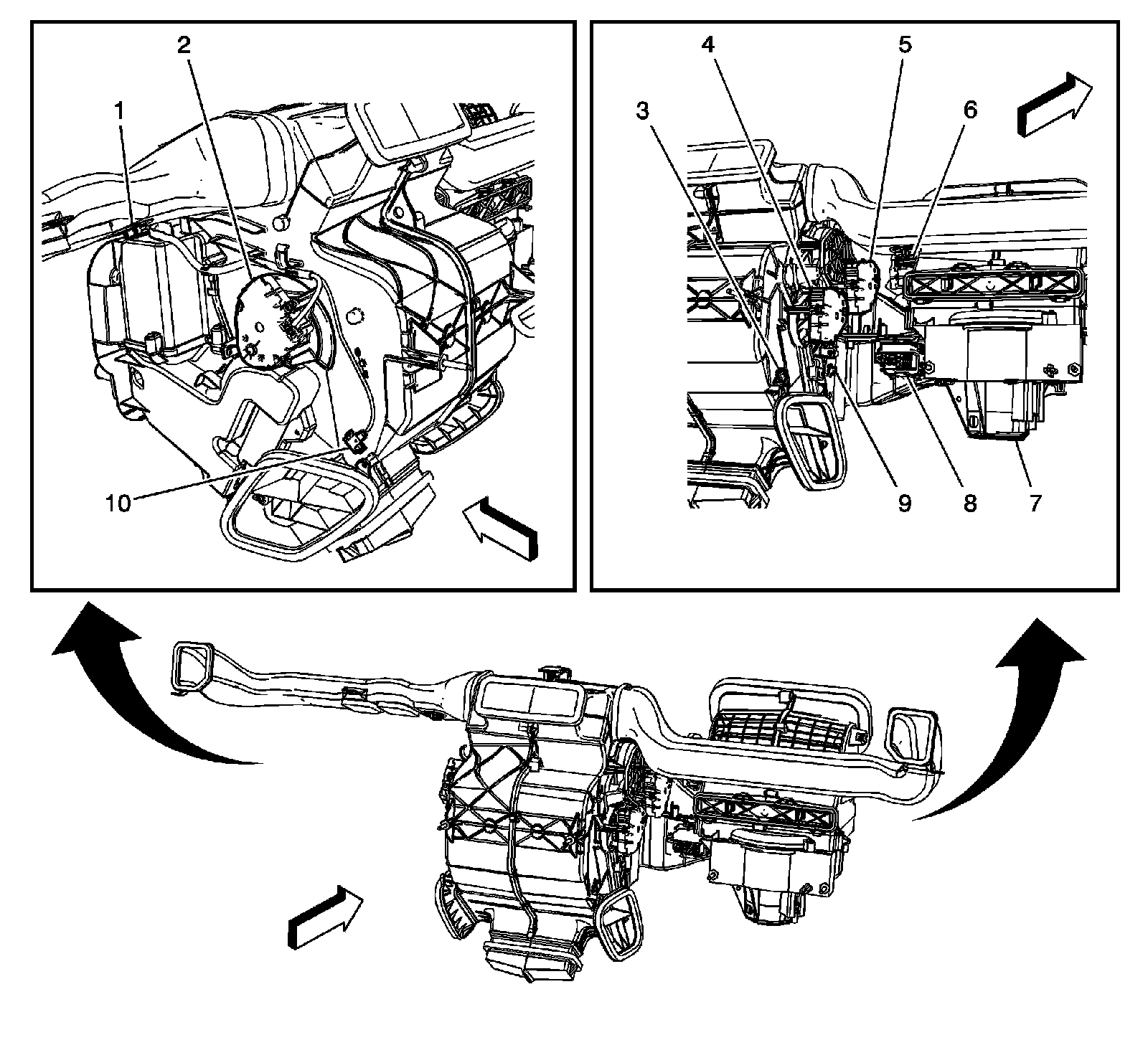

Interior HVAC Module - Front (CJ2)

1 - Air Temperature Sensor- Upper Left

2 - Air Temperature Actuator- Left

3 - Air Temperature Sensor- Lower Right

4 - Air Temperature Actuator- Right

5 - Mode Actuator

6 - Air Temperature Sensor- Upper Right

7 - Blower Motor

8 - Blower Motor Control Module

9 - Evaporator Temperature Sensor

10 - Air Temperature Sensor- Lower Left
