Passenger Compartment/Roof Component Views

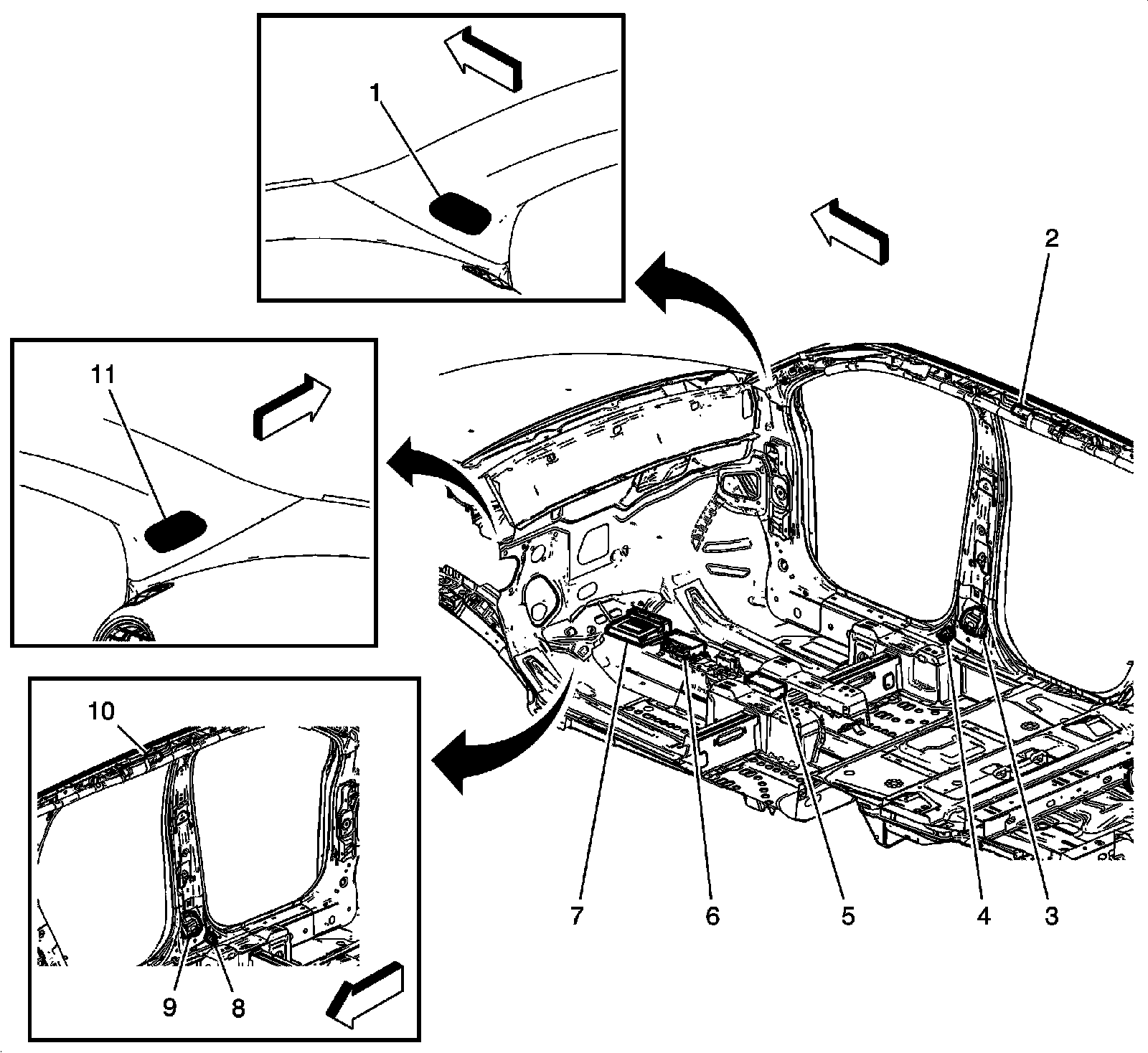

Front of the Passenger Compartment





1 - P19V Speaker - Right Front Tweeter

2 - F105R Roof Rail Air Bag - Right

3 - F112P Seat Belt Retractor Pretensioner - Passenger

4 - B63RF Side Impact Sensor - Right Front

5 - B119 Multi-axis Acceleration Sensor

6 - K36 Inflatable Restraint Sensing and Diagnostic Module

7 - K9 Body Control Module

8 - B63LF Side Impact Sensor - Left Front

9 - F112D Seat Belt Retractor Pretensioner - Driver

10 - F105L Roof Rail Air Bag - Left

11 - P19H Speaker - Left Front Tweeter
