Powertrain Component Views

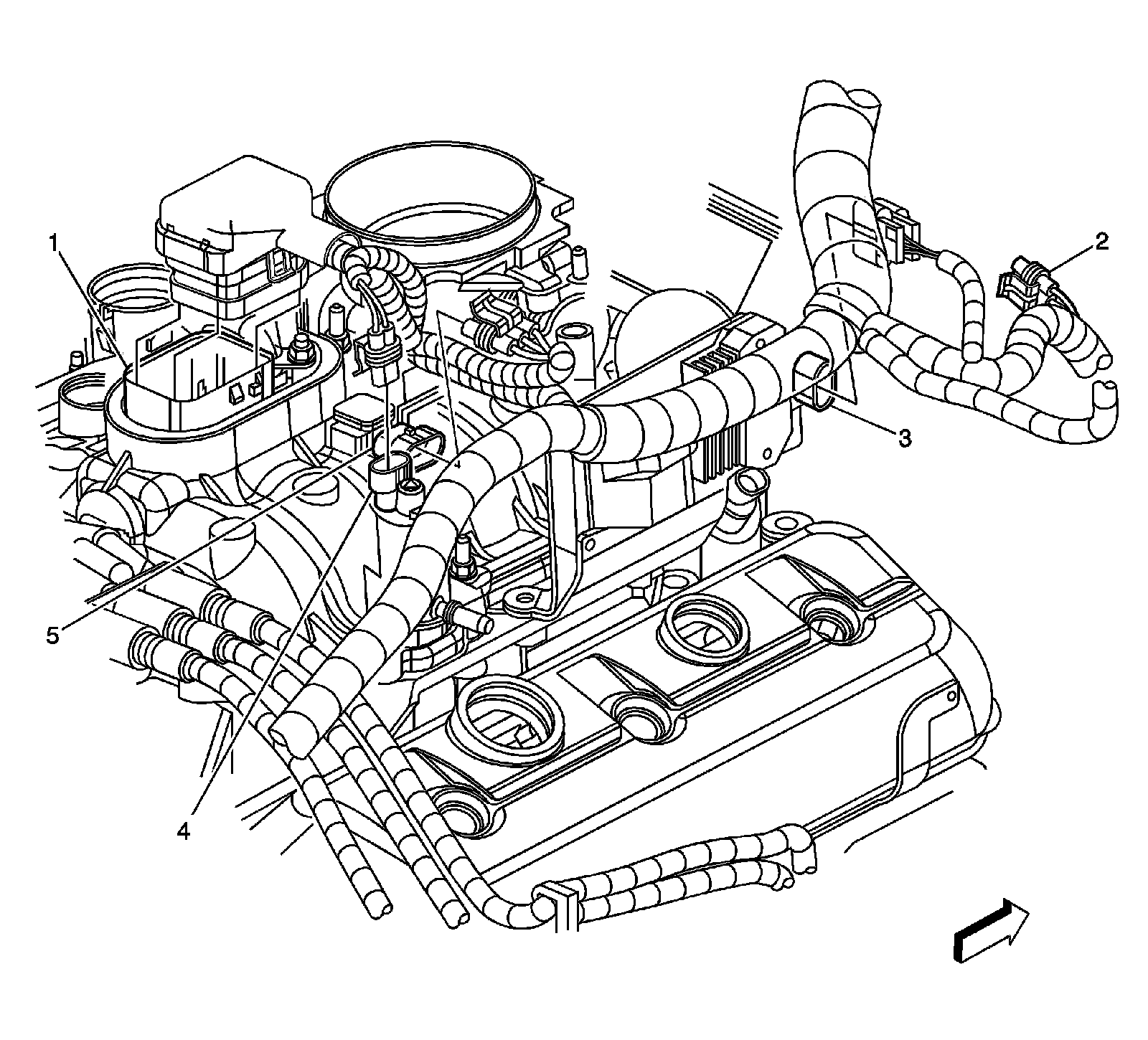

Right Side of the Engine (LU3)
1 - Central Sequential Fuel Injection (Central SFI)
2 - Generator Connector
3 - Ignition Control Module (ICM)
4 - Evaporative Emission (EVAP) Canister Purge Solenoid Valve
5 - Manifold Absolute Pressure (MAP) Sensor
