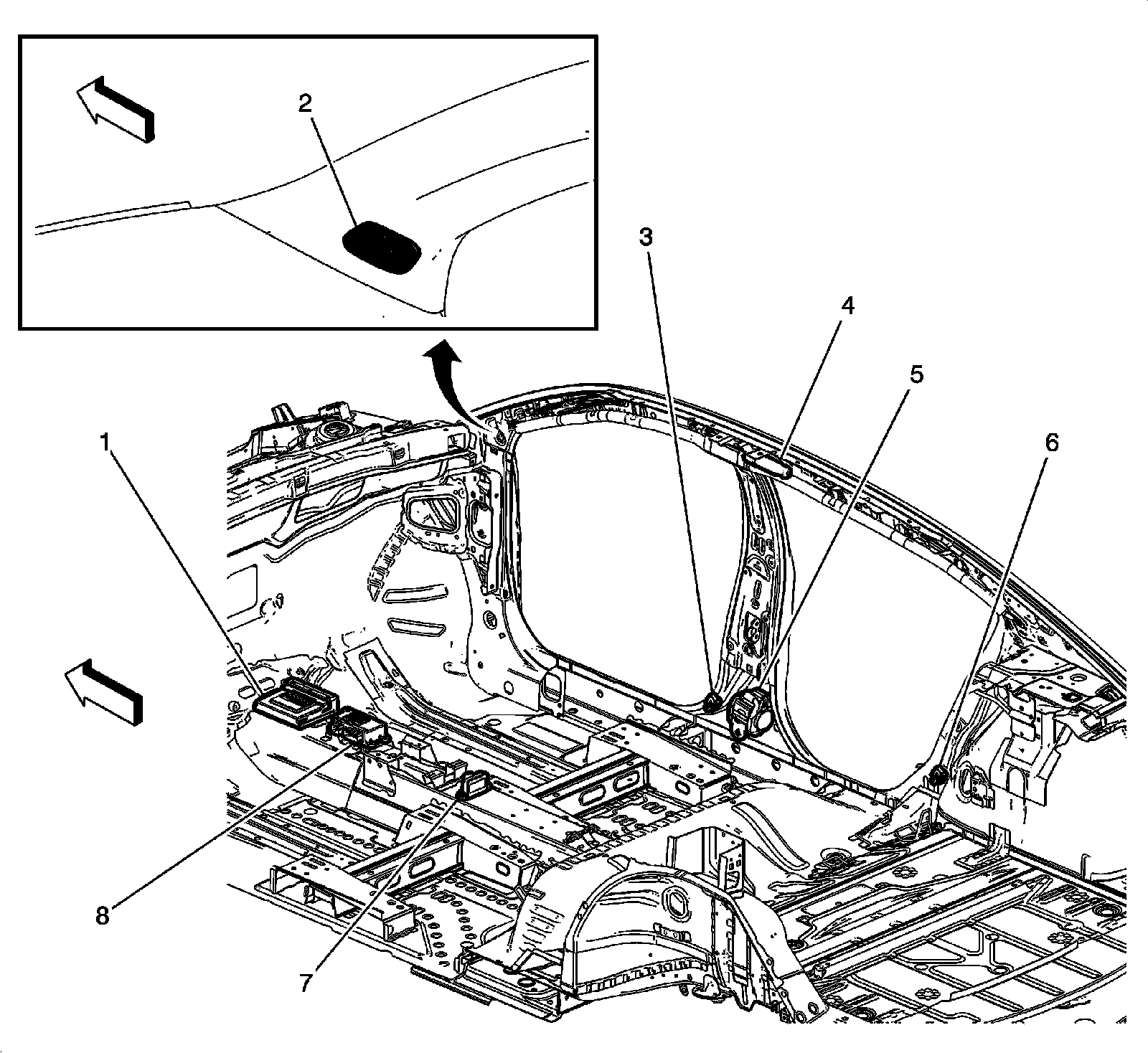

Passenger Compartment/Roof Component Views
Right Side of Passenger Compartment Components
1 - K9 Body Control Module
2 - P19V Speaker - Right Front Tweeter
3 - B63RF Side Impact Sensor - Right Front
4 - F105R Roof Rail Air Bag - Right
5 - F112P Seat Belt Retractor Pretensioner - Passenger
6 - B63RR Side Impact Sensor - Right Rear
7 - B119 Multi-axis Acceleration Sensor (FX3)
8 - K36 Inflatable Restraint Sensing and Diagnostic Module
