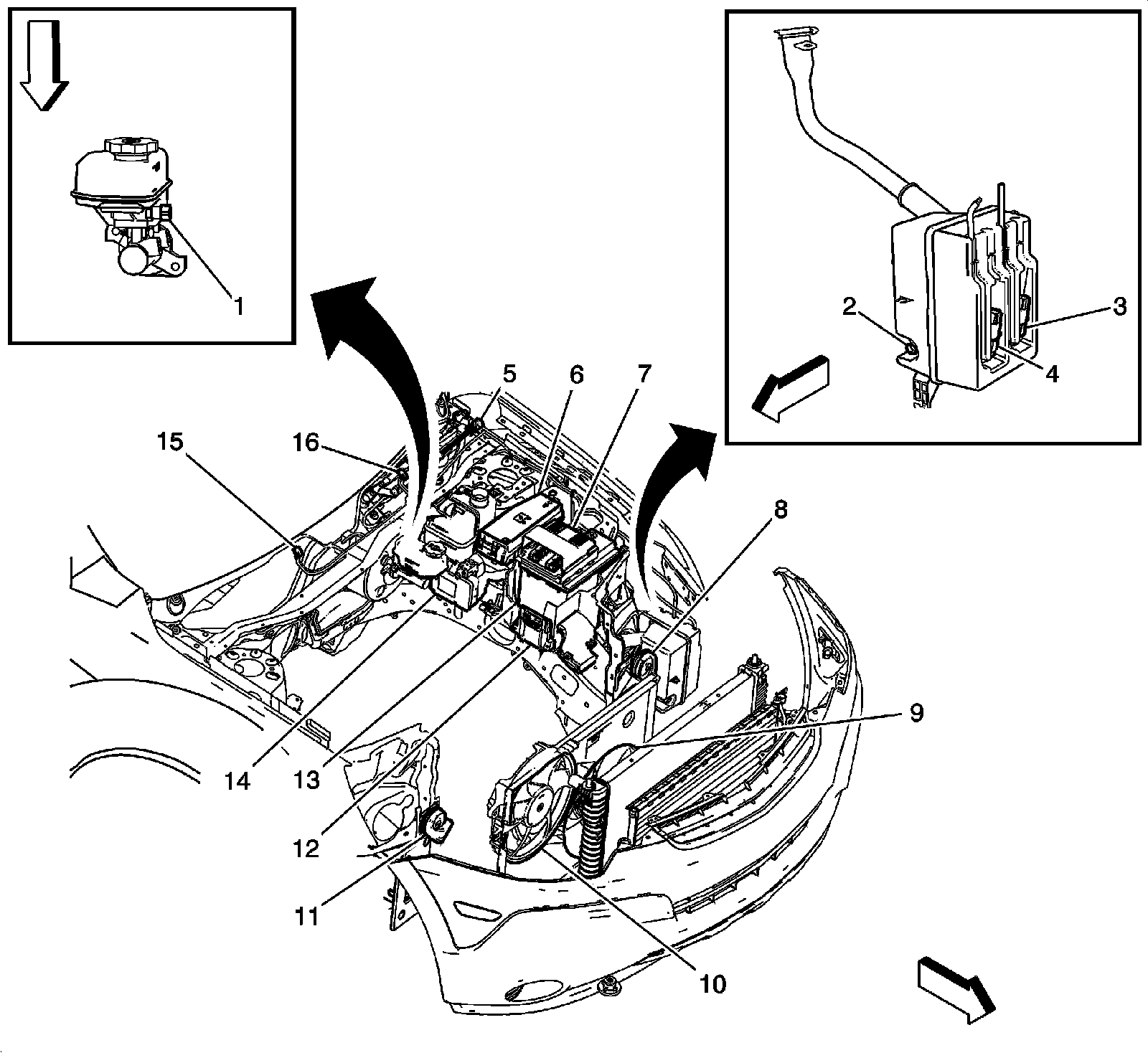

Front of Vehicle/Engine Compartment Component Views
Engine Compartment Components
1 - Brake Fluid Level Switch
2 - Windshield Washer Fluid Level Switch
3 - Windshield Washer Fluid Pump - Rear
4 - Windshield Washer Fluid Pump - Front
5 - Windshield Wiper Motor
6 - Fuse Block - Underhood
7 - Engine Control Module
8 - Horn - Left
9 - Engine Cooling Fan - Left
10 - Engine Cooling Fan - Right
11 - Horn - Right
12 - Transmission Control Module (ME7)
13 - Battery
14 - Electronic Brake Control Module
15 - Heated Washer Nozzle - Right ( XA7)
16 - Heated Washer Nozzle - Left ( XA7)
