Electronic Throttle Control Module: Locations

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2013 Chevrolet.

Powertrain Component Views

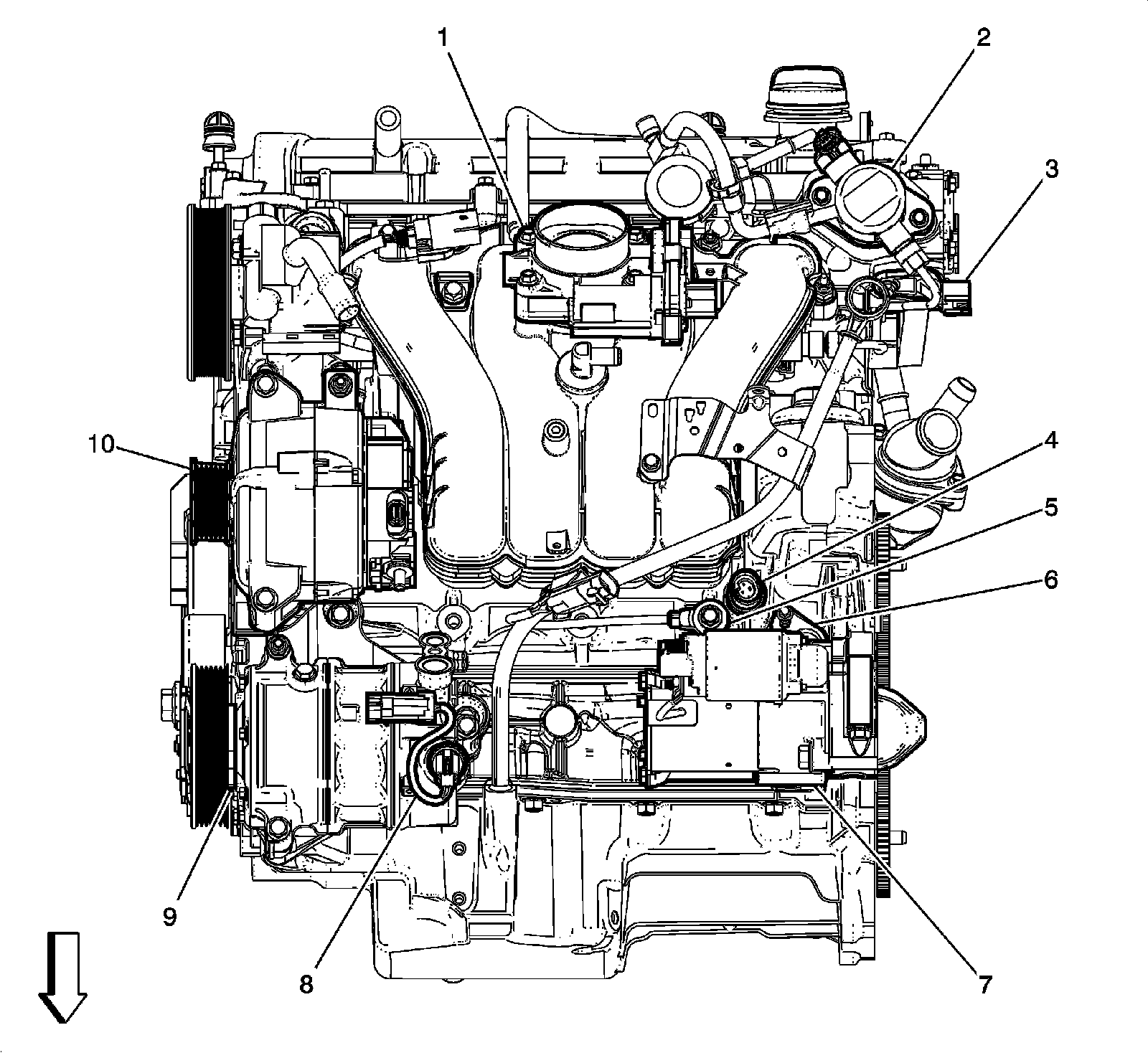

Front Engine Components (LEA 1 of 2)

1 - Throttle Actuator Control (TAC) Module

2 - High Pressure Fuel Pump

3 - Camshaft Position Sensor - Intake

4 - Engine Oil Pressure Switch

5 - Knock Sensor

6 - Crankshaft Position Sensor

7 - Starter Motor

8 - A/C Compressor

9 - Generator
