Instrument Panel/Center Console Component Views

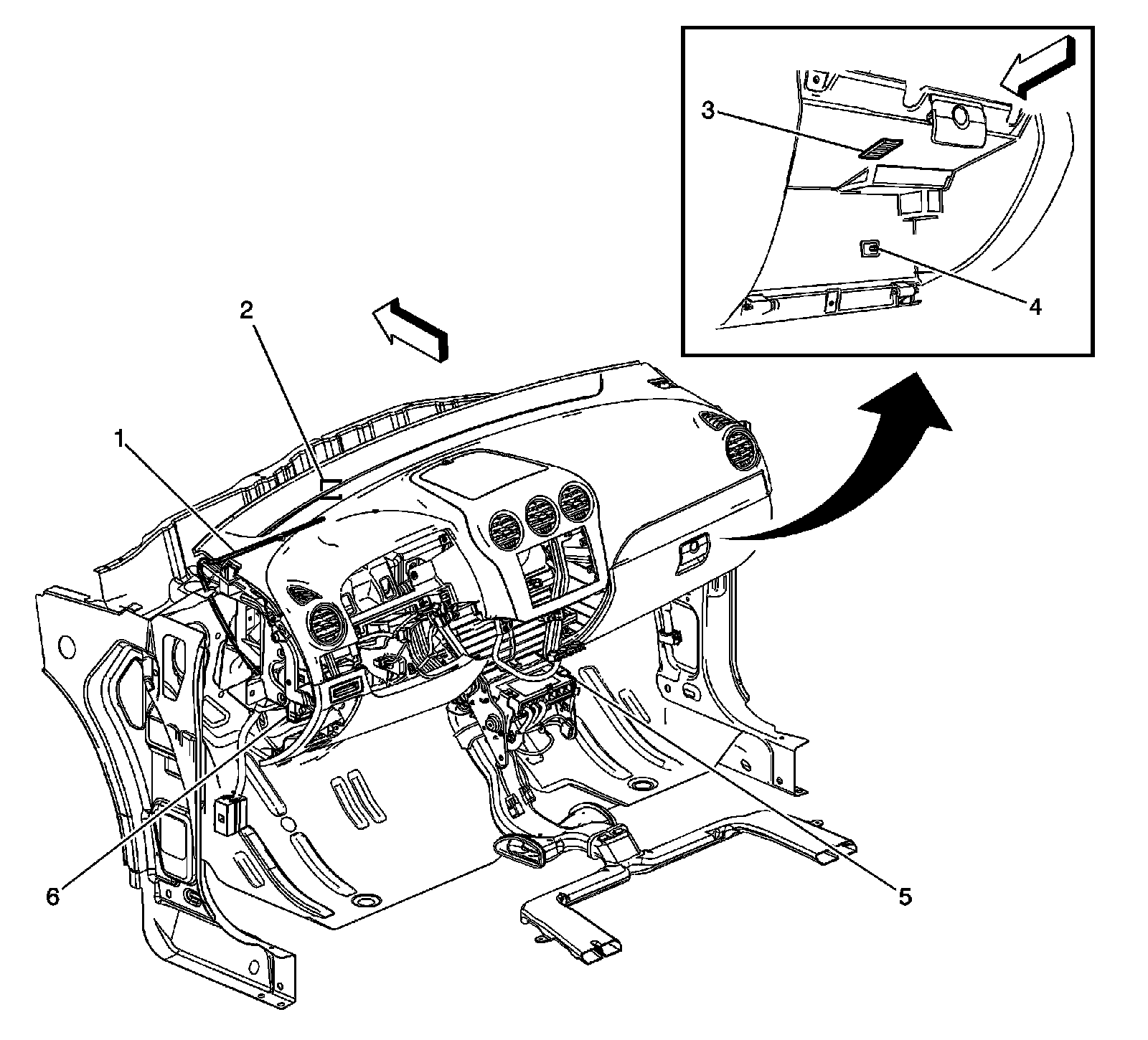

Behind the Instrument Panel Components

1 - Remote Control Door Lock Receiver (RCDLR) Antenna - Extended Range (AP3)

2 - GPS Navigational Antenna - Radio

3 - I/P Compartment Lamp

4 - I/P Compartment Lamp Switch

5 - Body Control Module (BCM)

6 - Remote Control Door Lock Receiver (RCDLR) (AP3)
