Thread Repair Specifications

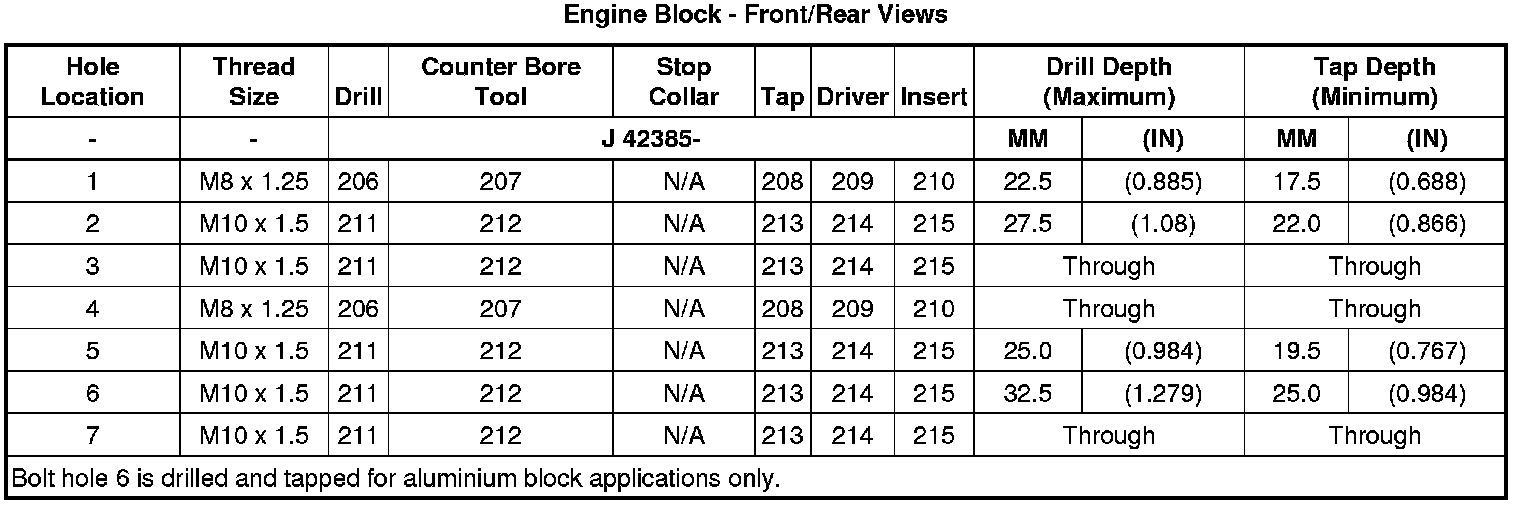

Engine Block - Front/Rear Views

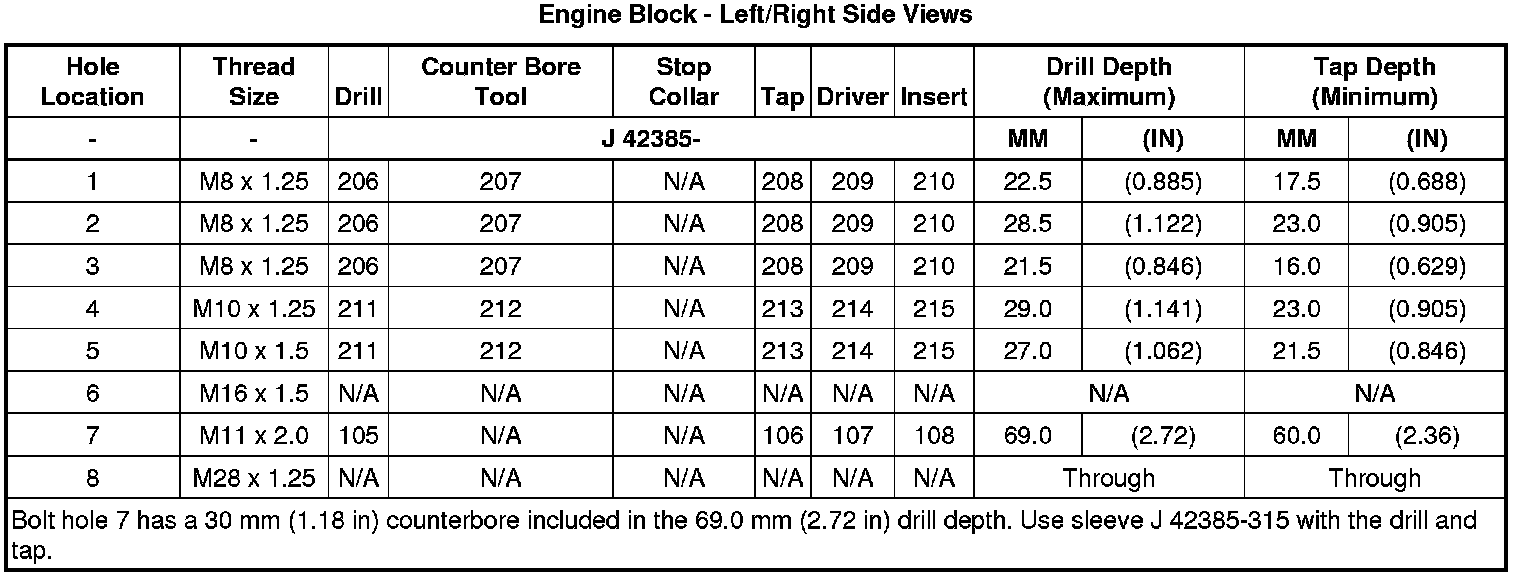

Engine Block - Left/Right Side Views

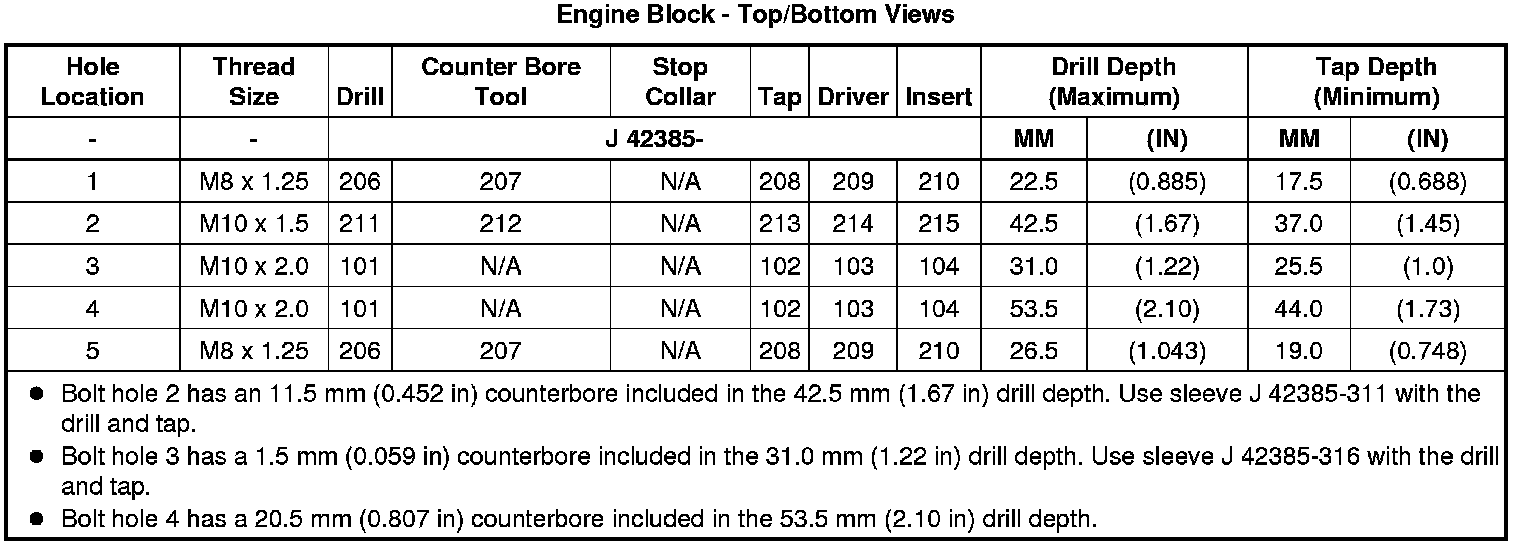

Engine Block - Top/Bottom Views

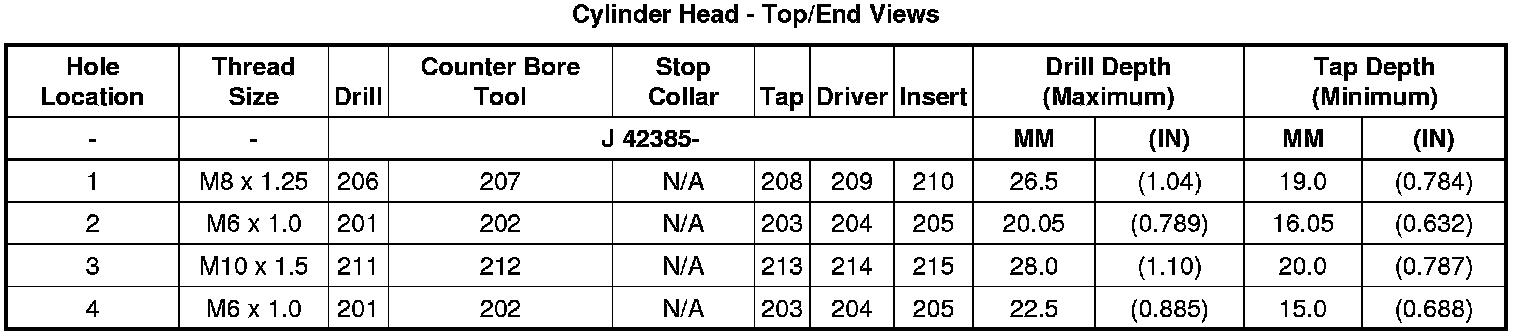

Cylinder Head - Top/End Views

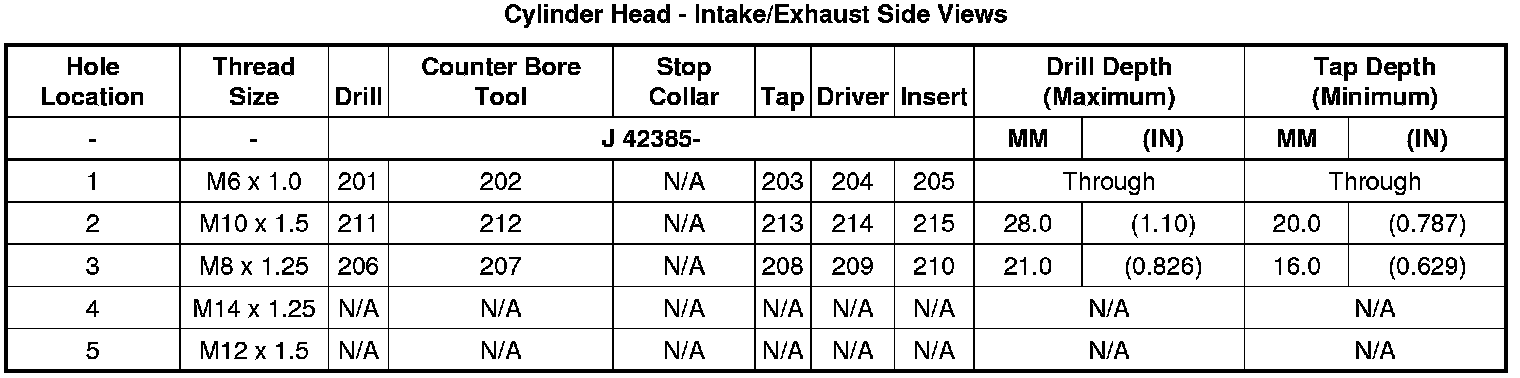

Cylinder Head - Intake/Exhaust Side Views
Thread Repair Specifications
Need a step-by-step guide?
Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2013 Chevrolet.
Thread Repair Specifications
Engine Block - Front/Rear Views
Engine Block - Left/Right Side Views
Engine Block - Top/Bottom Views
Cylinder Head - Top/End Views
Cylinder Head - Intake/Exhaust Side Views
