Harness Routing Views

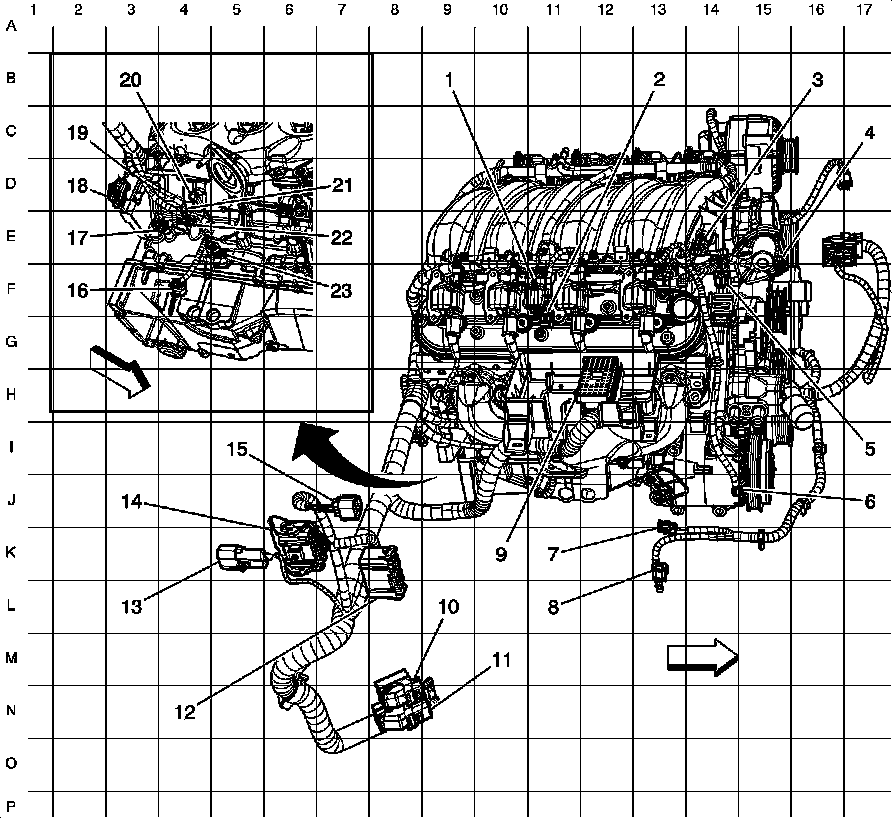

Engine Harness Routing - Right Front (LS3)





1 - X139

2 - Heated Oxygen Sensor (HO2S) - Bank 2 Sensor 1

3 - Manifold Absolute Pressure (MAP) Sensor

4 - Throttle Body

5 - Evaporative Emission (EVAP) Canister Purge Solenoid Valve

6 - A/C Compressor Clutch

7 - X163

8 - Suspension Position Sensor - Right Front (FE2) Connector

9 - Fuse Block - Underhood X2

10 - Engine Control Module (ECM) X2

11 - Engine Control Module (ECM) X1

12 - X184

13 - X182

14 - X180

15 - X186

16 - Engine Oil Level and Temperature Sensor (LS3)

17 - Crankshaft Position (CKP) Sensor

18 - Heated Oxygen Sensor (HO2S) - Bank 2 Sensor 2 Connector

19 - Fusible Link

20 - G106

21 - Starter Solenoid

22 - Starter Motor

23 - Knock Sensor (KS) 2
