Seat Temperature Control Module

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2011 Chevrolet.

AI Repair Guides



Component Connector End Views

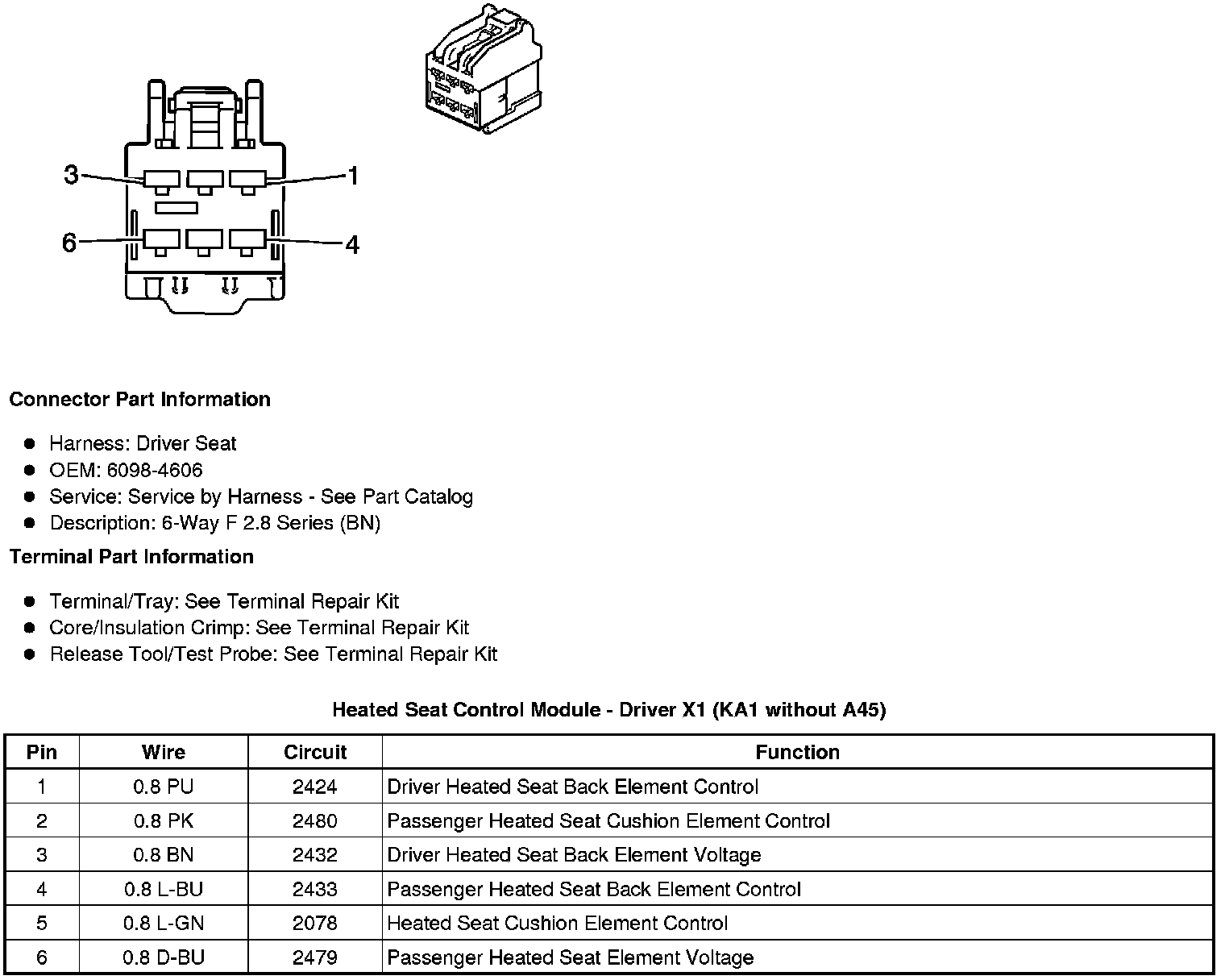

Heated Seat Control Module - Driver X1 (KA1 without A45)

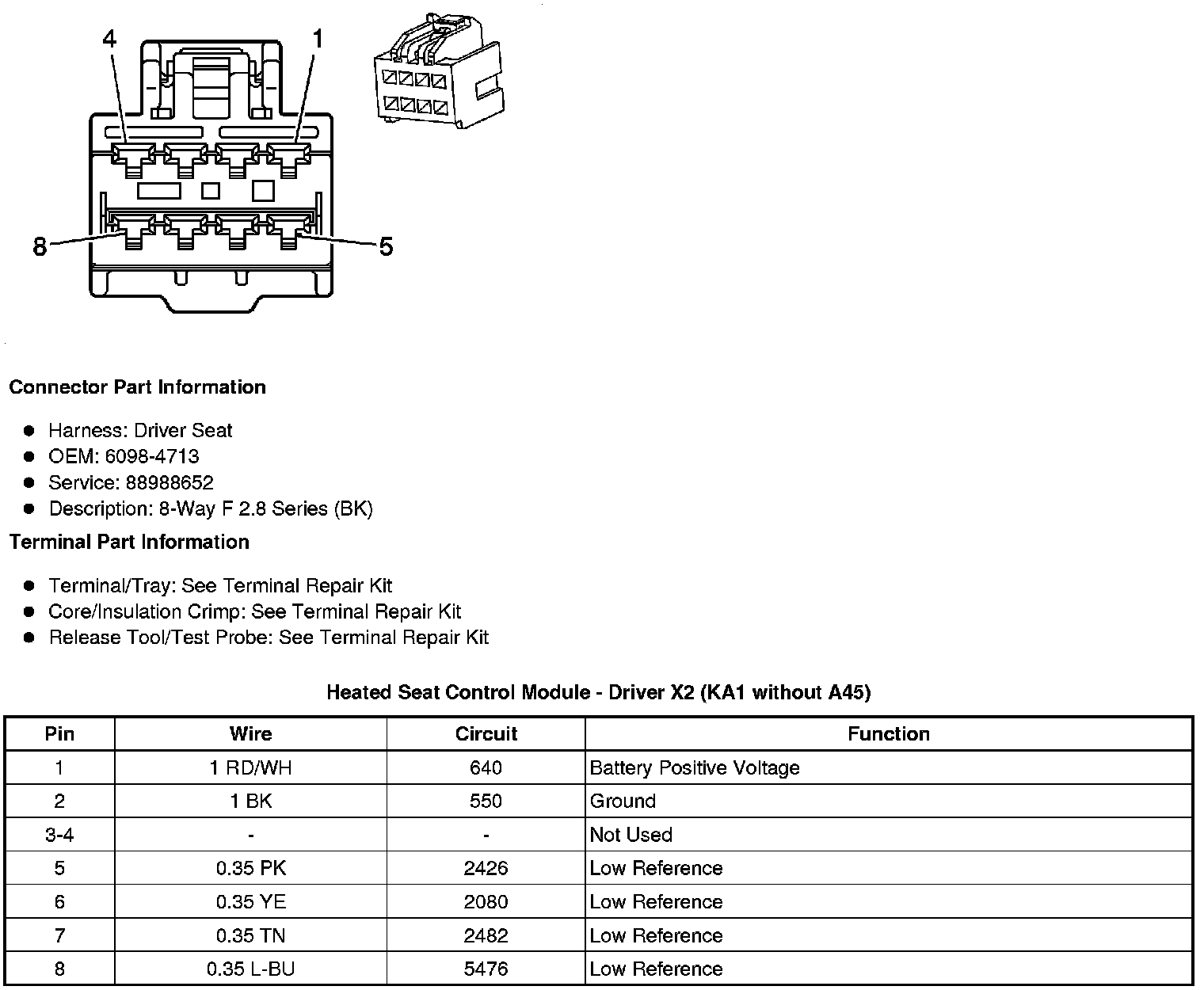

Heated Seat Control Module - Driver X2 (KA1 without A45)

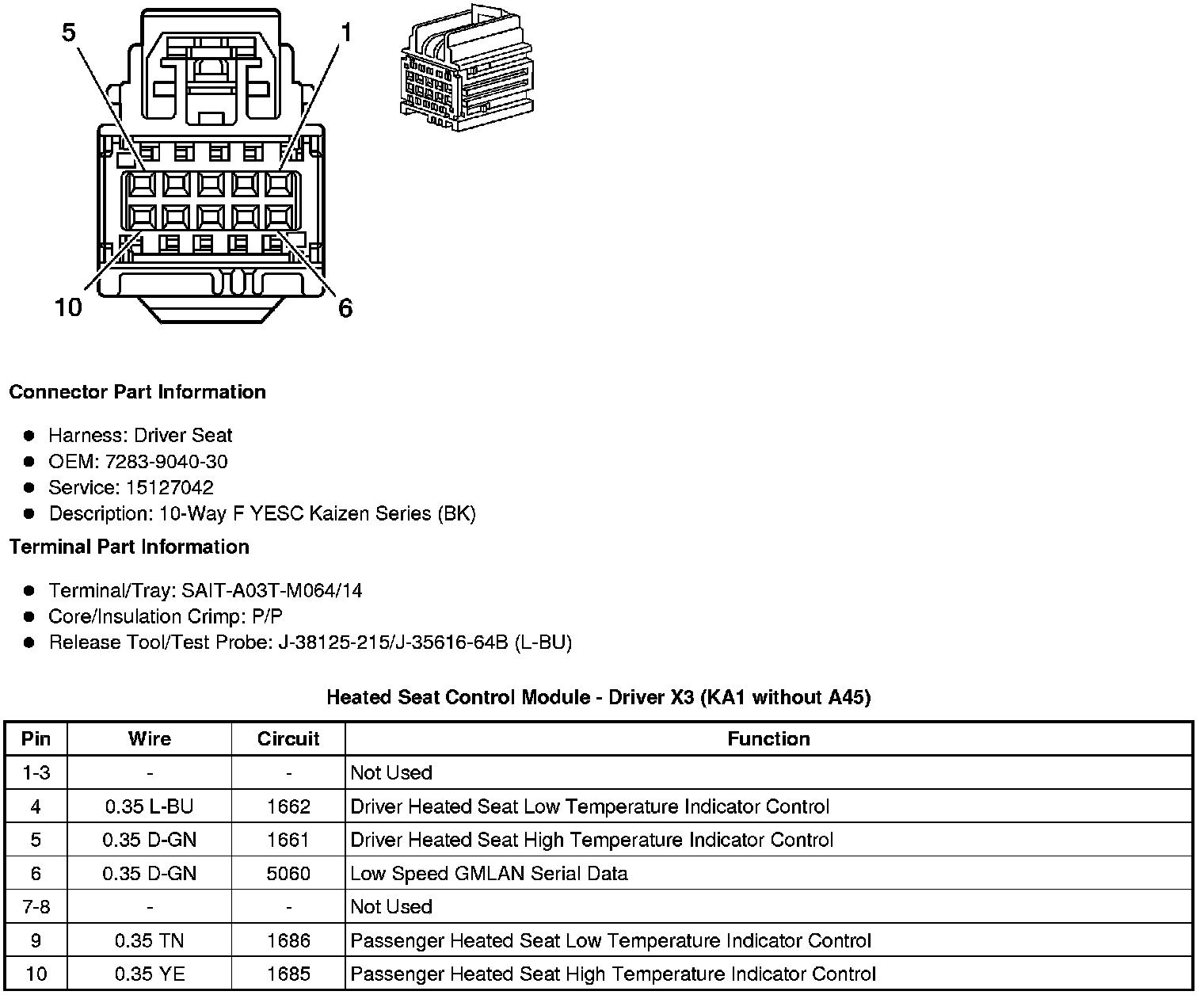

Heated Seat Control Module - Driver X3 (KA1 without A45)

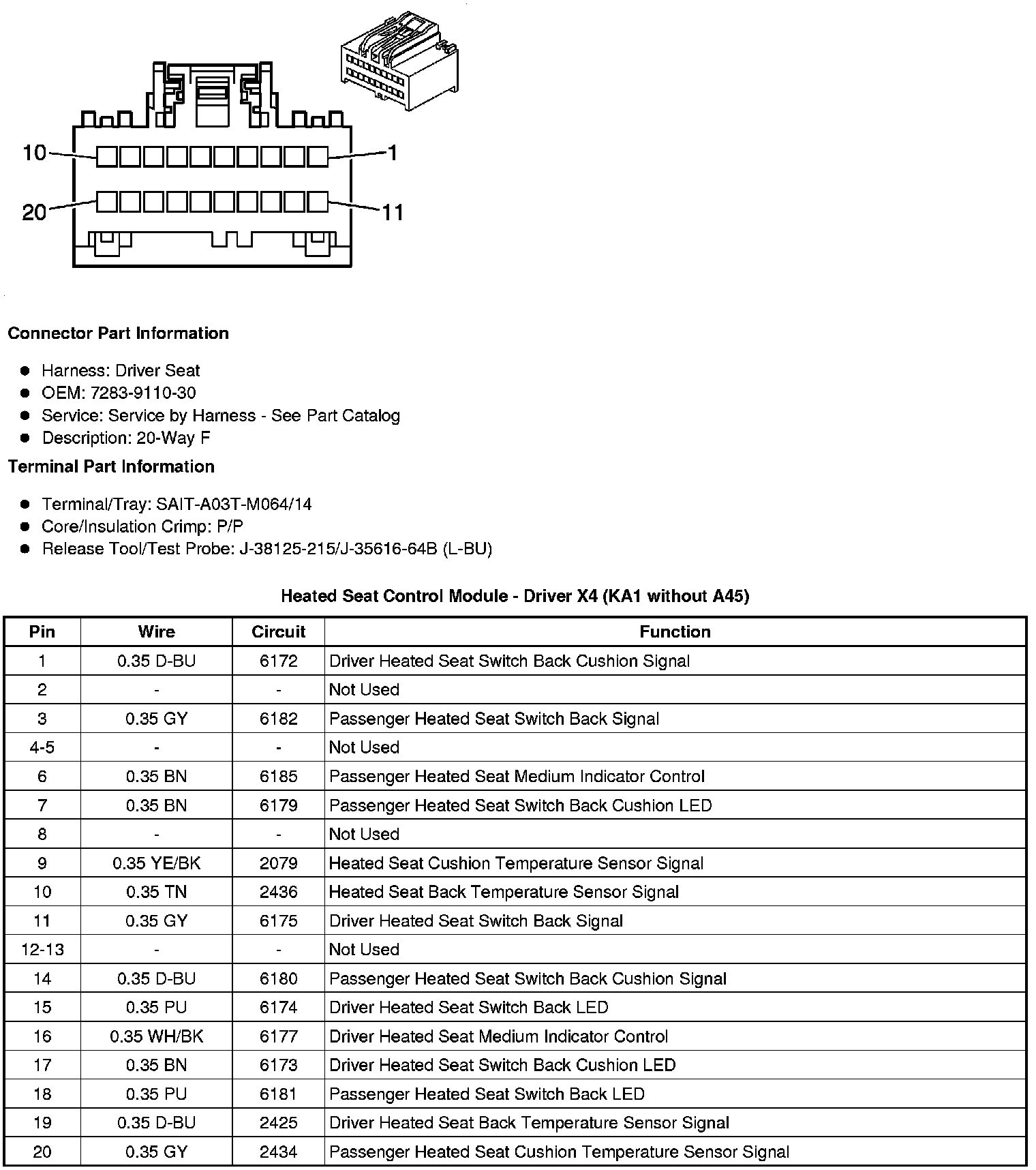

Heated Seat Control Module - Driver X4 (KA1 without A45)

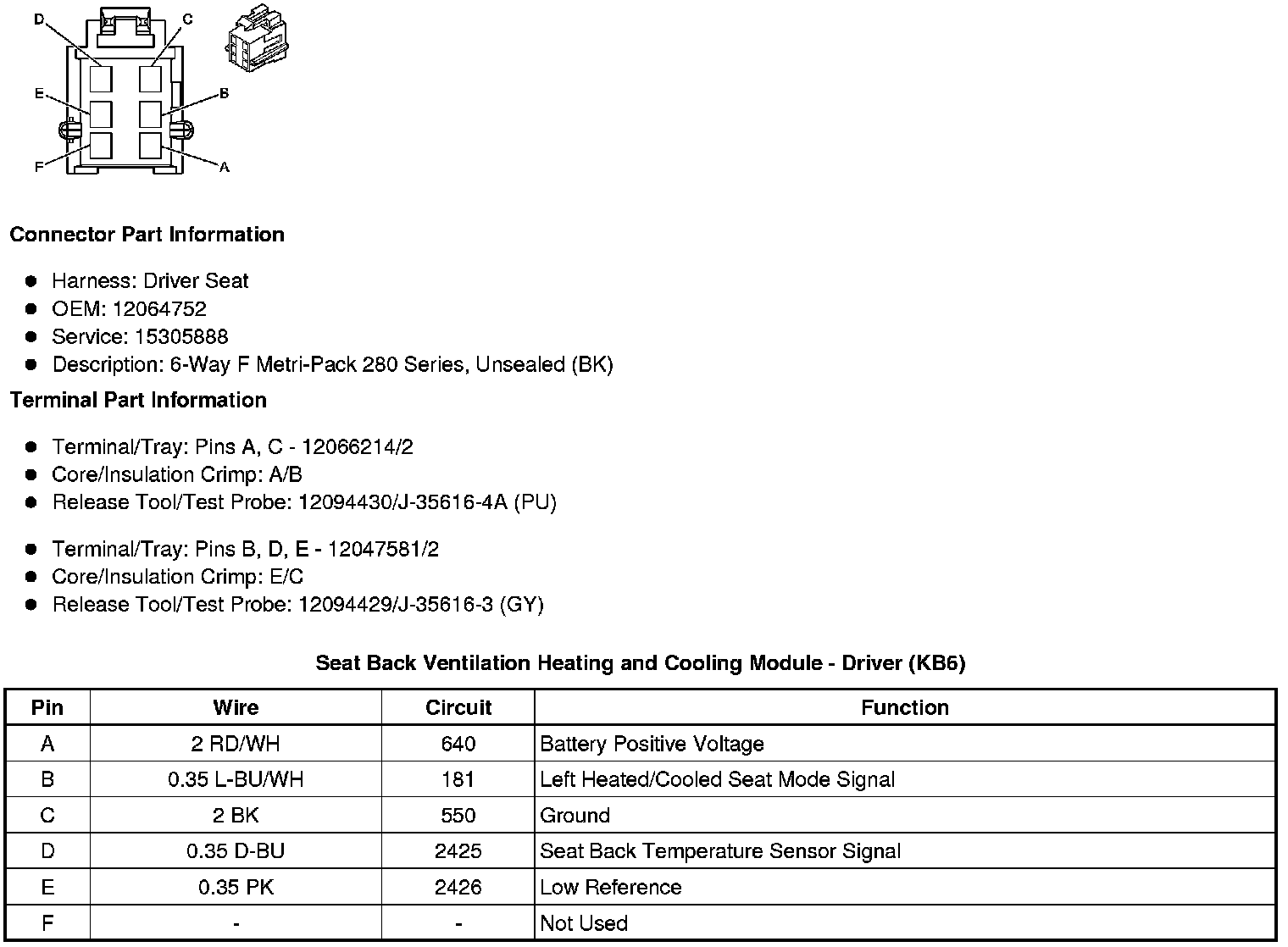

Seat Back Ventilation Heating and Cooling Module - Driver (KB6)

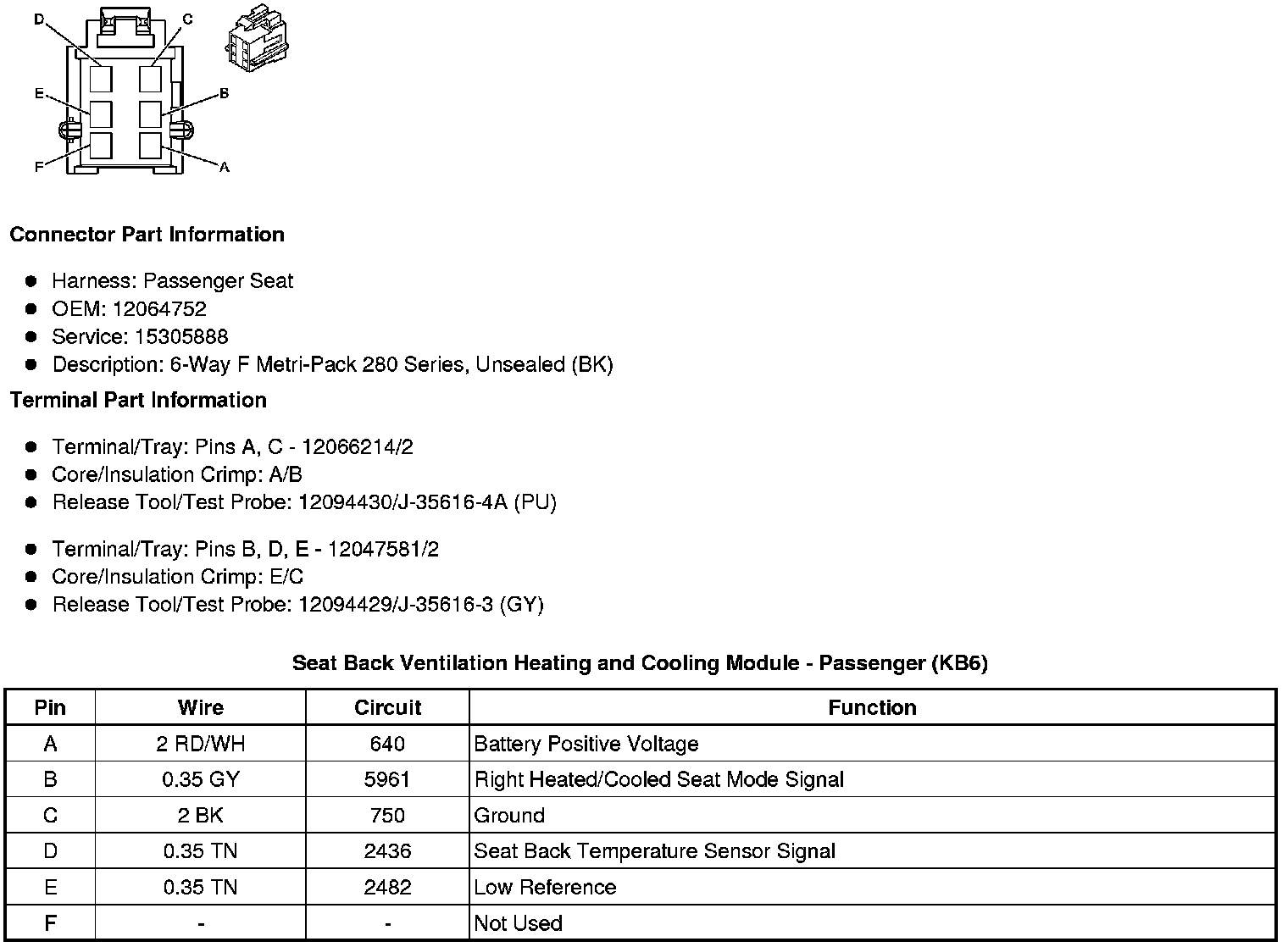

Seat Back Ventilation Heating and Cooling Module - Passenger (KB6)

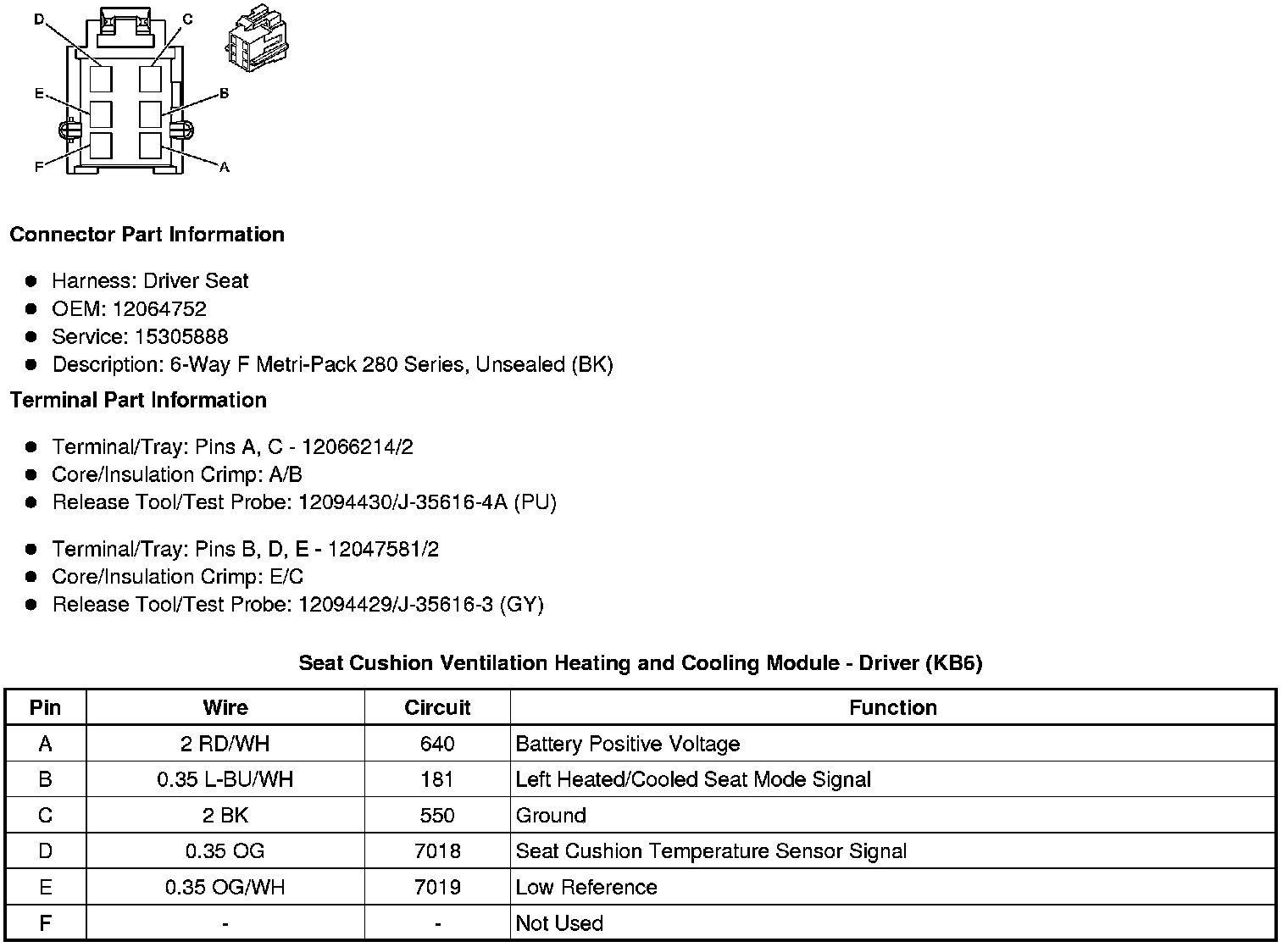

Seat Cushion Ventilation Heating and Cooling Module - Driver (KB6)

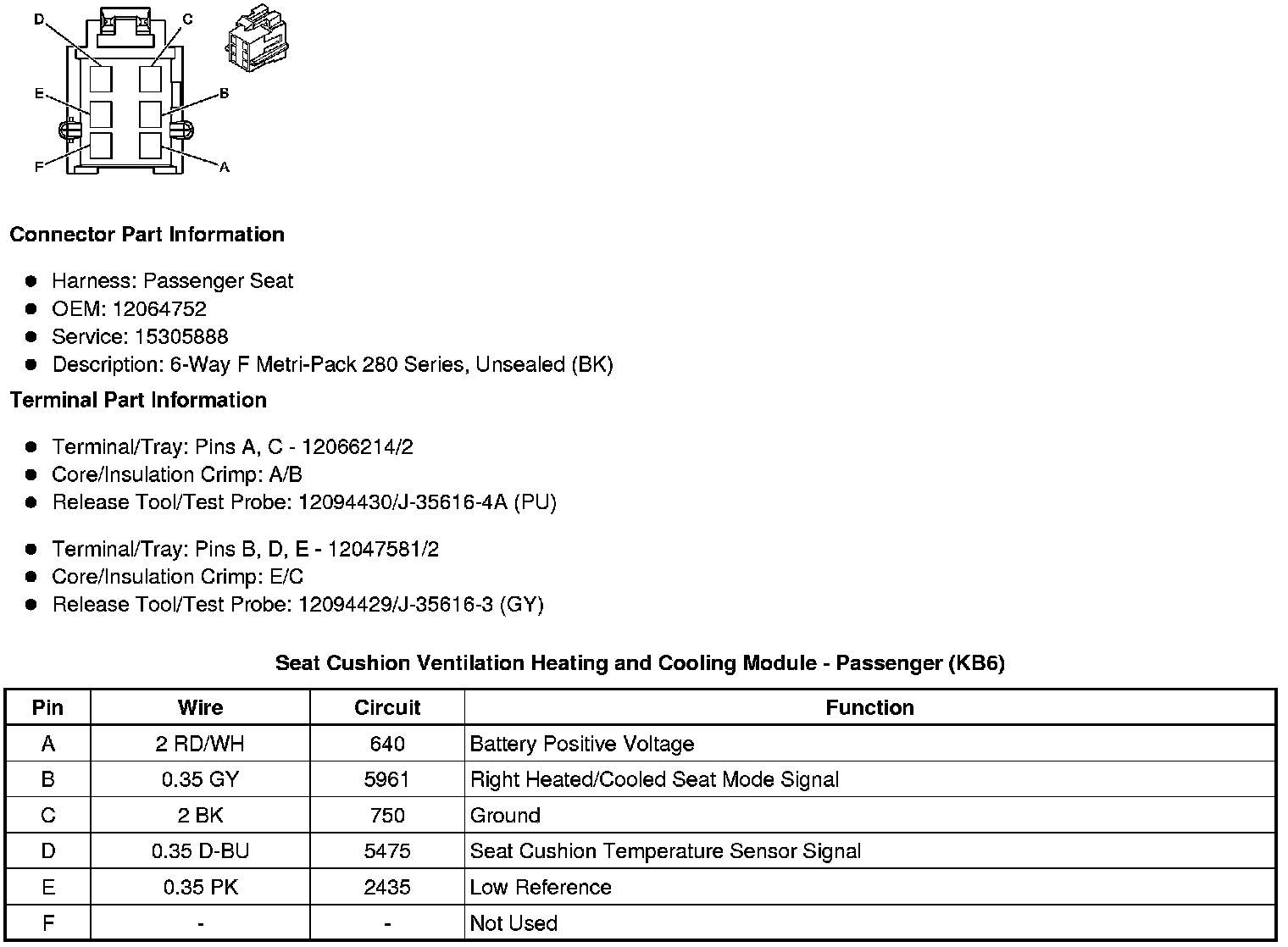

Seat Cushion Ventilation Heating and Cooling Module - Passenger (KB6)
