Component Connector End Views

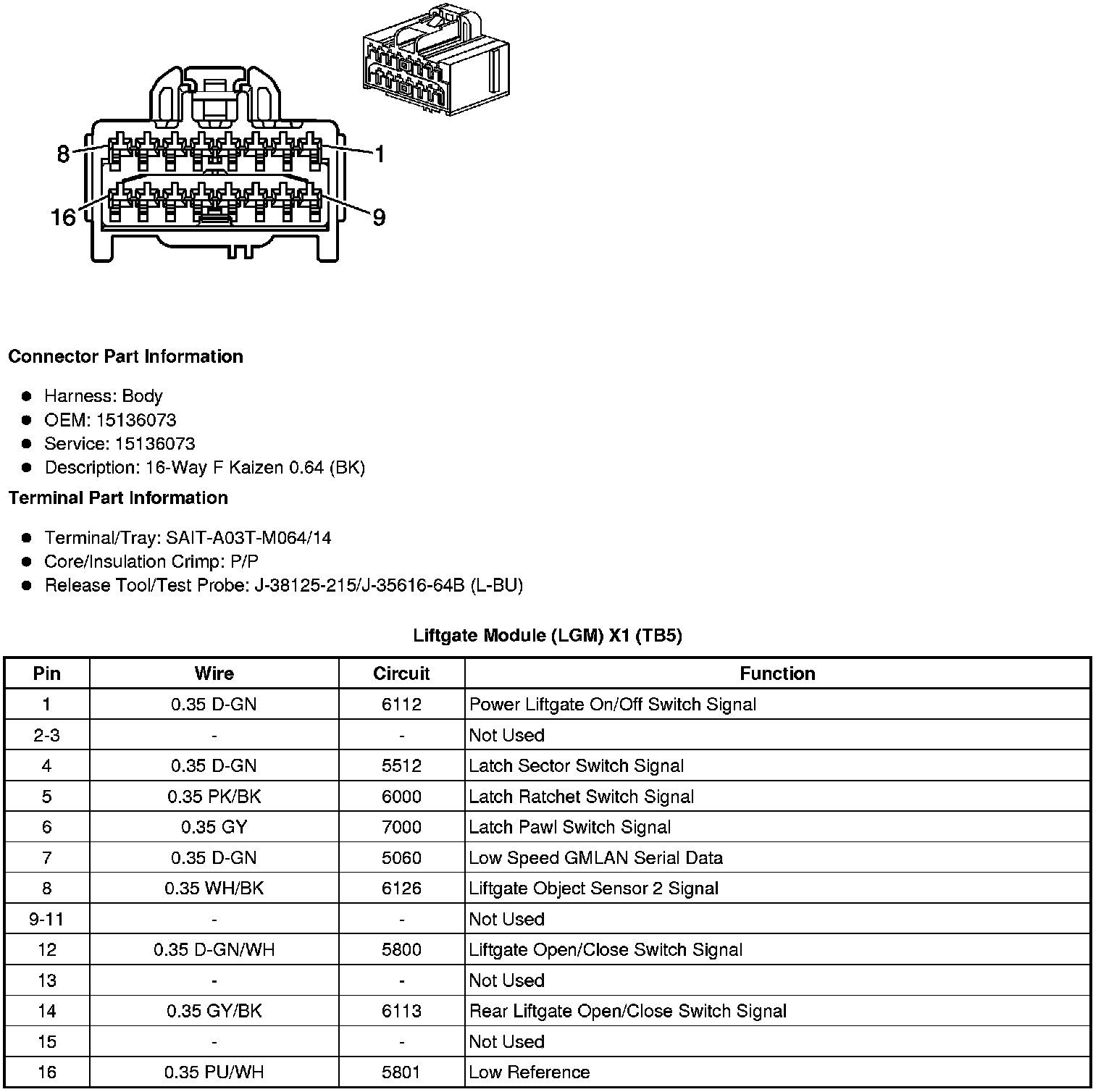

Liftgate Module (LGM) X1 (TB5)

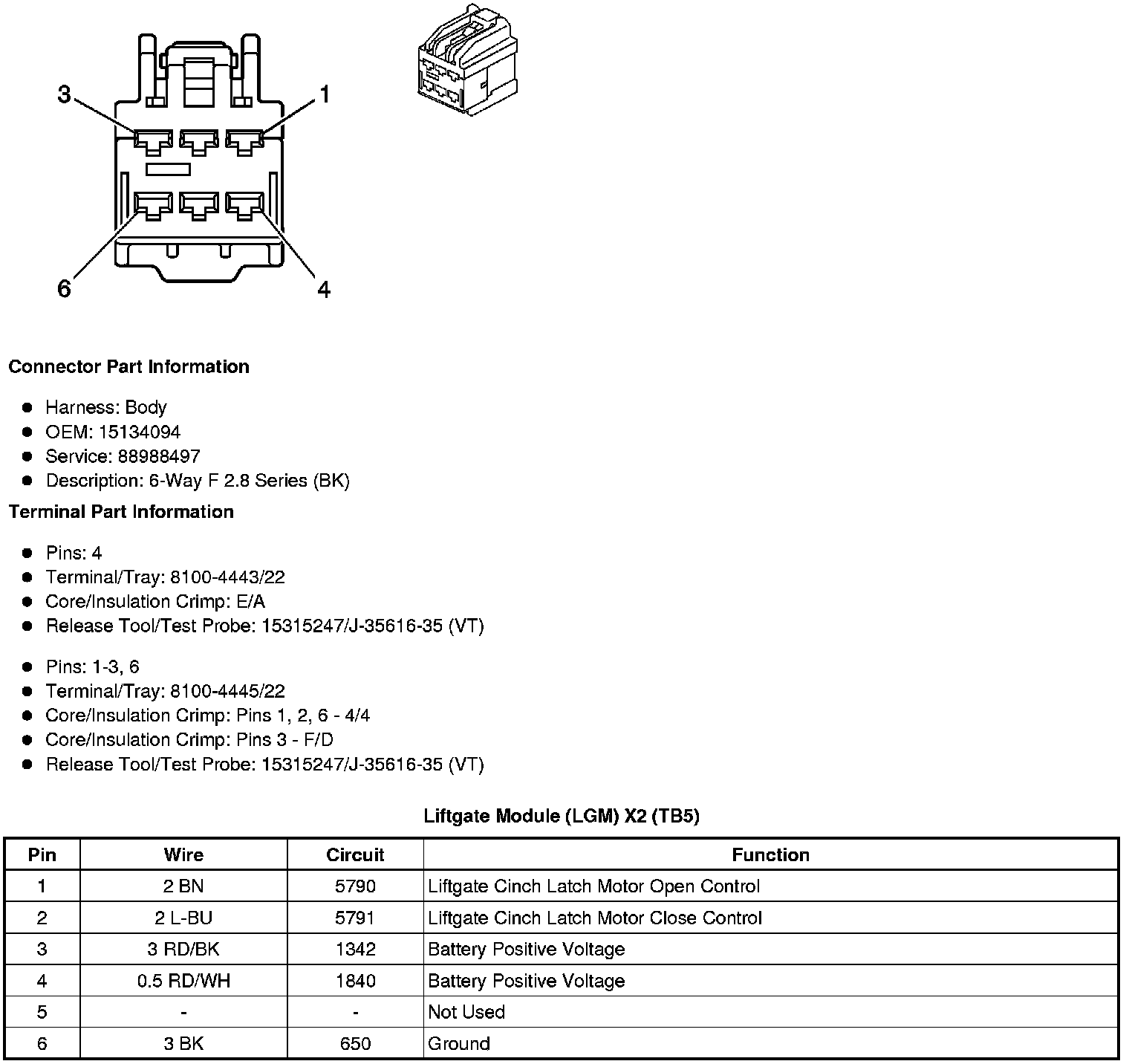

Liftgate Module (LGM) X2 (TB5)

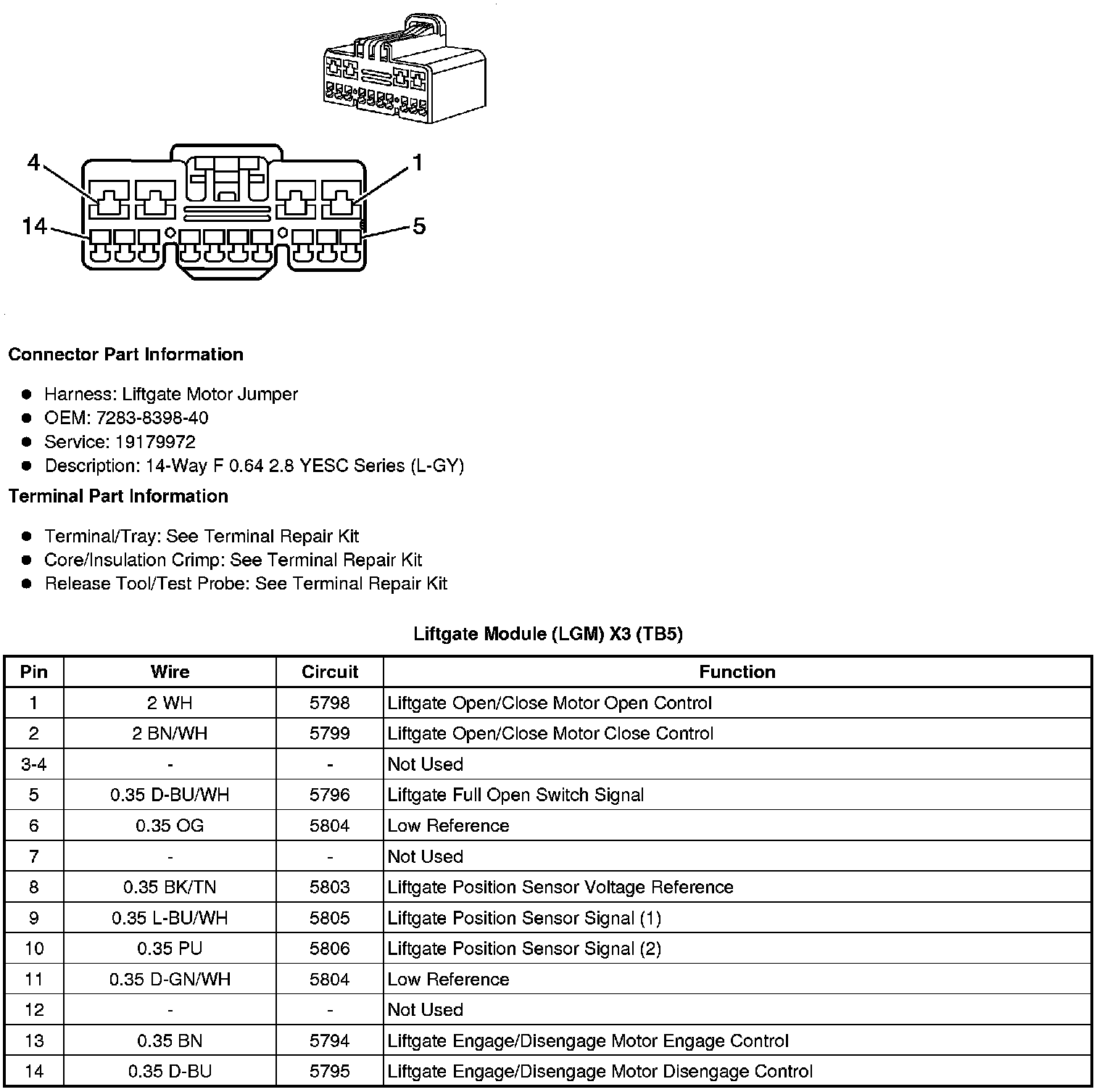

Liftgate Module (LGM) X3 (TB5)
Power Trunk / Liftgate Control Module
Need a step-by-step guide?
Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2011 Chevrolet.
Component Connector End Views
Liftgate Module (LGM) X1 (TB5)
Liftgate Module (LGM) X2 (TB5)
Liftgate Module (LGM) X3 (TB5)
