Component Connector End Views

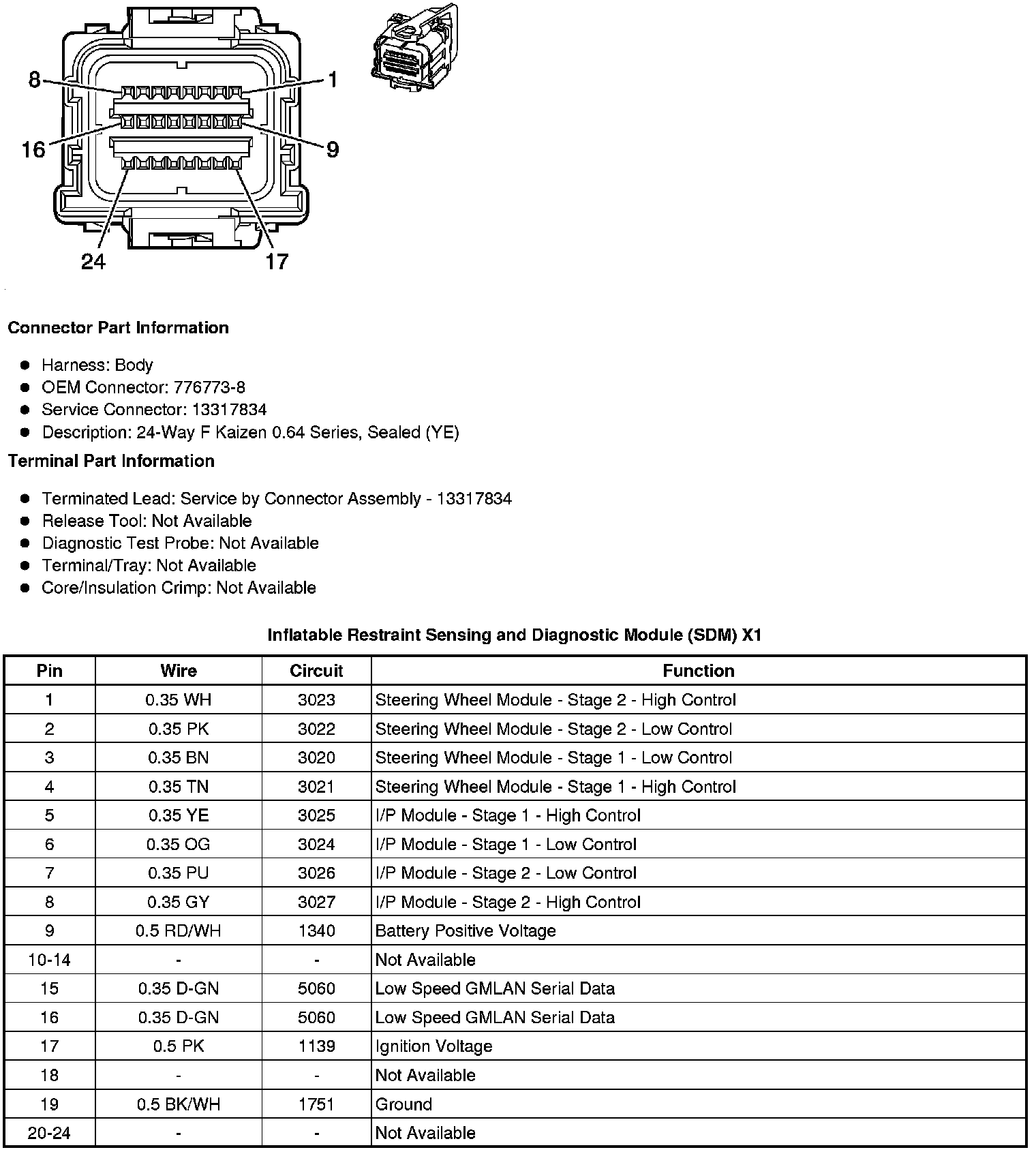

Inflatable Restraint Sensing and Diagnostic Module (SDM) X1

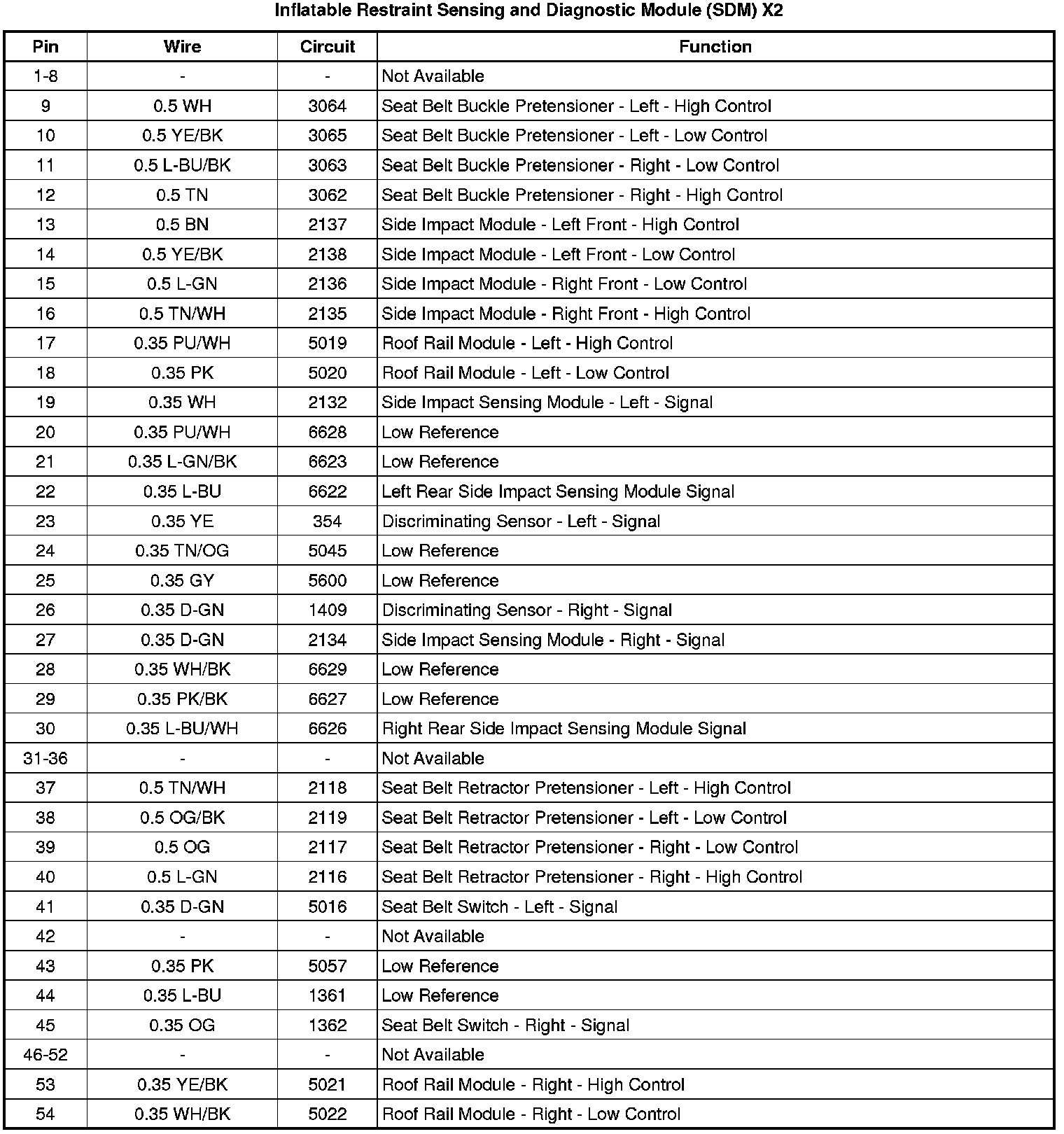

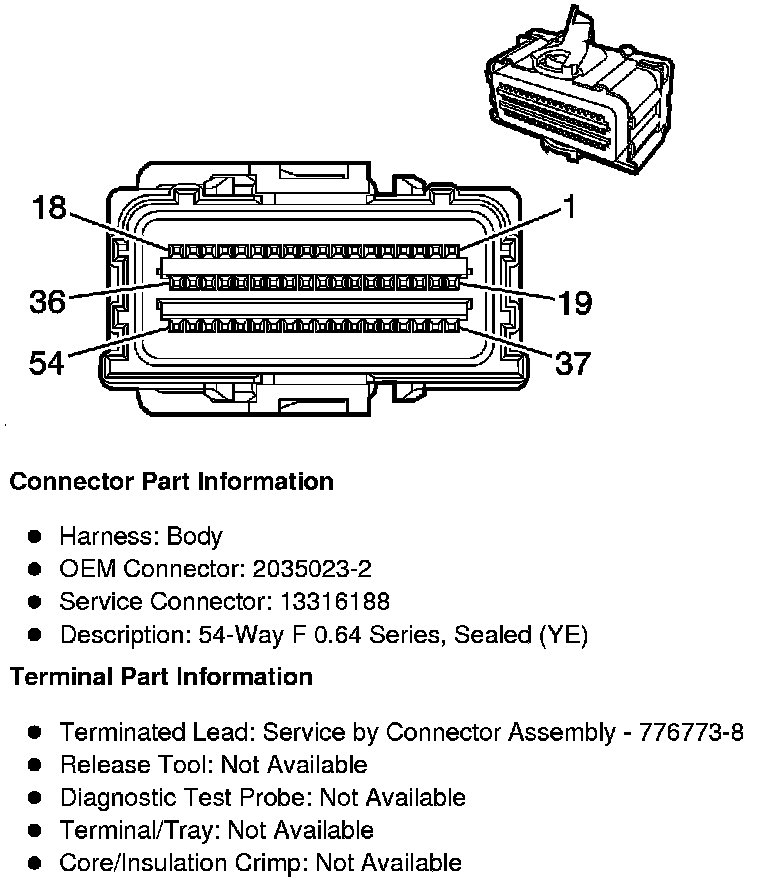

Inflatable Restraint Sensing and Diagnostic Module (SDM) X2
Air Bag Control Module
Need a step-by-step guide?
Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2011 Chevrolet.
Component Connector End Views
Inflatable Restraint Sensing and Diagnostic Module (SDM) X1
Inflatable Restraint Sensing and Diagnostic Module (SDM) X2
