Component Connector End Views

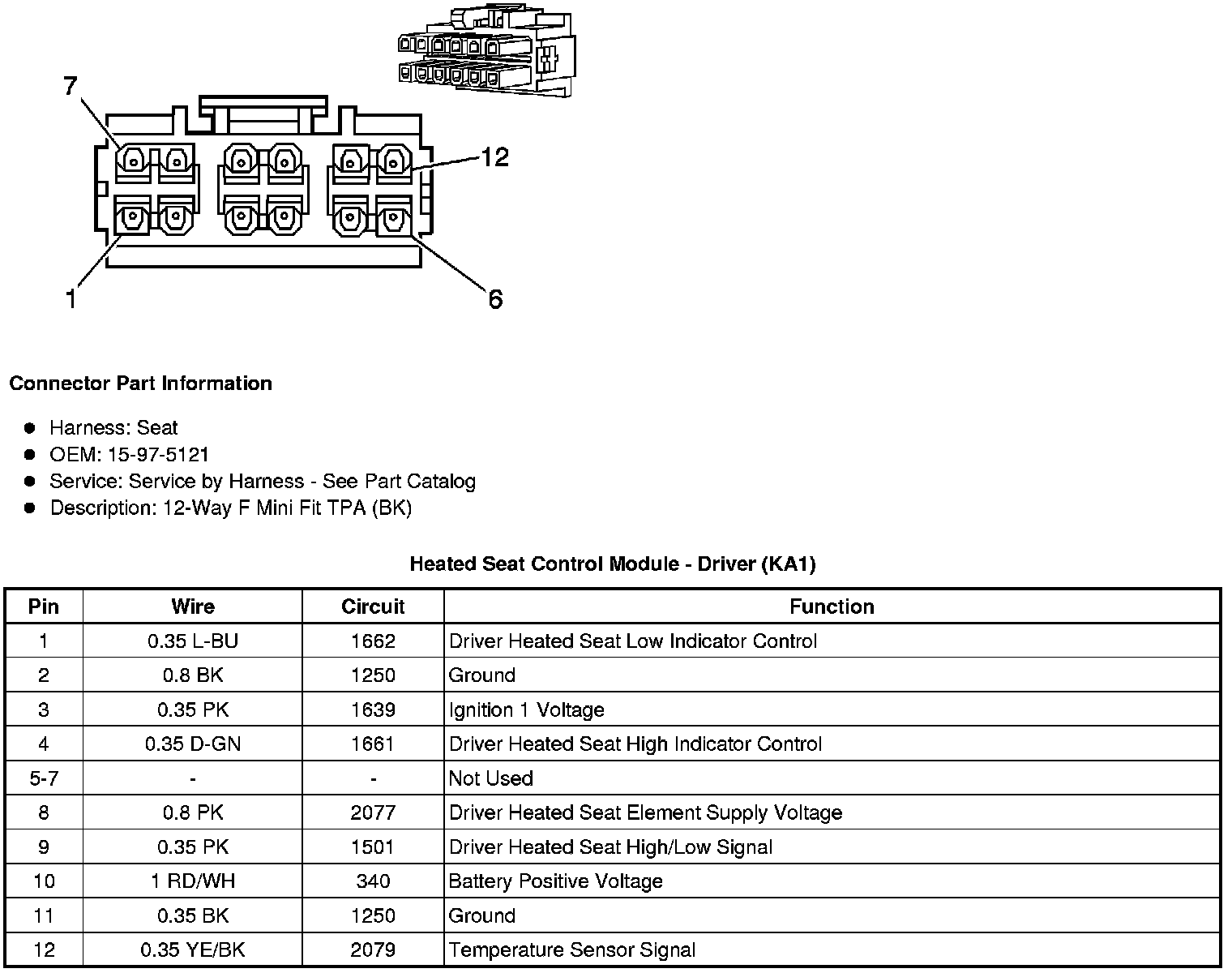

Heated Seat Control Module - Driver (KA1)

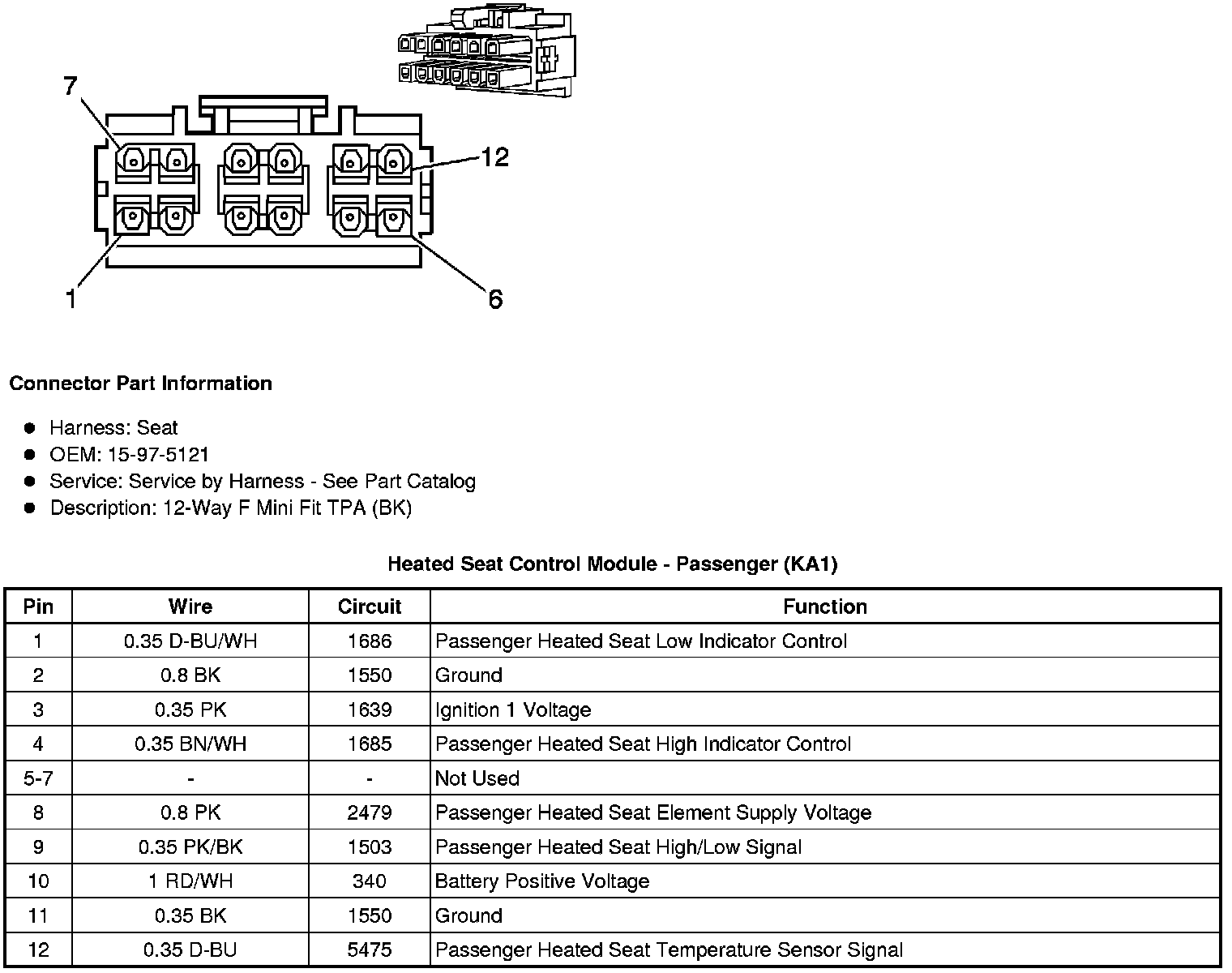

Heated Seat Control Module - Passenger (KA1)
Seat Temperature Control Module
Need a step-by-step guide?
Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2010 Chevrolet.
Component Connector End Views
Heated Seat Control Module - Driver (KA1)
Heated Seat Control Module - Passenger (KA1)
