Component Connector End Views

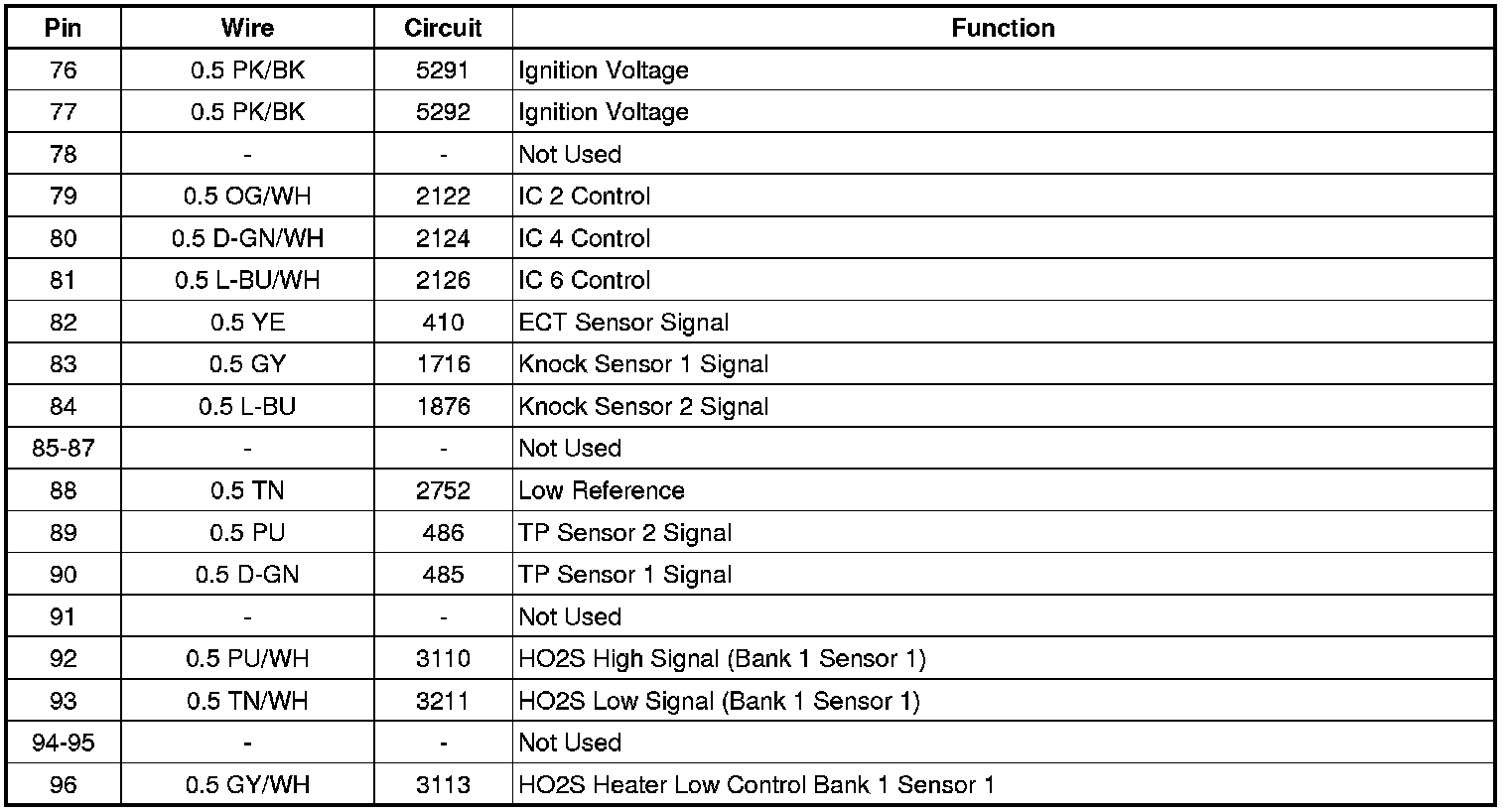

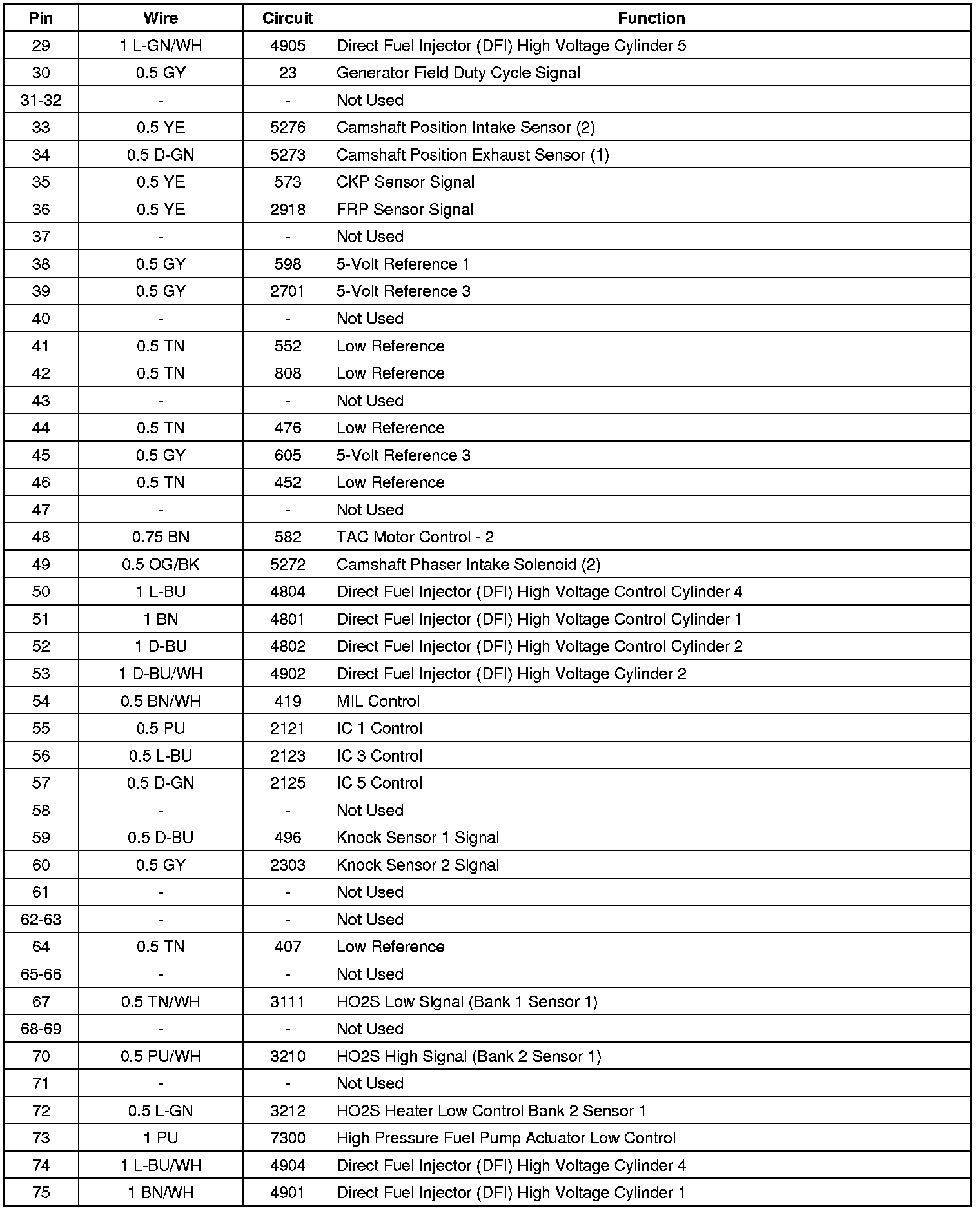

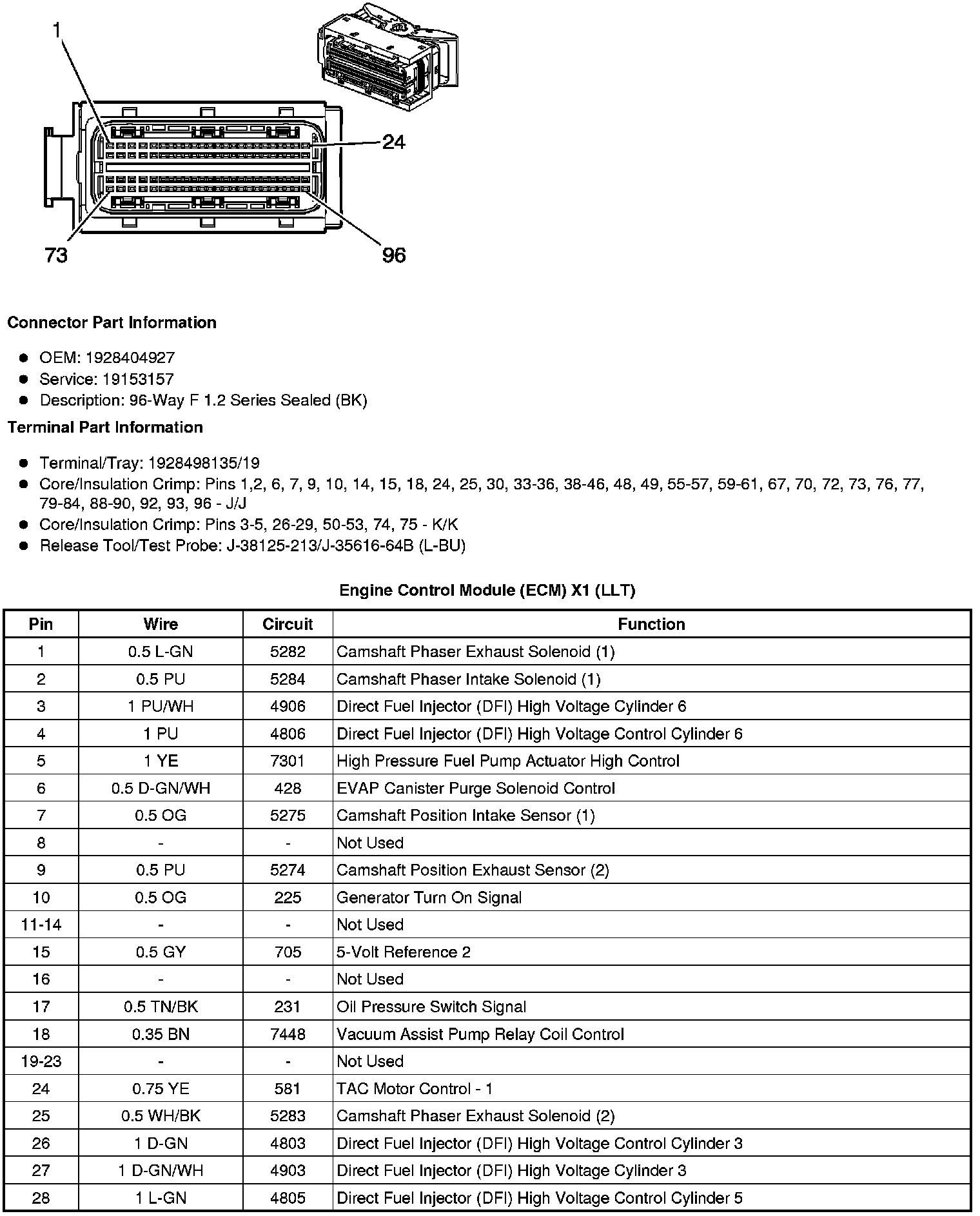

Engine Control Module (ECM) X1 (LLT)

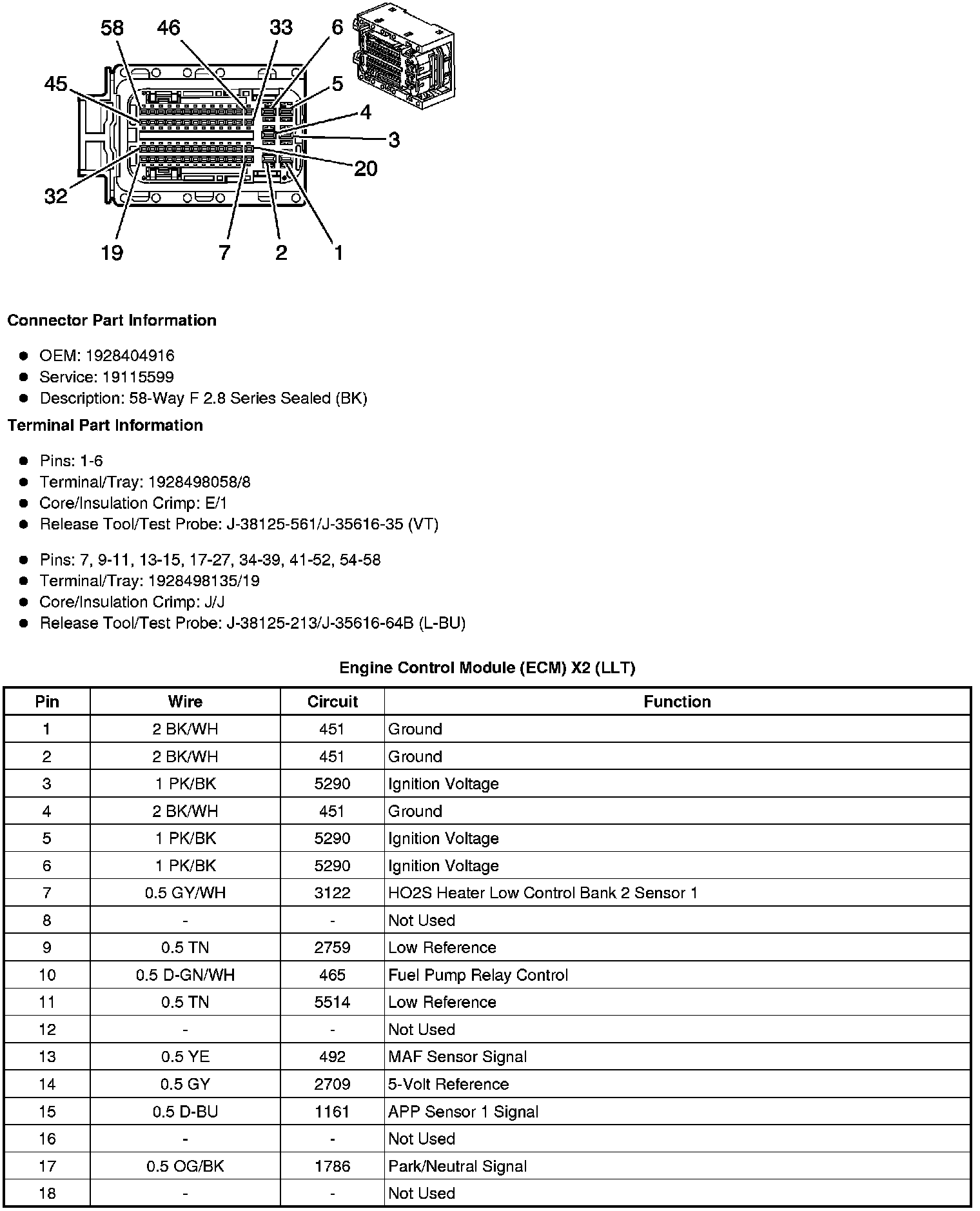

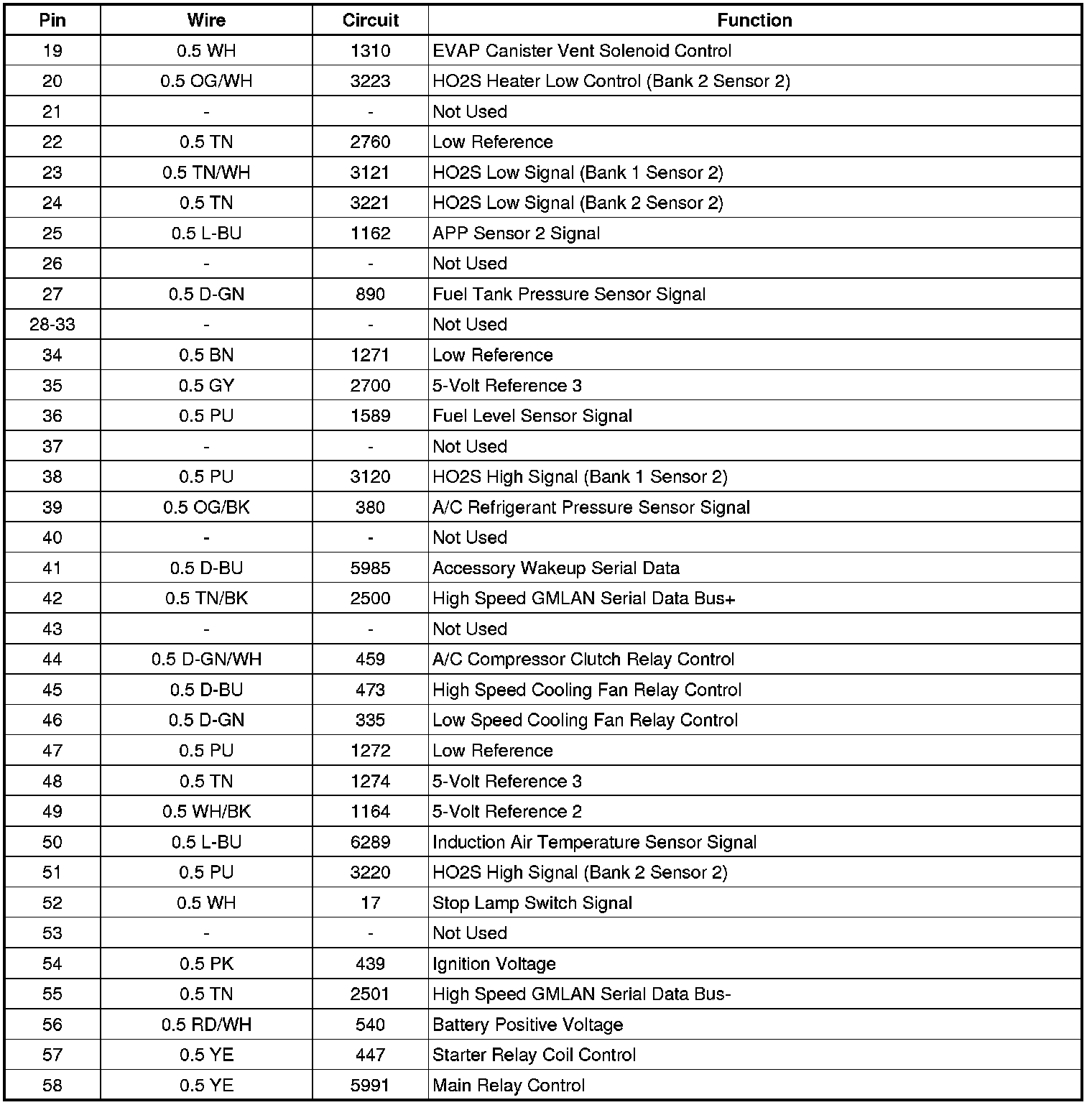

Engine Control Module (ECM) X2 (LLT)
Engine Control Module: Diagrams
Need a step-by-step guide?
Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2009 Chevrolet.
Component Connector End Views
Engine Control Module (ECM) X1 (LLT)
Engine Control Module (ECM) X2 (LLT)
