Disassembled Views

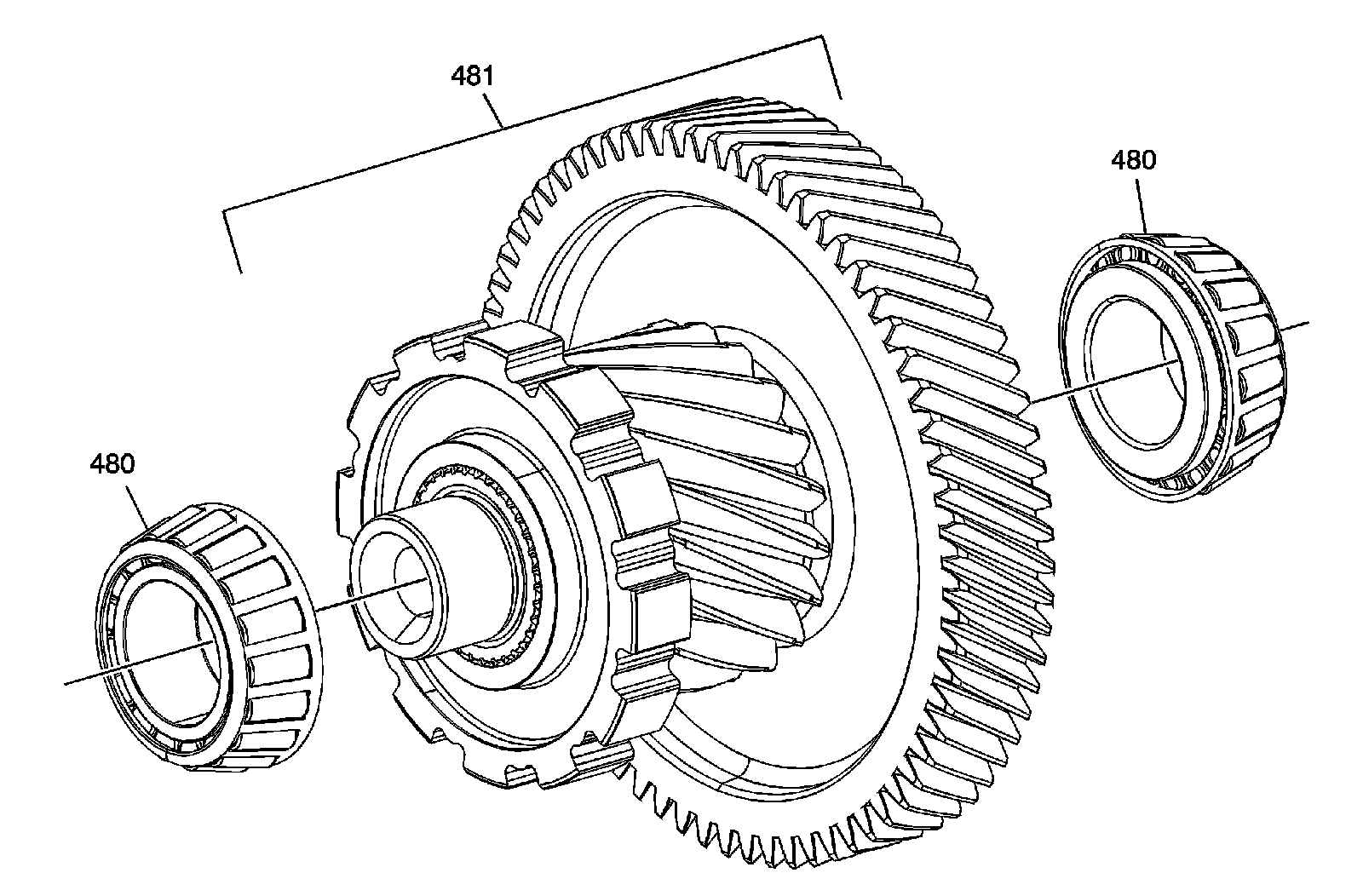

Front Differential Transfer Drive Gear Assembly
480 - Front Differential Drive Pinion Gear Bearing Assembly
481 - Front Differential Drive Pinion (w/Transfer Gear) Gear Assembly
Front Differential Transfer Drive Gear Assembly
