Memory Positioning Module

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2009 Chevrolet.

AI Repair Guides



Component Connector End Views

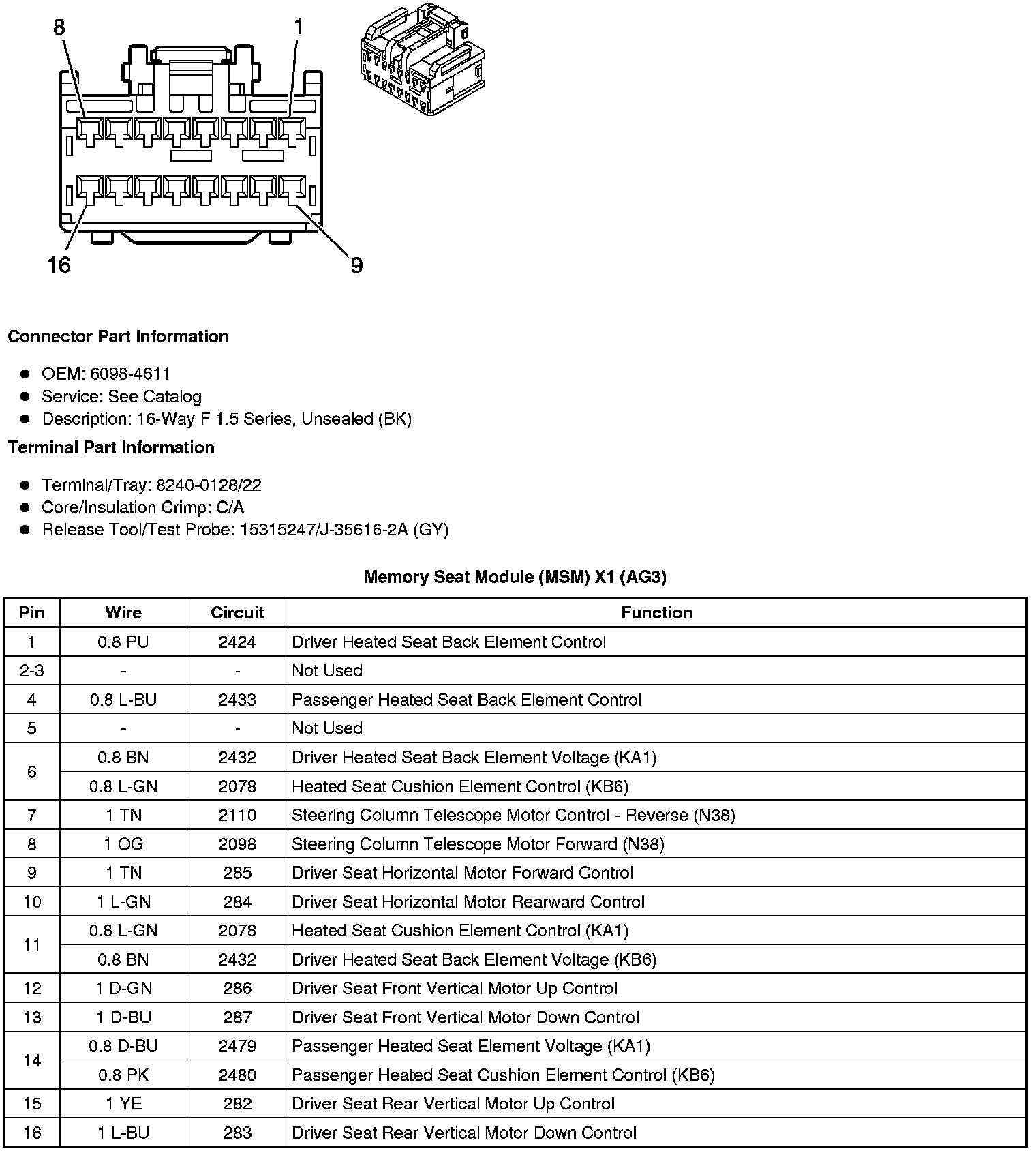

Memory Seat Module (MSM) X1 (AG3)

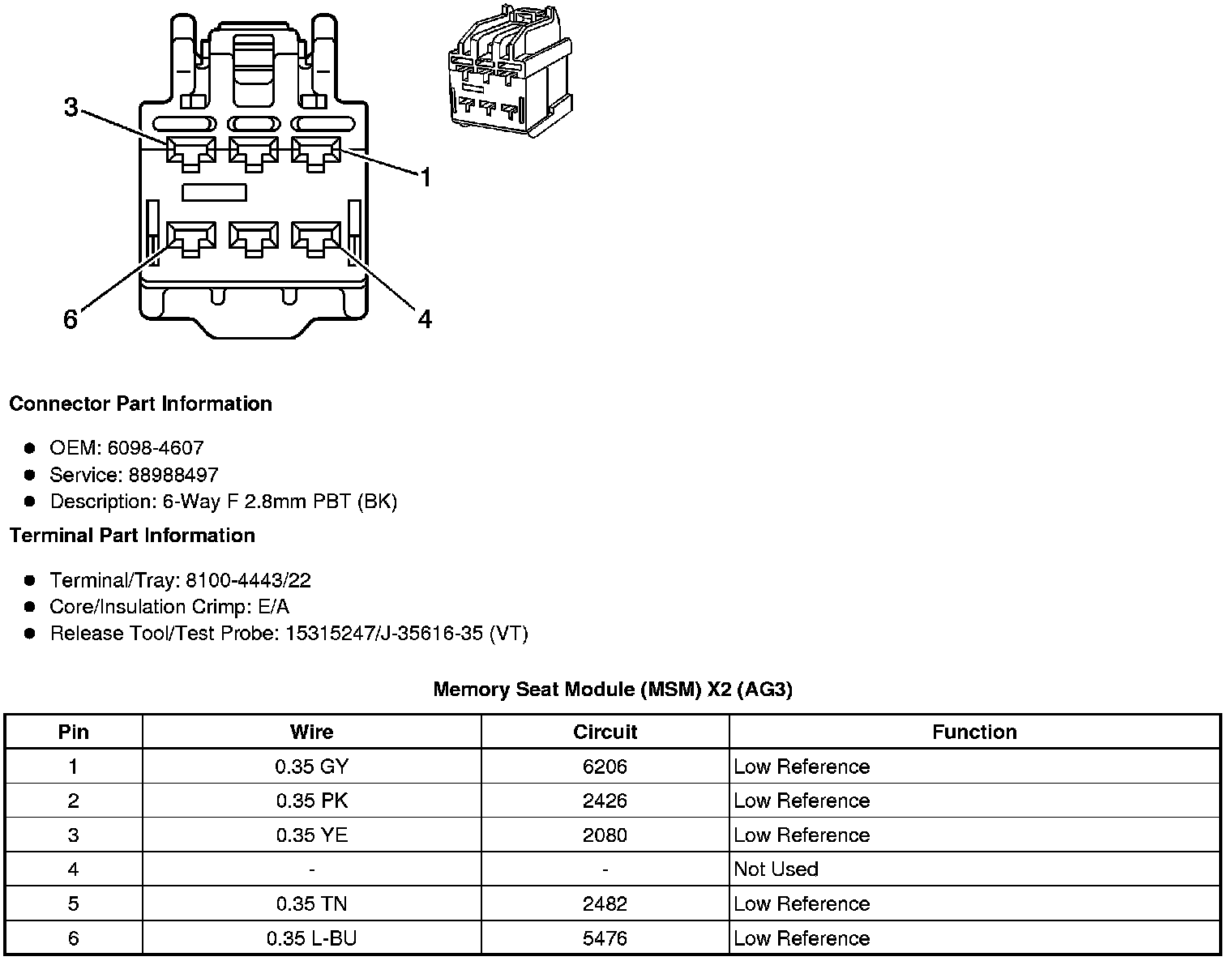

Memory Seat Module (MSM) X2 (AG3)

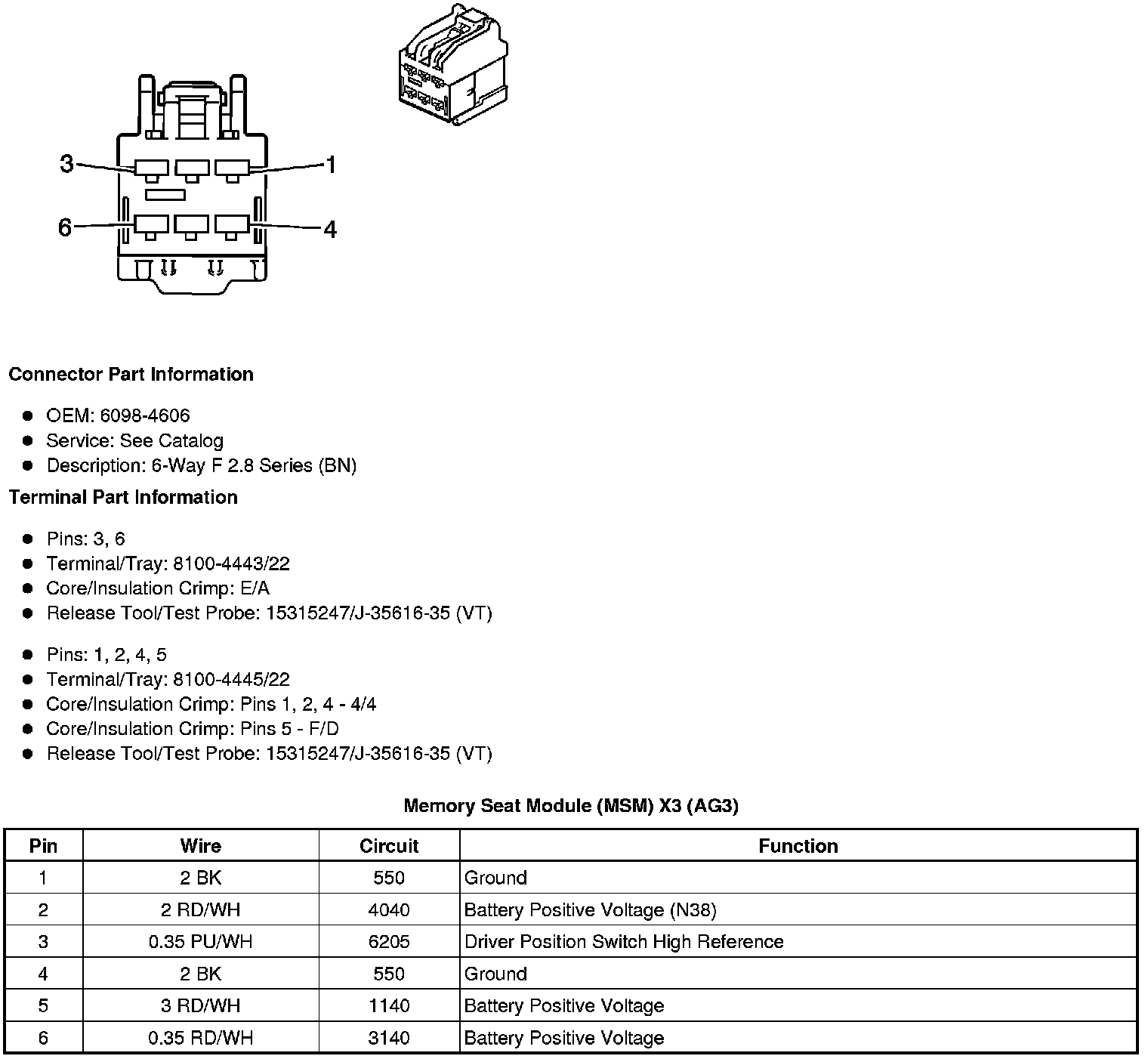

Memory Seat Module X3 (MSM) (AG3)

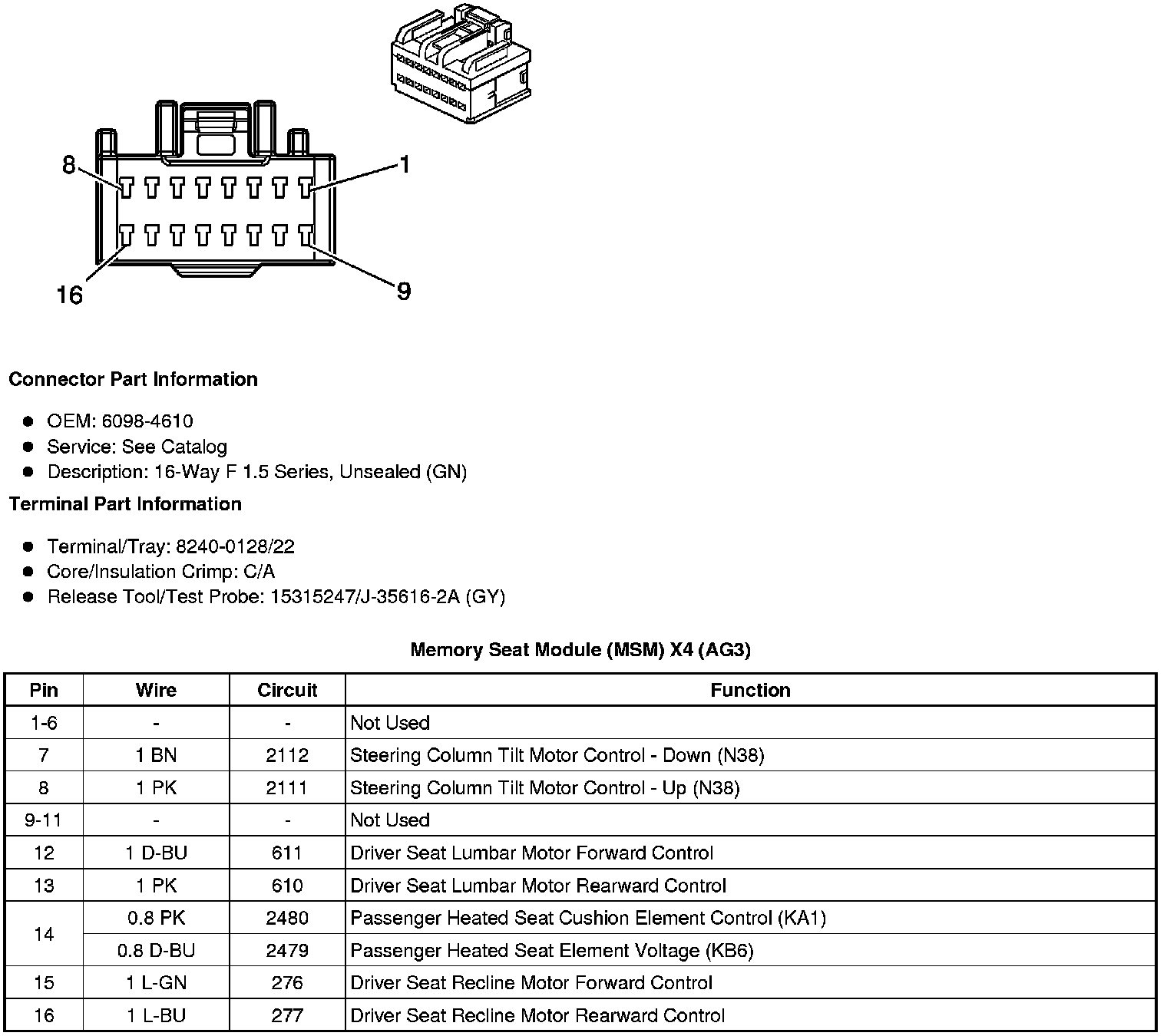

Memory Seat Module (MSM) X4 (AG3)

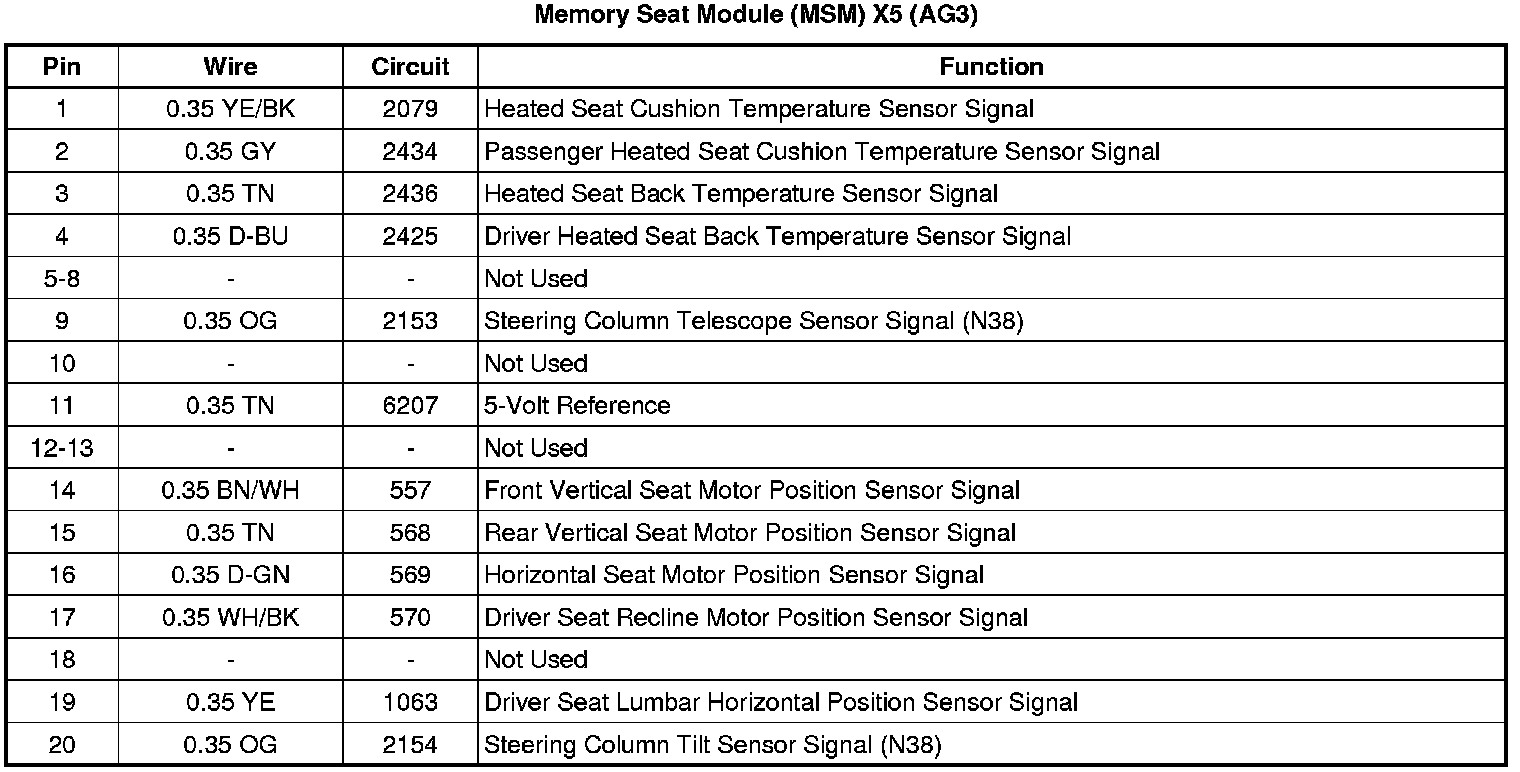

Memory Seat Module (MSM) X5 (AG3)

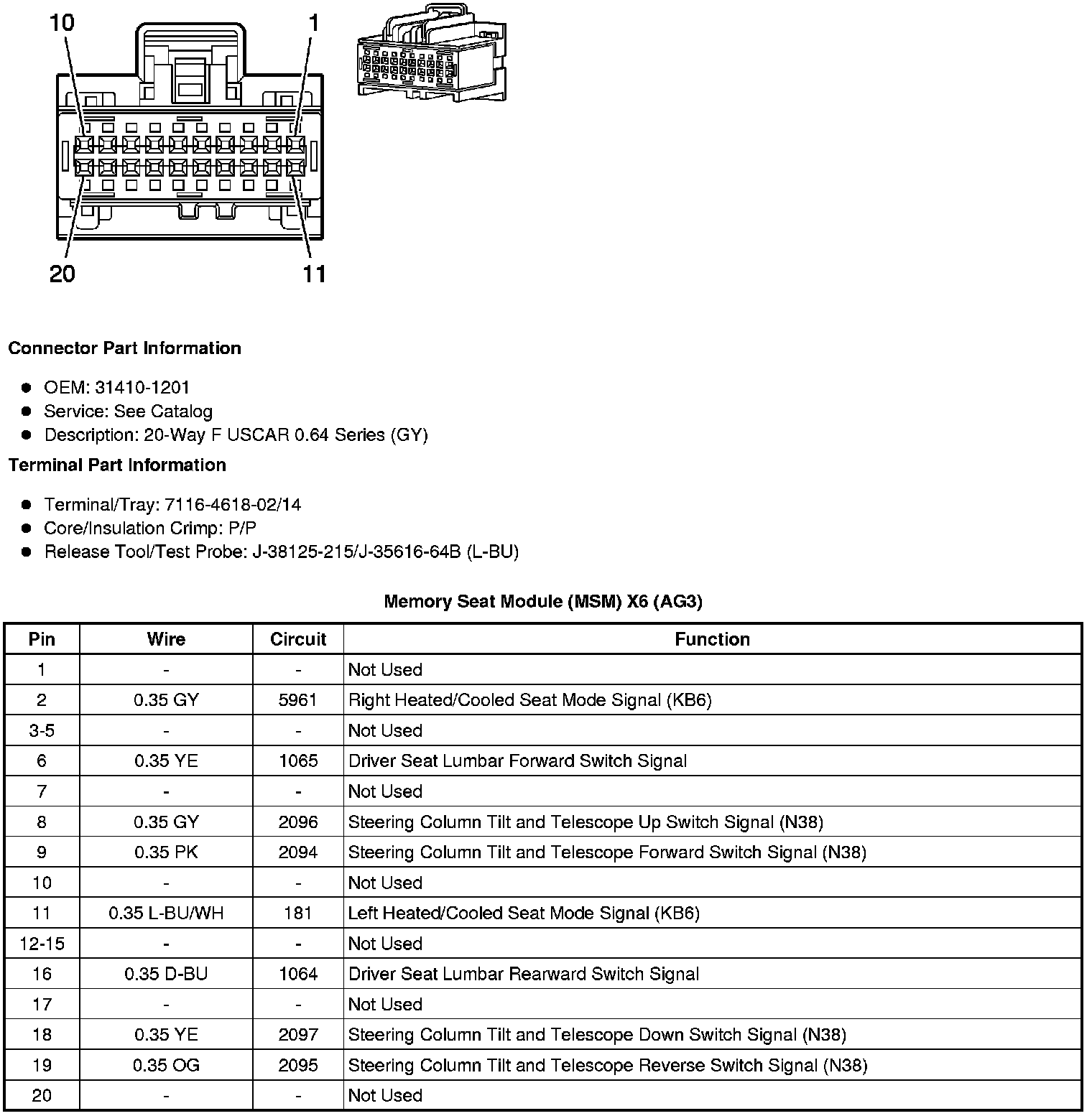

Memory Seat Module (MSM) X6 (AG3)

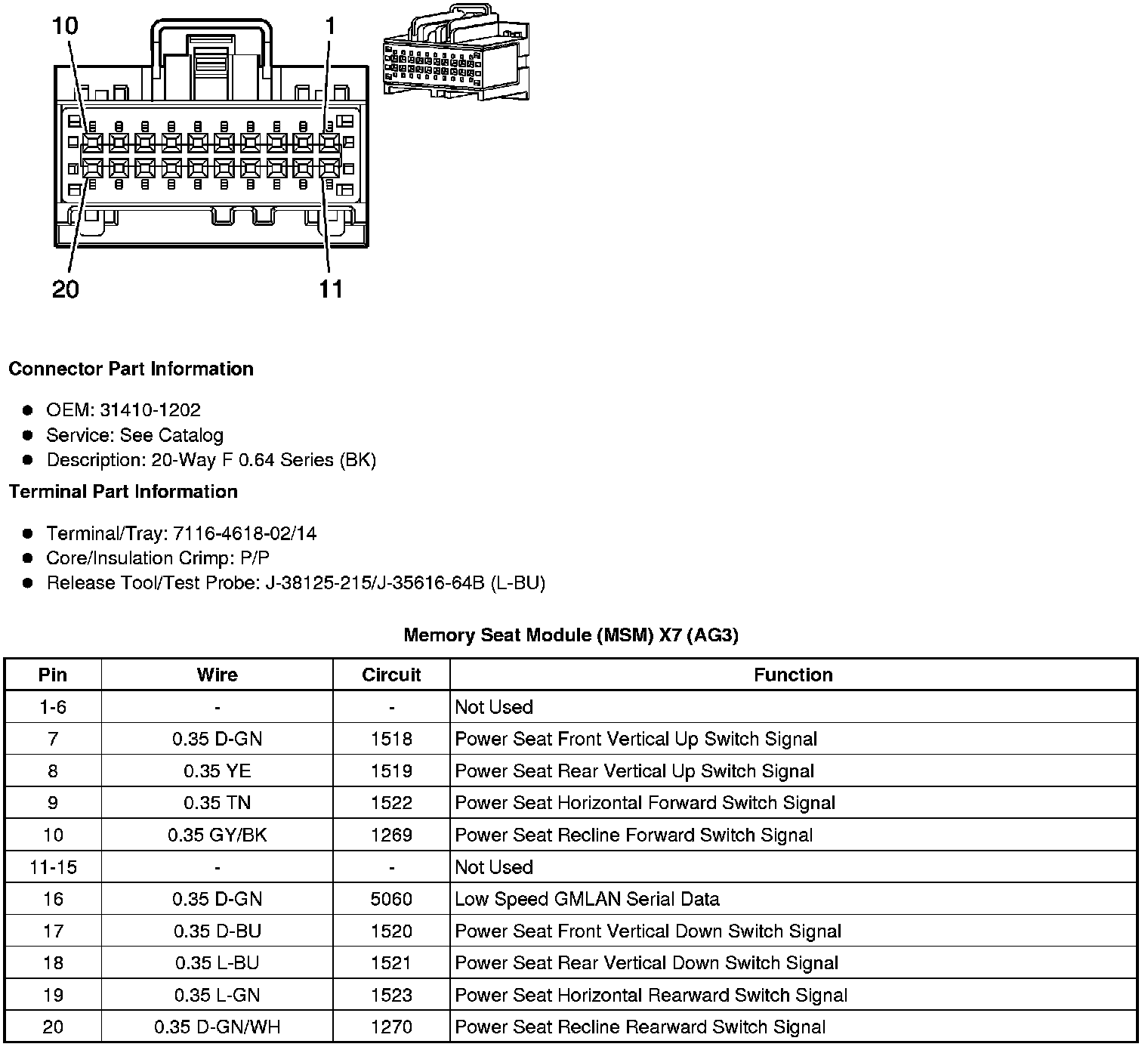

Memory Seat Module (MSM) X7 (AG3)
