Door Module

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2009 Chevrolet.

AI Repair Guides



Component Connector End Views

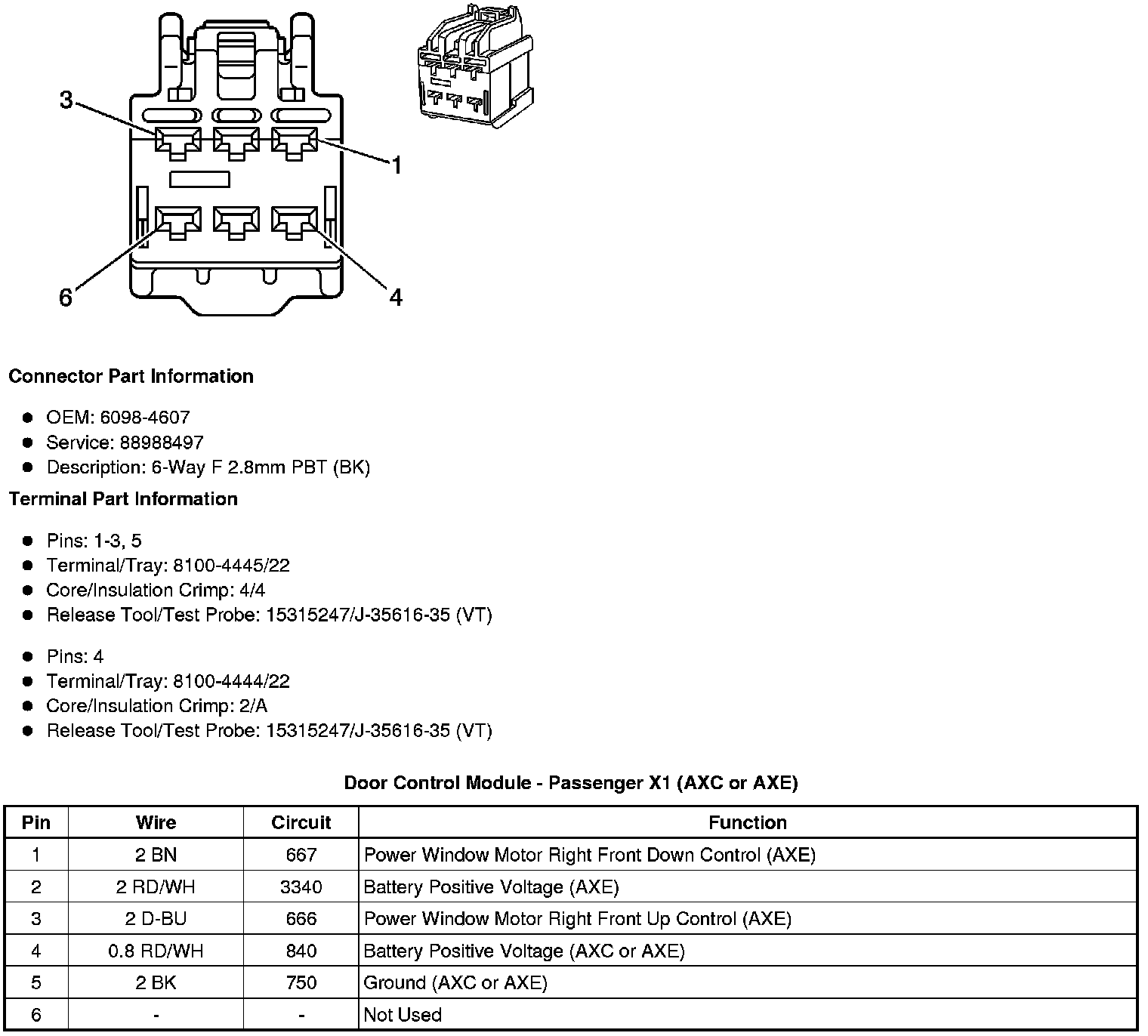

Door Control Module - Passenger X1 (AXC or AXE)

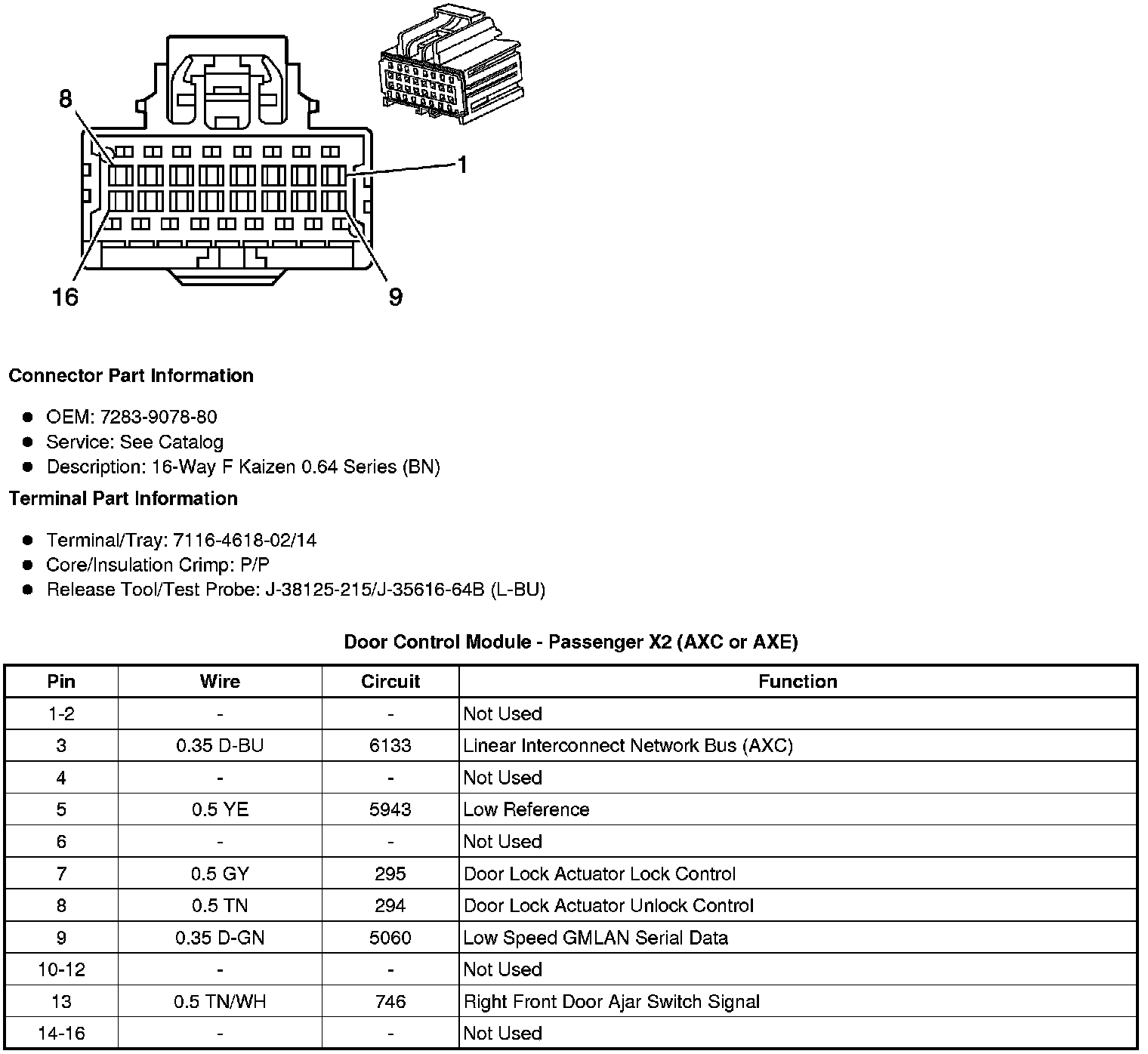

Door Control Module - Passenger X2 (AXC or AXE)

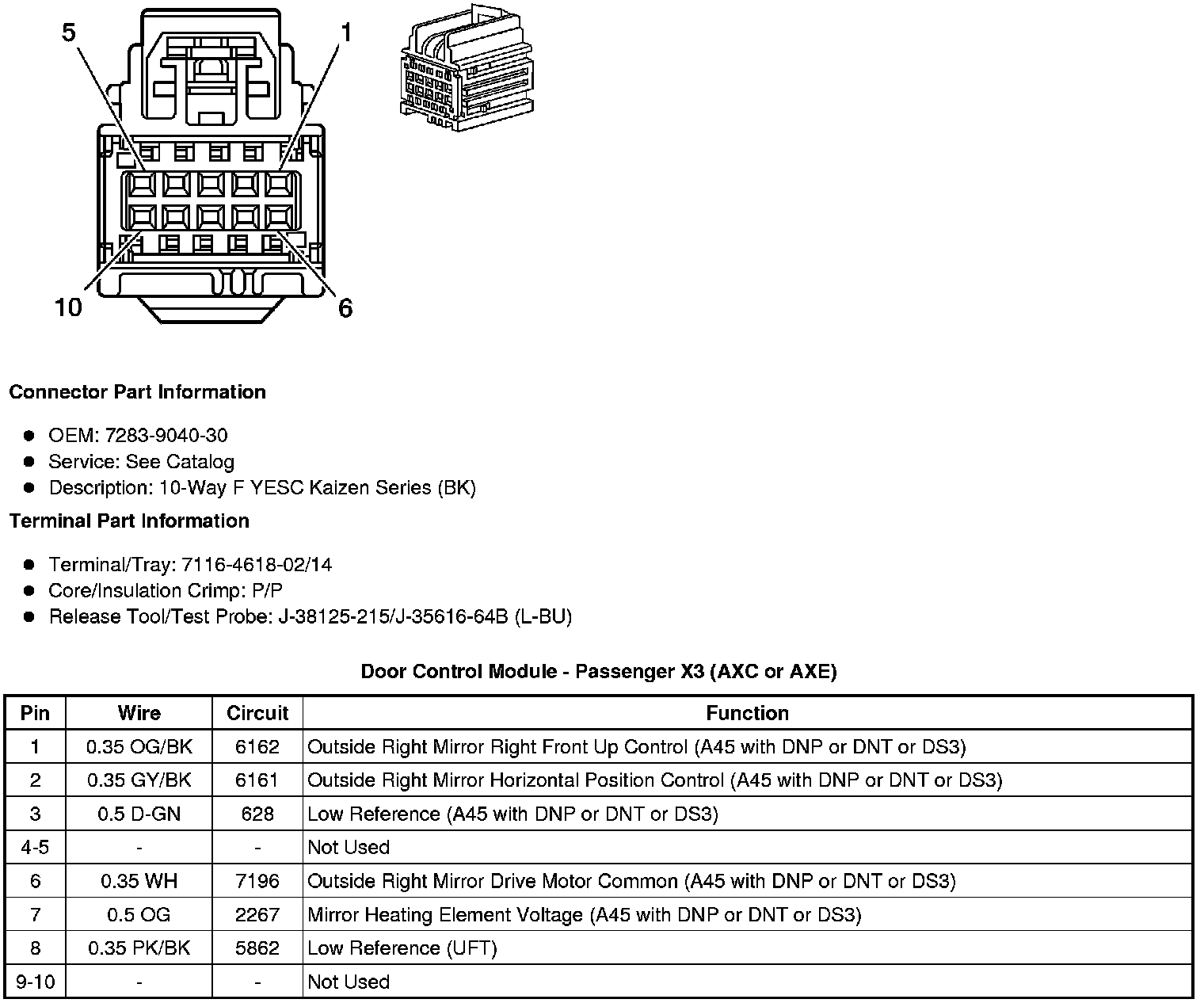

Door Control Module - Passenger X3 (AXC or AXE)

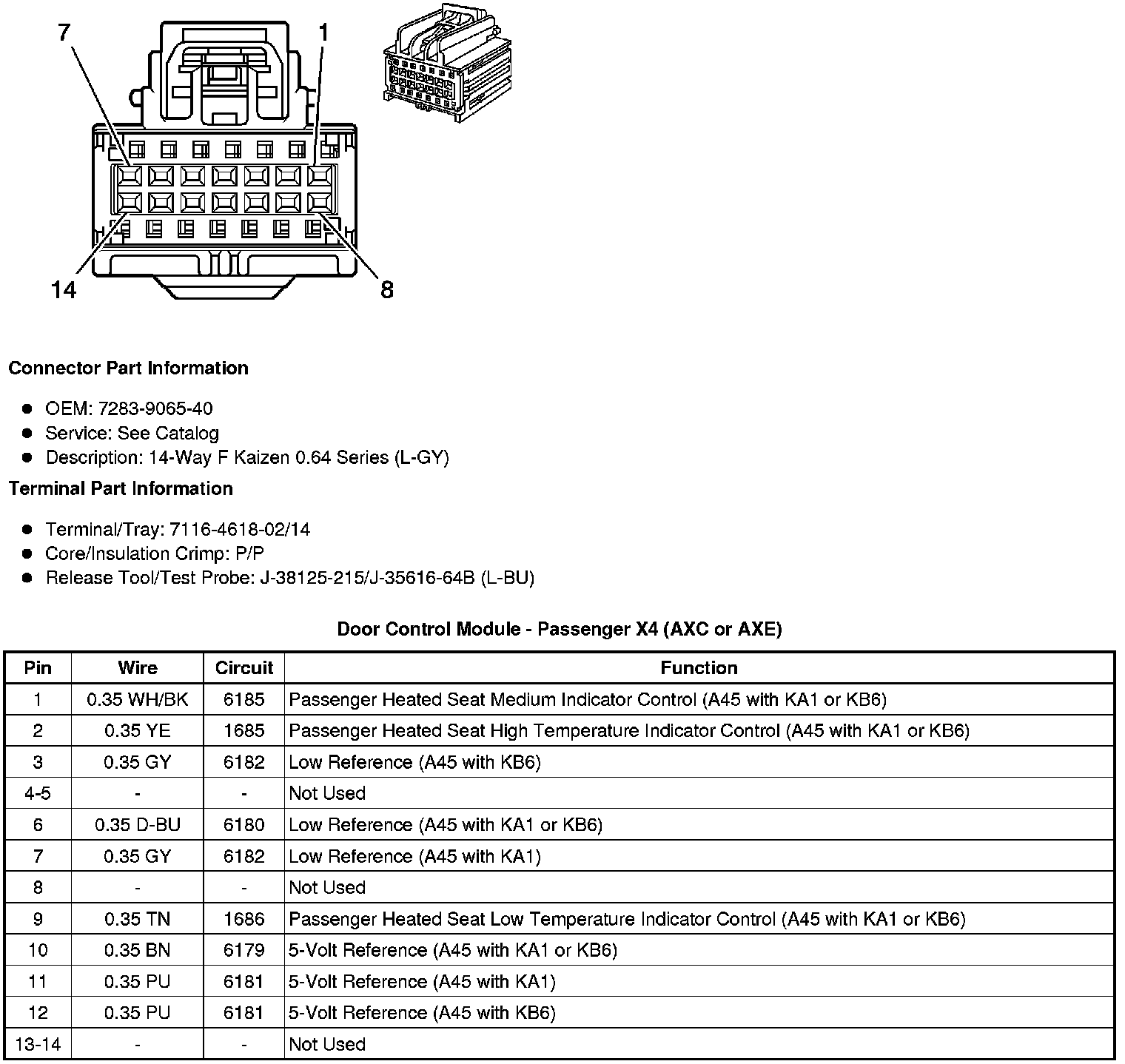

Door Control Module - Passenger X4 (AXC or AXE)

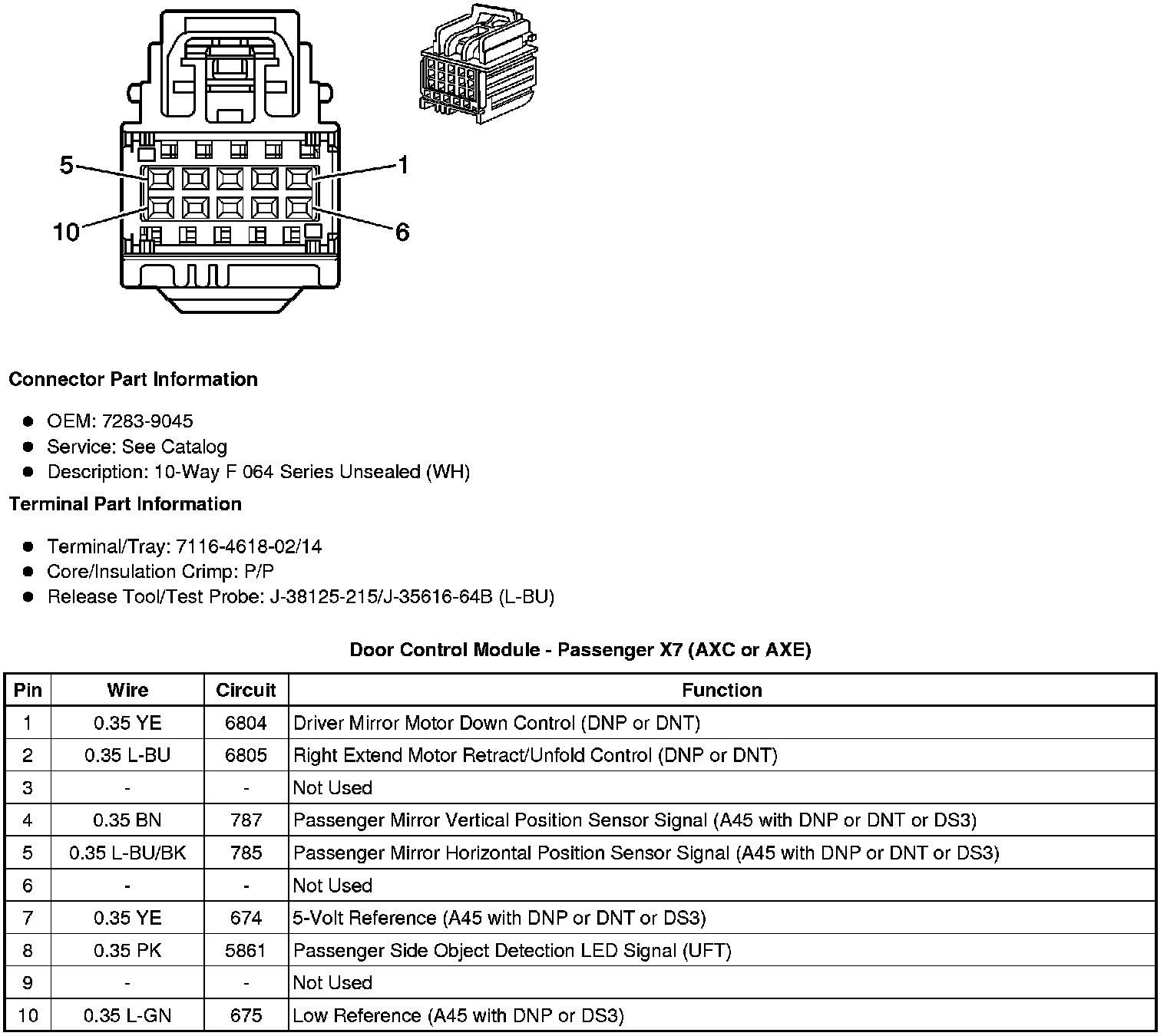

Door Control Module - Passenger X7 (AXC or AXE)

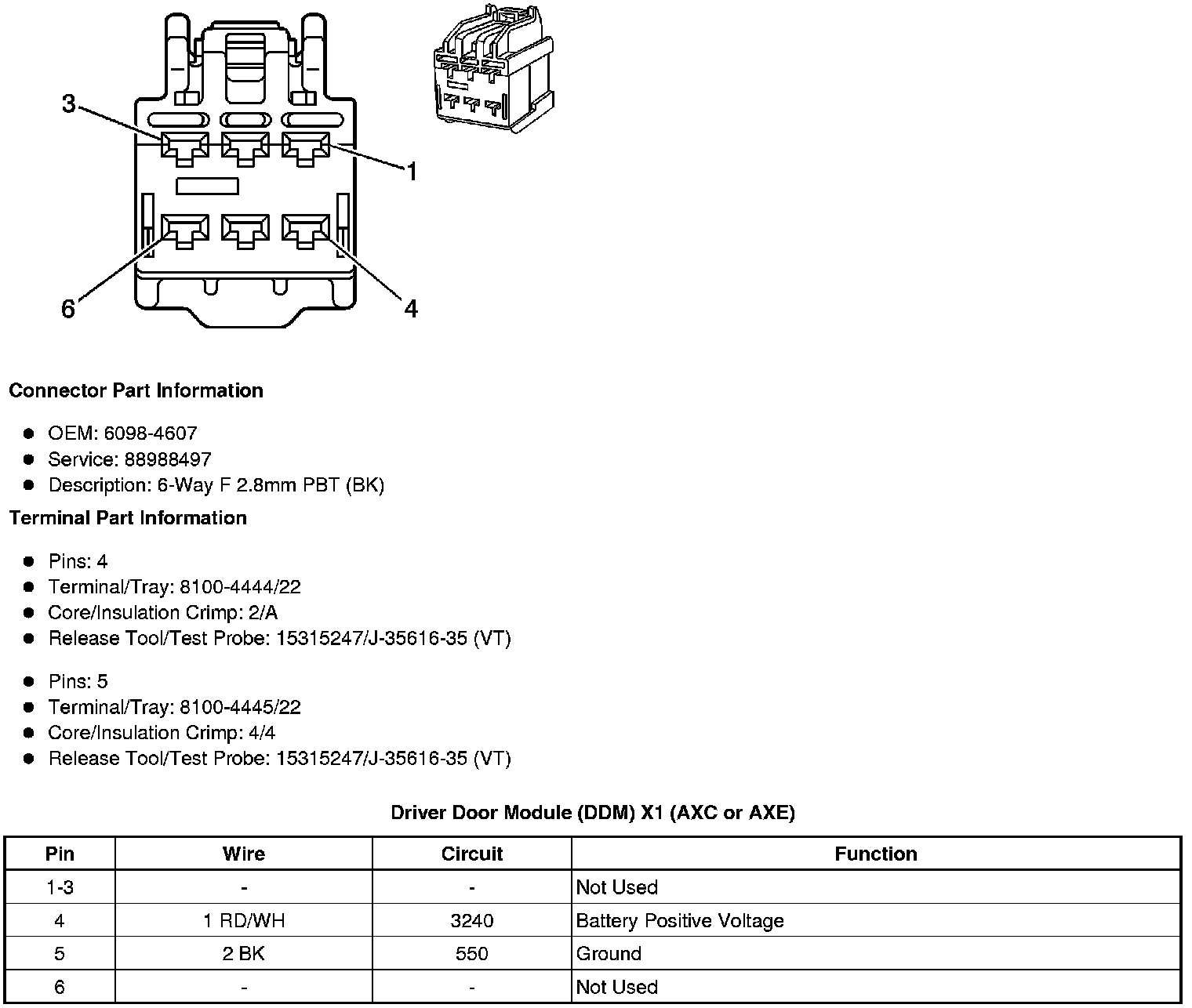

Driver Door Module (DDM) X1 (AXC or AXE)

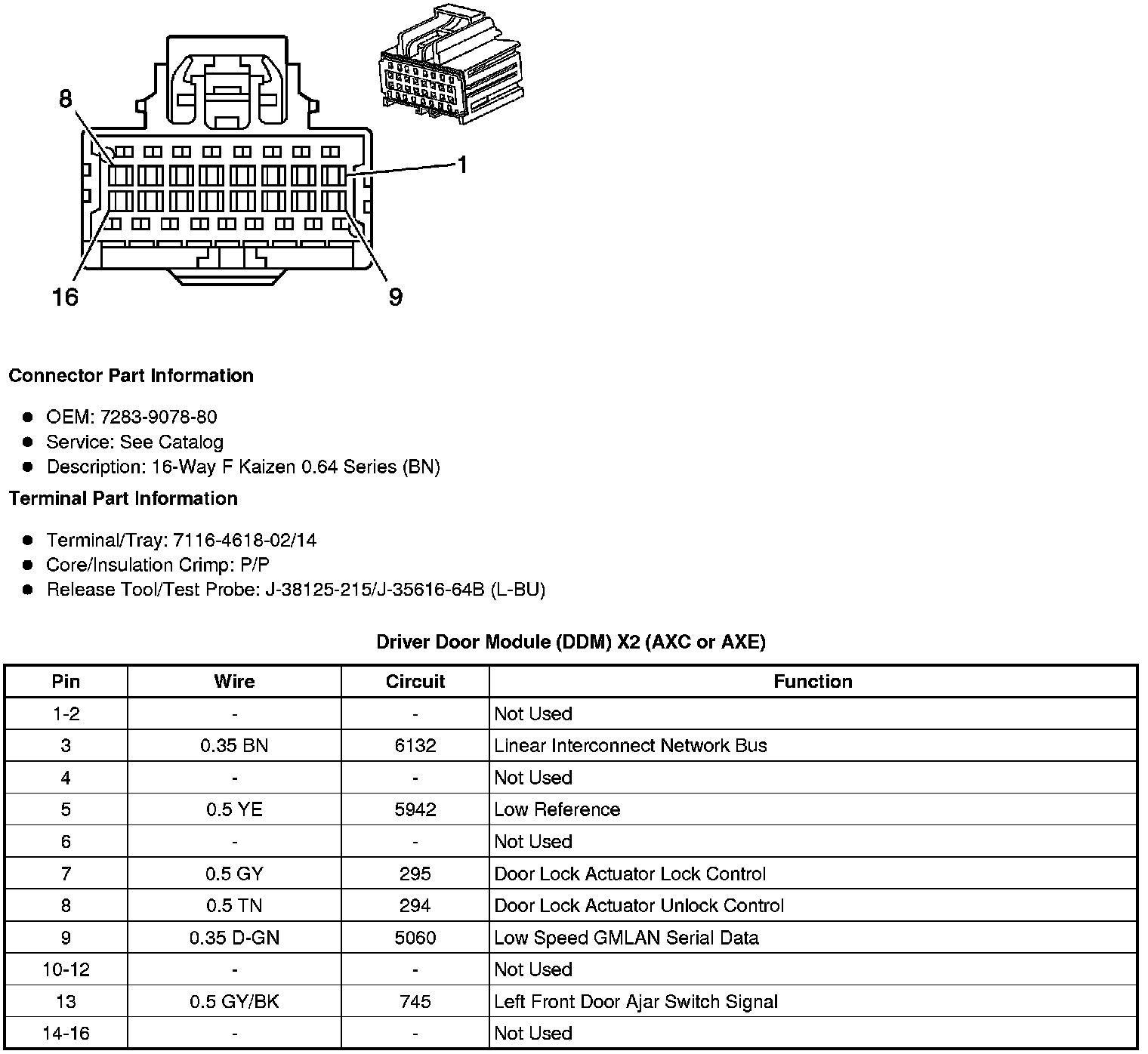

Driver Door Module (DDM) X2 (AXC or AXE)

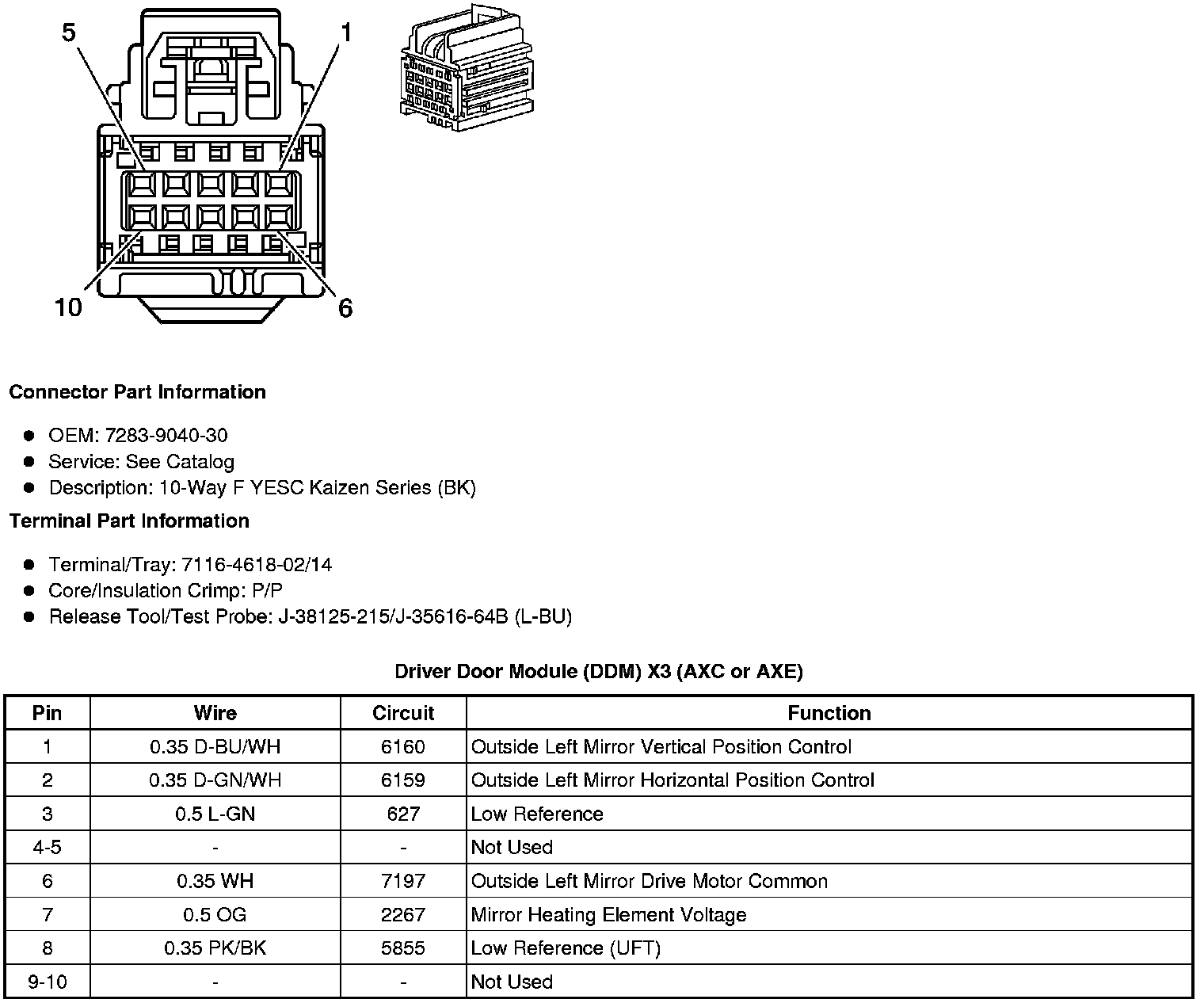

Driver Door Module (DDM) X3 (AXC or AXE)

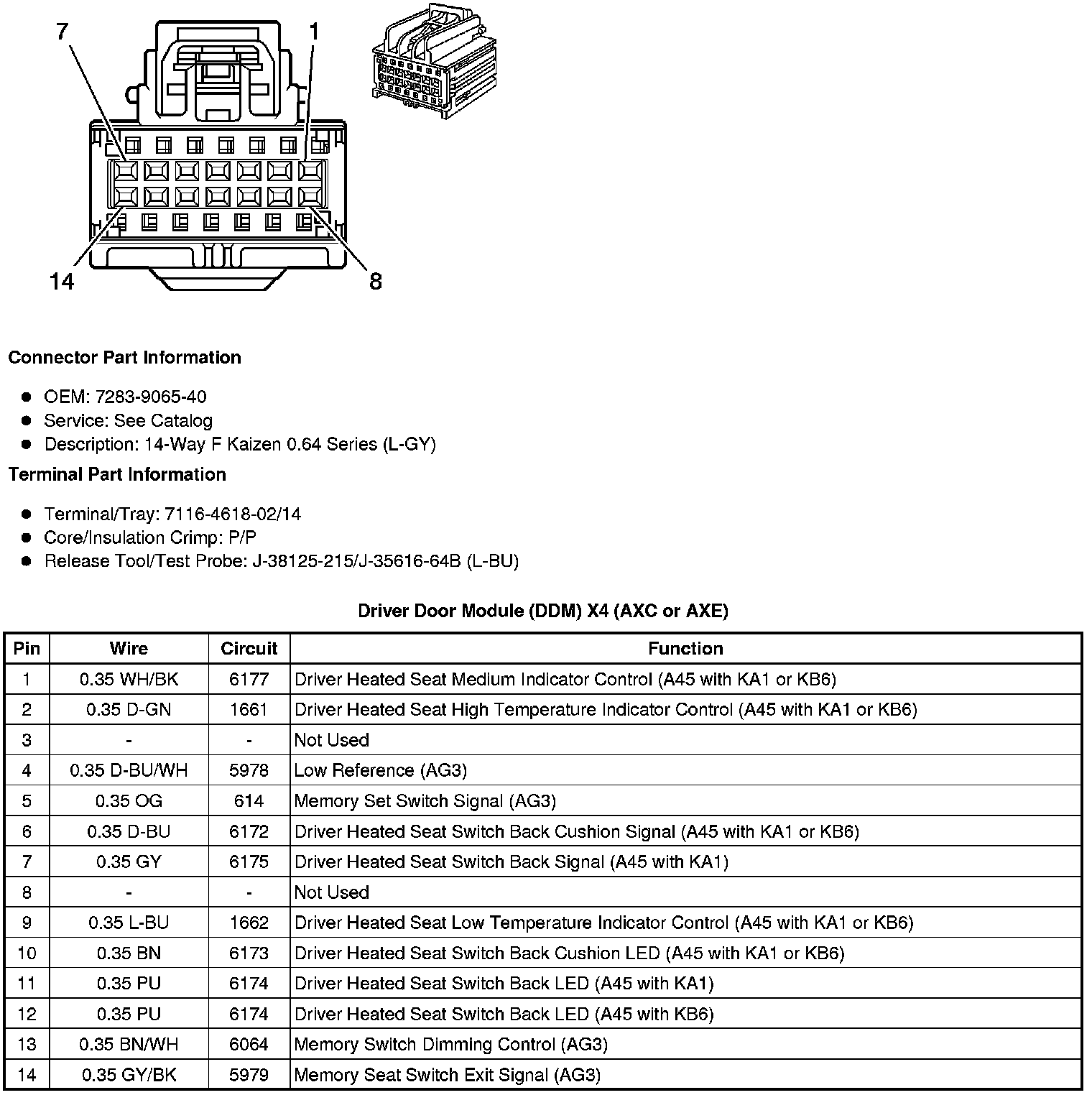

Driver Door Module (DDM) X4 (AXC or AXE)

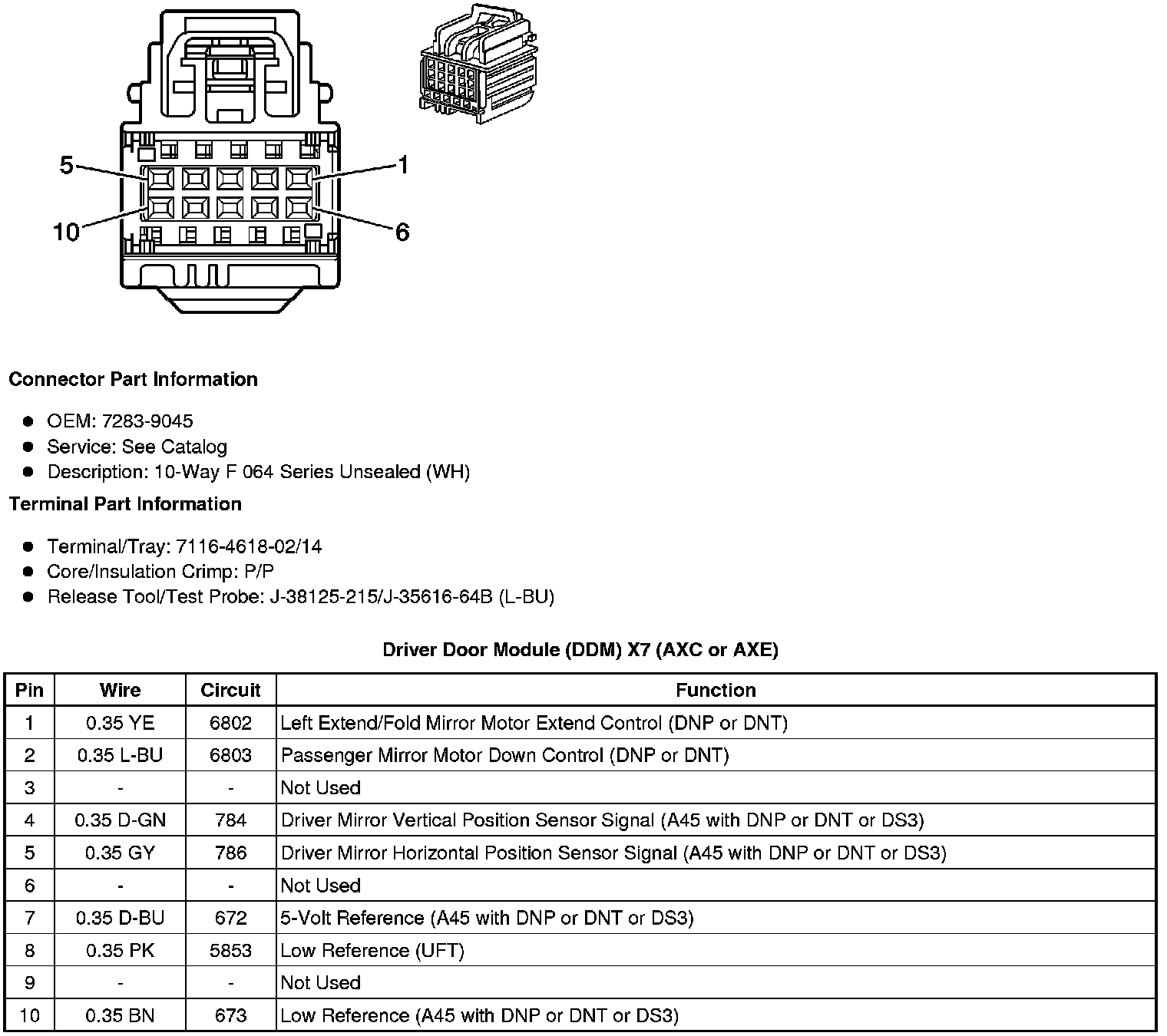

Driver Door Module (DDM) X7 (AXC or AXE)
