Component Connector End Views

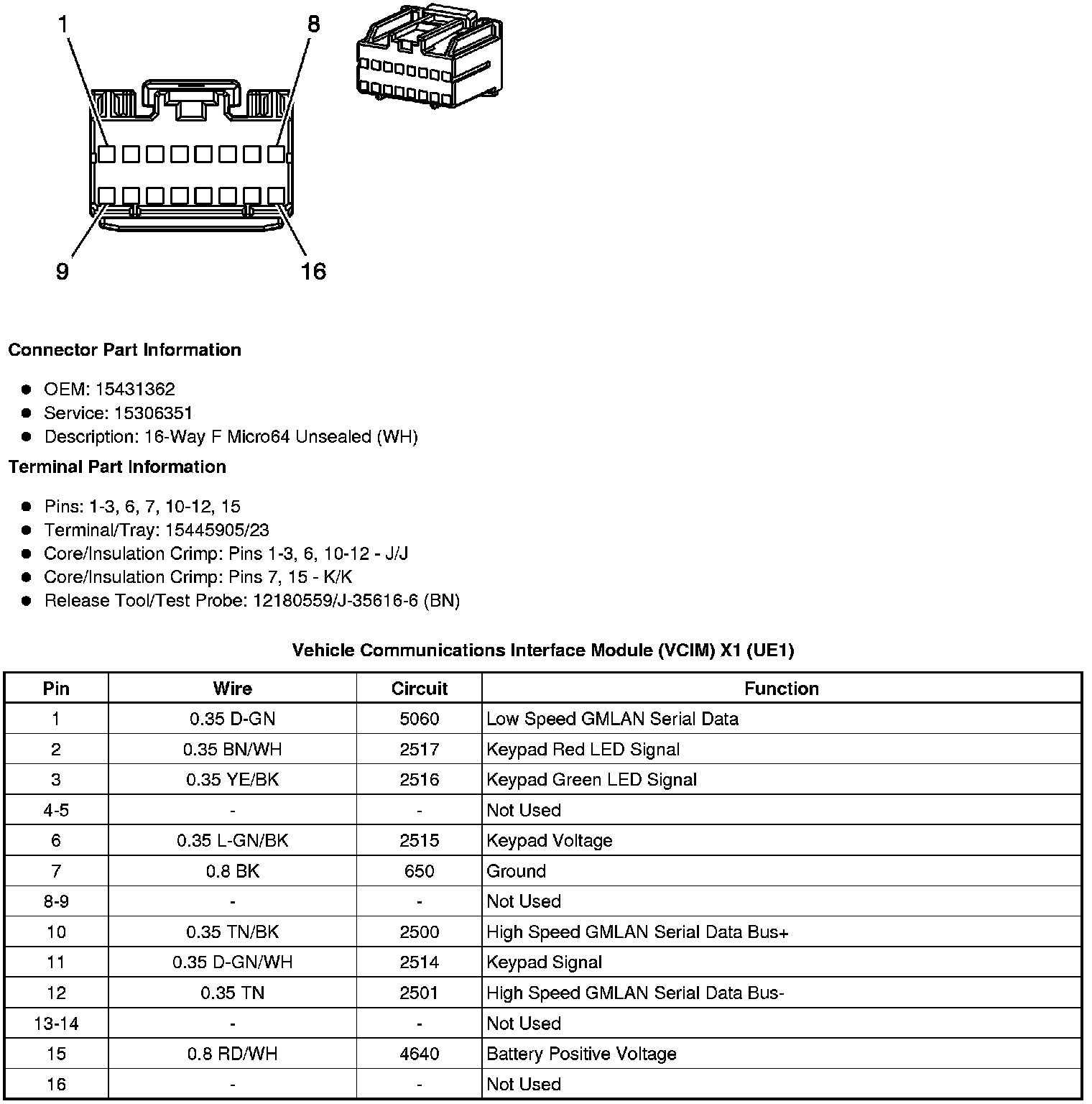

Vehicle Communications Interface Module (VCIM) X1 (UE1)

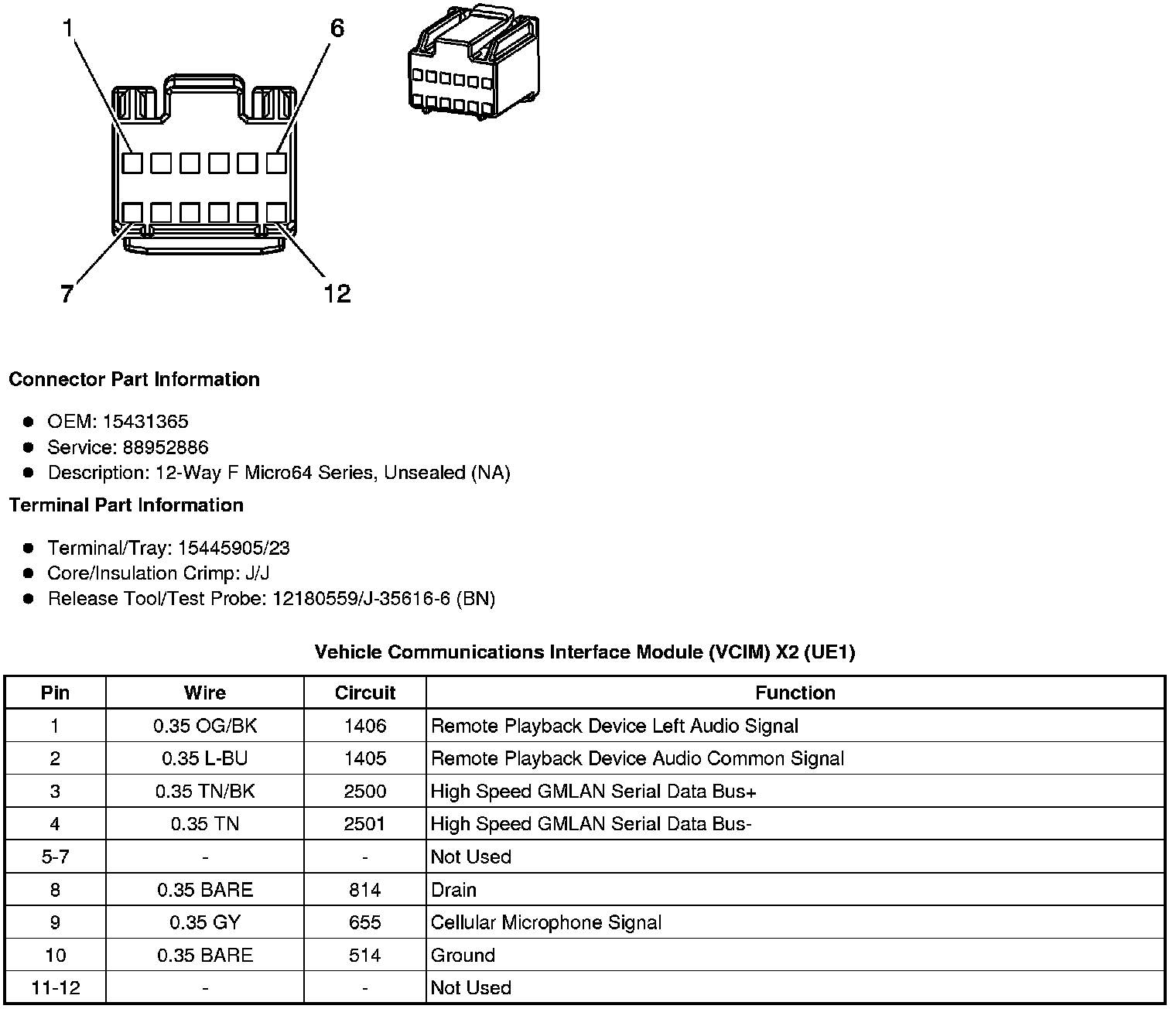

Vehicle Communications Interface Module (VCIM) X2 (UE1)

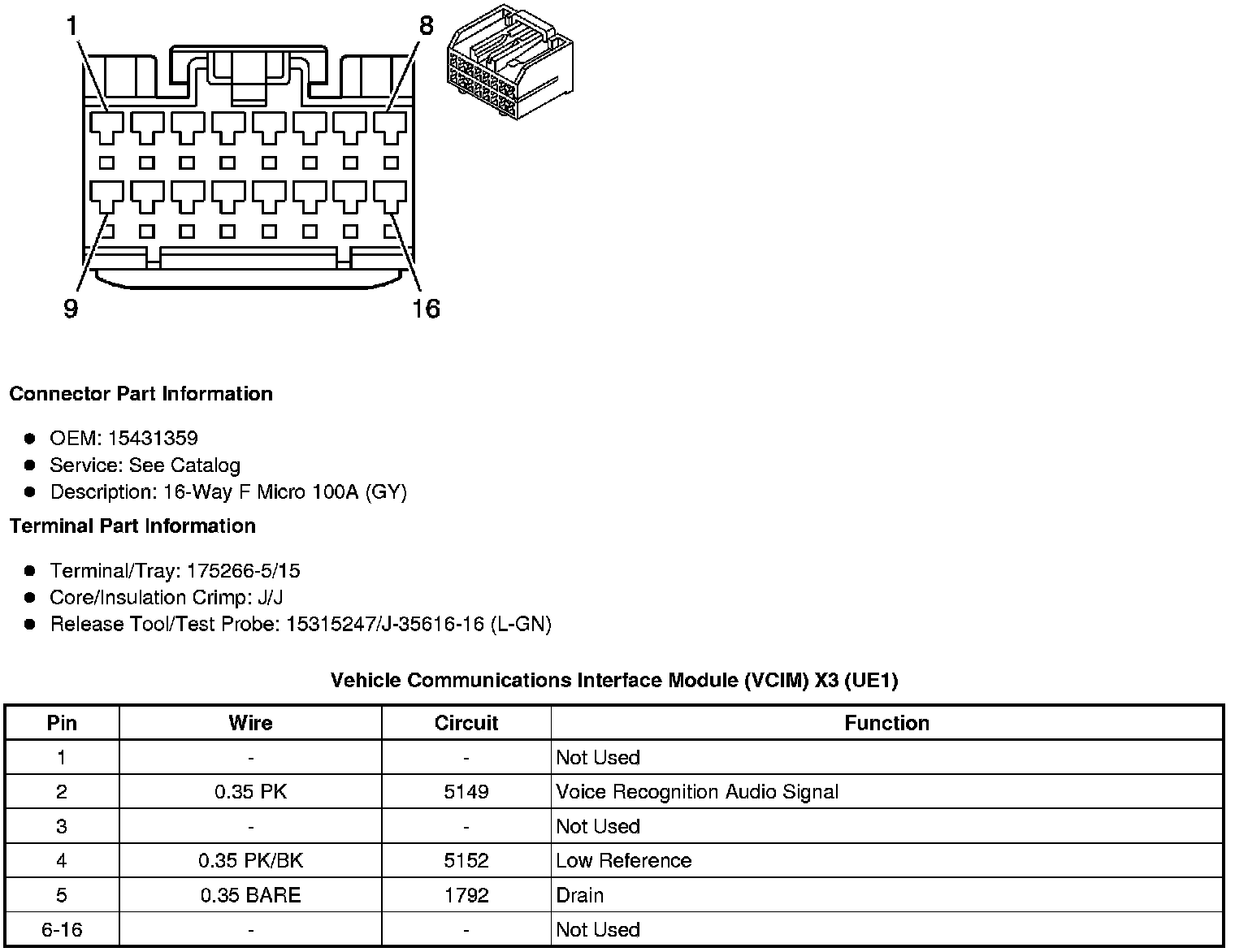

Vehicle Communications Interface Module (VCIM) X3 (UE1)
Central Control Module
Need a step-by-step guide?
Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2009 Chevrolet.
Component Connector End Views
Vehicle Communications Interface Module (VCIM) X1 (UE1)
Vehicle Communications Interface Module (VCIM) X2 (UE1)
Vehicle Communications Interface Module (VCIM) X3 (UE1)
