Crankshaft Balancer Bolt
First Pass 100 Nm (74 lb ft)
Final Pass 150 Degrees

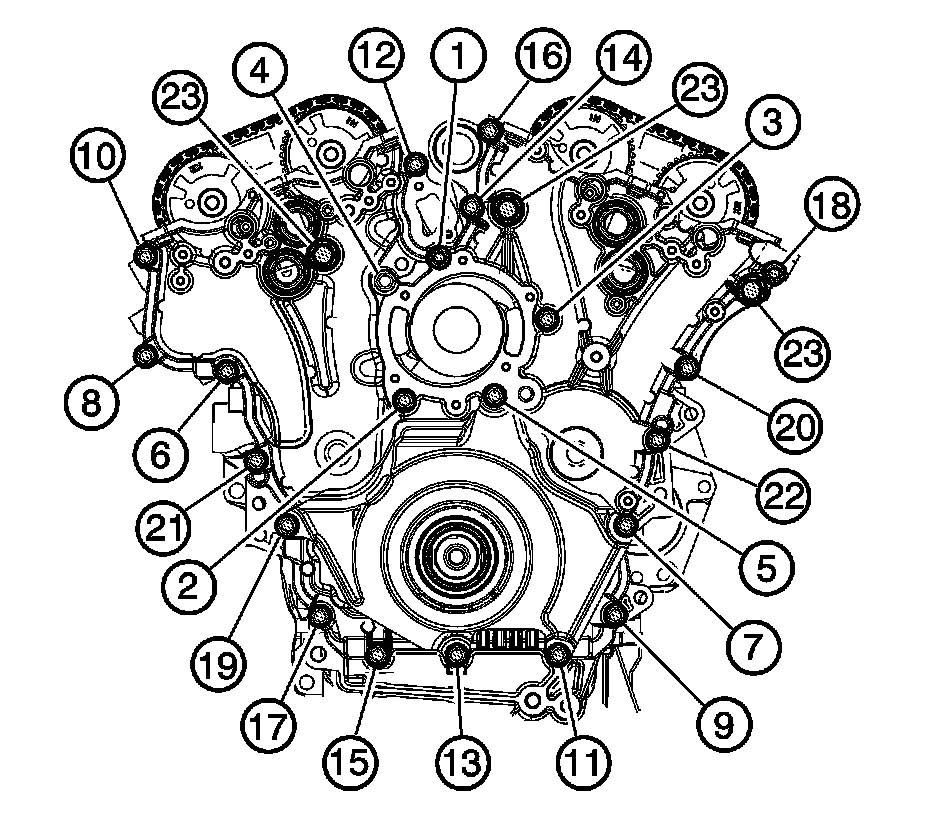

TIMING COVER
Engine Front Cover Bolt - M8
First Pass 20 Nm (14 lb ft)
Final Pass 60 Degrees
Engine Front Cover Bolt - M12
First Pass 65 Nm (48 lb ft)
Final Pass 60 Degrees
System Specifications
