Thread Repair Specifications

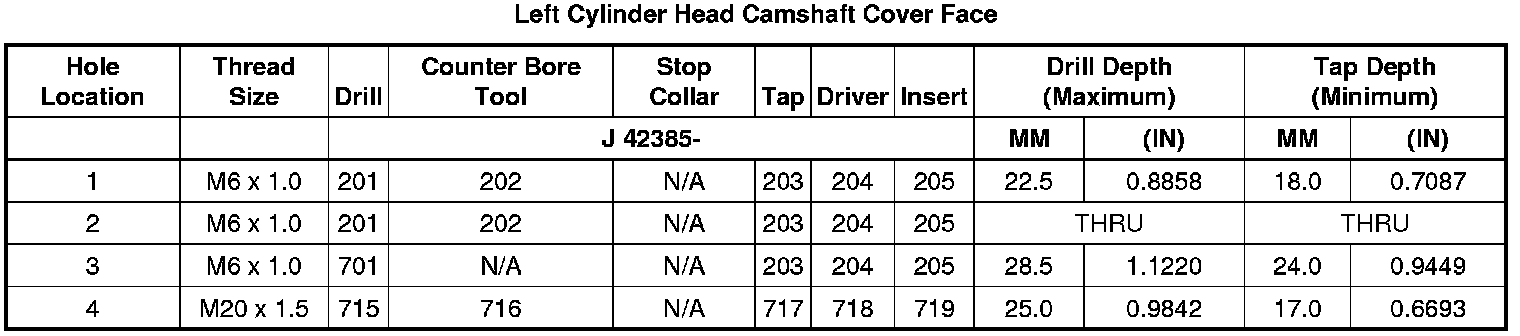

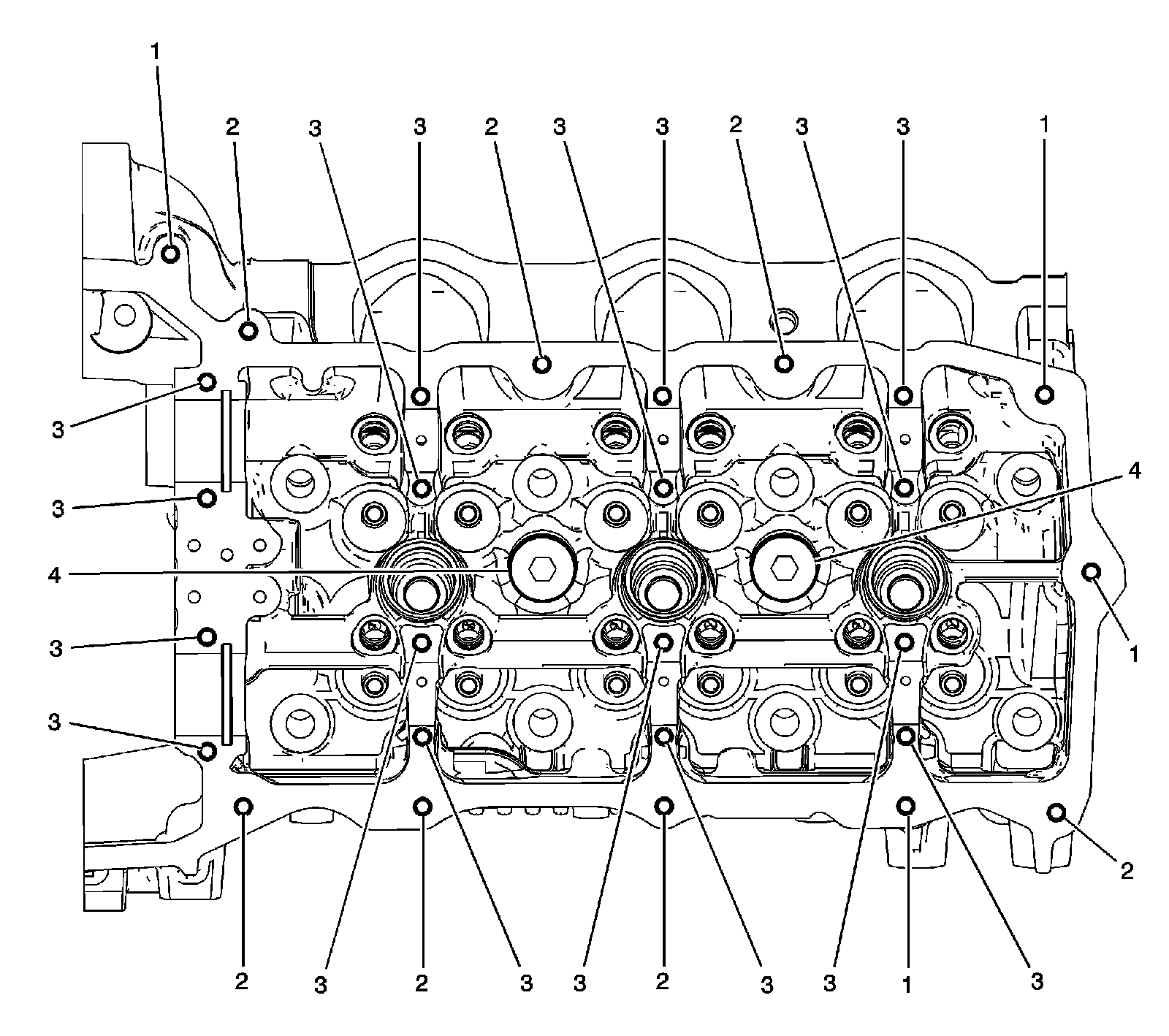

Left Cylinder Head Camshaft Cover Face

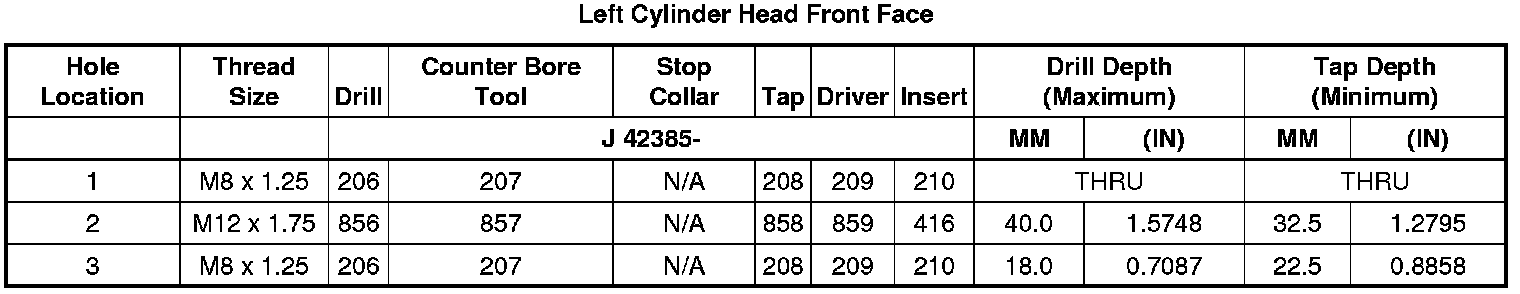

Left Cylinder Head Front Face

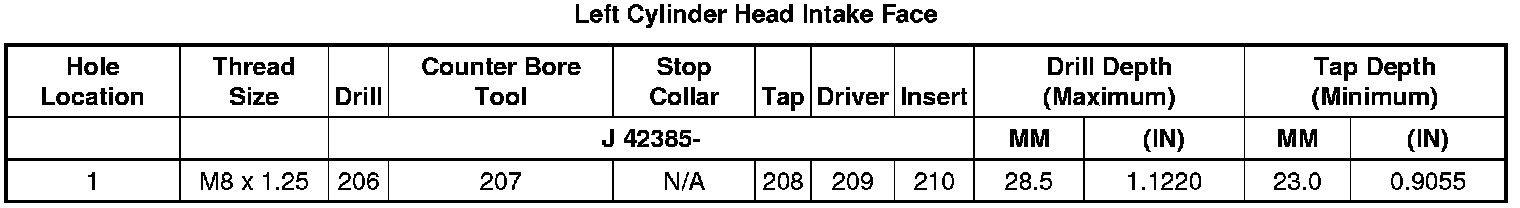

Left Cylinder Head Intake Face

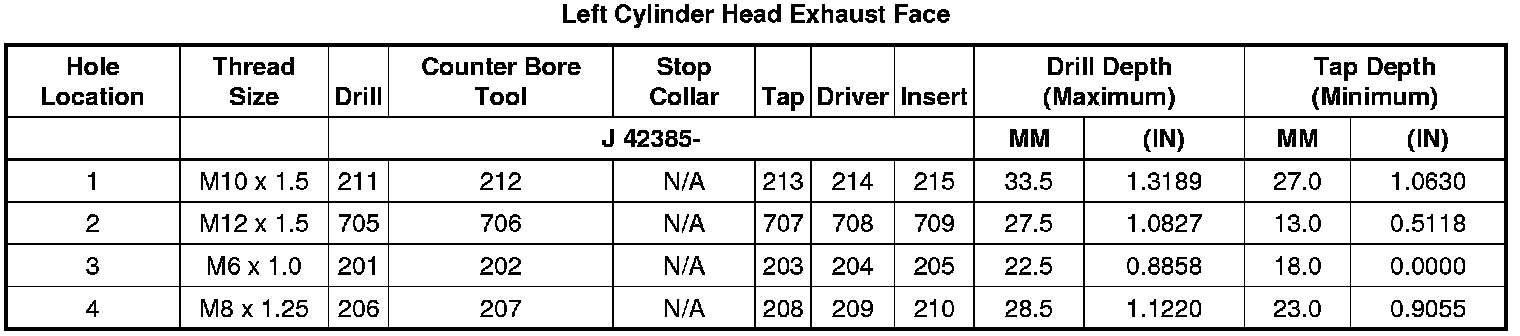

Left Cylinder Head Exhaust Face
Left Cylinder Head Rear Face

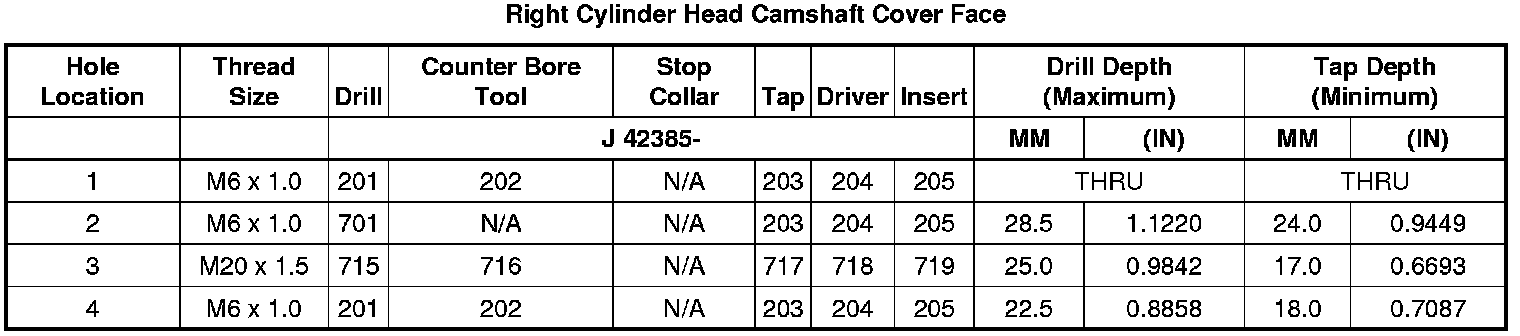

Right Cylinder Head Camshaft Cover Face

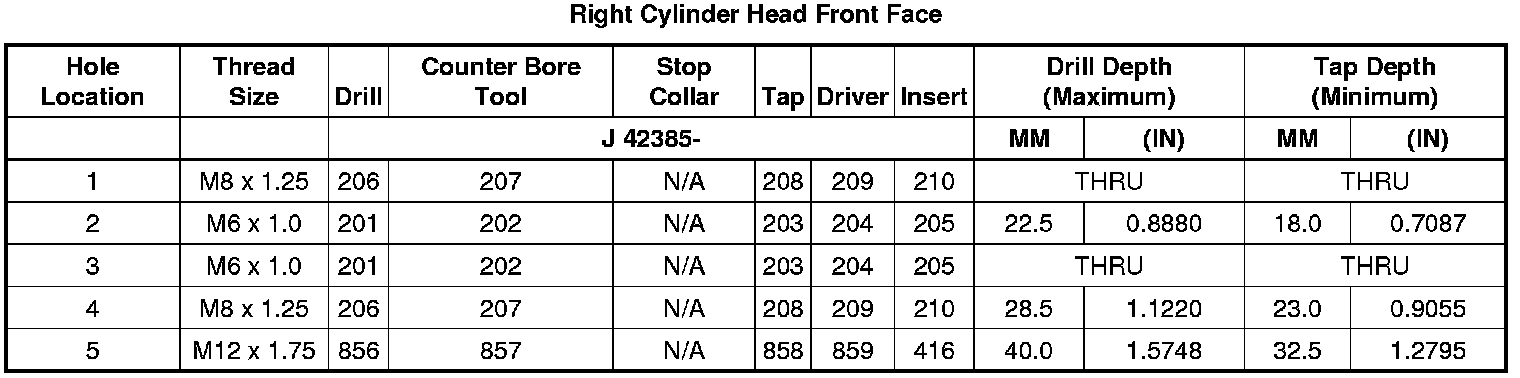

Right Cylinder Head Front Face

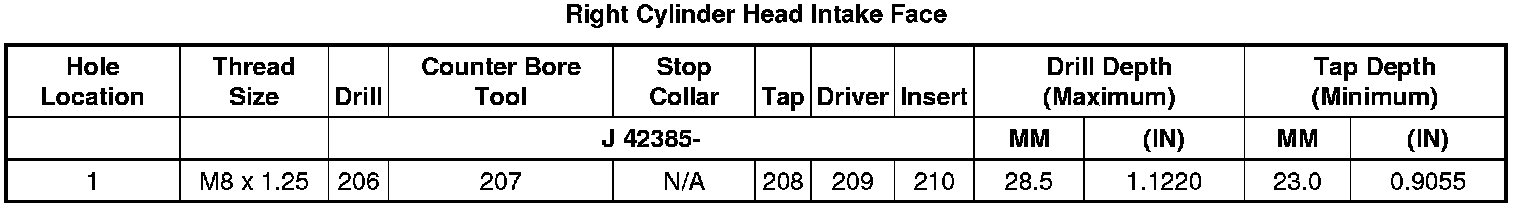

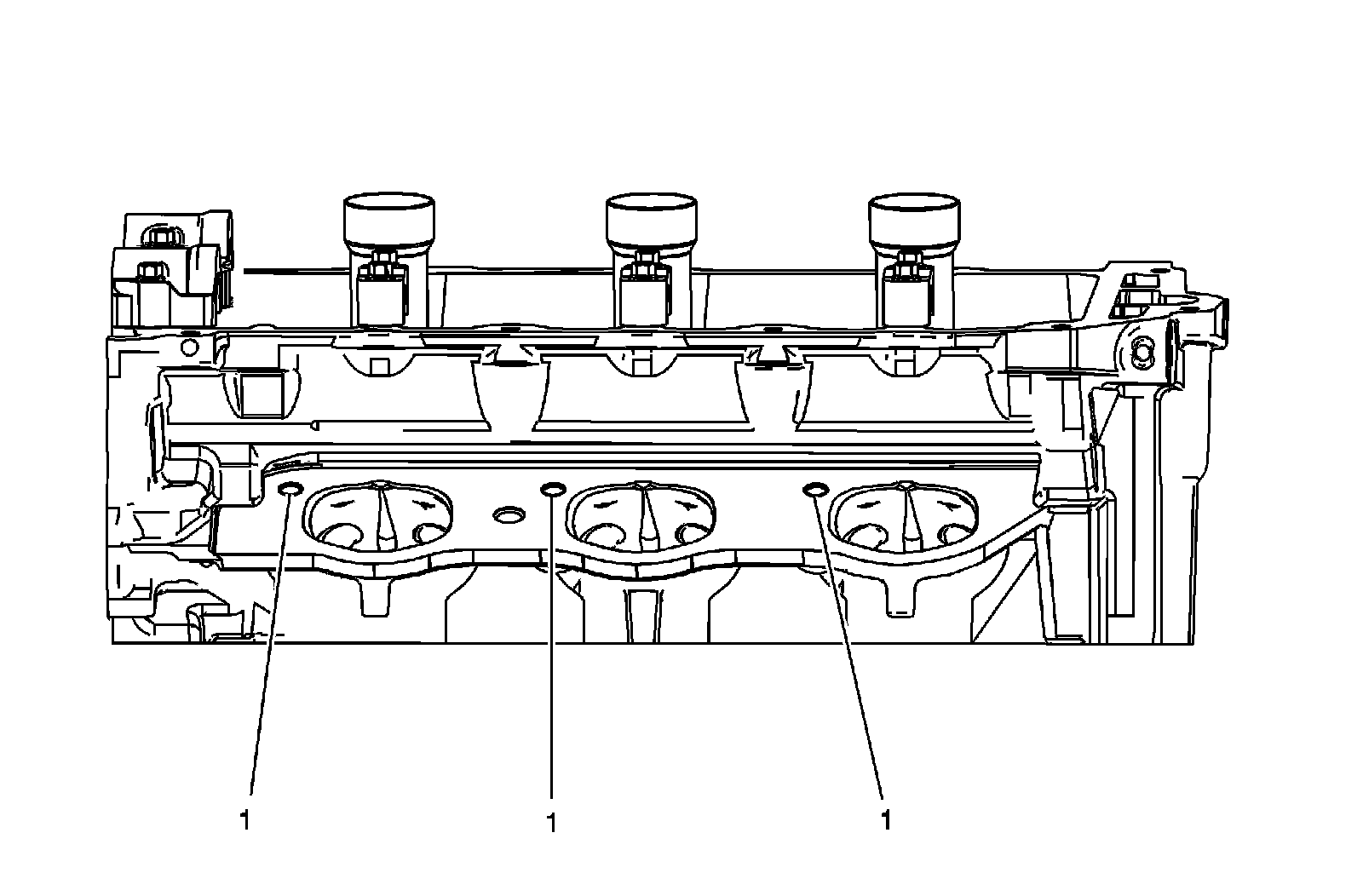

Right Cylinder Head Intake Face

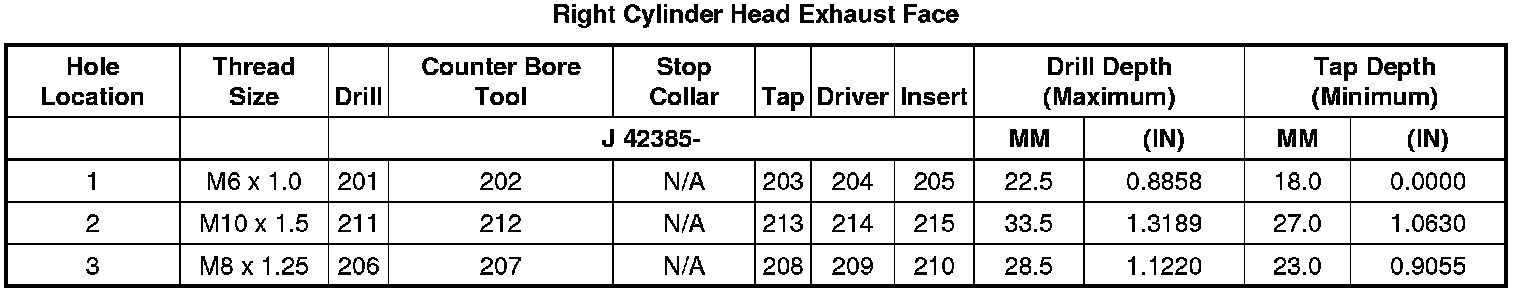

Right Cylinder Head Exhaust Face
Right Cylinder Head Rear Face

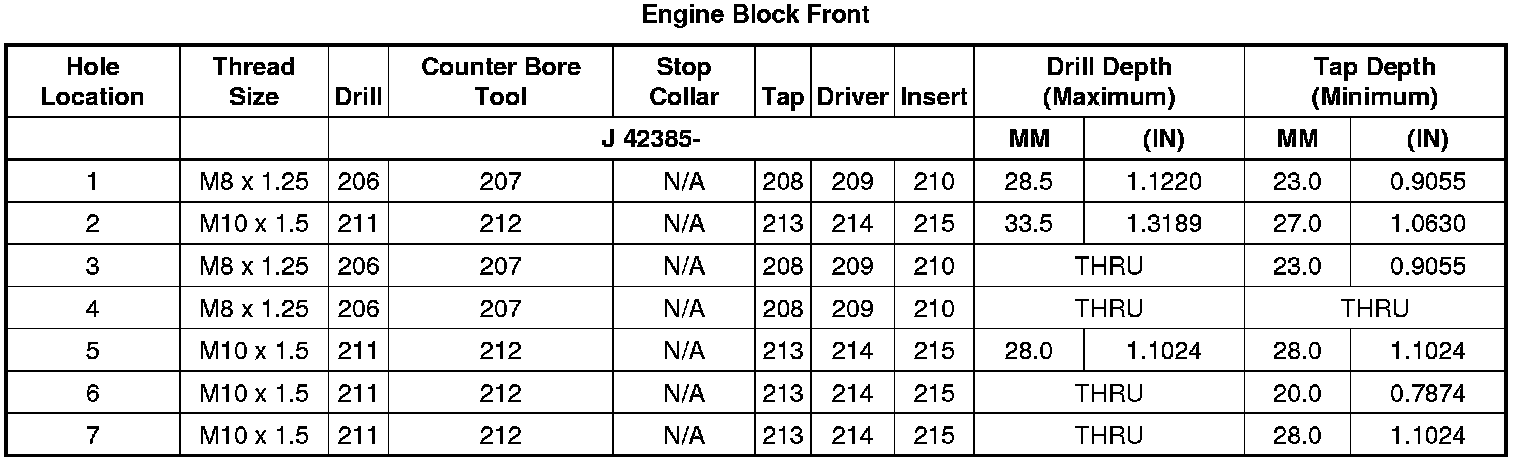

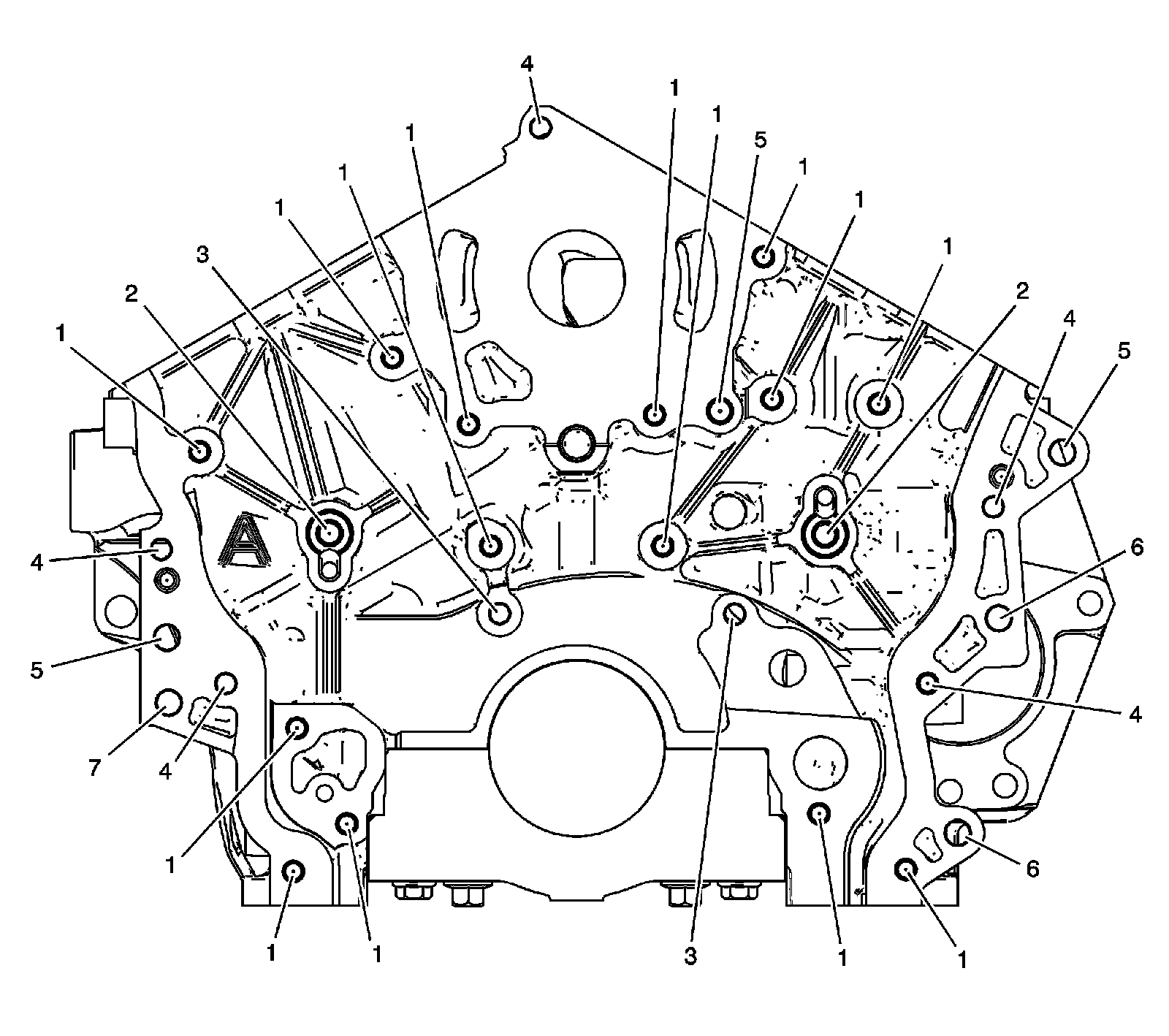

Engine Block Front

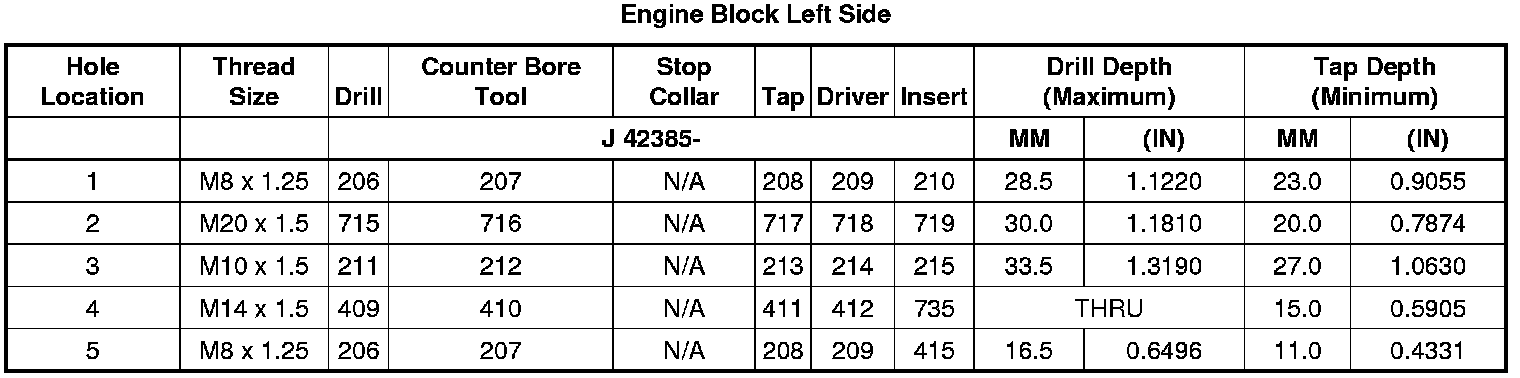

Engine Block Left Side

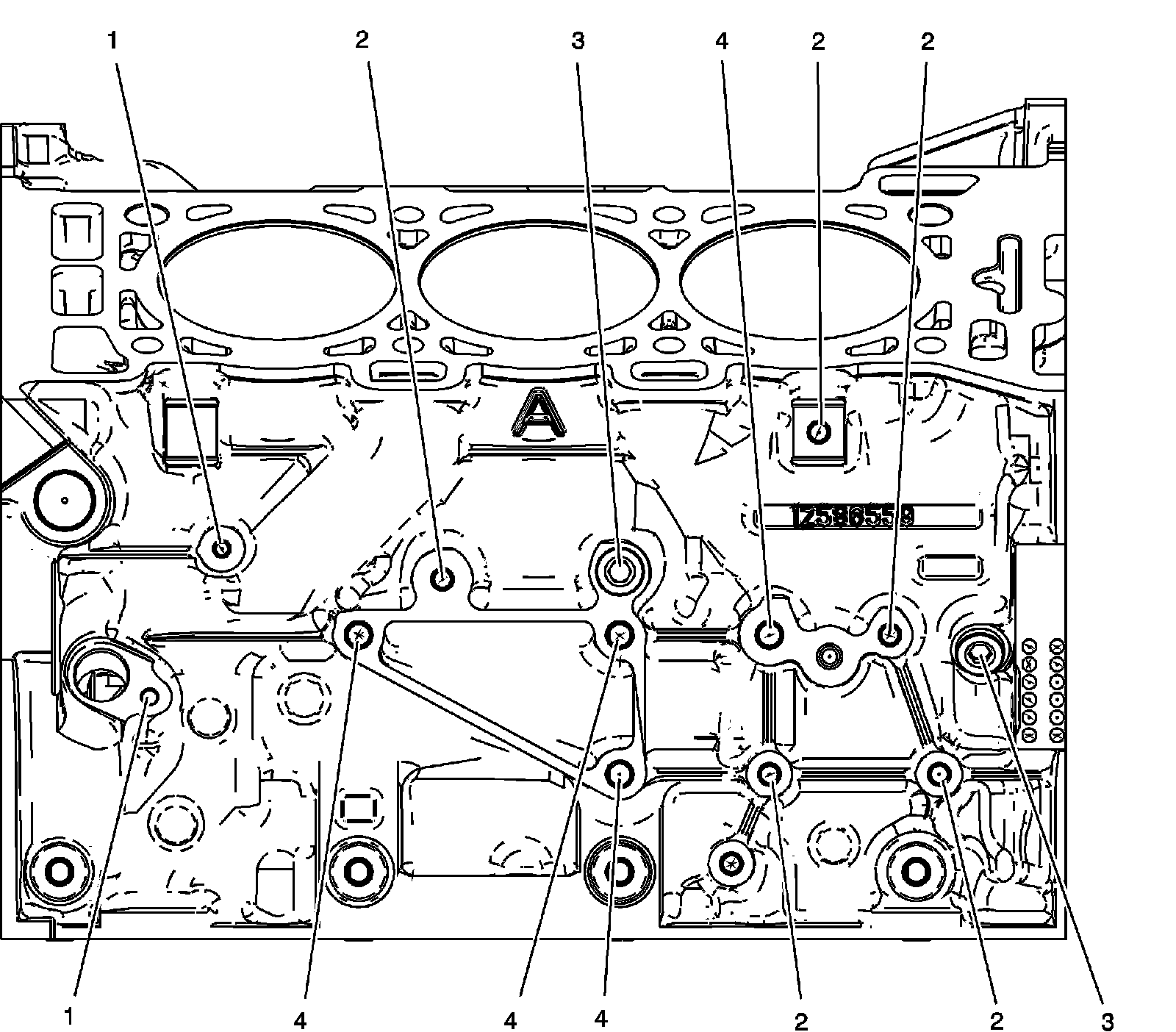

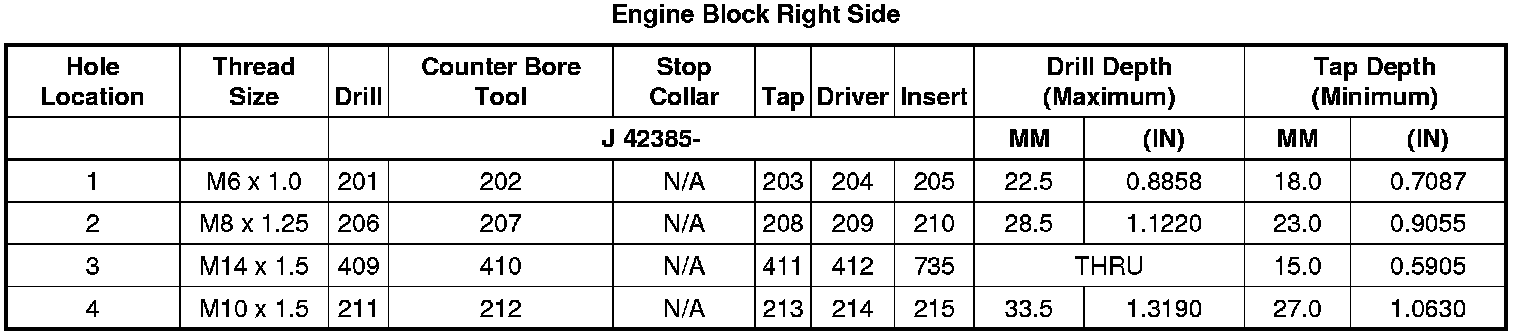

Engine Block Right Side

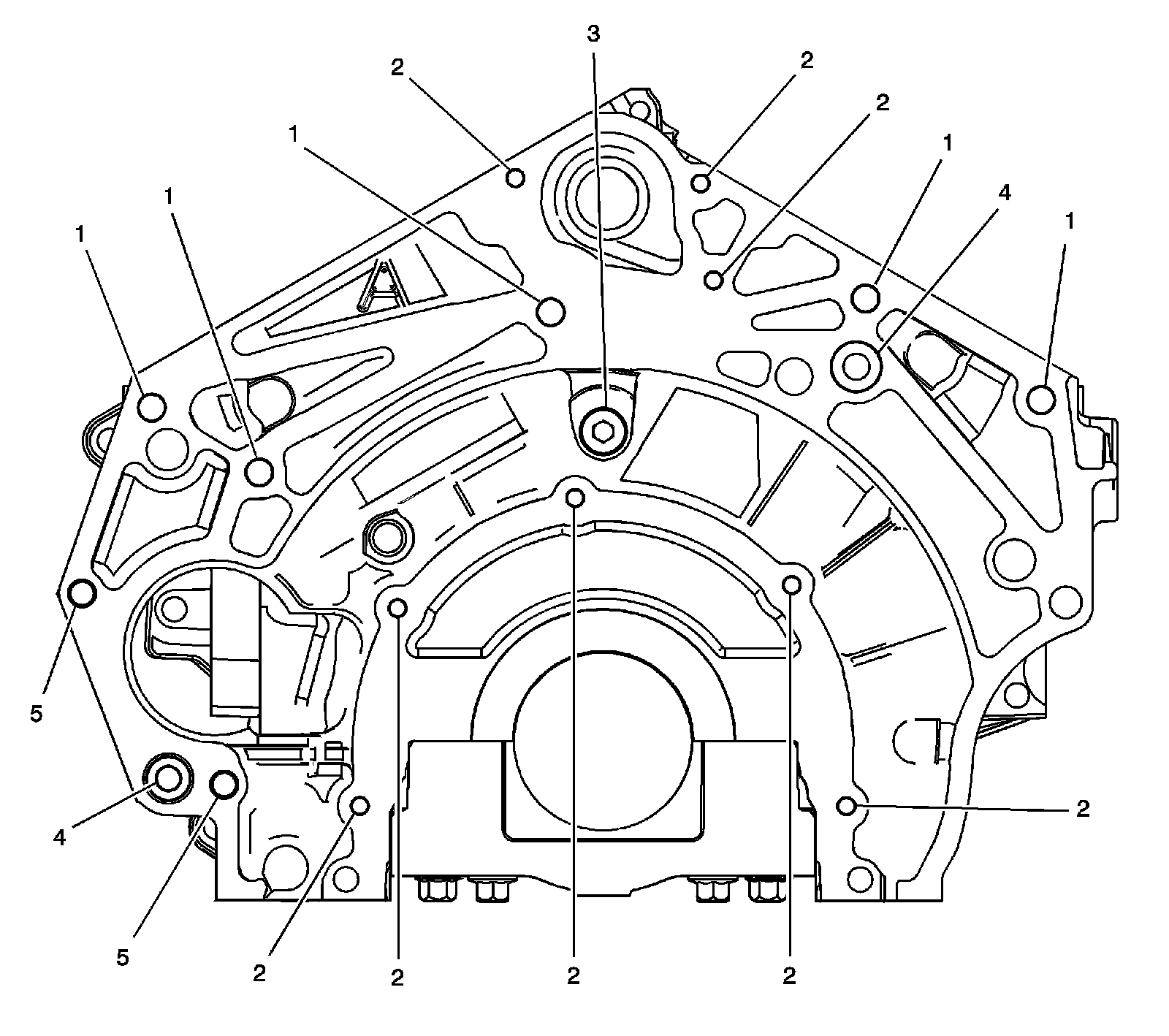

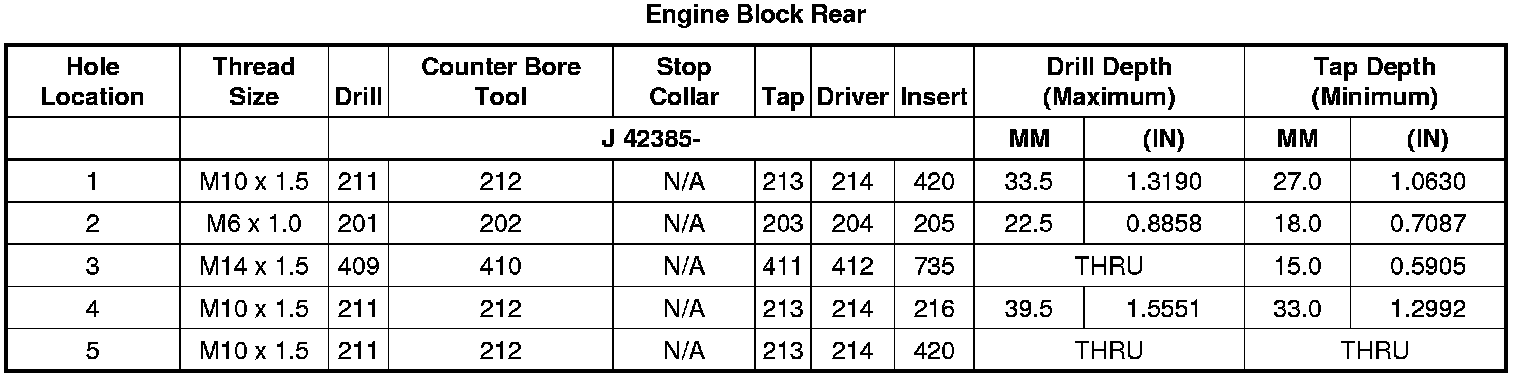

Engine Block Rear

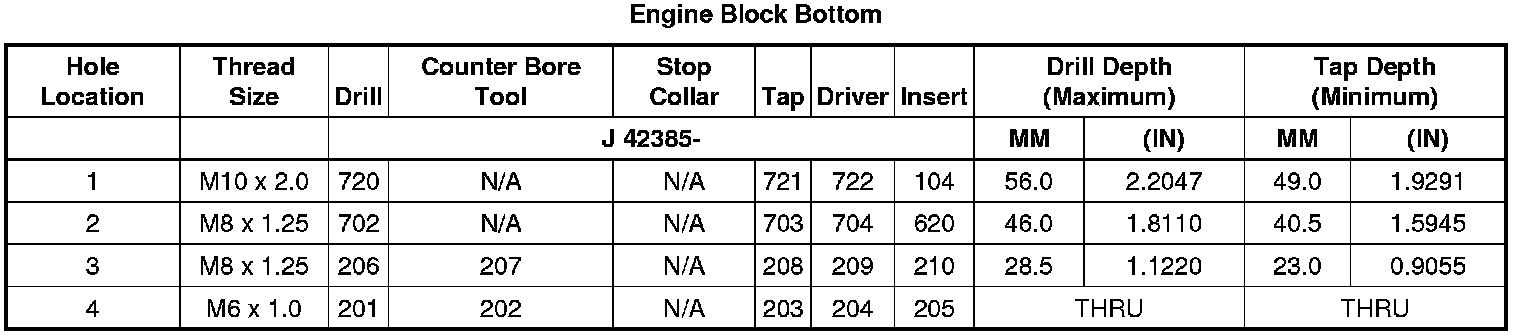

Engine Block Bottom

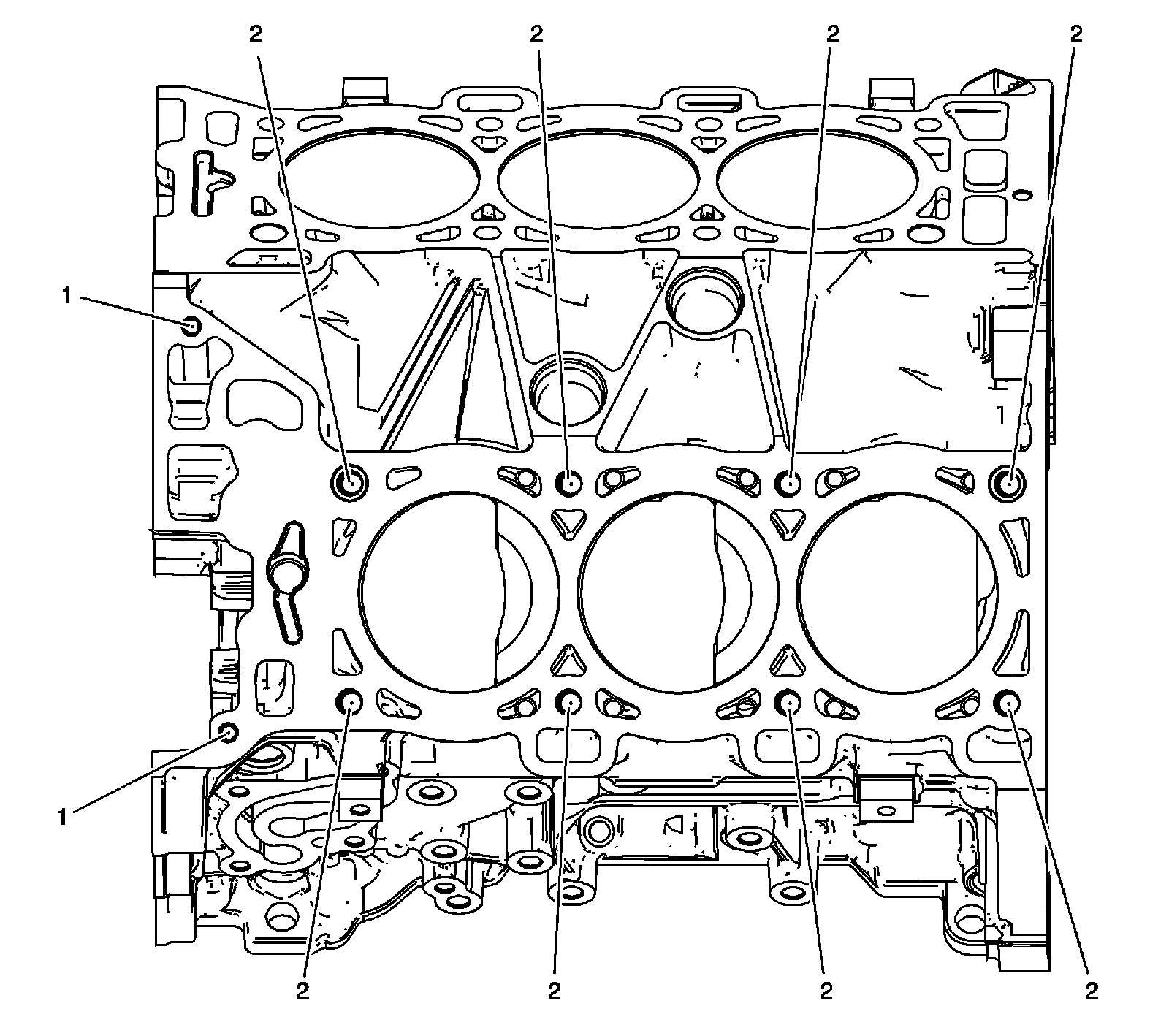

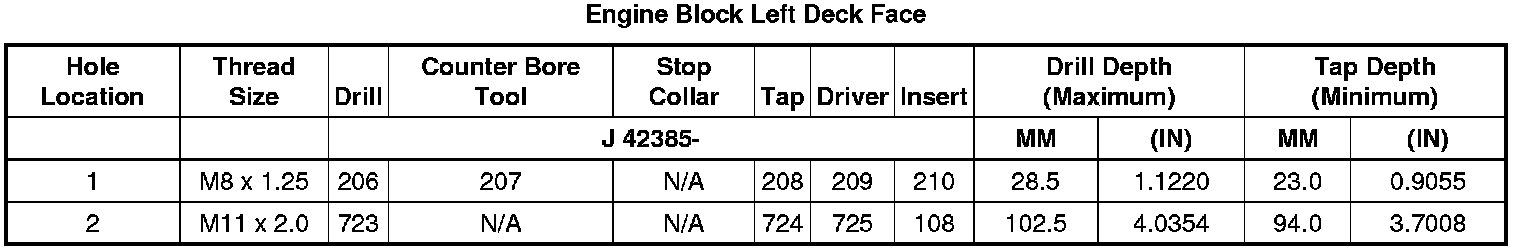

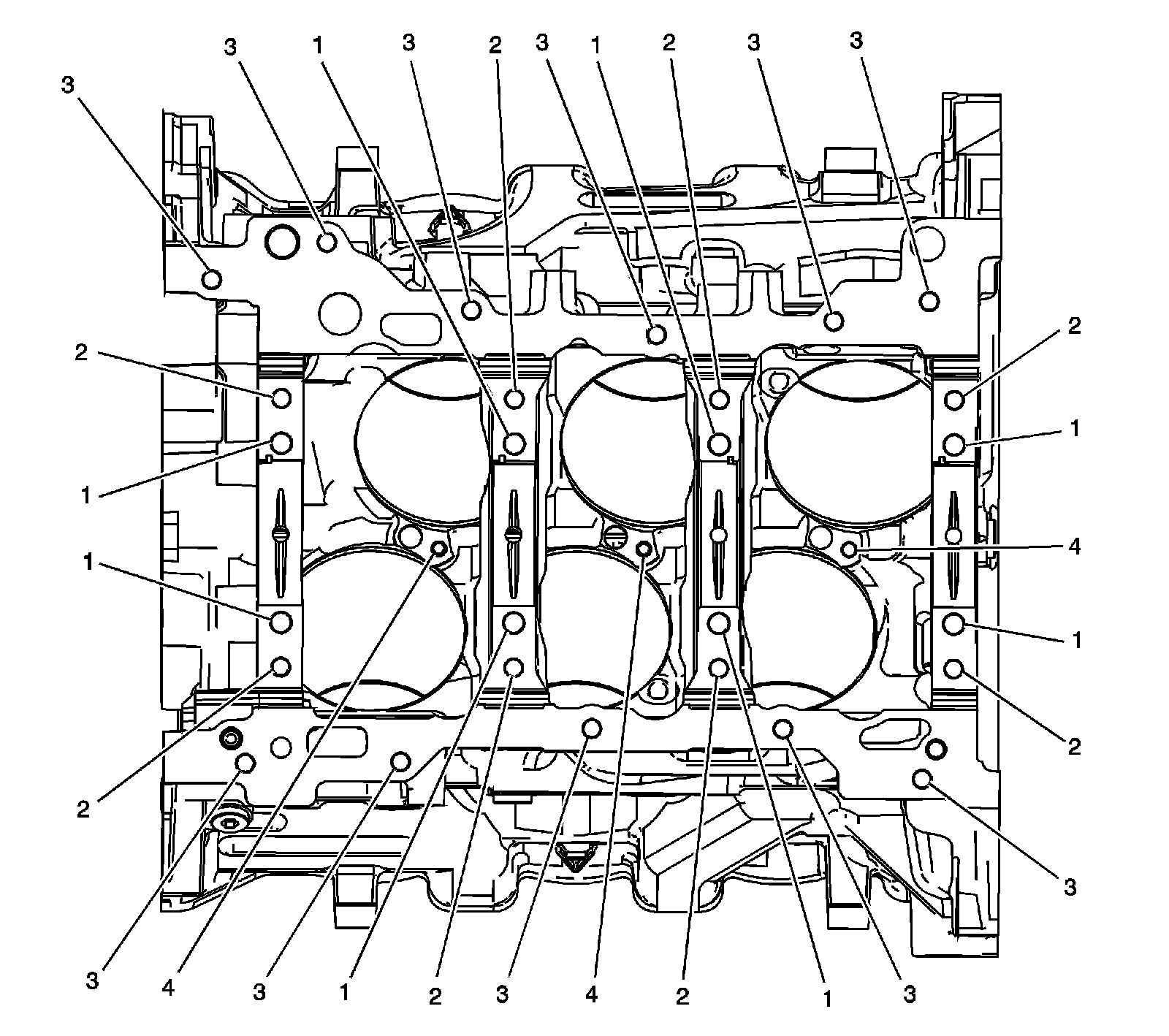

Engine Block Left Deck Face

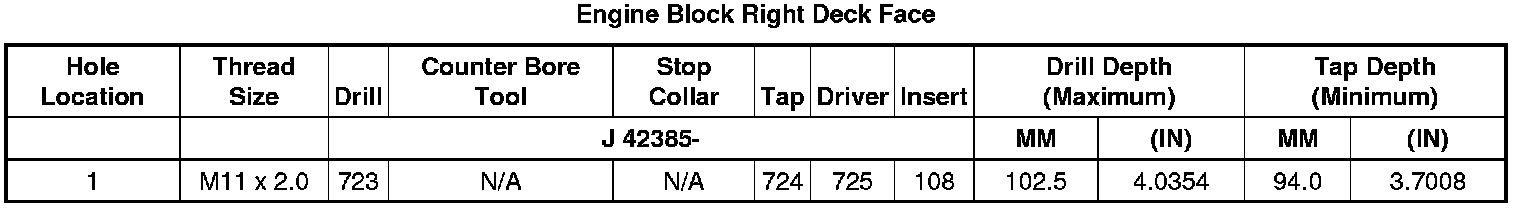

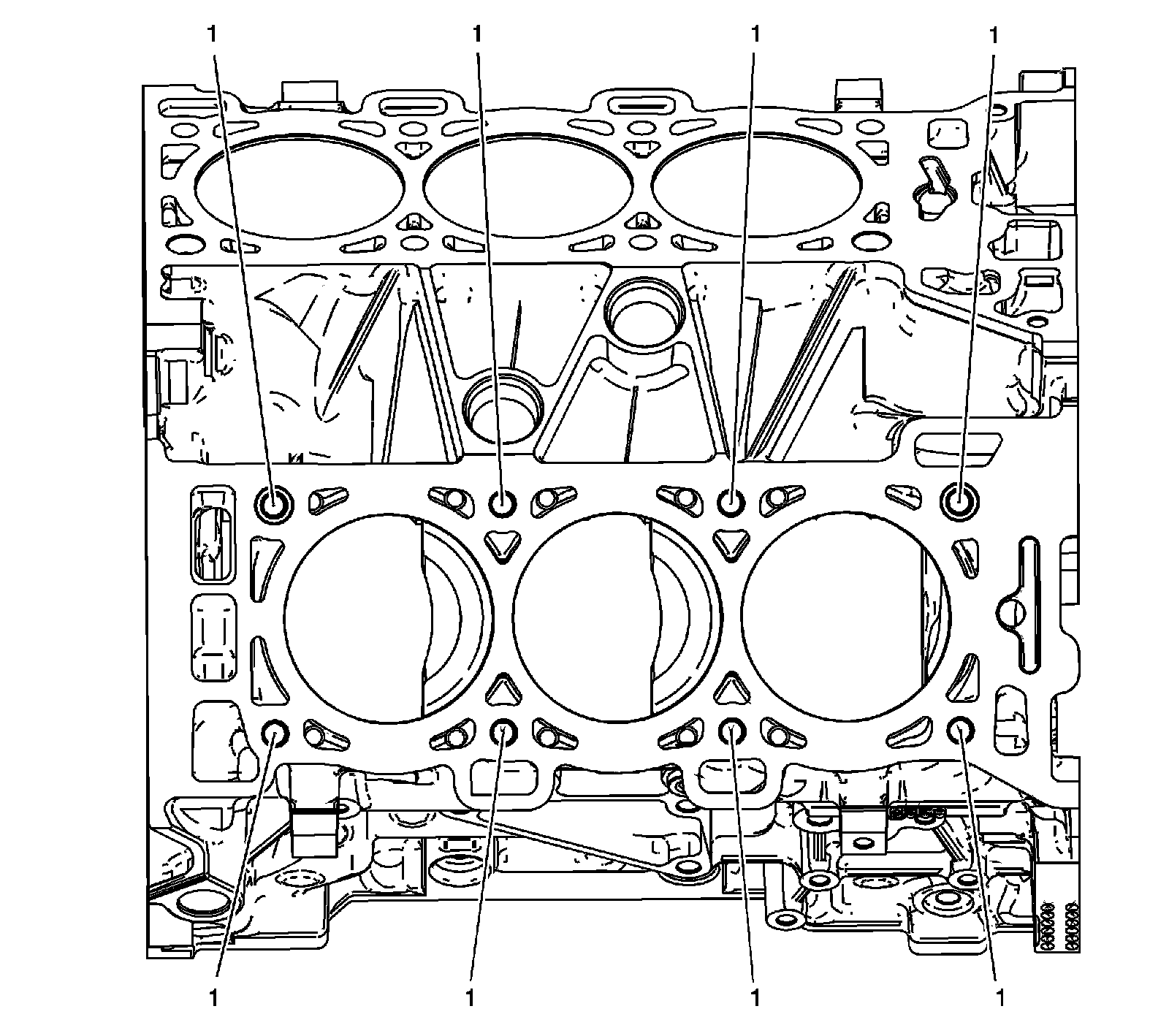

Engine Block Right Deck Face

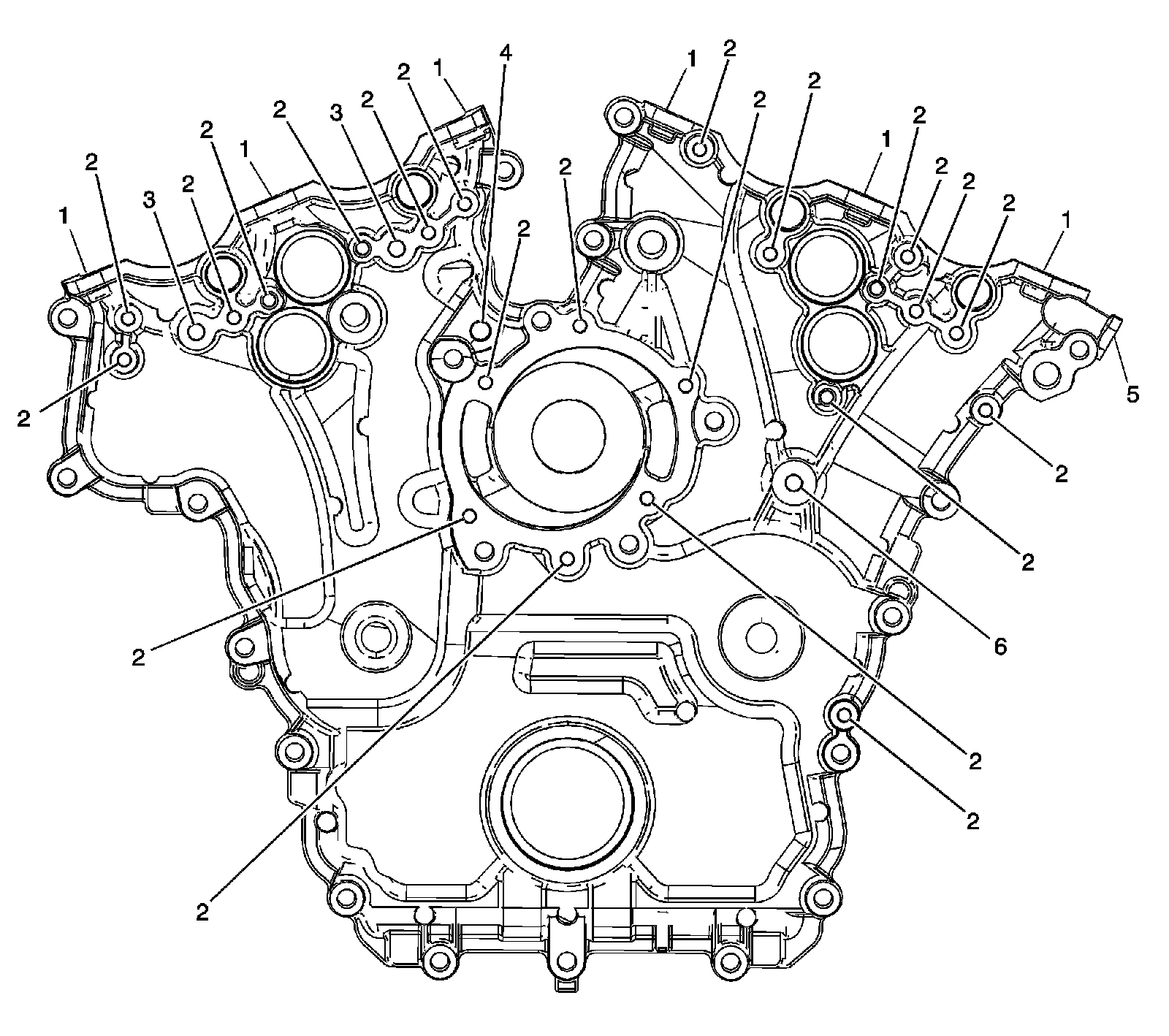

Engine Front Cover

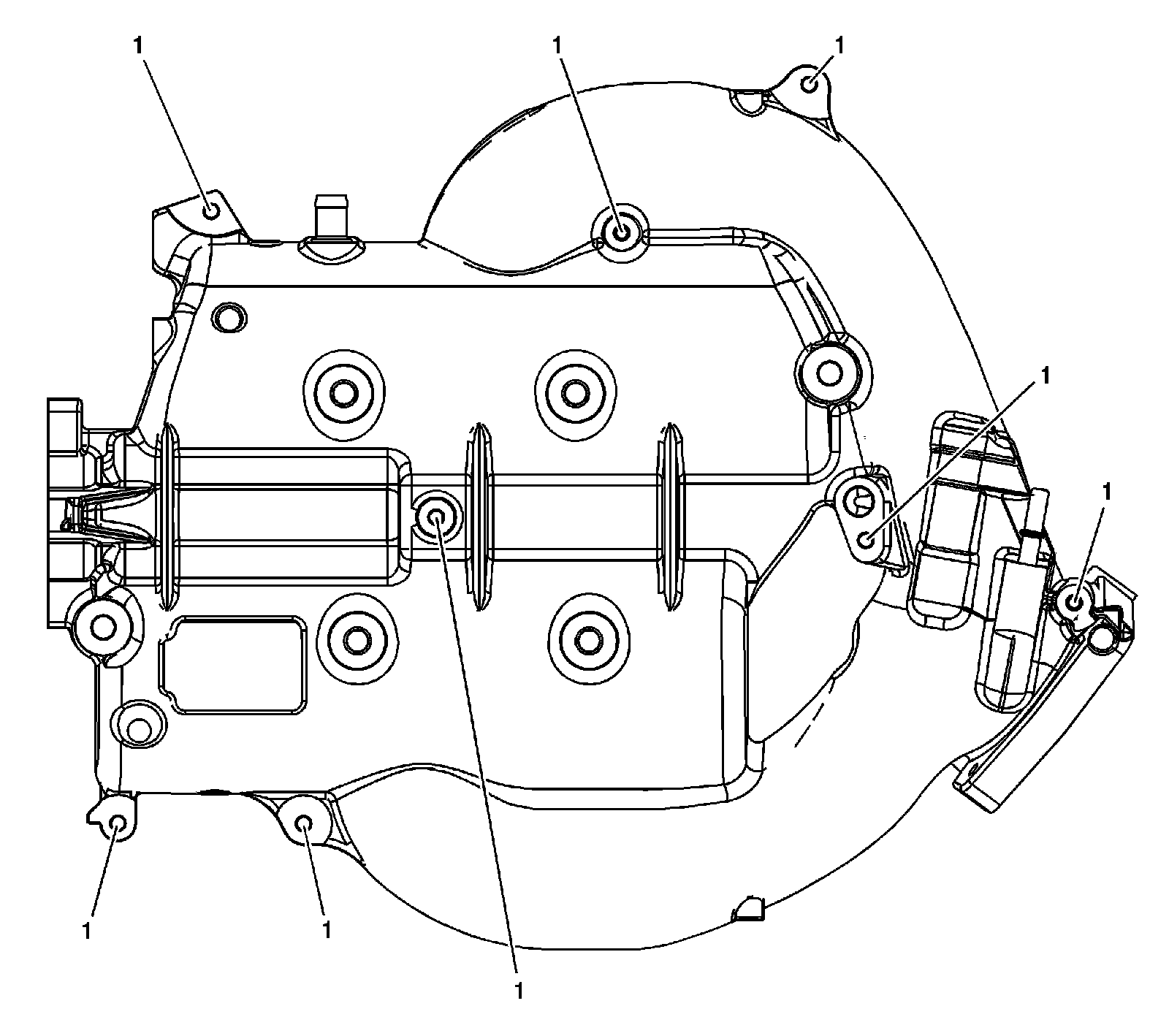

Upper Intake Manifold - Top

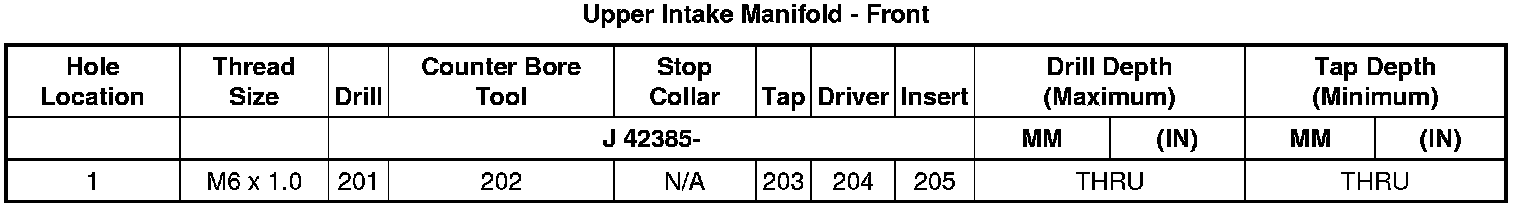

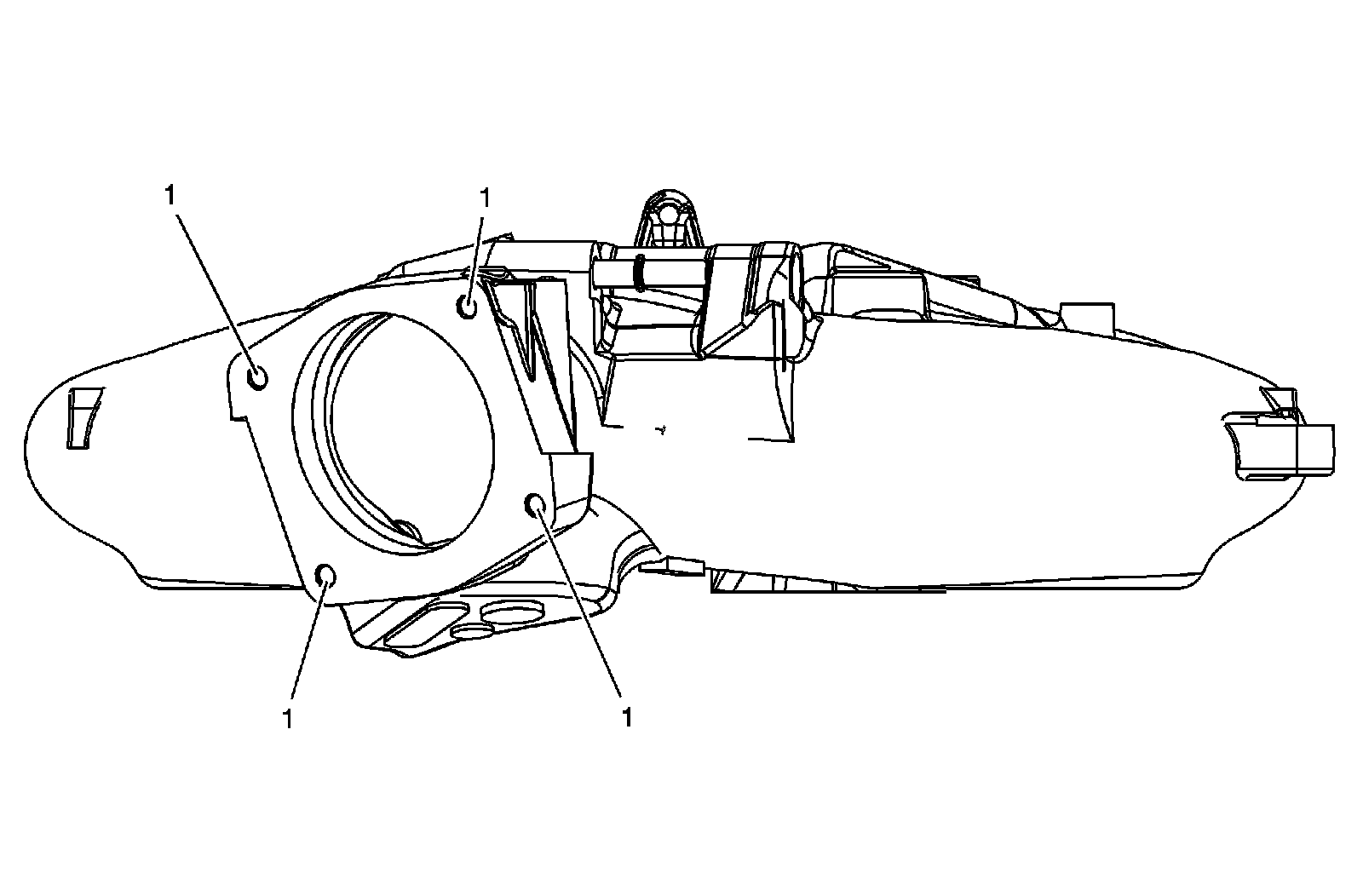

Upper Intake Manifold - Front

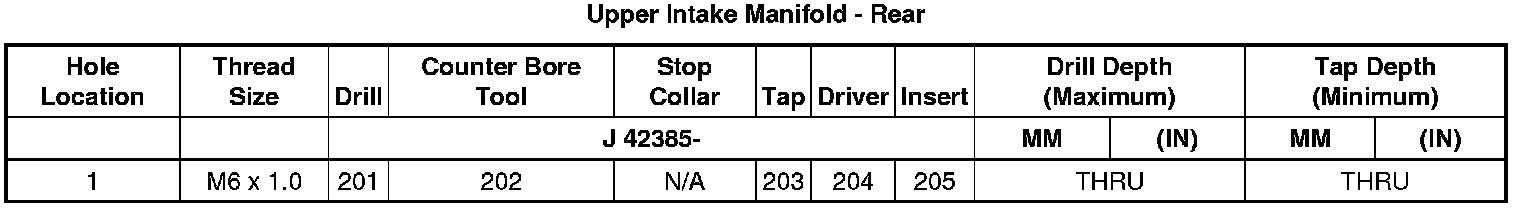

Upper Intake Manifold - Rear

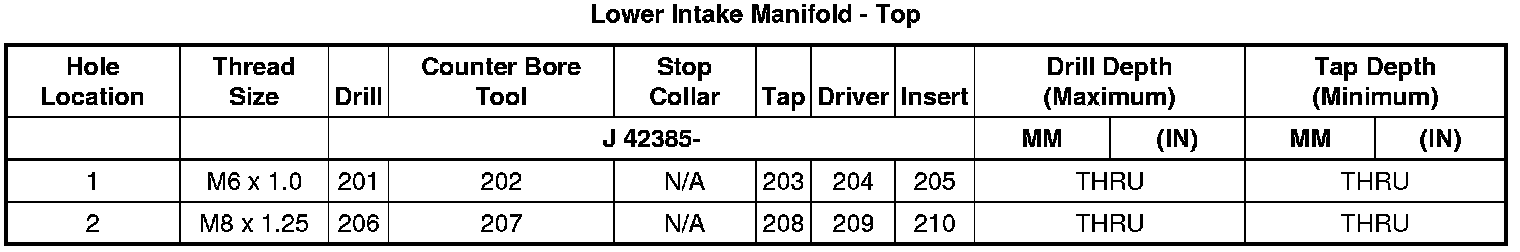

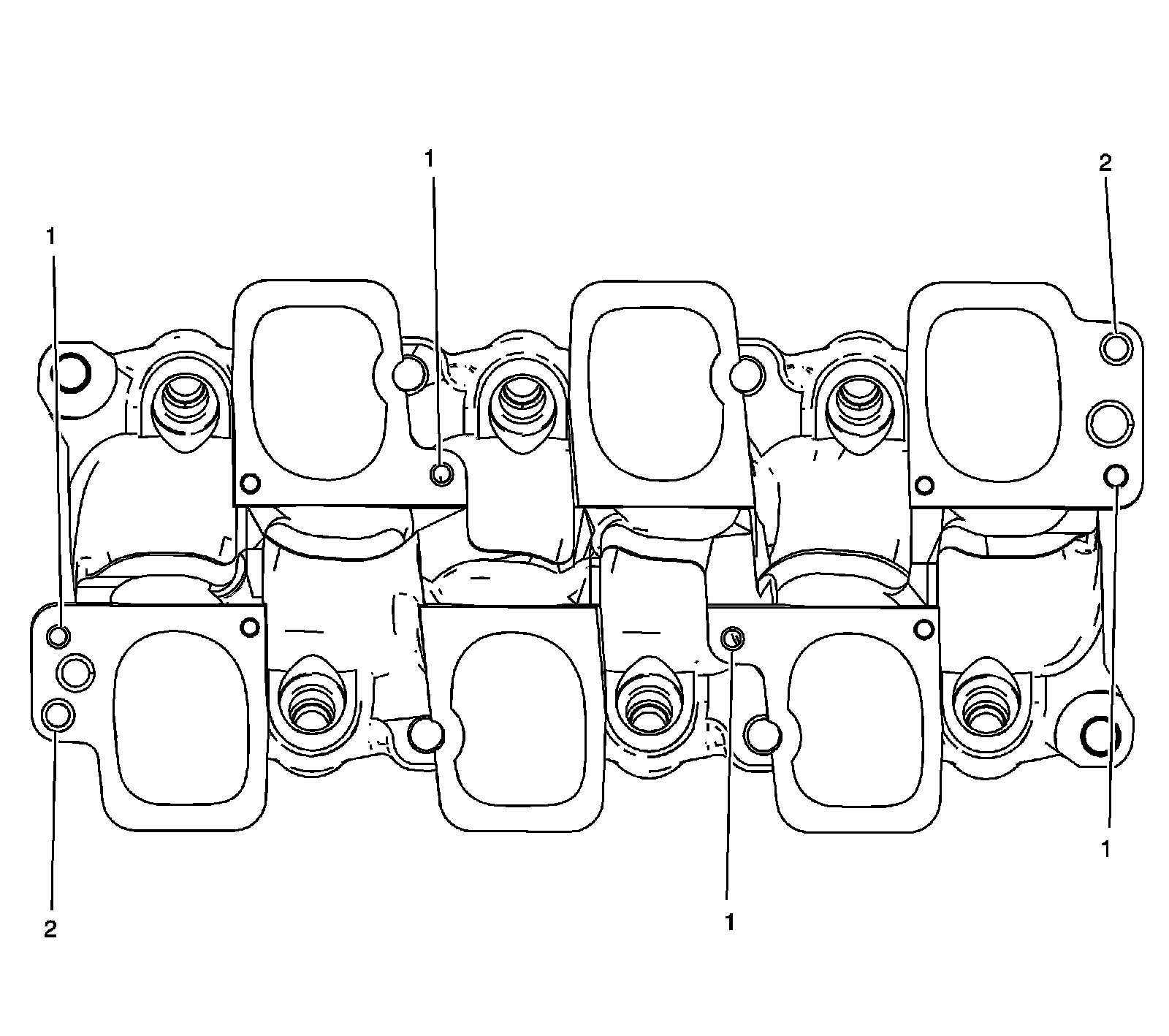

Lower Intake Manifold - Top

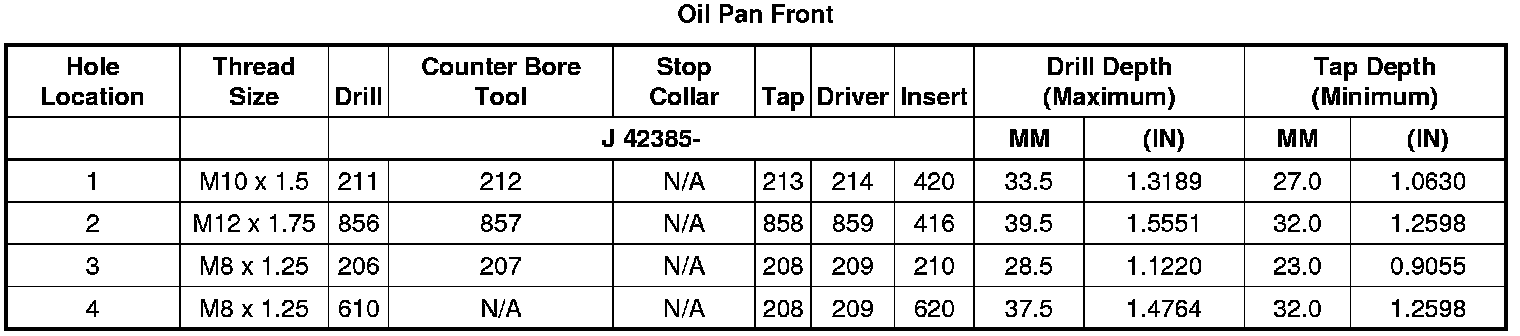

Oil Pan Front
Oil Pan Left Side

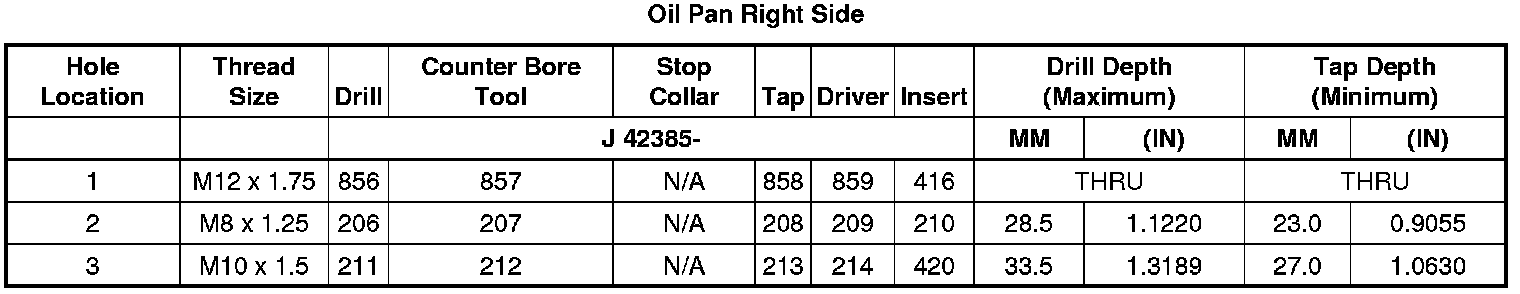

Oil Pan Right Side

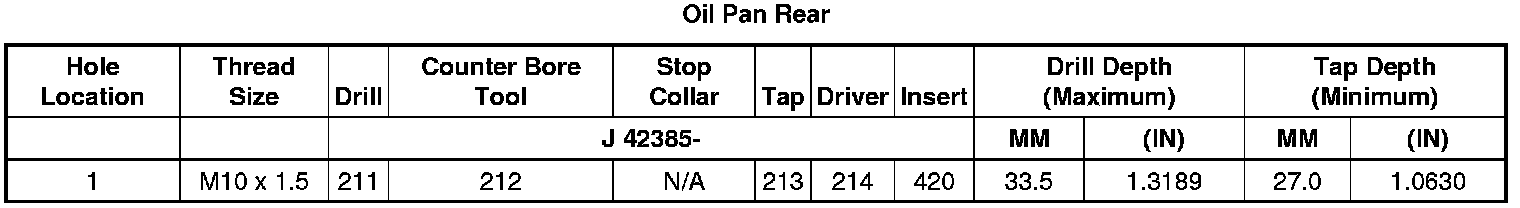

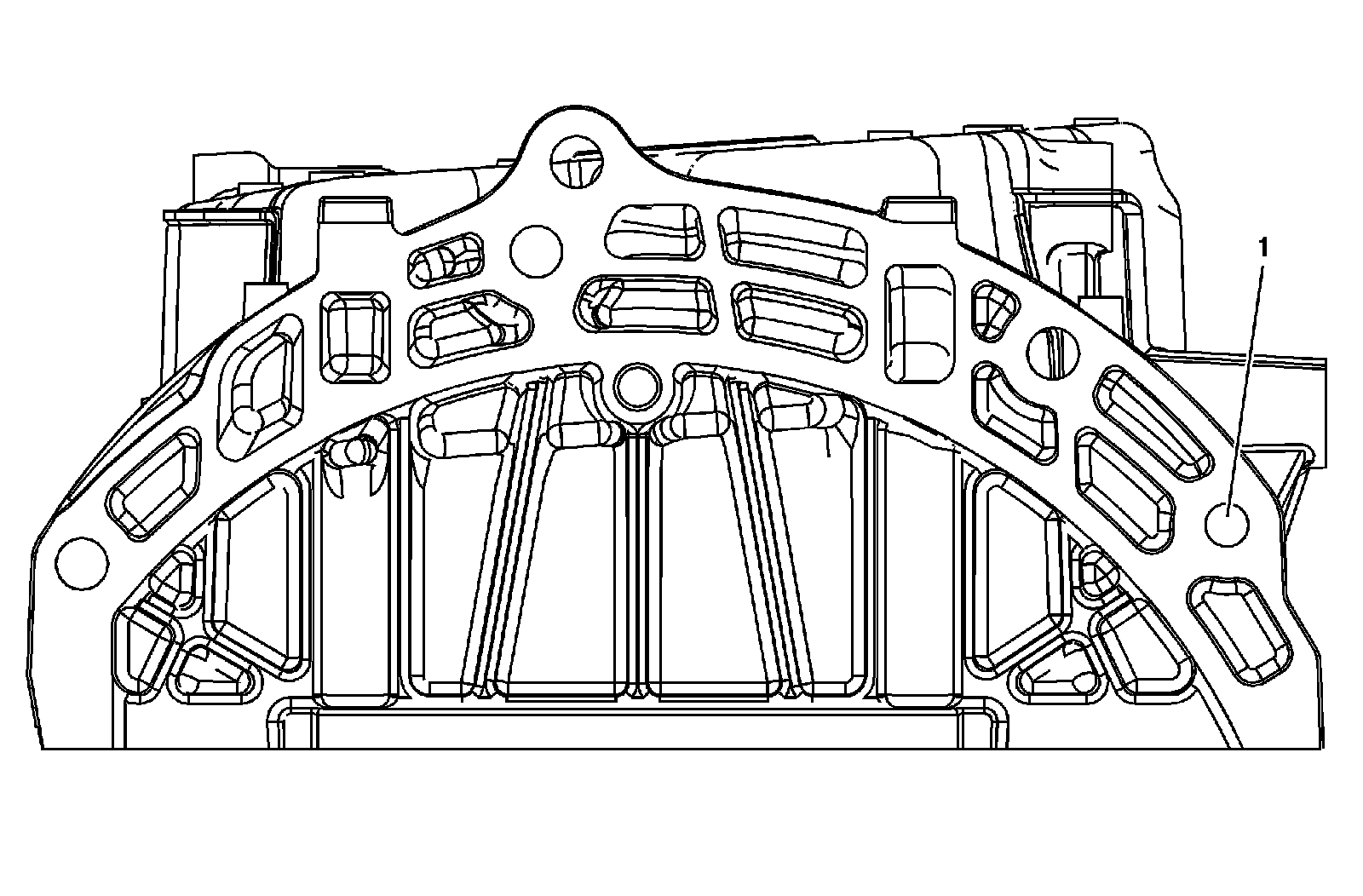

Oil Pan Rear

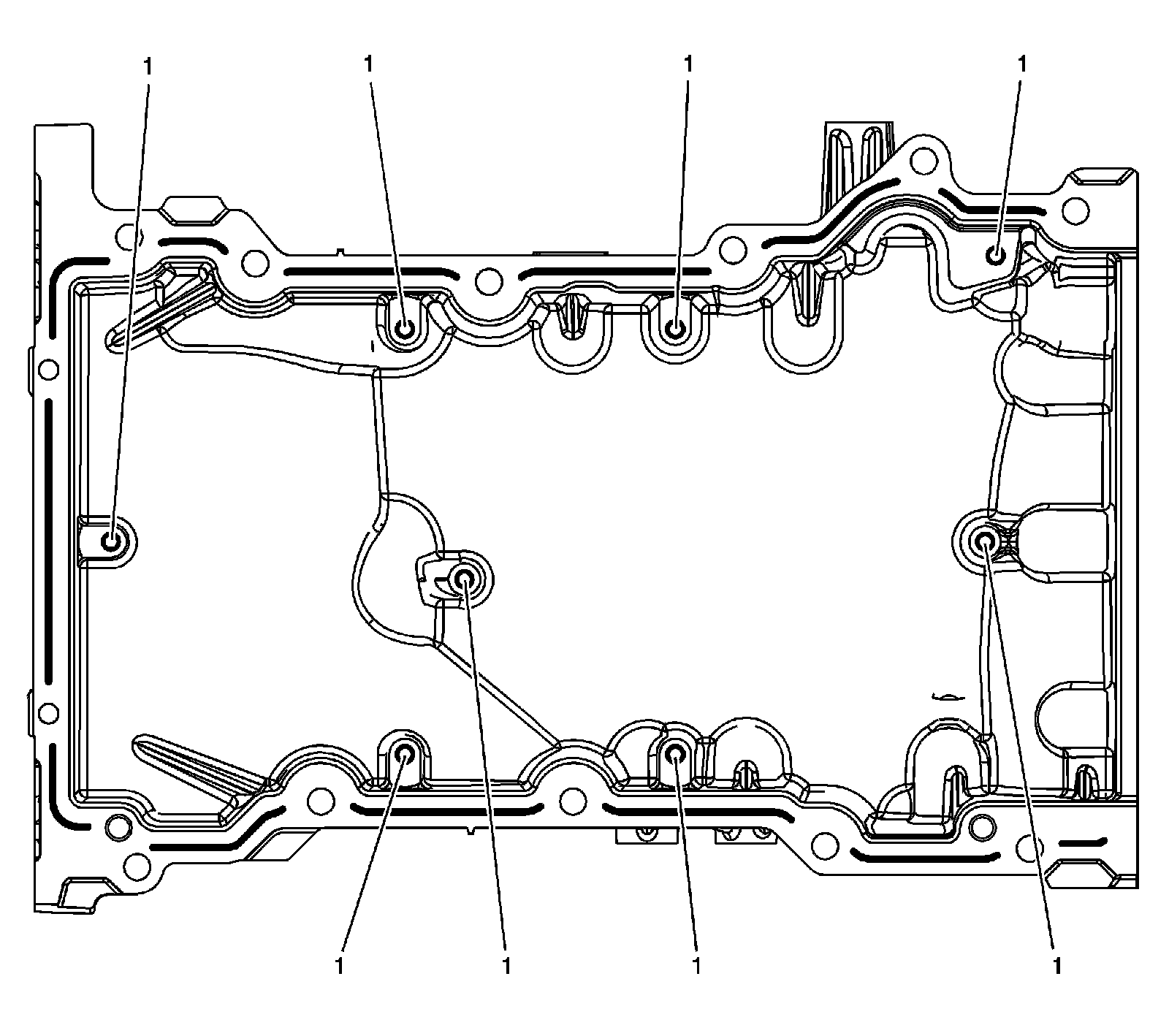

Oil Pan Top
