Component Connector End Views

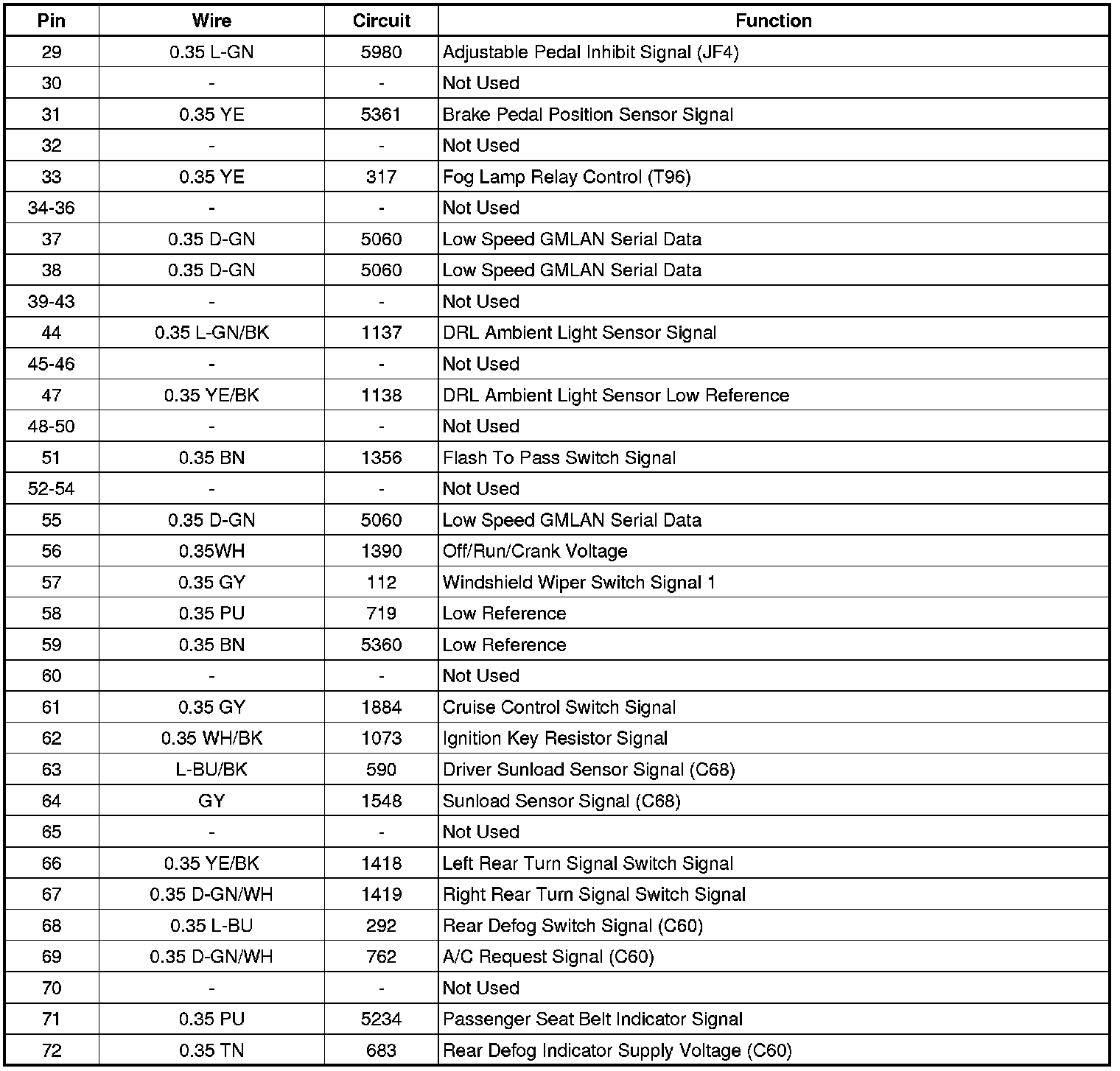

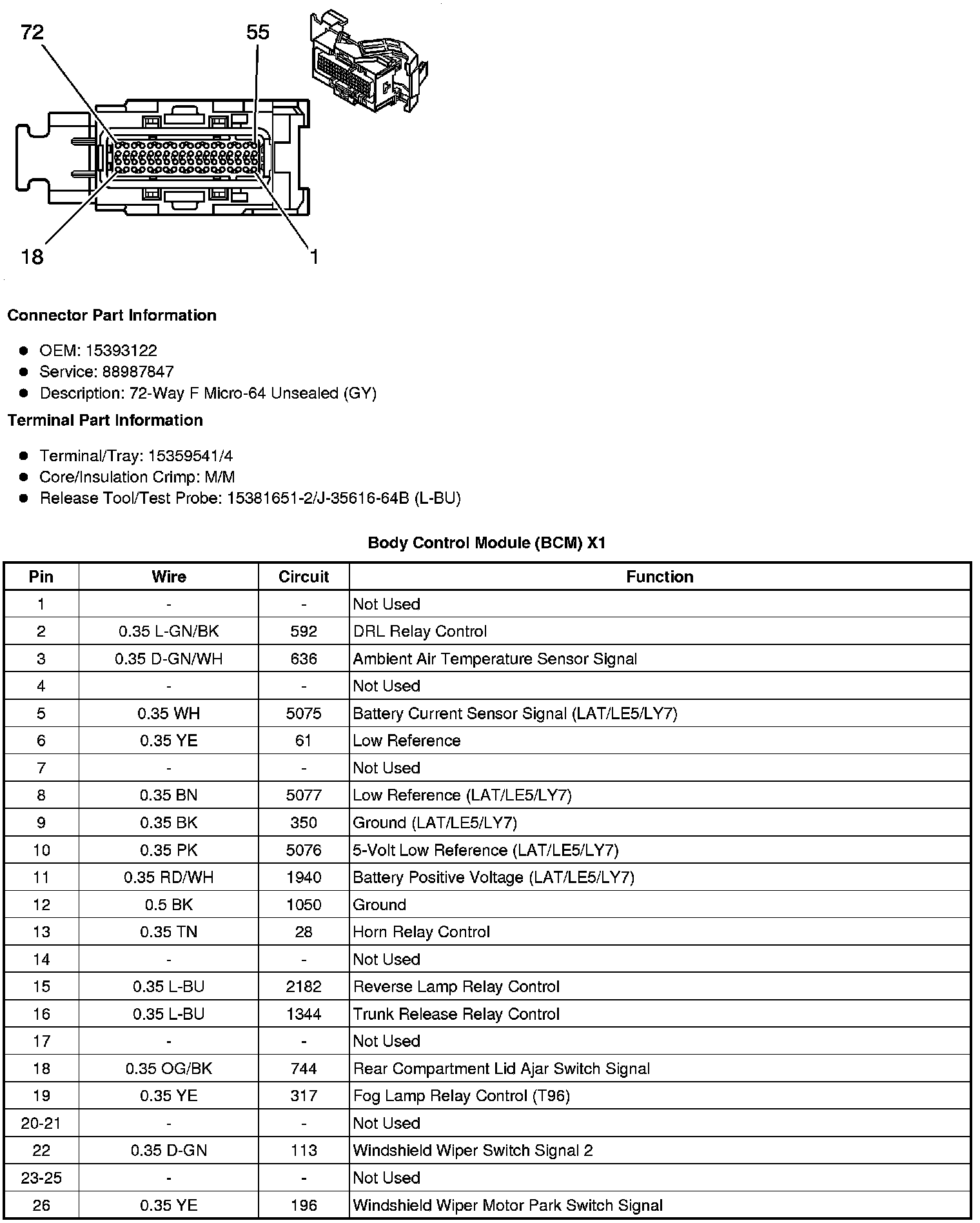

Body Control Module (BCM) X1

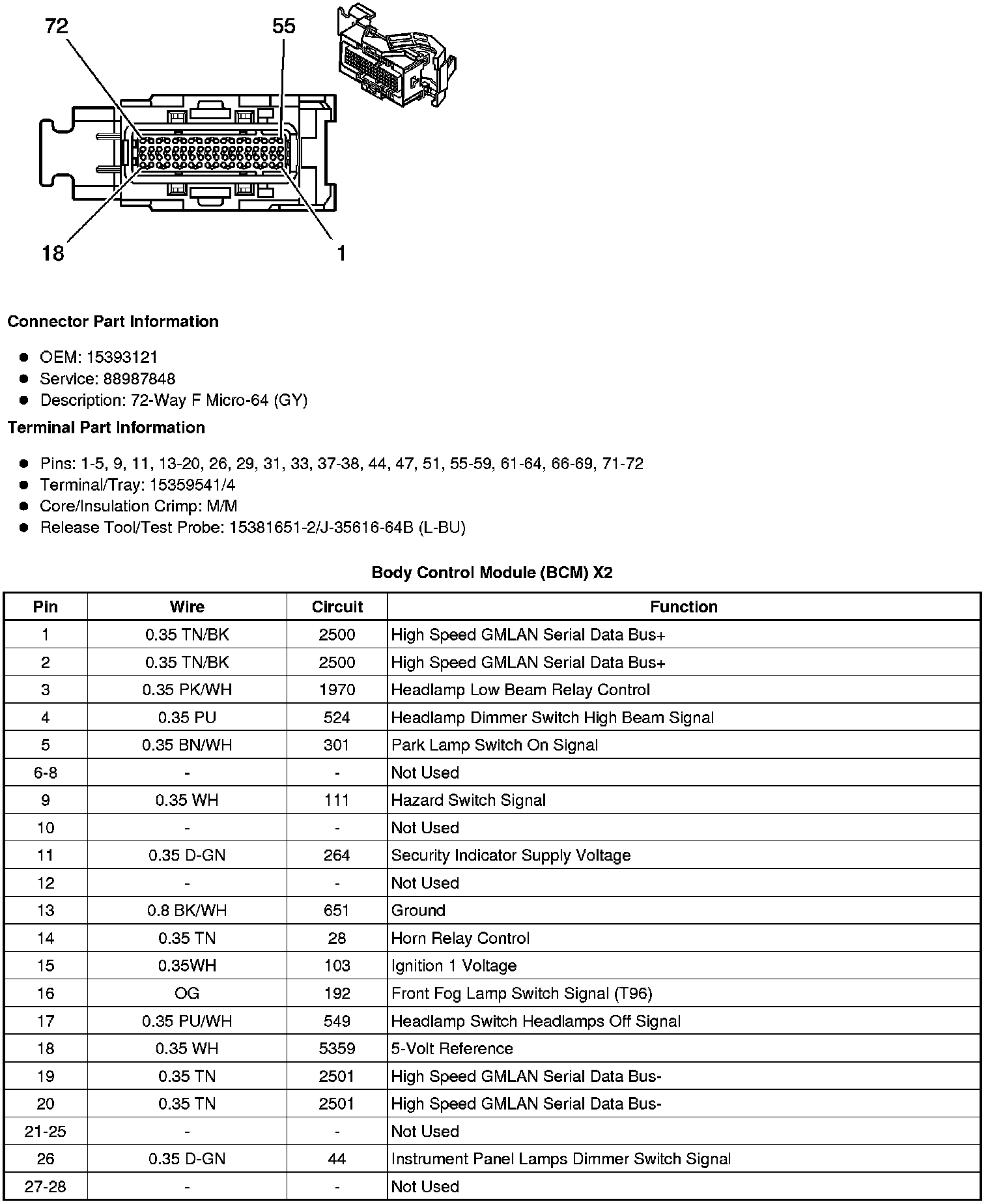

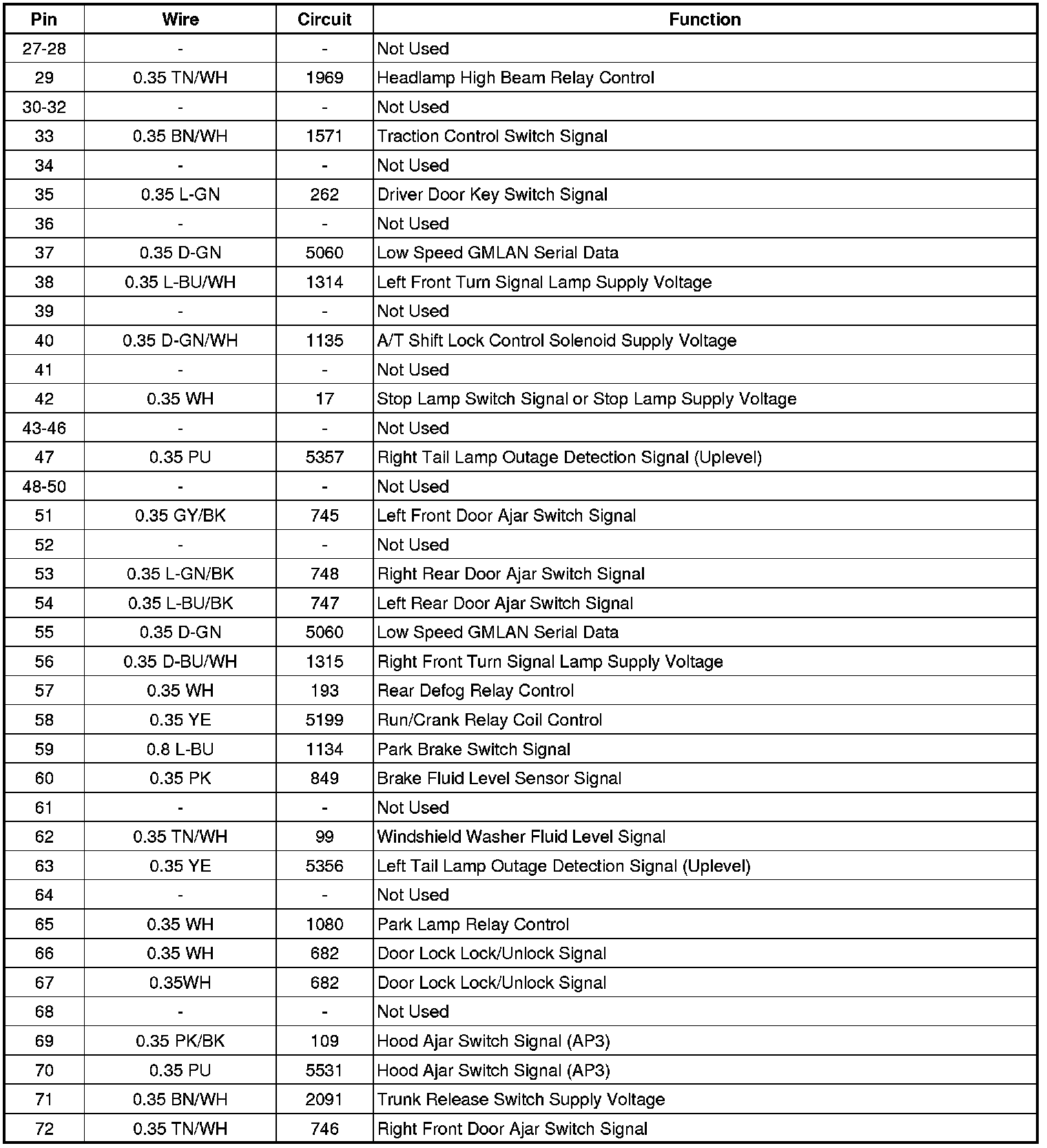

Body Control Module (BCM) X2

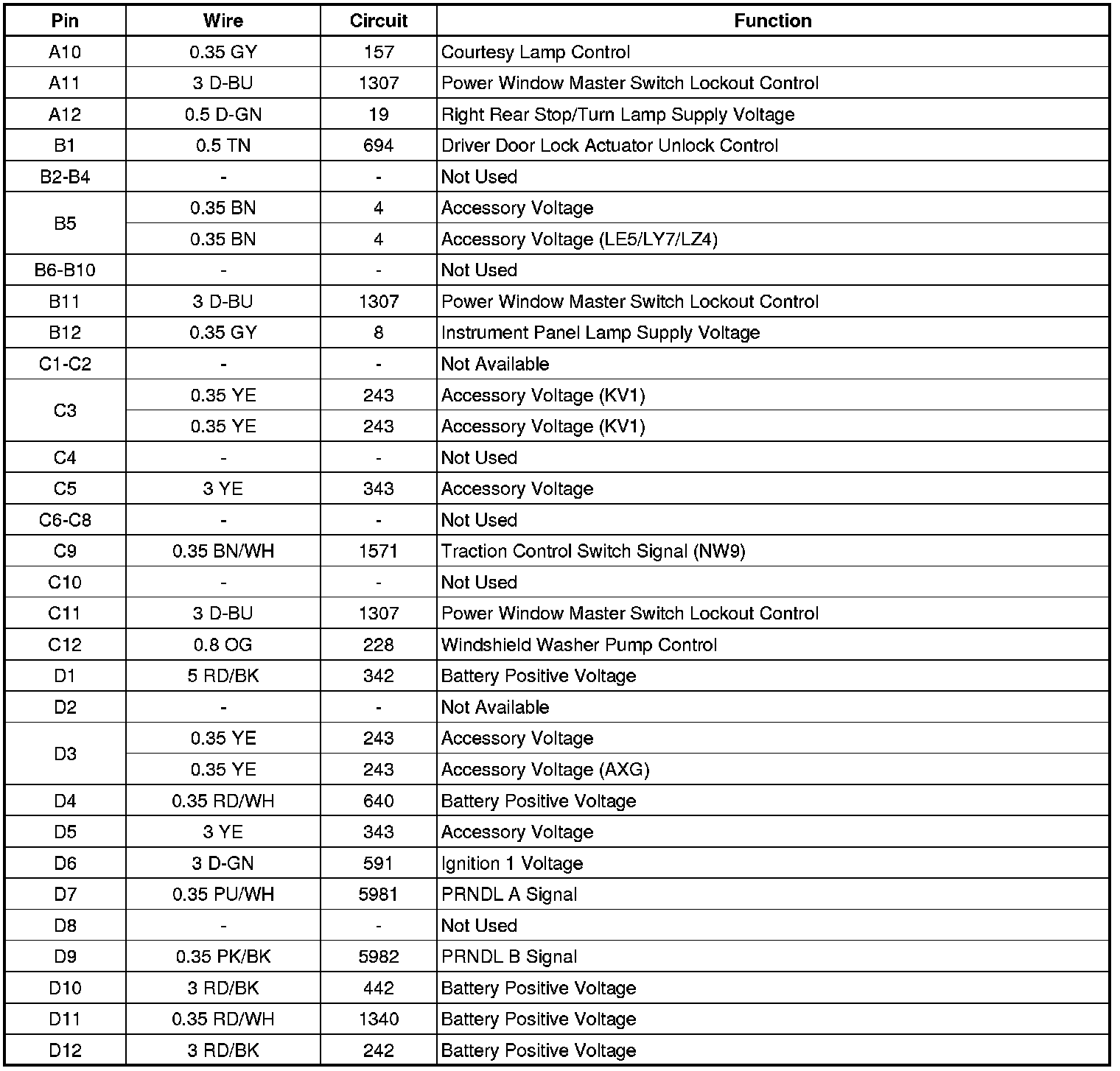

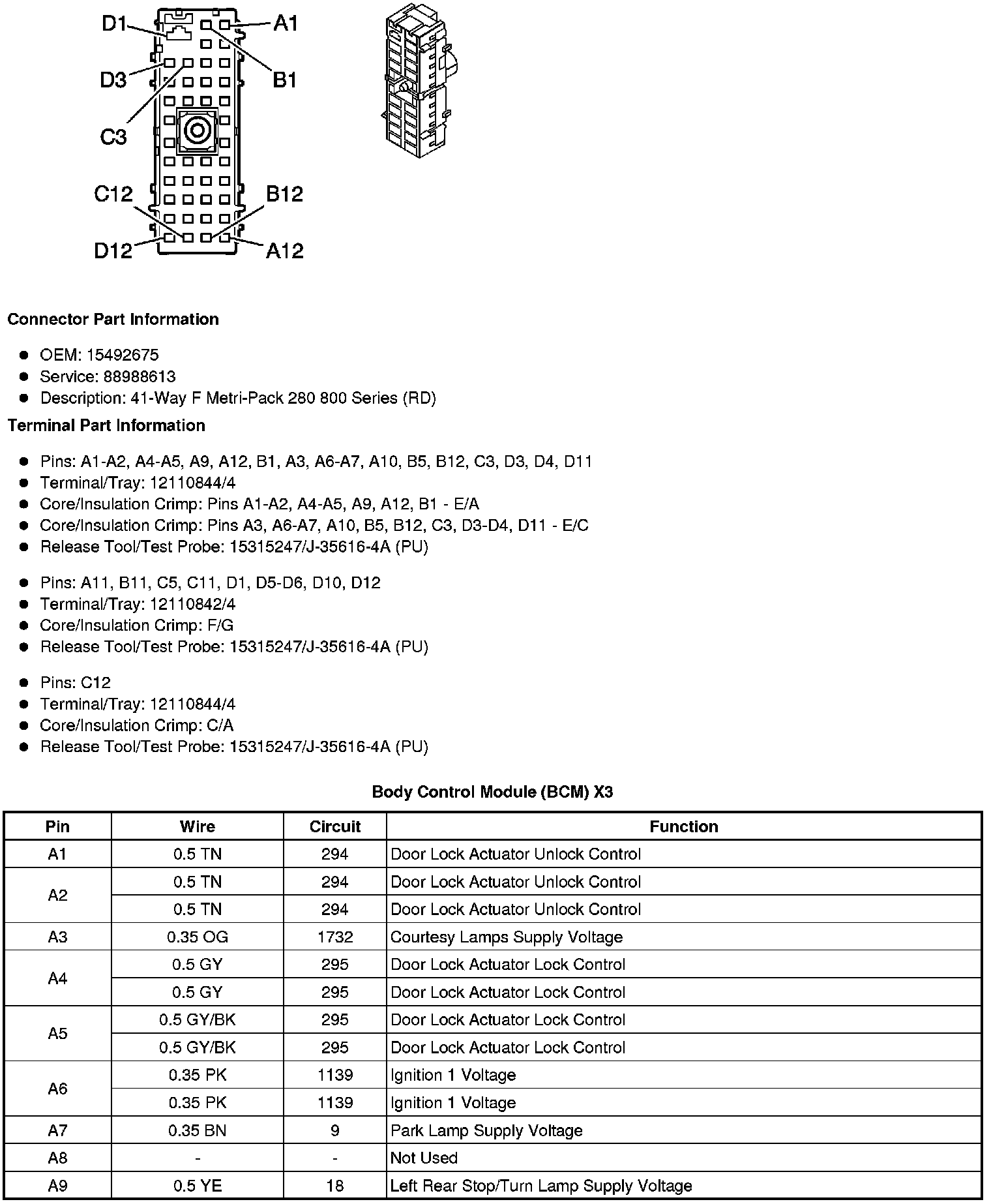

Body Control Module (BCM) X3

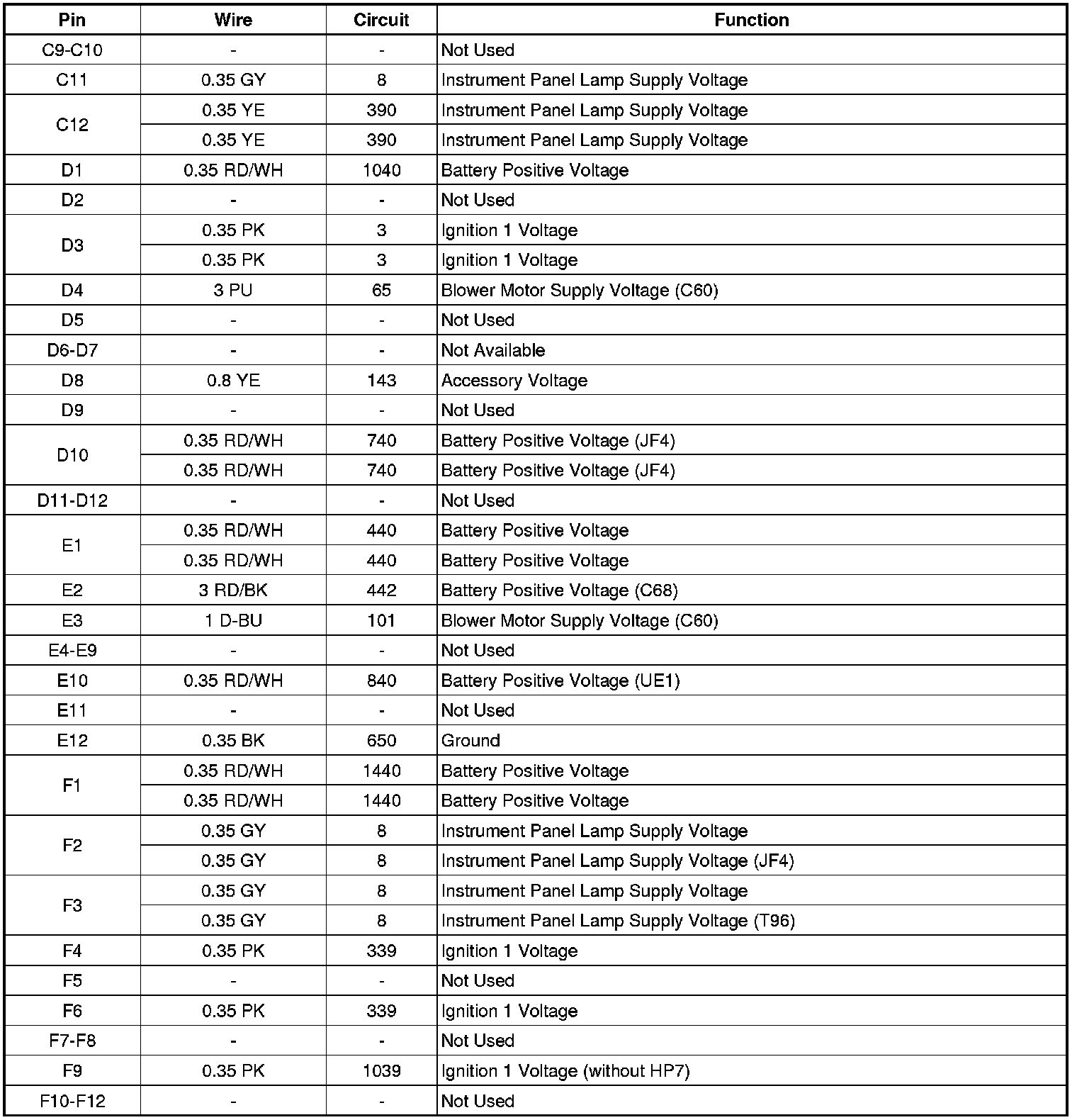

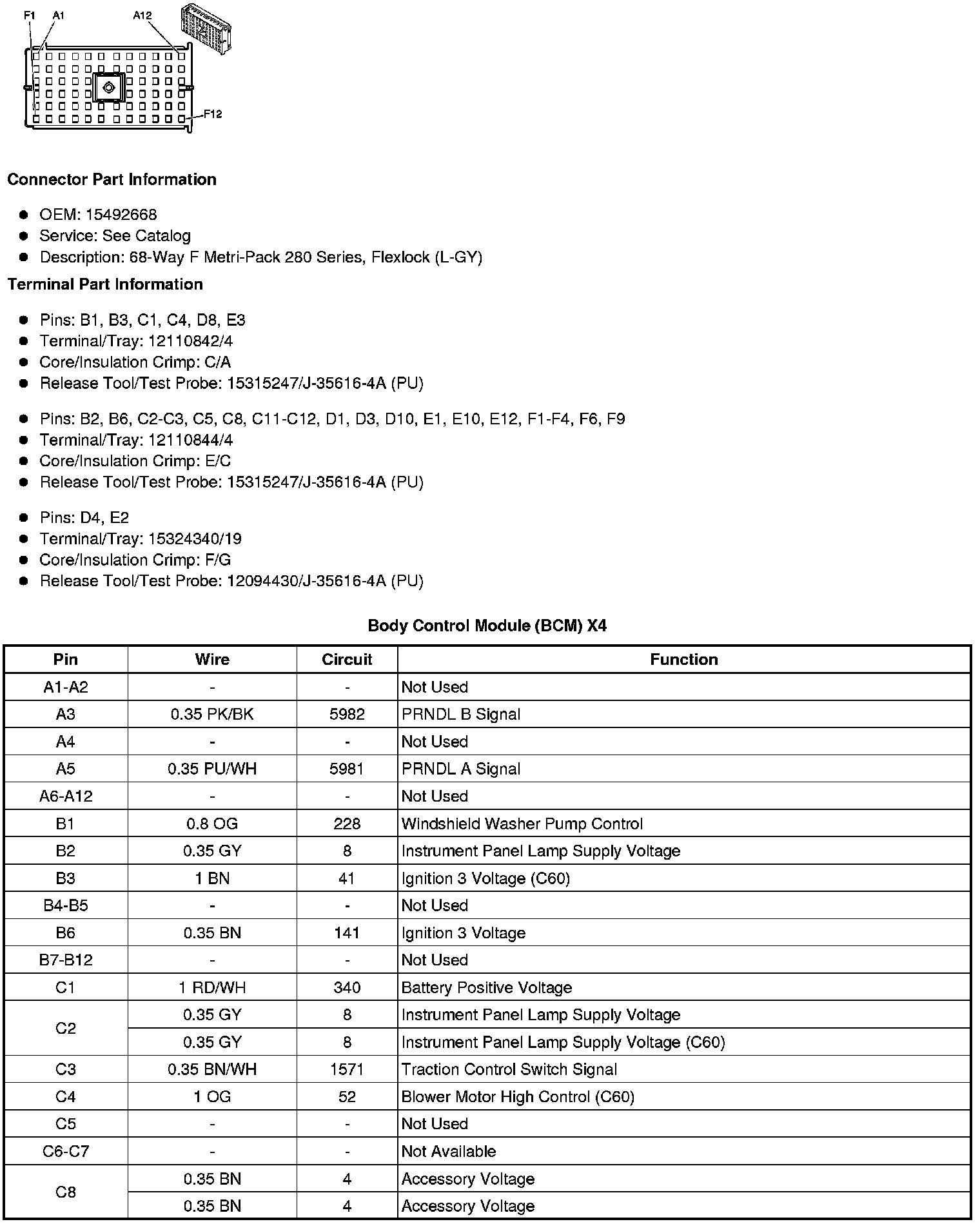

Body Control Module (BCM) X4
Body Control Module: Diagrams
Need a step-by-step guide?
Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2009 Chevrolet.
Component Connector End Views
Body Control Module (BCM) X1
Body Control Module (BCM) X2
Body Control Module (BCM) X3
Body Control Module (BCM) X4
