Harness Routing Views

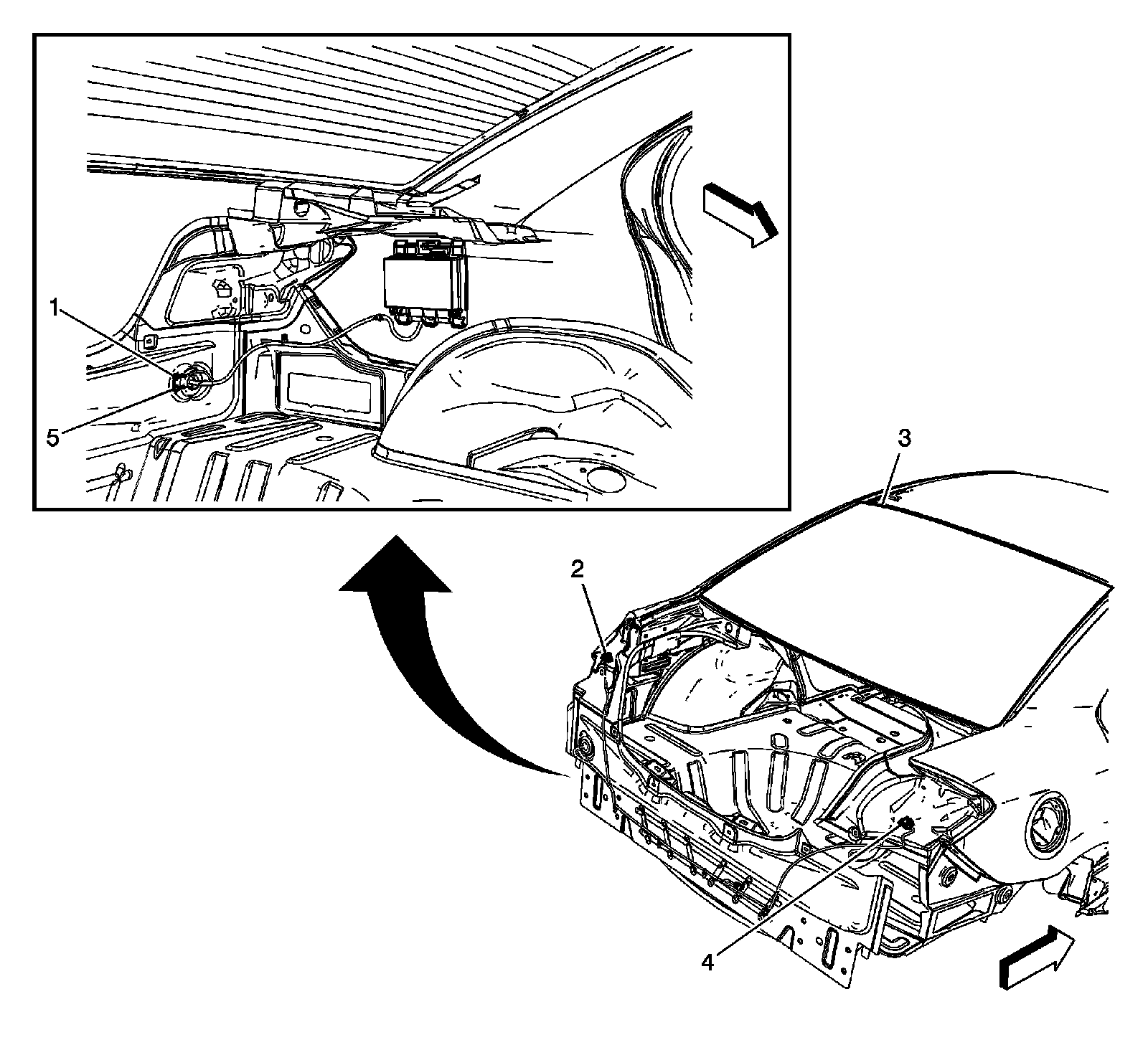

Rear Luggage Compartment Components
1 - G401
2 - X401 (Base)
3 - Rear Window
4 - X402 (Base)
5 - G403
