A/Trans Auxiliary Fluid Pump Assembly

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2009 Chevrolet.

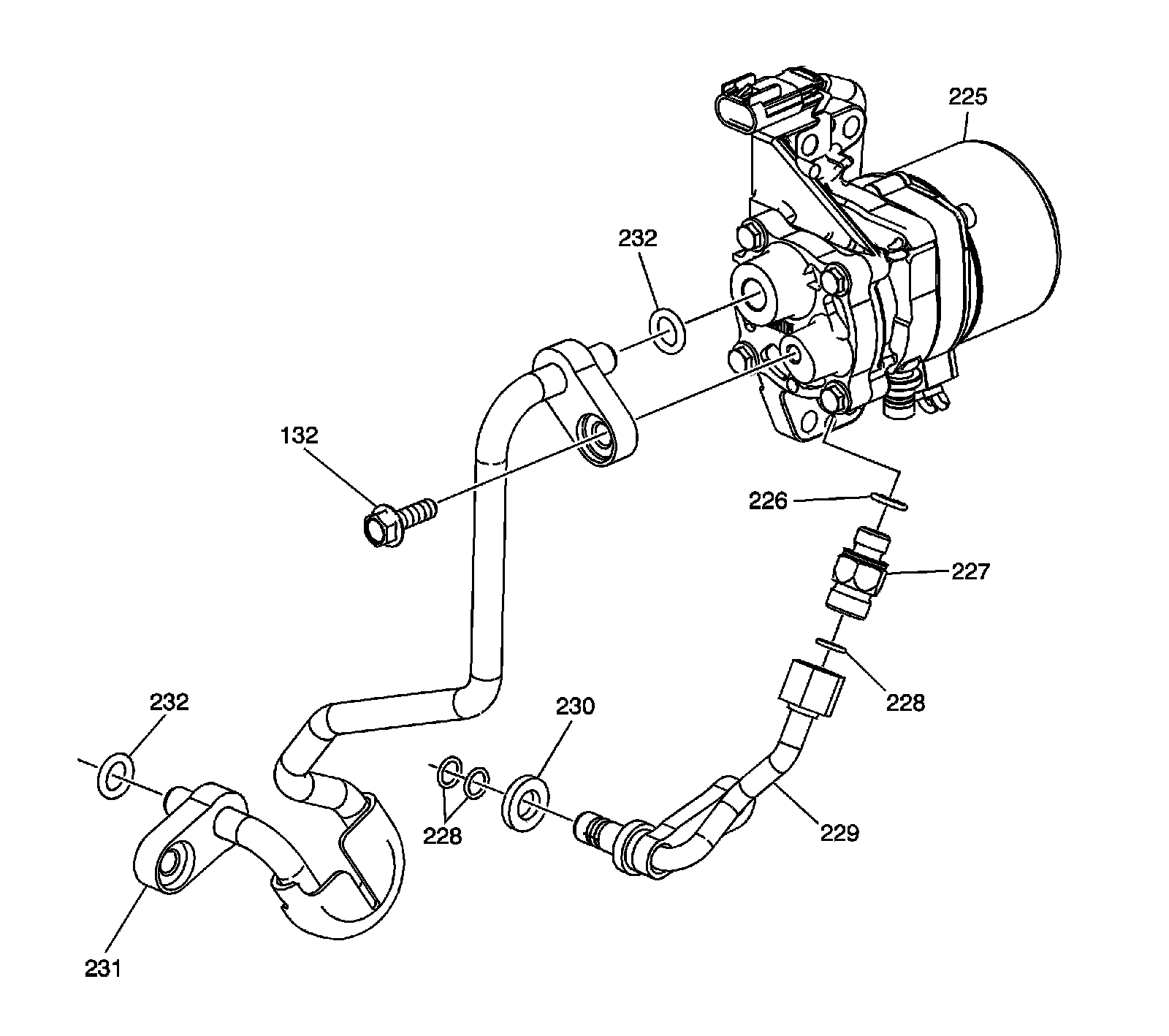

Disassembled Views

A/Trans Auxiliary Fluid Pump Assembly - L4 Hybrid

132 - Bolt
225 - A/Trans Auxiliary Fluid Pump
226 - A/Trans Auxiliary Fluid Pump Check Valve Seal
227 - A/Trans Auxiliary Fluid Pump Check Valve
228 - A/Trans Auxiliary Fluid Pump Outlet Pipe Seal
229 - A/Trans Auxiliary Fluid Pump Outlet Pipe
230 - A/Trans Auxiliary Fluid Pump Outlet Pipe Spacer
231 - A/Trans Auxiliary Fluid Pump Inlet Pipe
232 - A/Trans Auxiliary Fluid Pump Inlet Pipe Seal
