Component Connector End Views
Wheel Speed Sensor (WSS) - Left Front

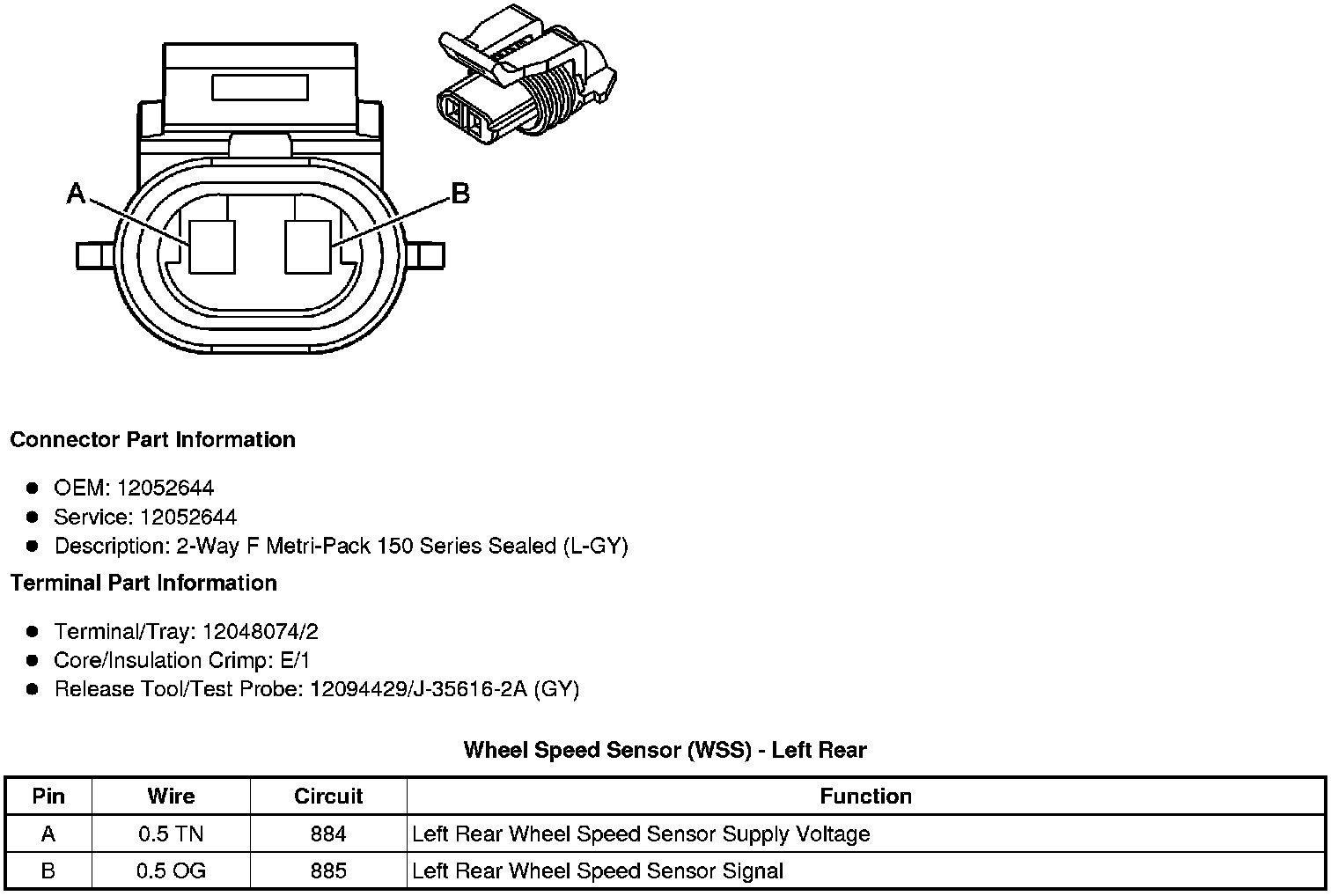

Wheel Speed Sensor (WSS) - Left Rear

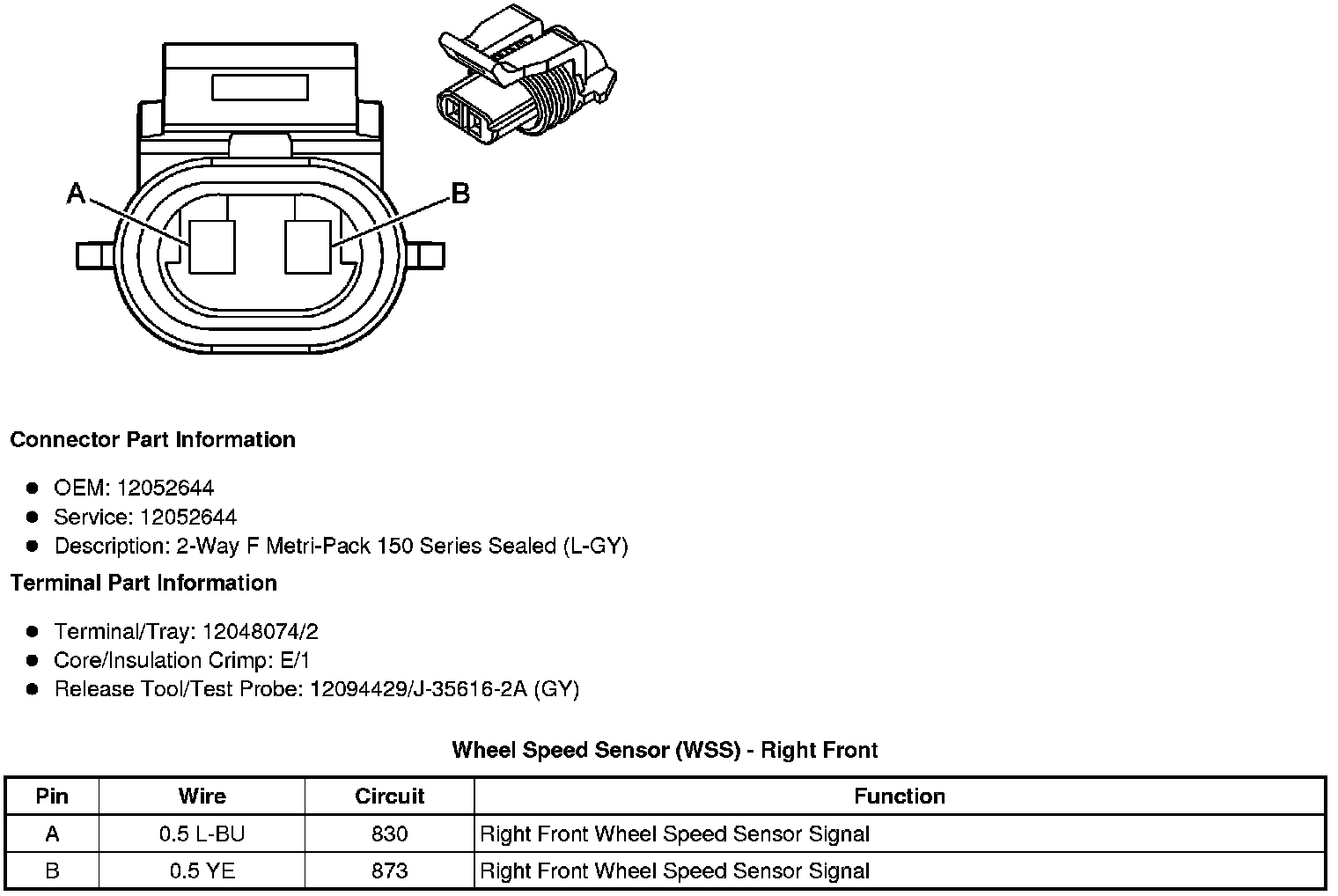

Wheel Speed Sensor (WSS) - Right Front

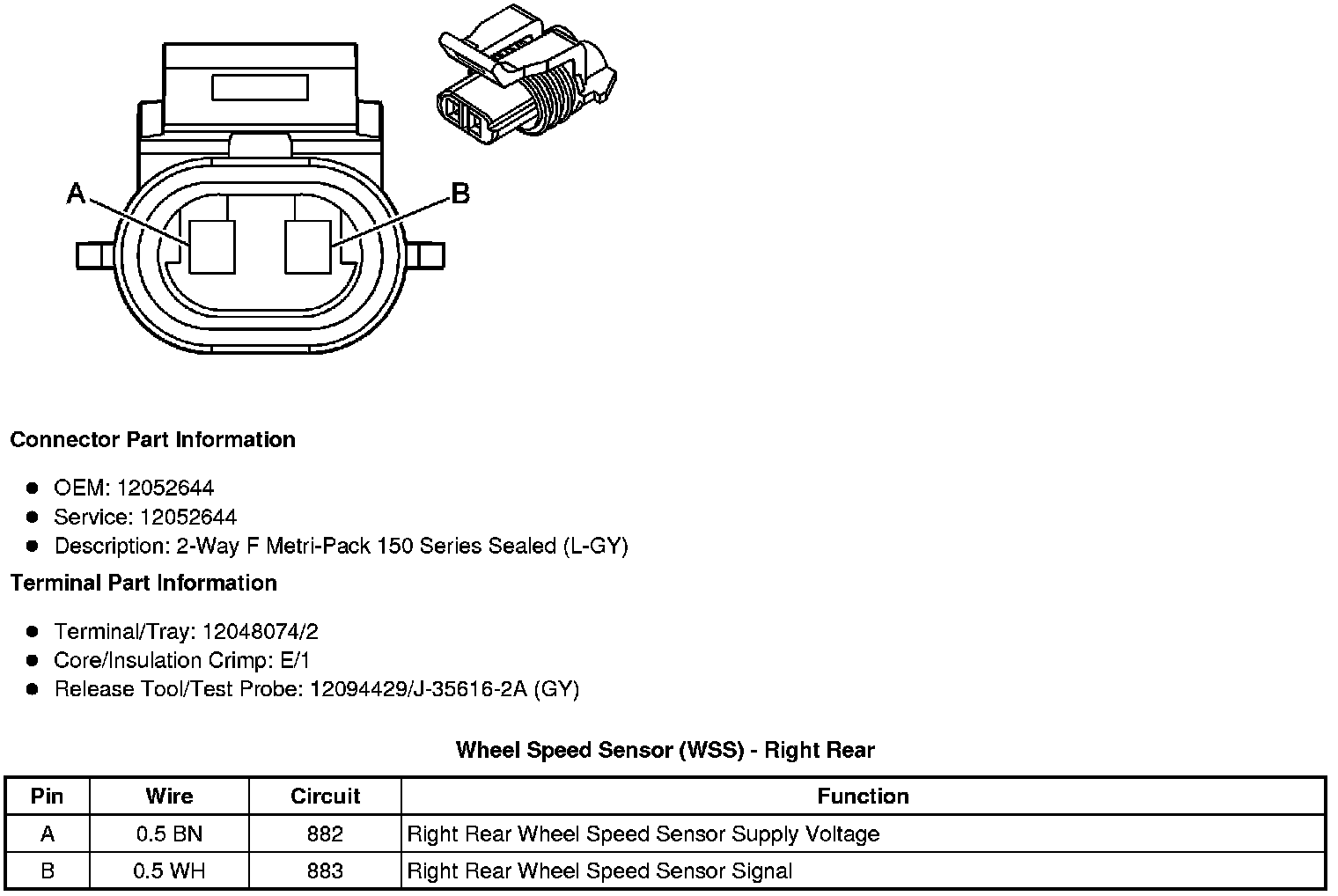

Wheel Speed Sensor (WSS) - Right Rear
Wheel Speed Sensor
Need a step-by-step guide?
Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2009 Chevrolet.
Component Connector End Views
Wheel Speed Sensor (WSS) - Left Front
Wheel Speed Sensor (WSS) - Left Rear
Wheel Speed Sensor (WSS) - Right Front
Wheel Speed Sensor (WSS) - Right Rear
