Component Connector End Views
Automatic Transmission Input Shaft Speed (ISS) Sensor
Automatic Transmission Output Shaft Speed (OSS) Sensor (MH2 or MH8)
Automatic Transmission Output Shaft Speed (OSS) Sensor (ME7 or MN5)
Transmission Speed Sensor, A/T
Need a step-by-step guide?
Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2009 Chevrolet.
Component Connector End Views

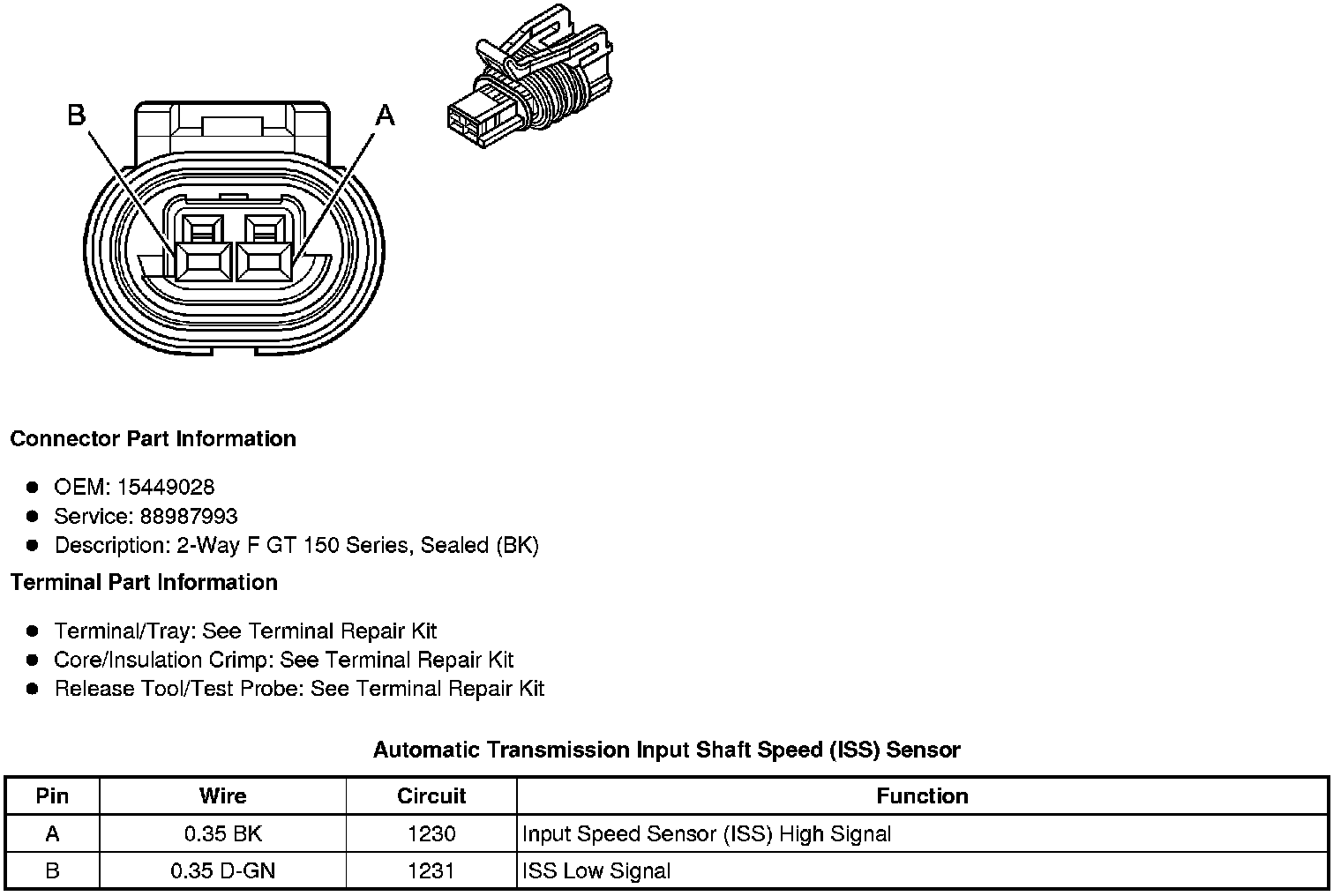

Automatic Transmission Input Shaft Speed (ISS) Sensor

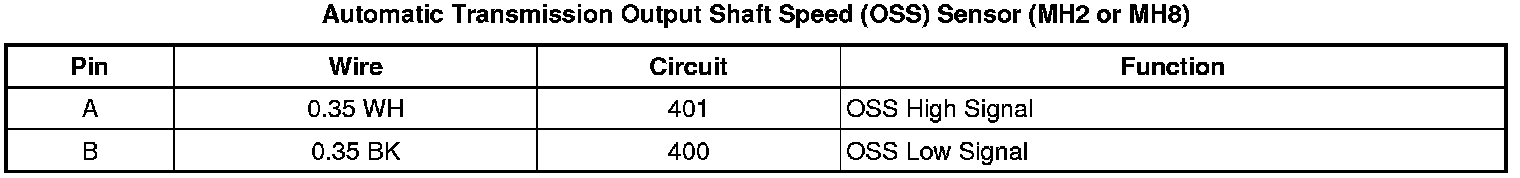

Automatic Transmission Output Shaft Speed (OSS) Sensor (MH2 or MH8)

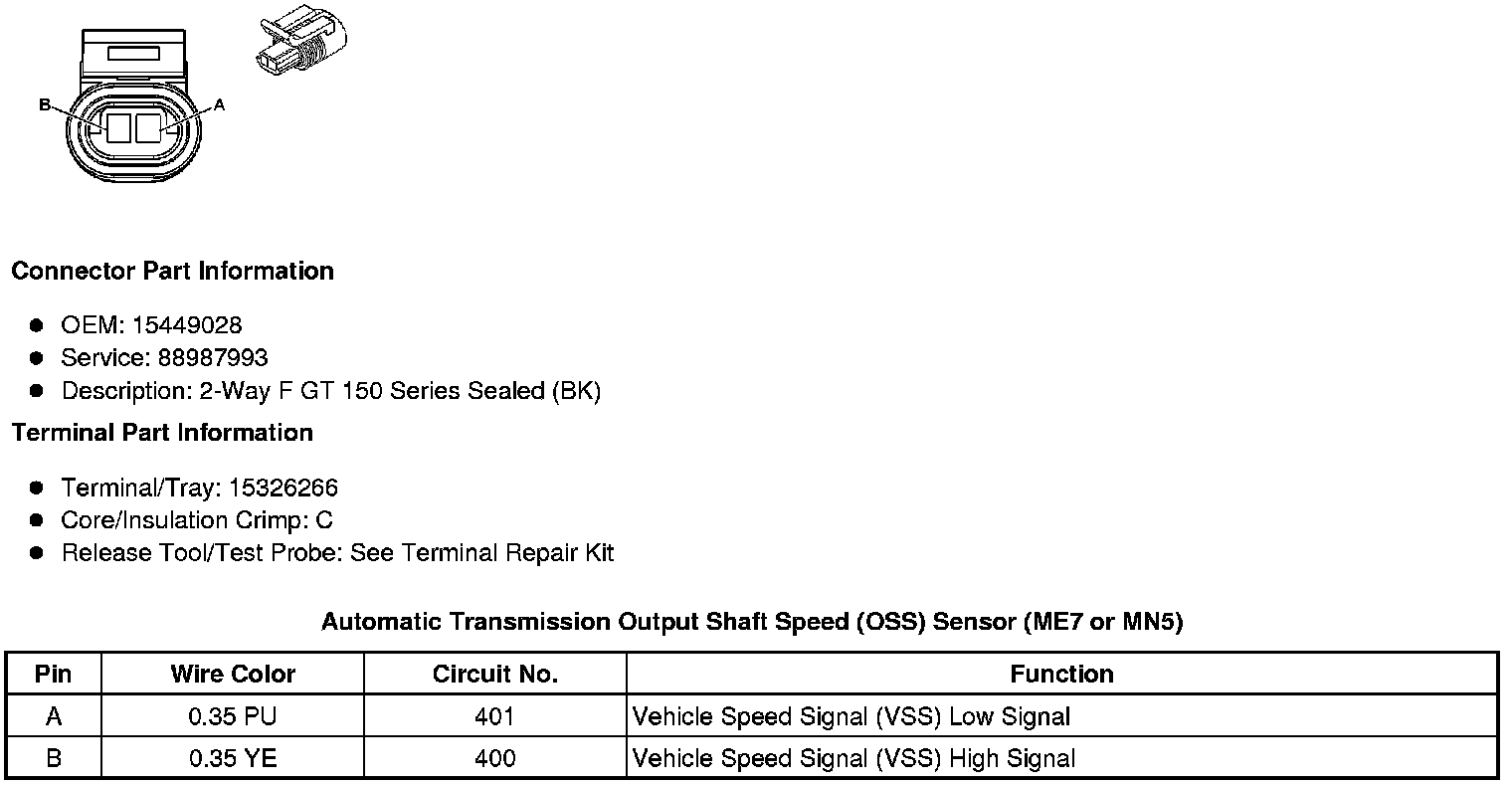

Automatic Transmission Output Shaft Speed (OSS) Sensor (ME7 or MN5)
