Speaker

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2009 Chevrolet.

AI Repair Guides



Component Connector End Views

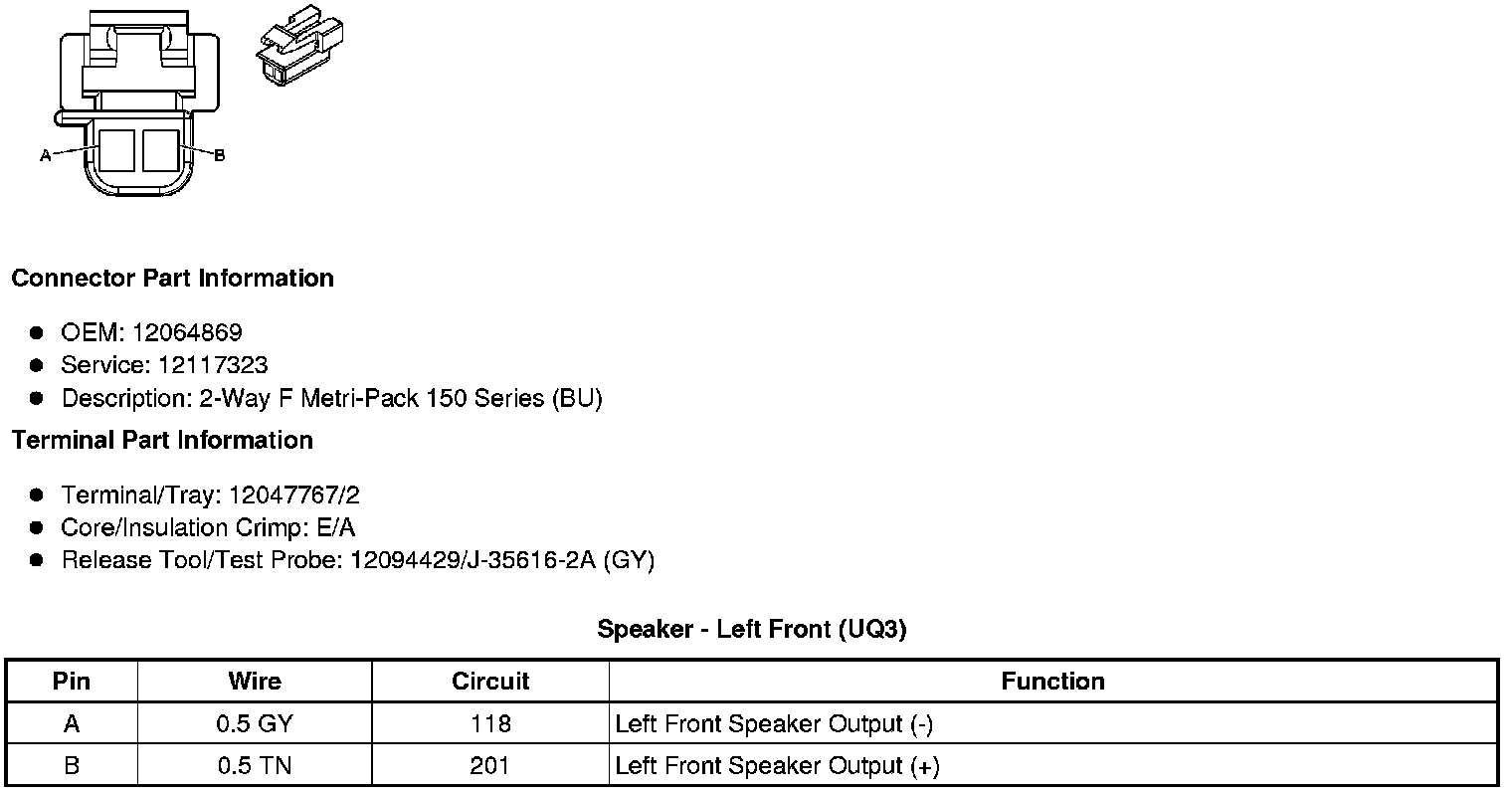

Speaker - Left Front (UQ3)

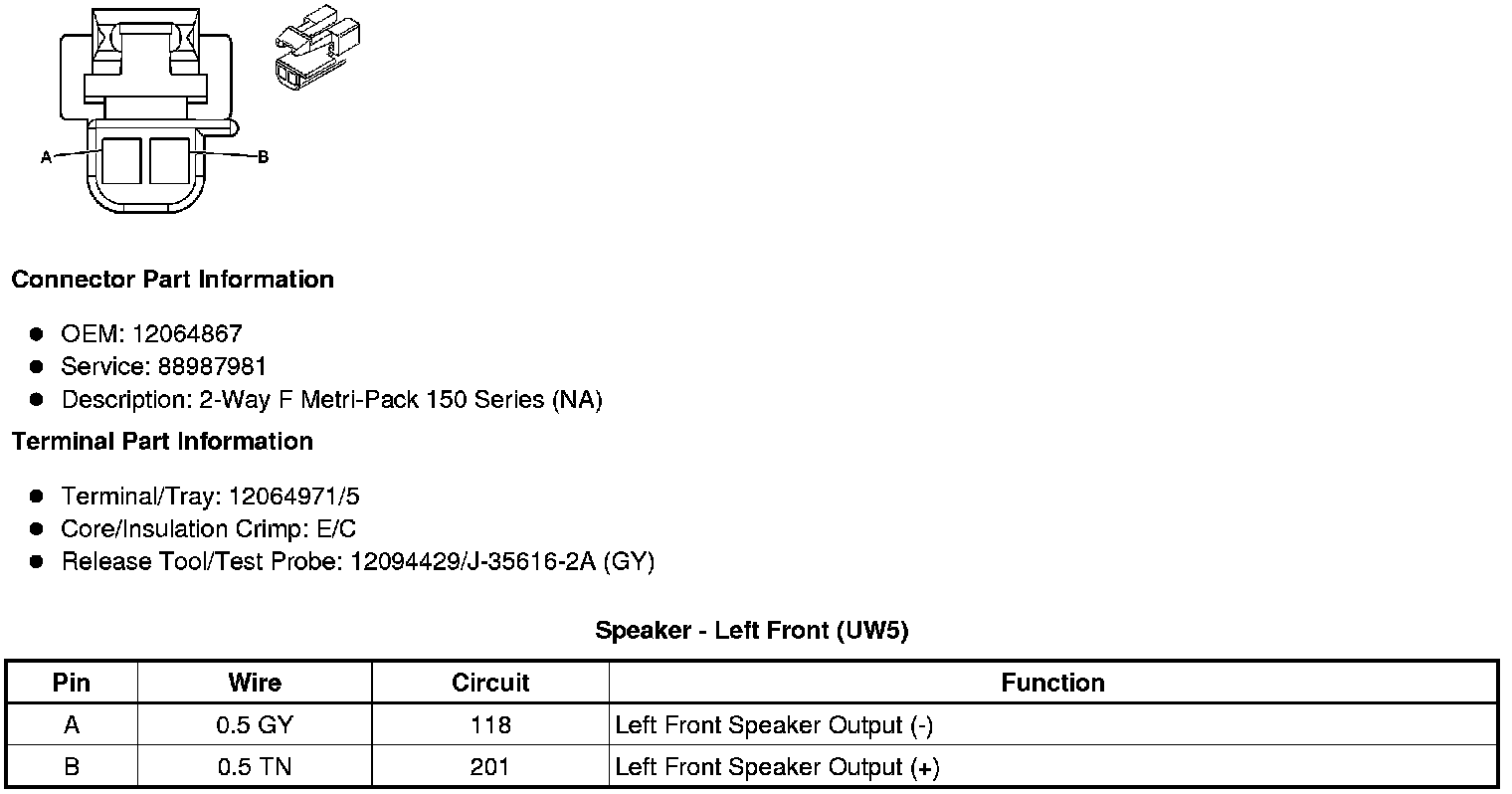

Speaker - Left Front (UW5)

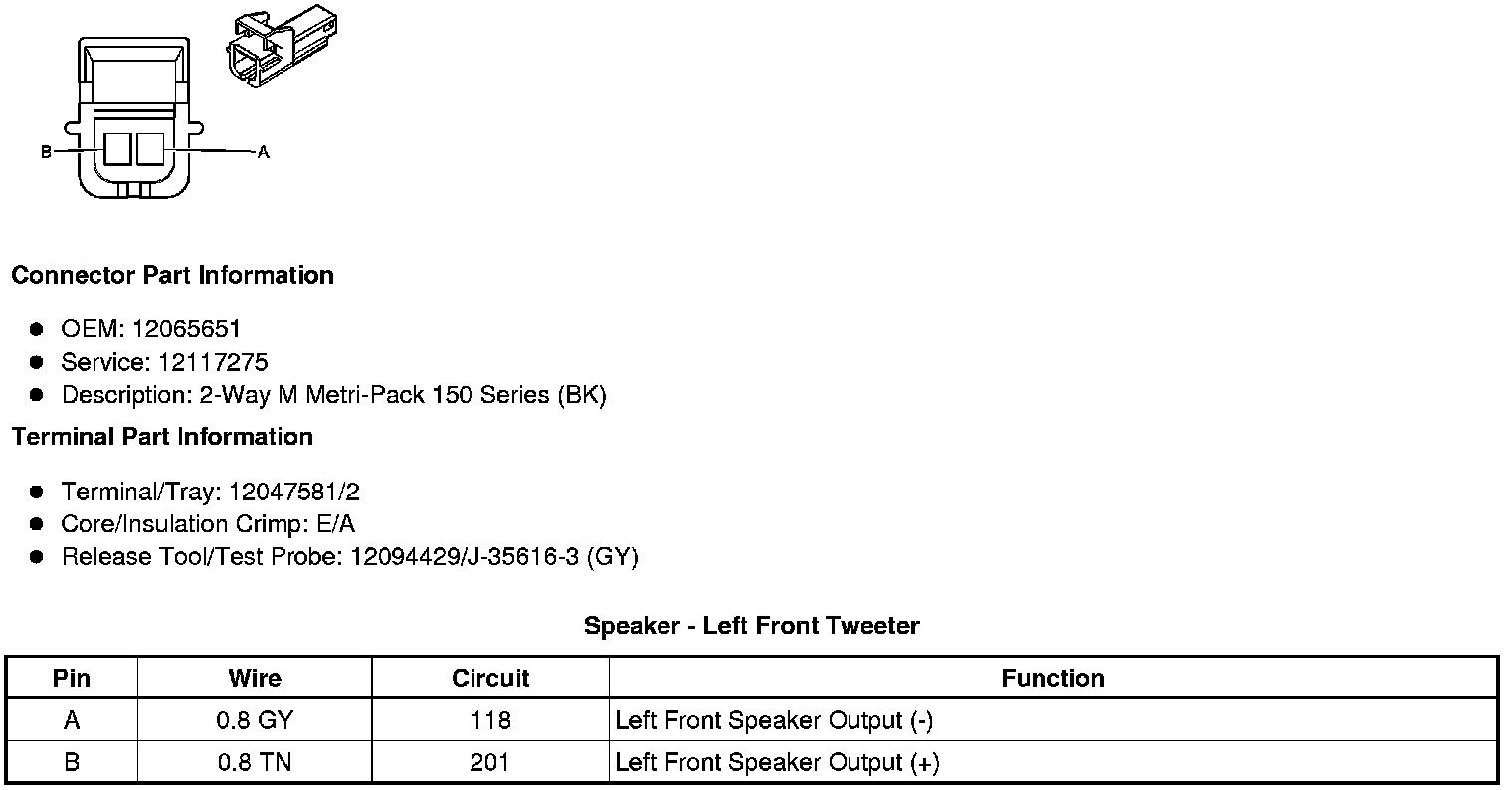

Speaker - Left Front Tweeter

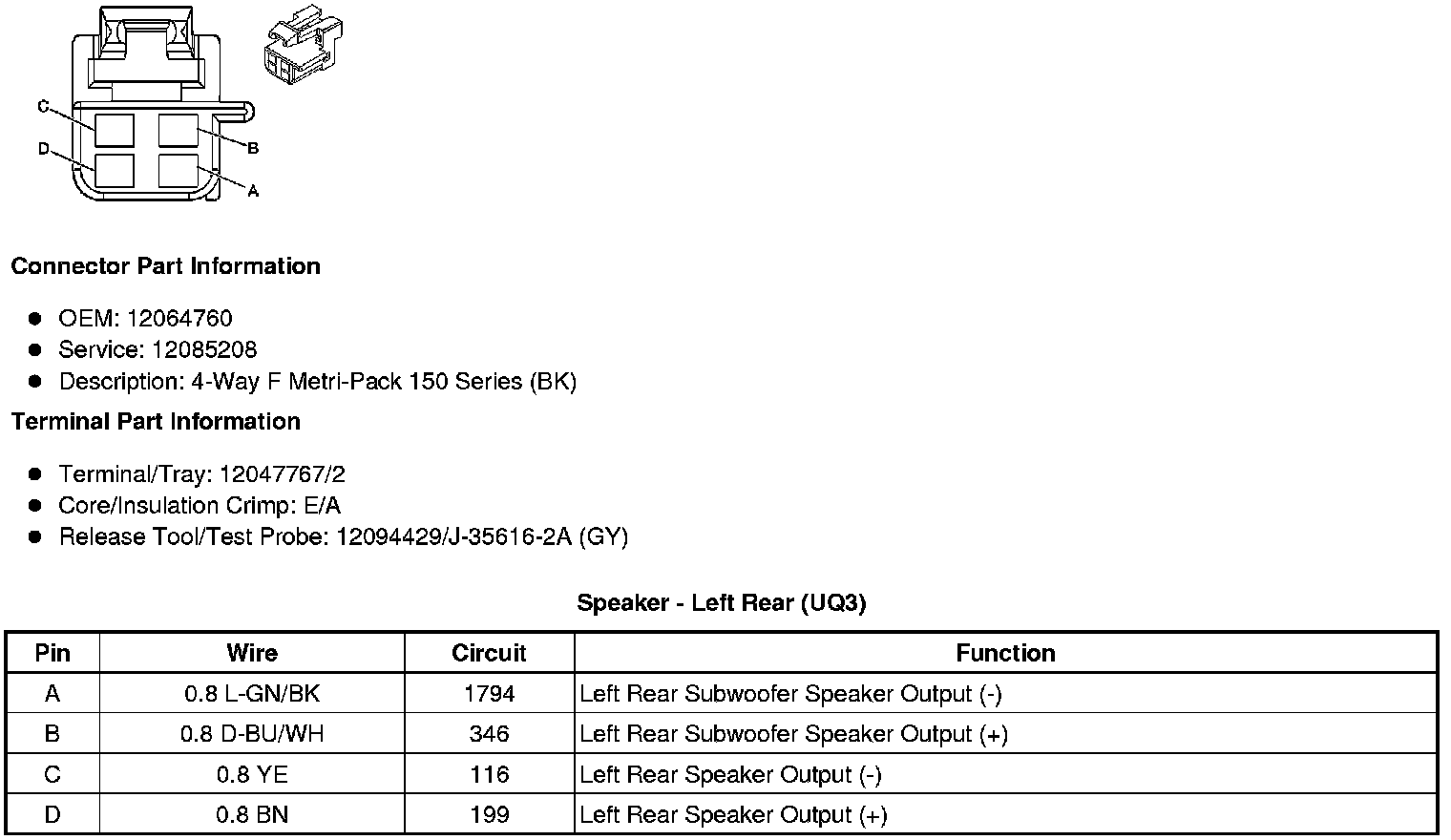

Speaker - Left Rear (UQ3)

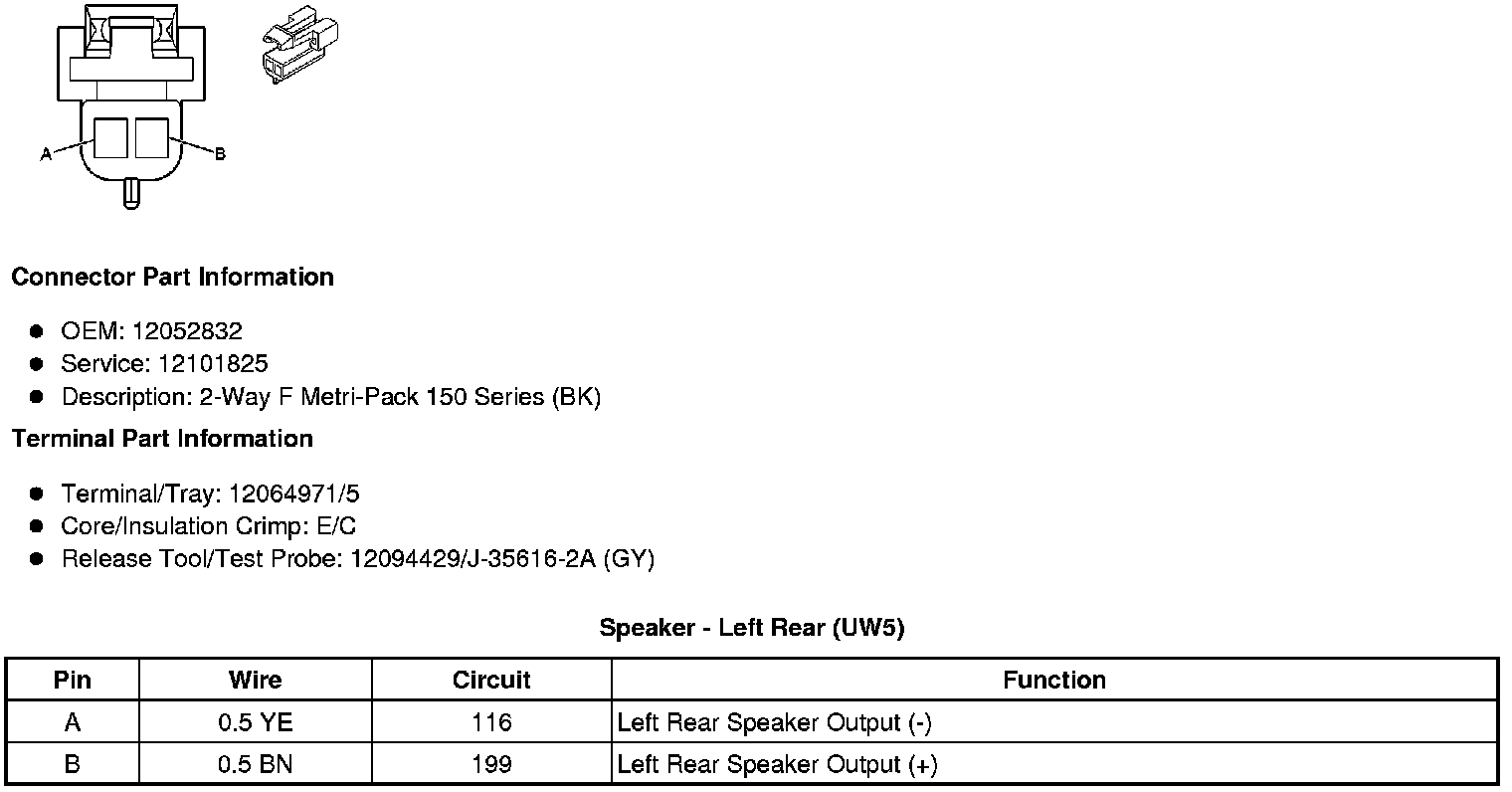

Speaker - Left Rear (UW5)

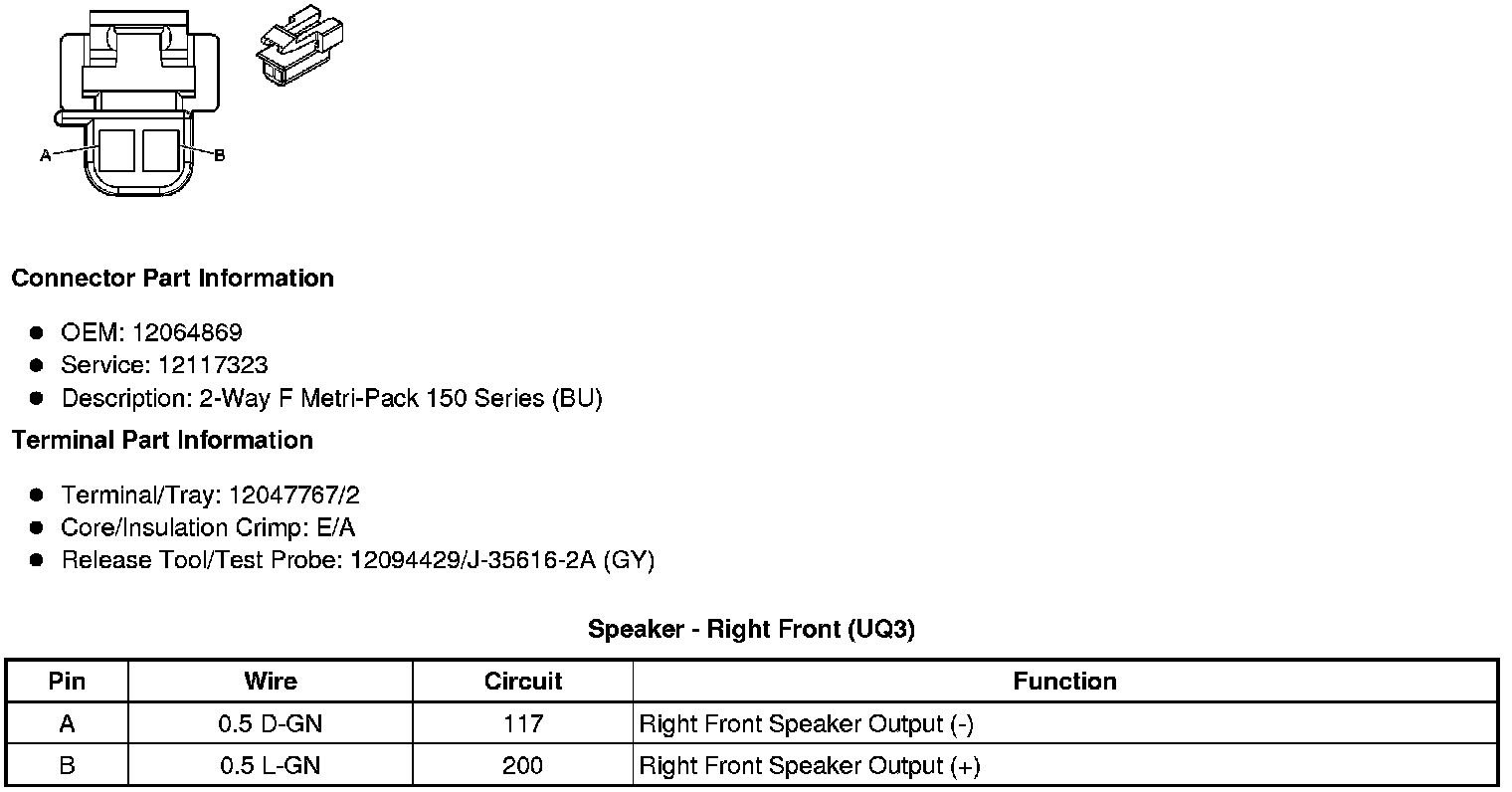

Speaker - Right Front (UQ3)

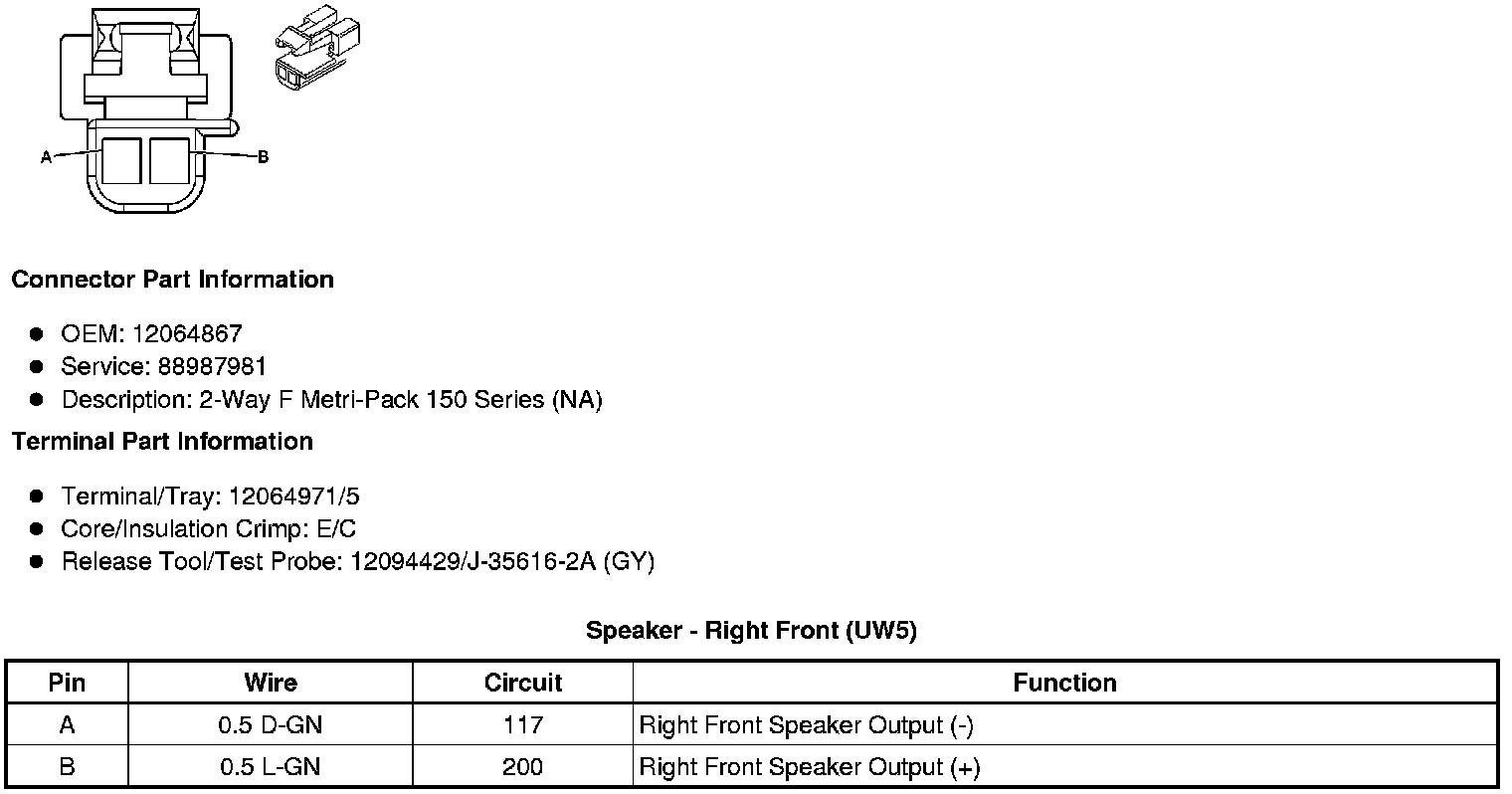

Speaker - Right Front (UW5)






Speaker - Right Front Tweeter

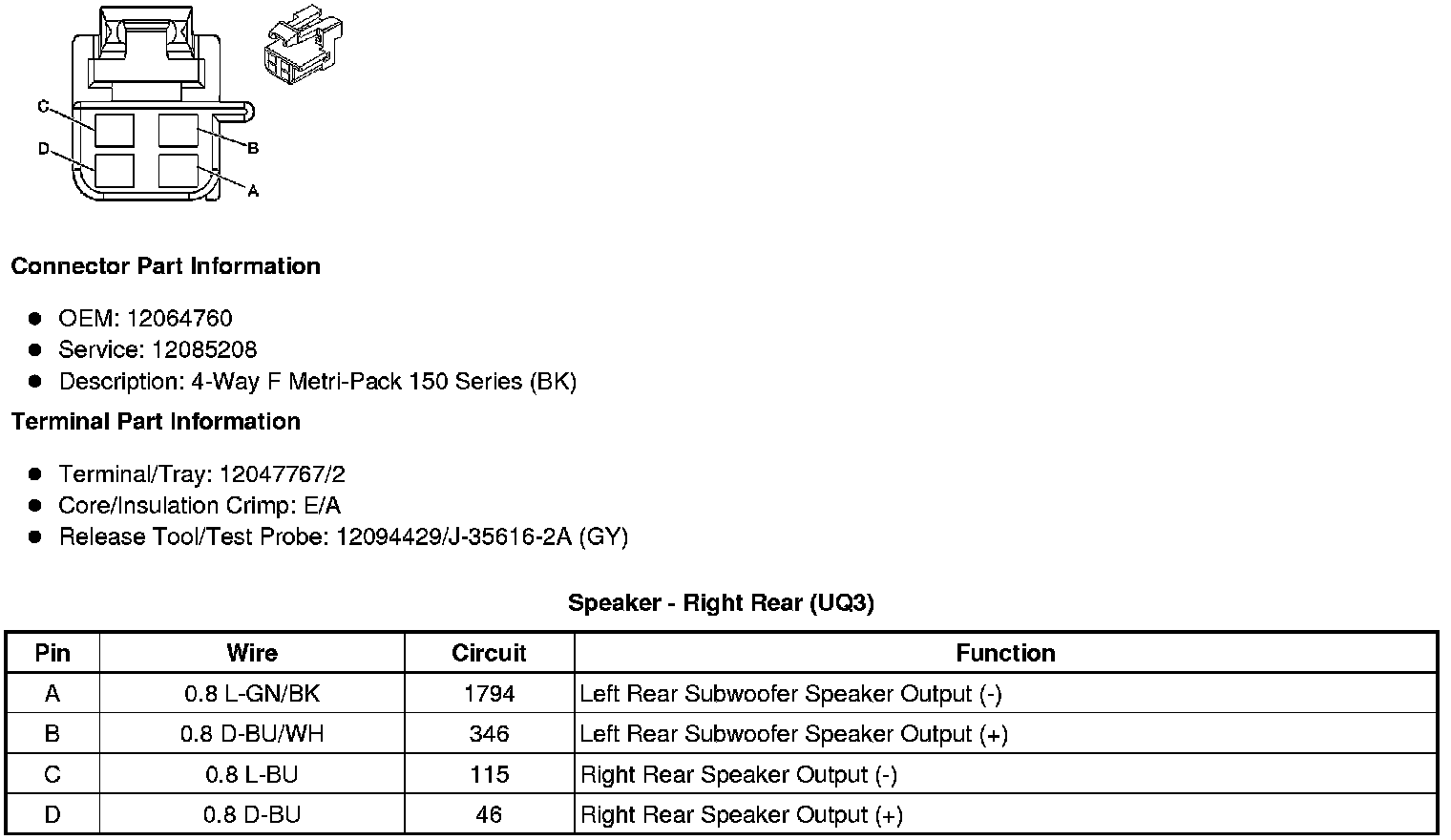

Speaker - Right Rear (UQ3)

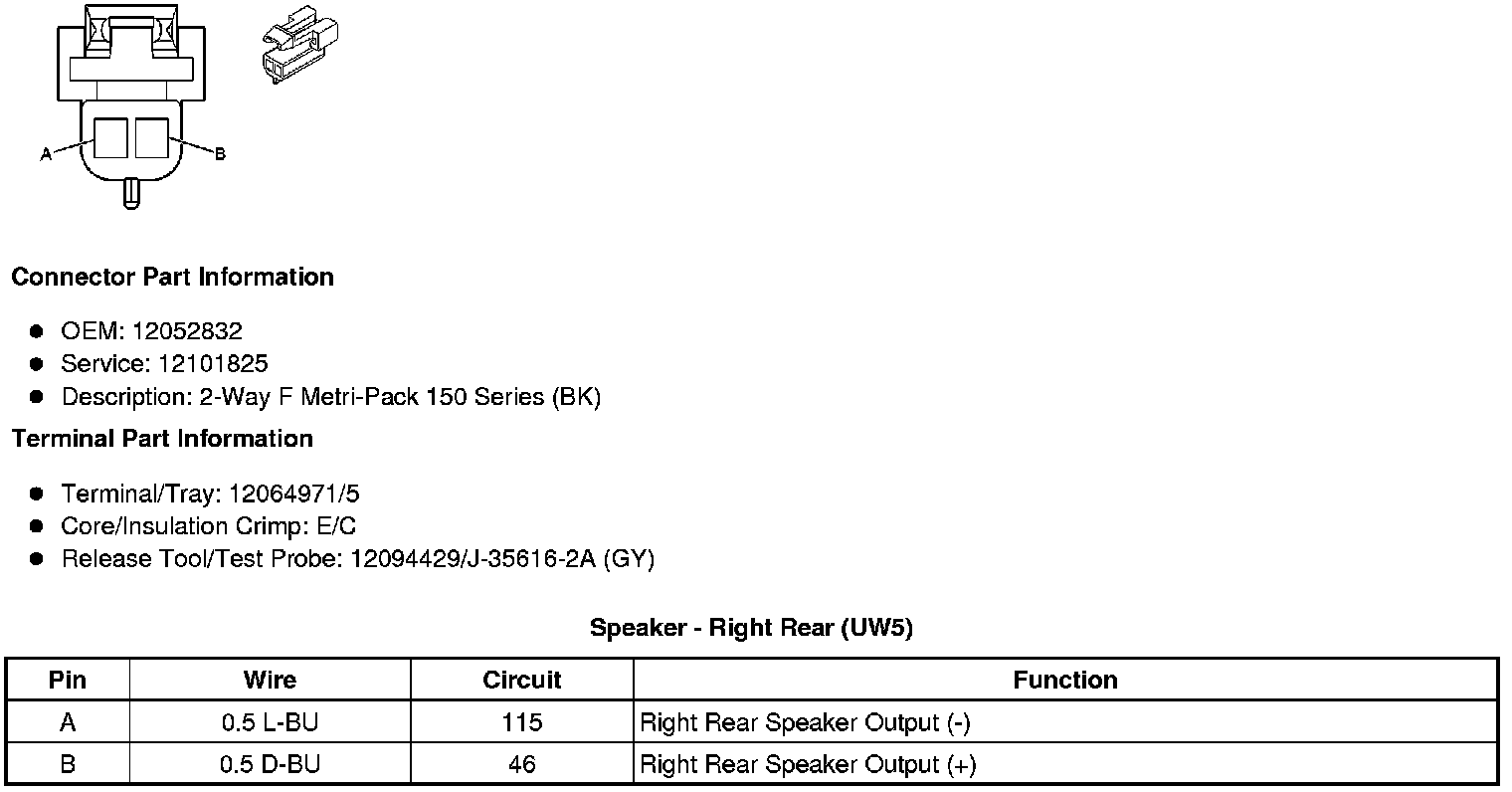

Speaker - Right Rear (UW5)
