Seat Temperature Control Module

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2009 Chevrolet.

AI Repair Guides



Component Connector End Views

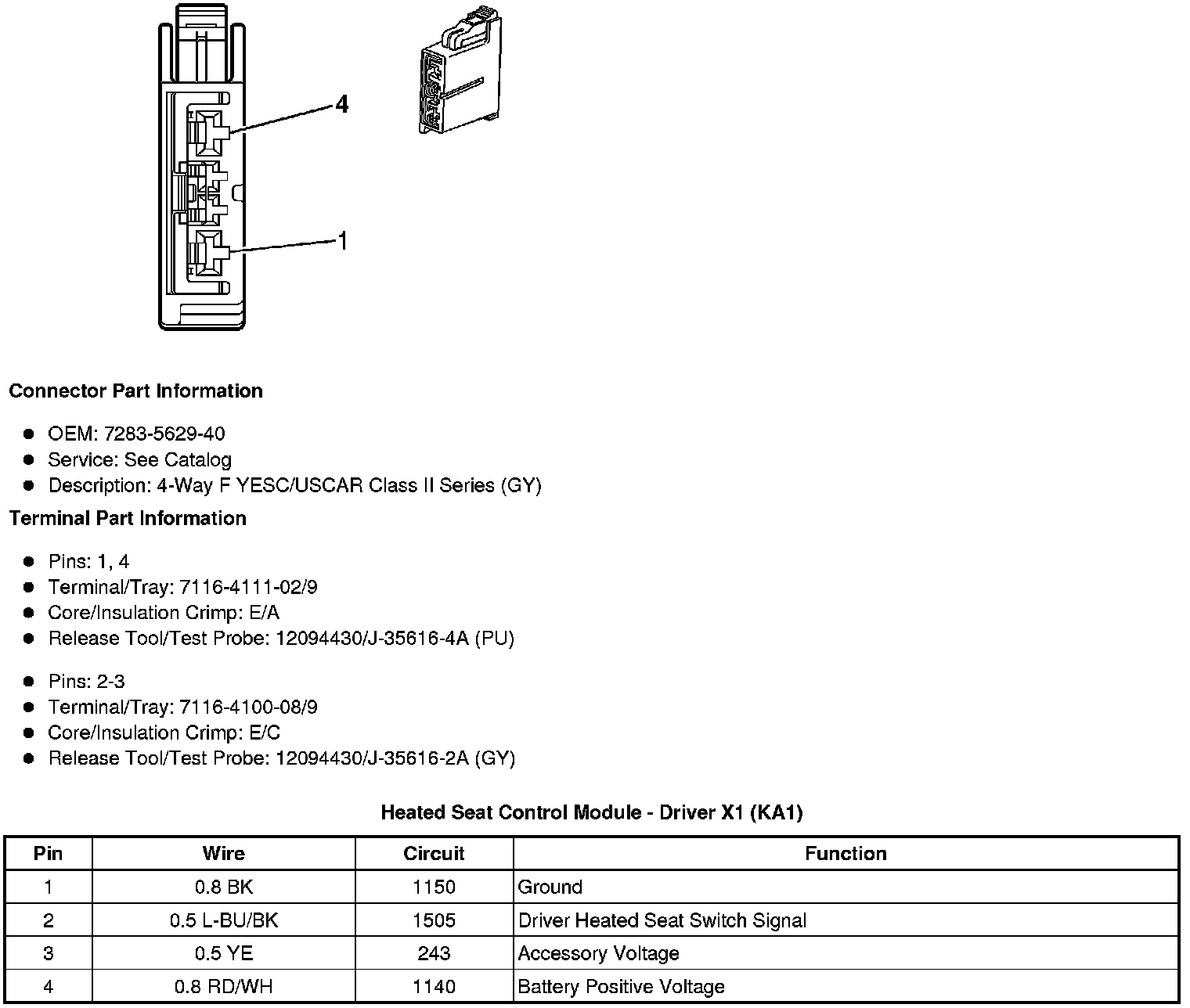

Heated Seat Control Module - Driver X1 (KA1)

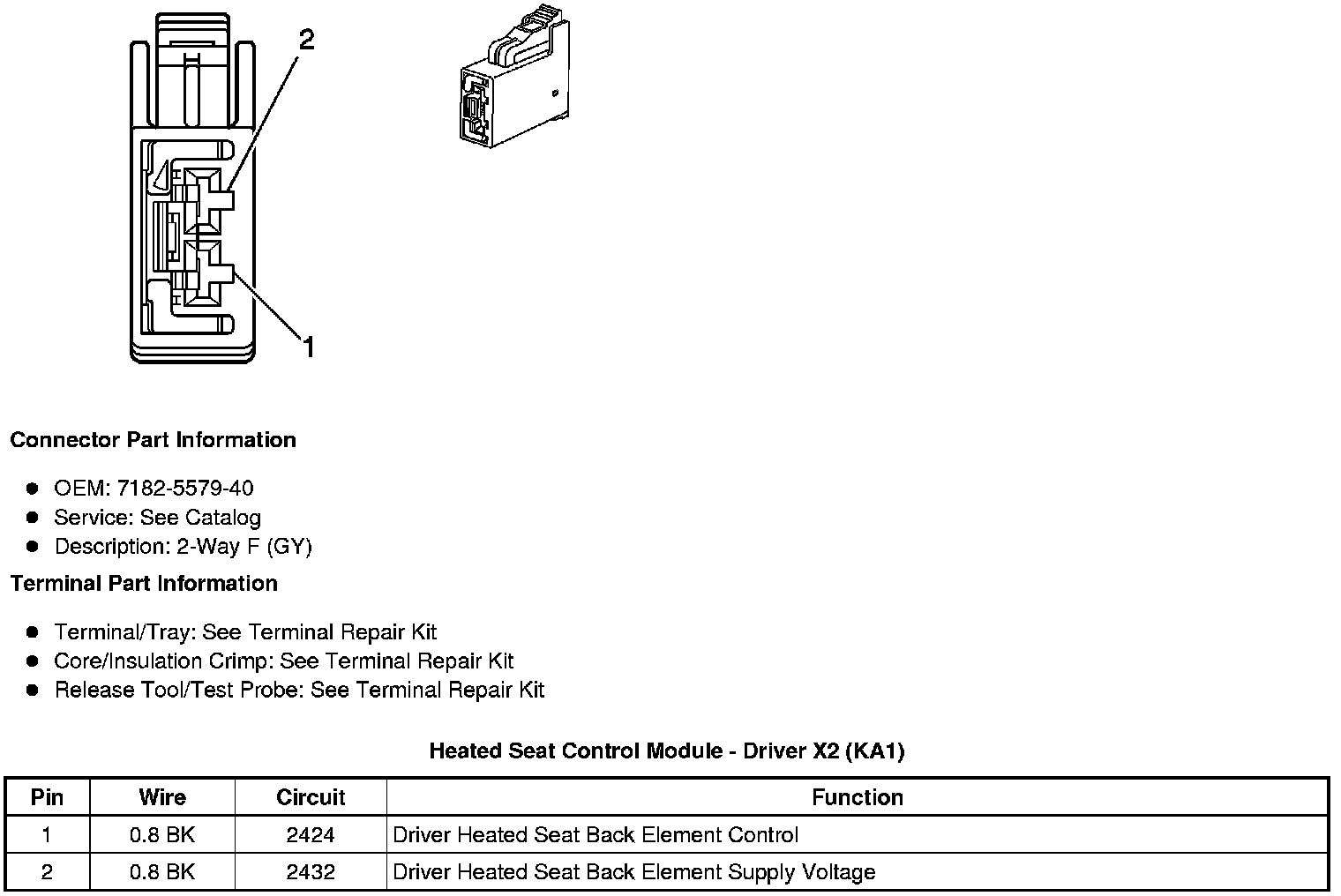

Heated Seat Control Module - Driver X2 (KA1)

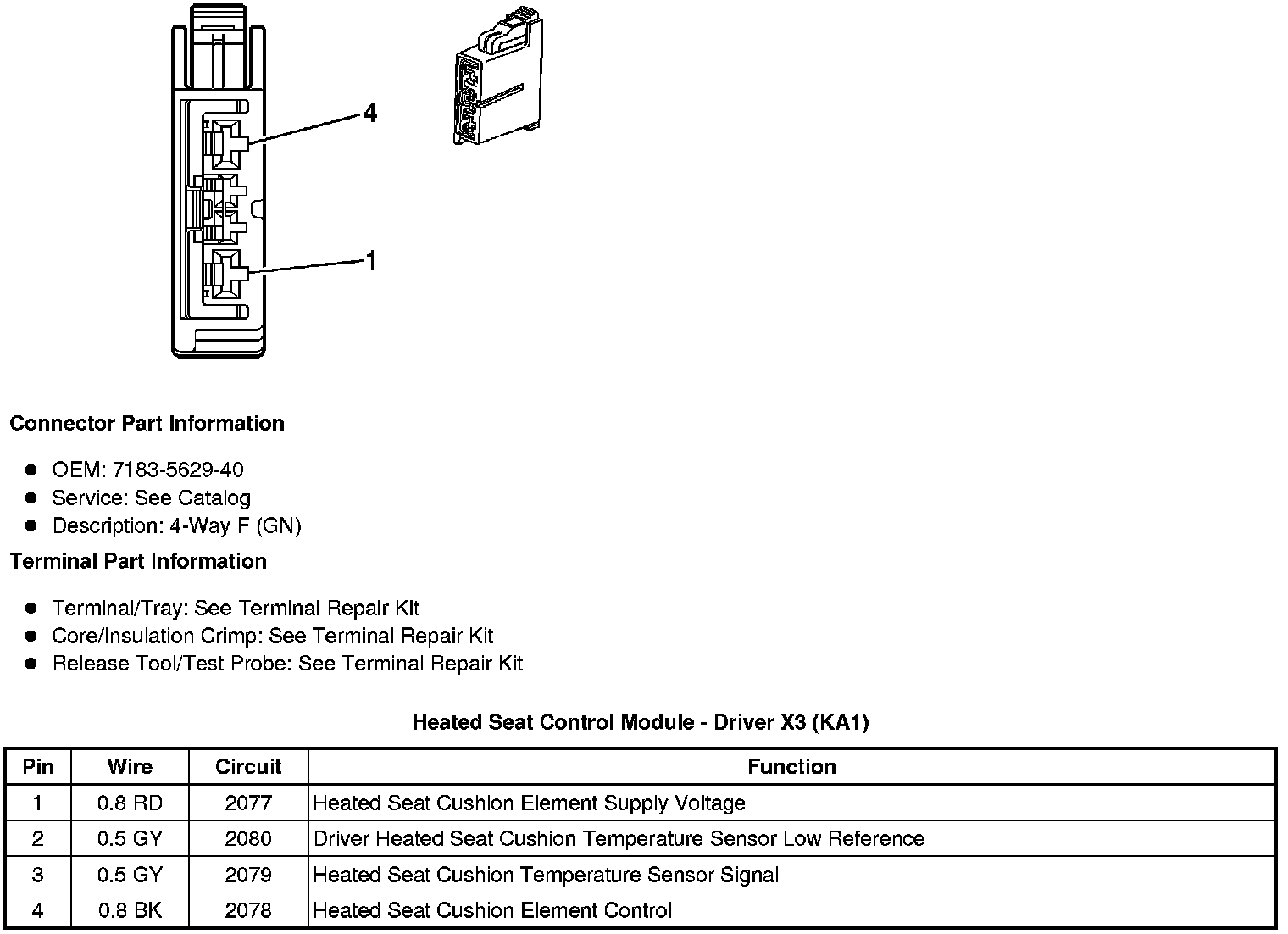

Heated Seat Control Module - Driver X3 (KA1)

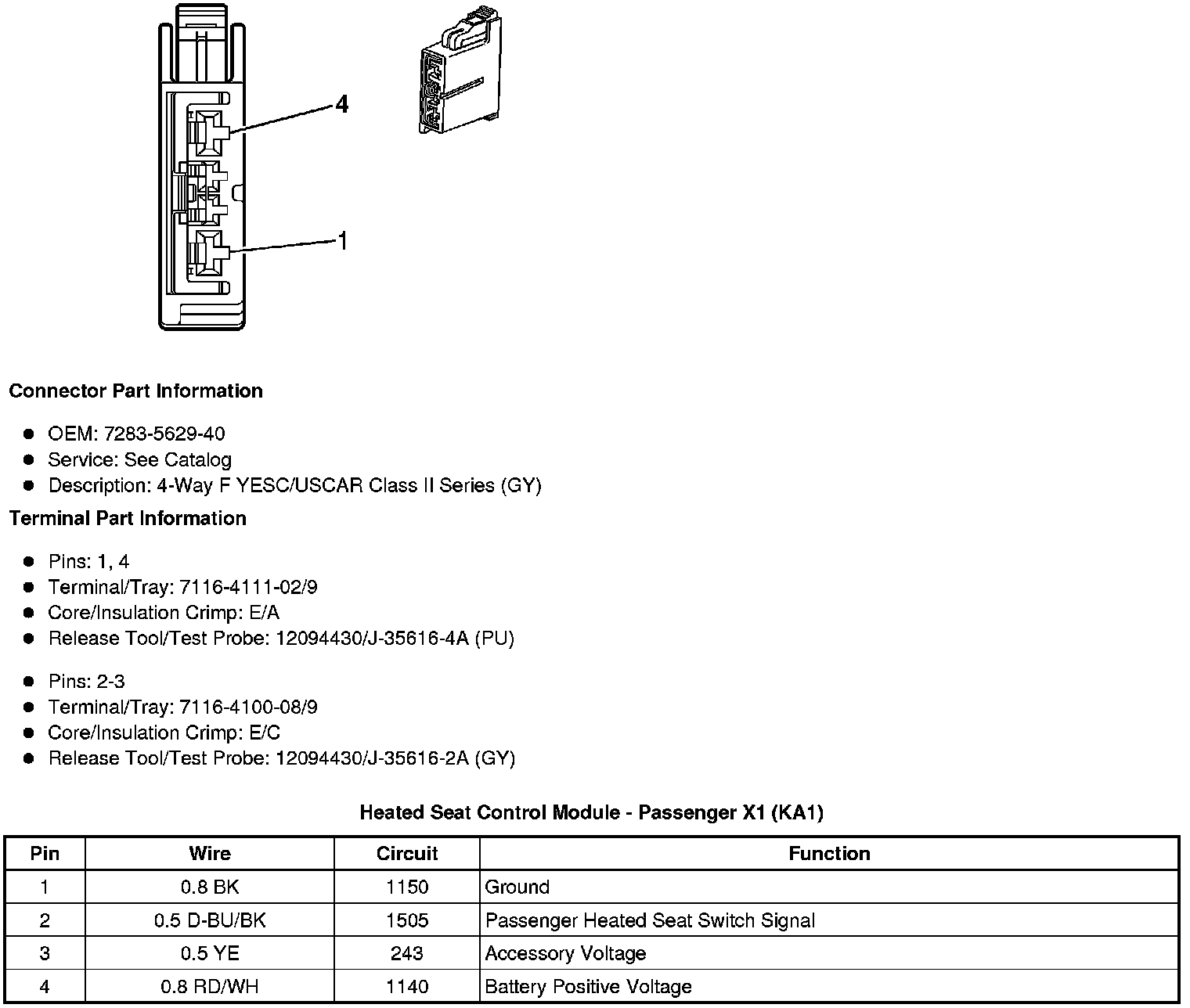

Heated Seat Control Module - Passenger X1 (KA1)

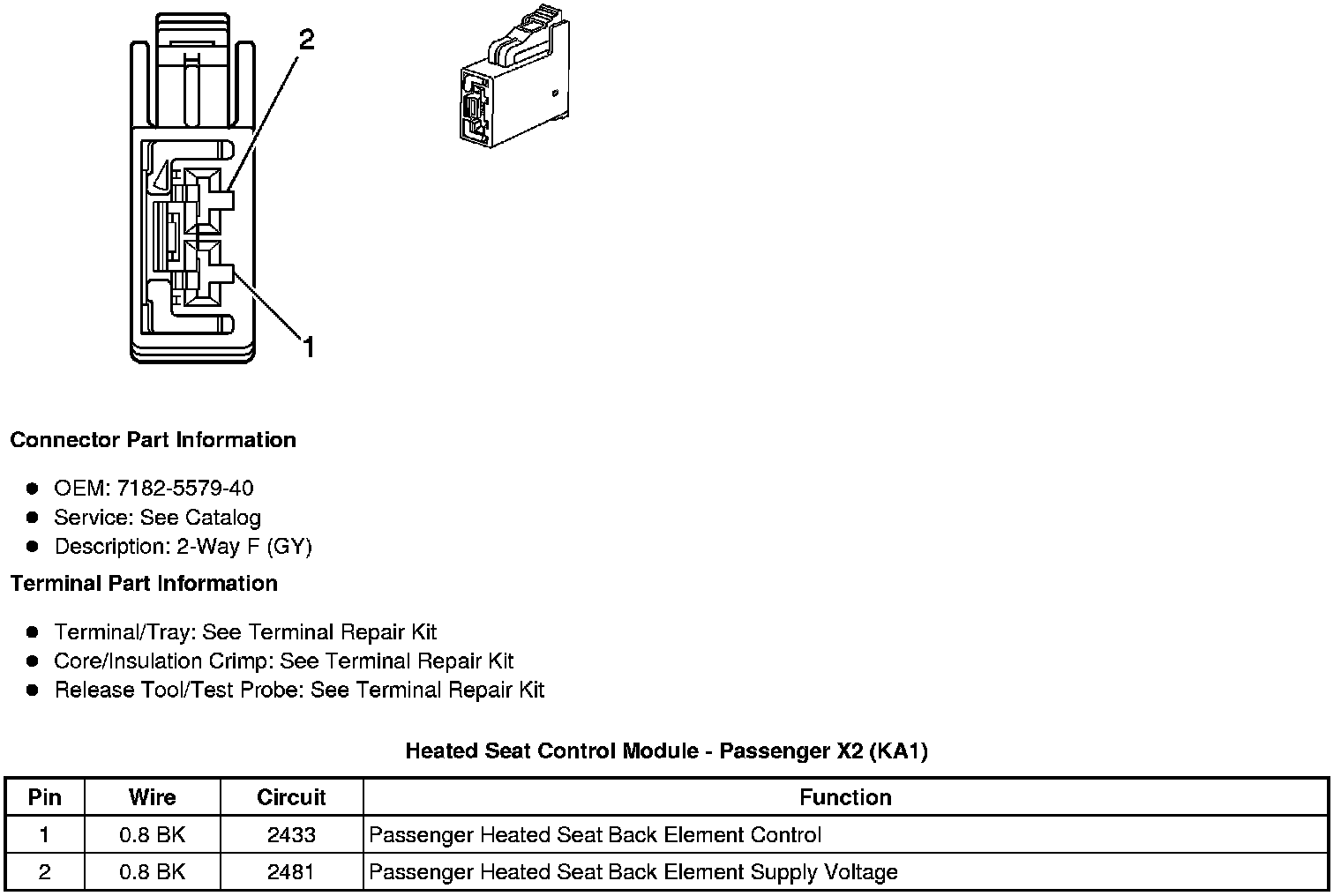

Heated Seat Control Module - Passenger X2 (KA1)

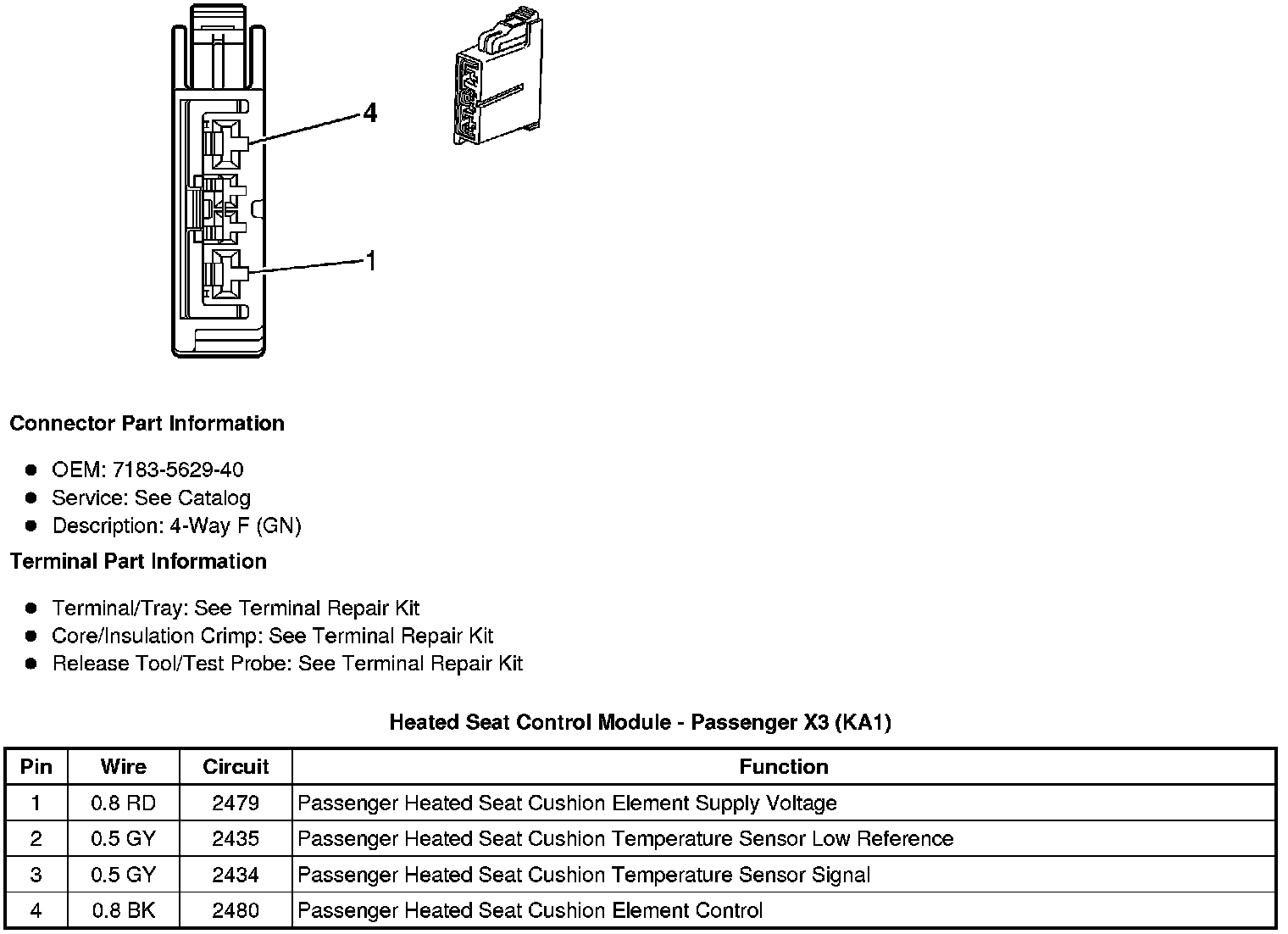

Heated Seat Control Module - Passenger X3 (KA1)
