Component Connector End Views

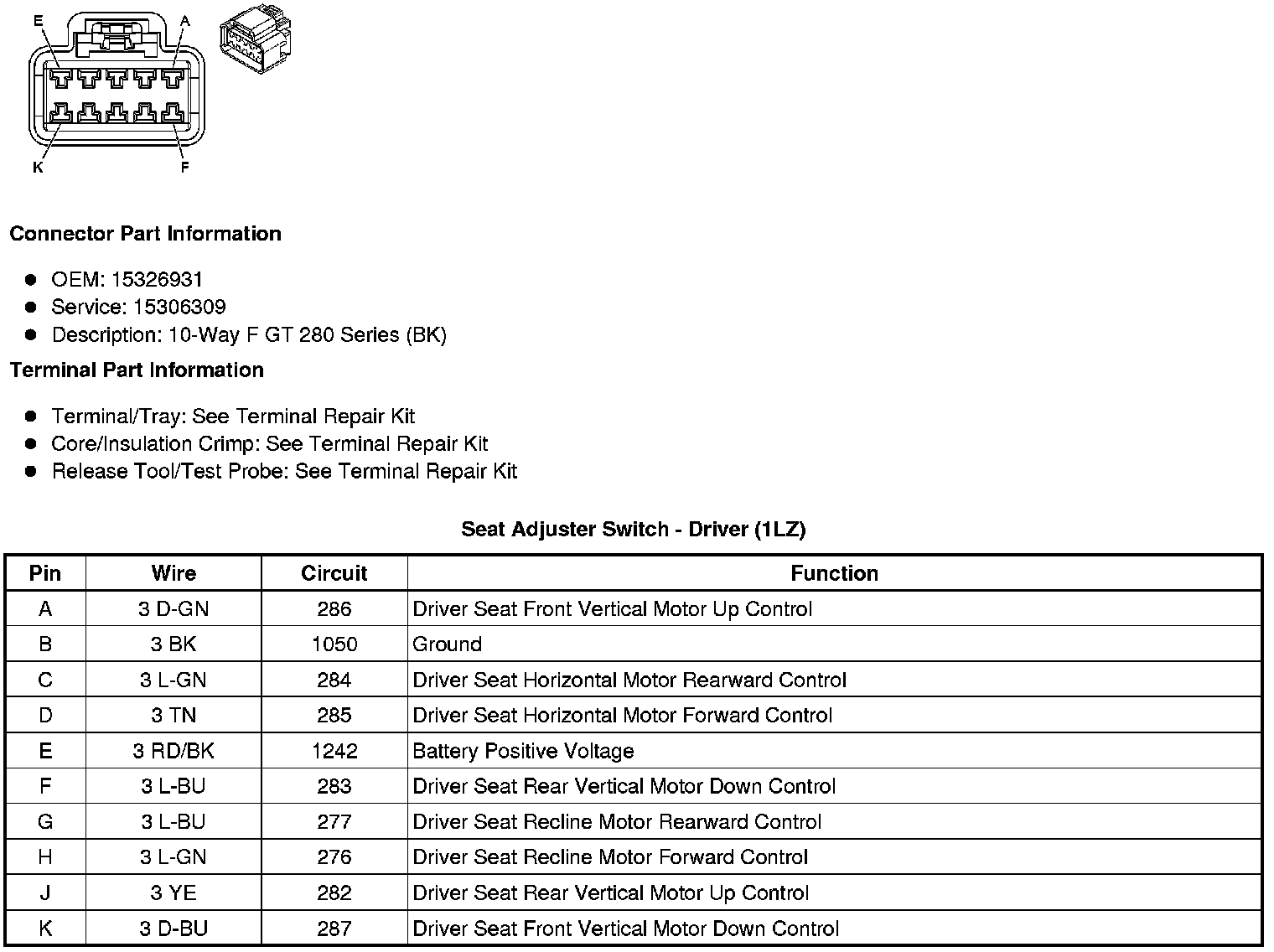

Seat Adjuster Switch - Driver (1LZ)

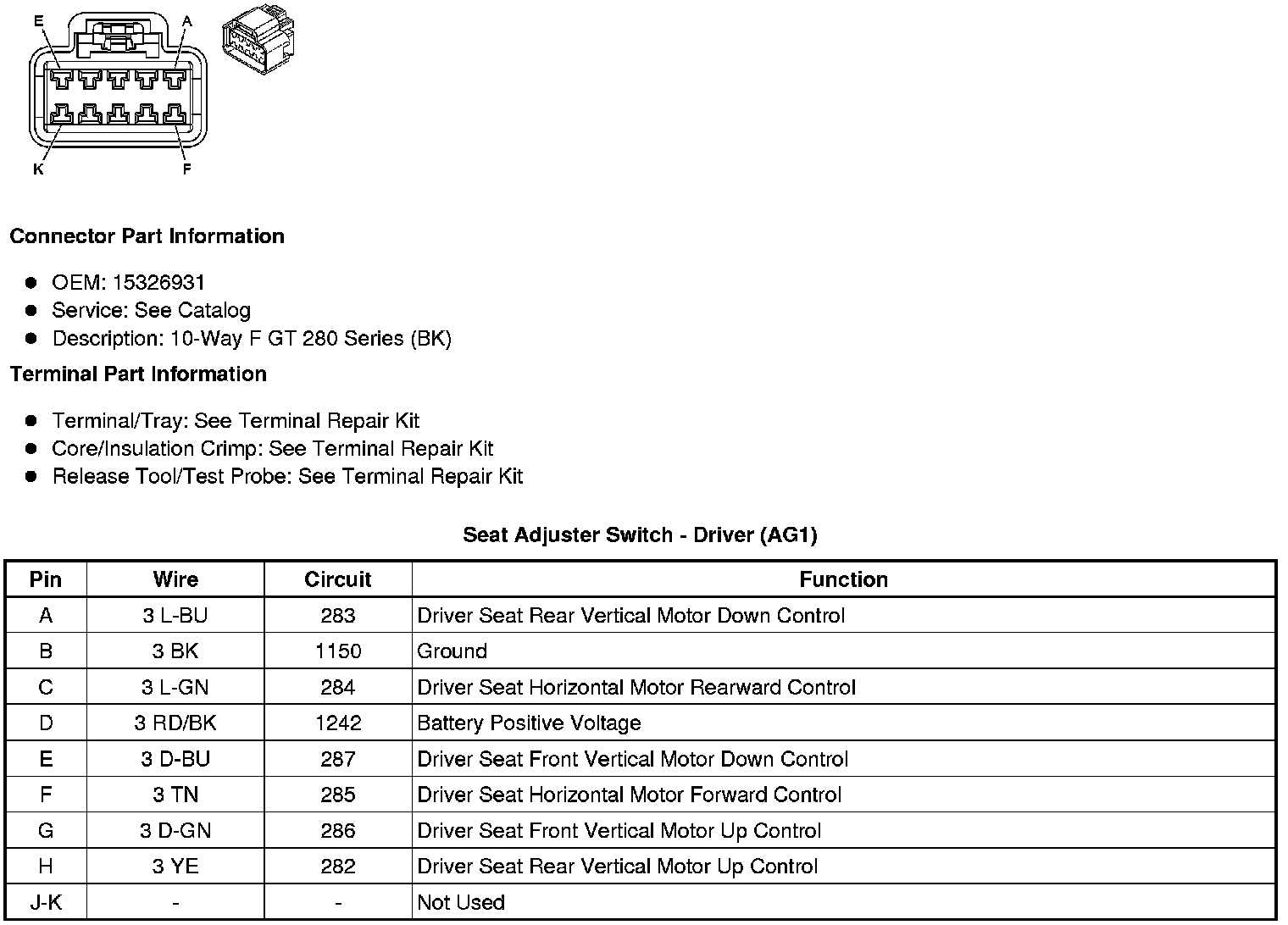

Seat Adjuster Switch - Driver (AG1)

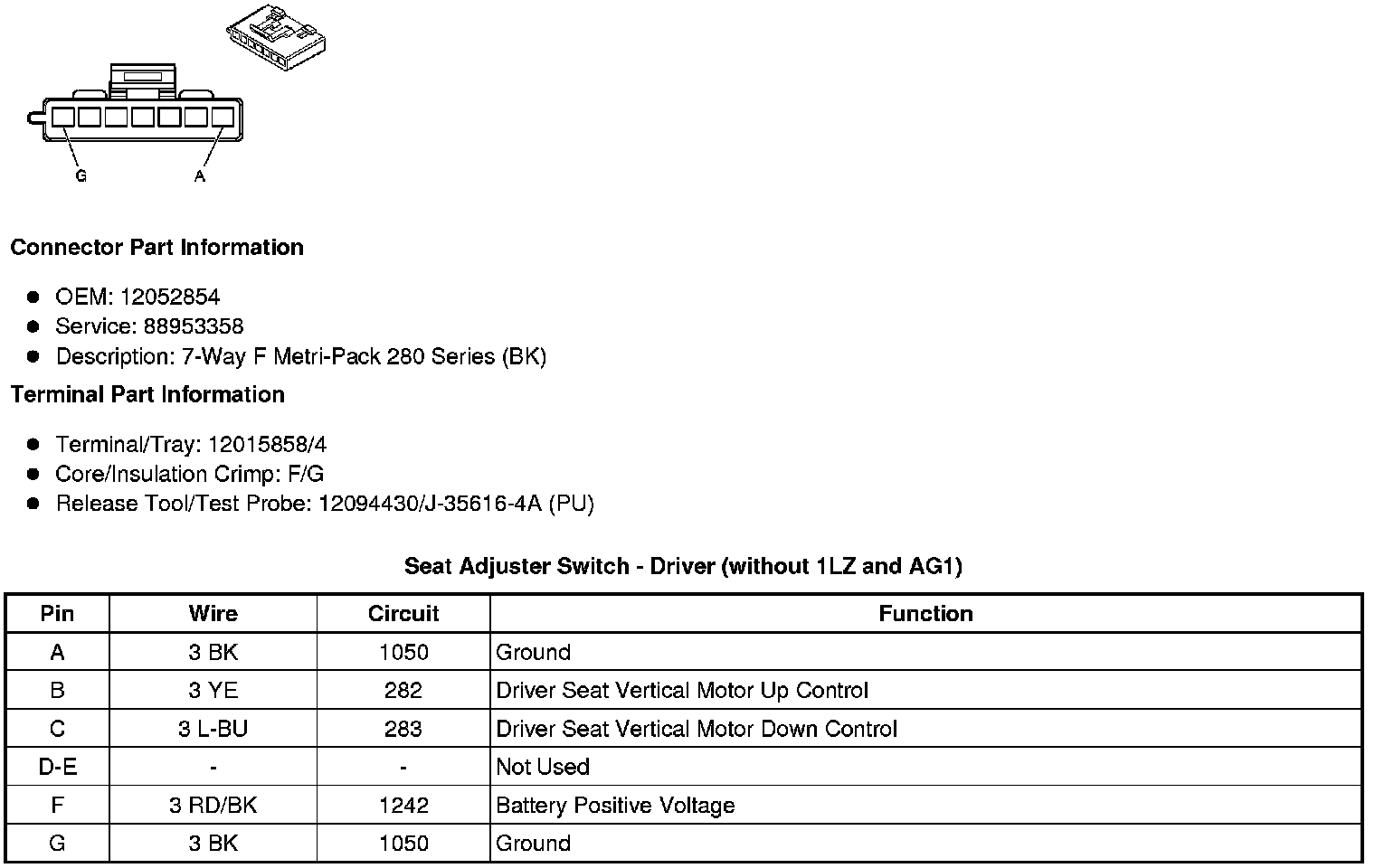

Seat Adjuster Switch - Driver (without 1LZ and AG1)

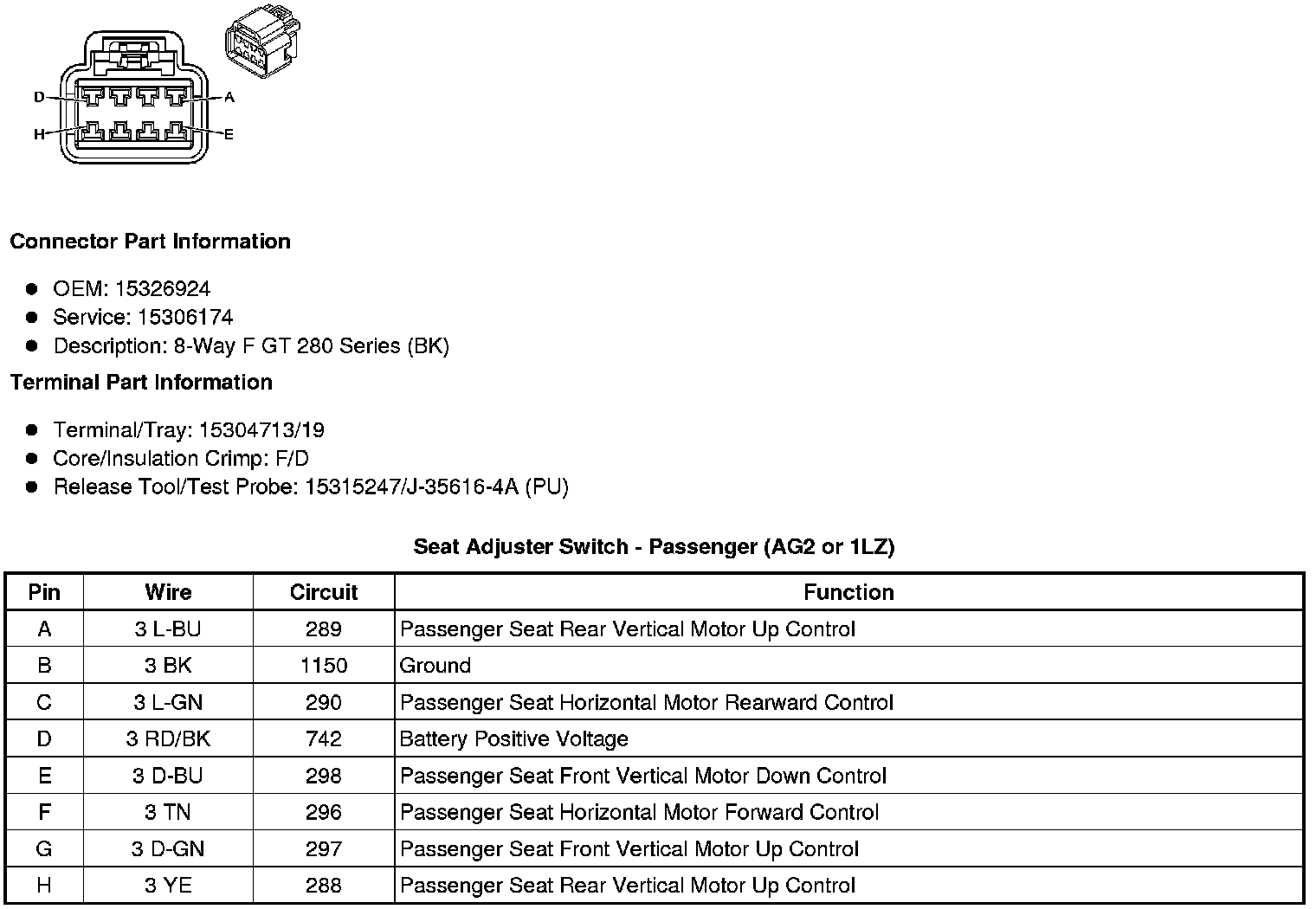

Seat Adjuster Switch - Passenger (AG2 or 1LZ)
Power Seat Switch
Need a step-by-step guide?
Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2009 Chevrolet.
Component Connector End Views
Seat Adjuster Switch - Driver (1LZ)
Seat Adjuster Switch - Driver (AG1)
Seat Adjuster Switch - Driver (without 1LZ and AG1)
Seat Adjuster Switch - Passenger (AG2 or 1LZ)
