Component Connector End Views

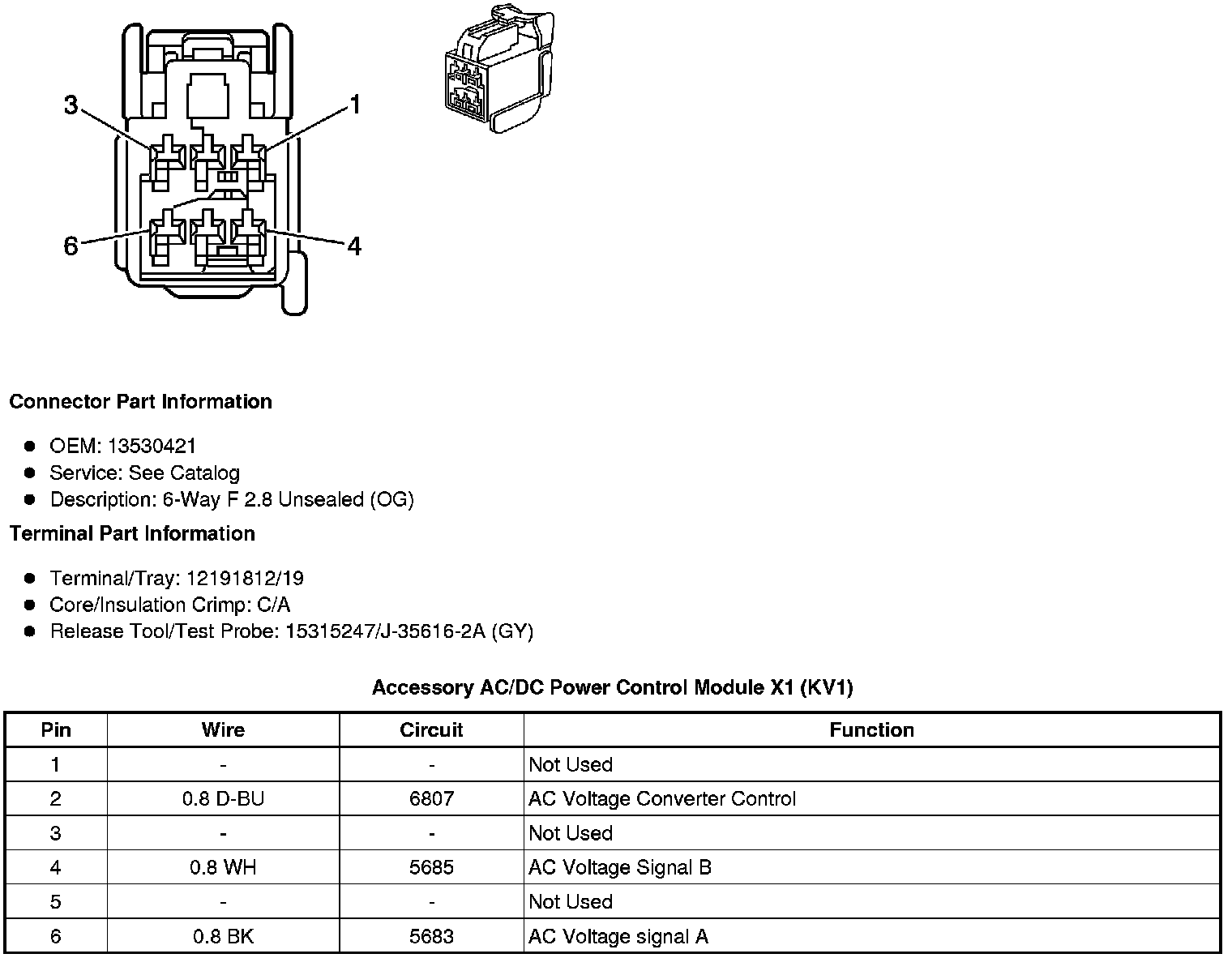

Accessory AC/DC Power Control Module X1 (KV1)

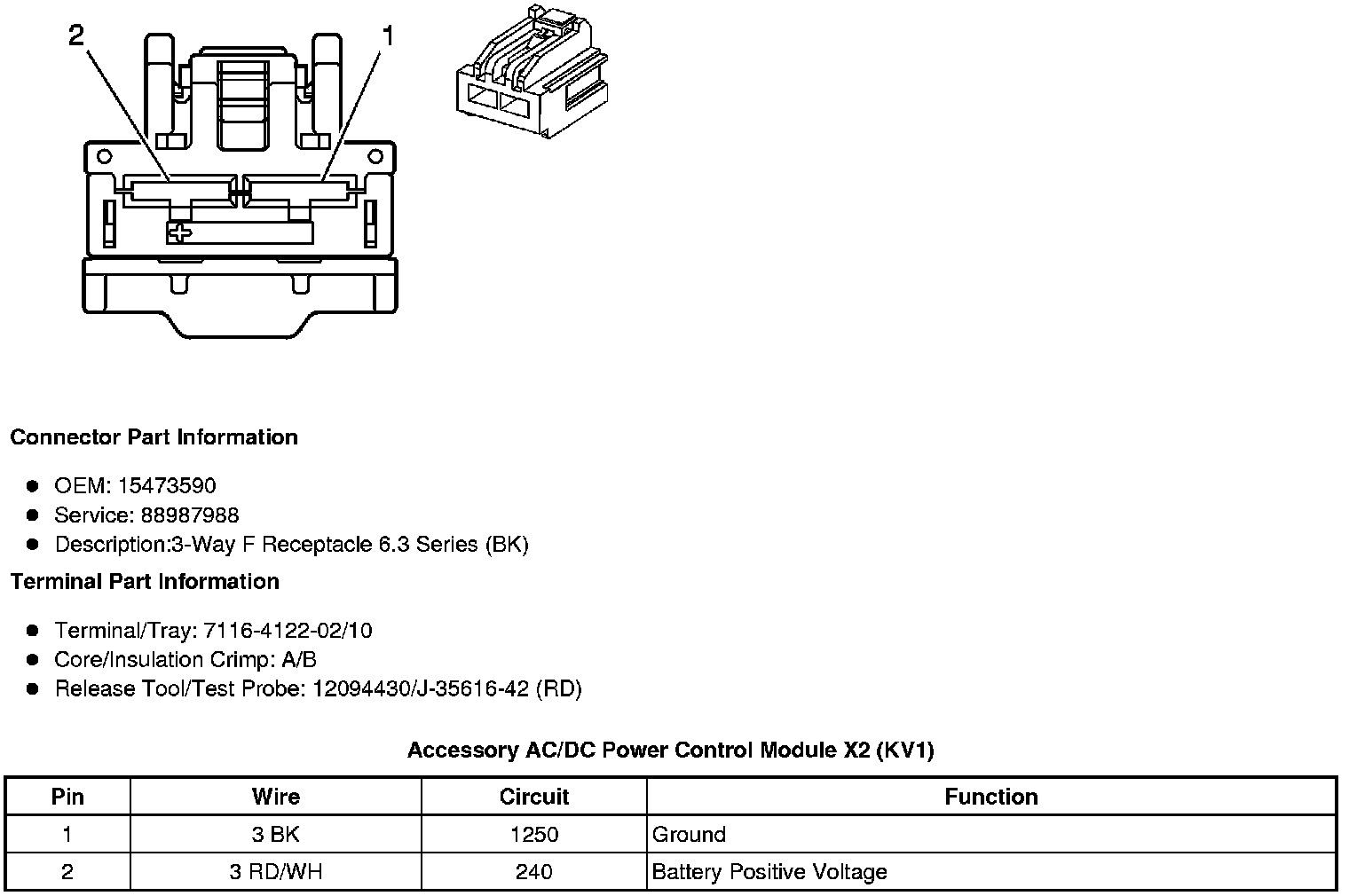

Accessory AC/DC Power Control Module X2 (KV1)
Power Distribution Module
Need a step-by-step guide?
Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2009 Chevrolet.
Component Connector End Views
Accessory AC/DC Power Control Module X1 (KV1)
Accessory AC/DC Power Control Module X2 (KV1)
