Component Connector End Views
Inside Rearview Mirror (ISRVM)
Outside Rearview Mirror - Driver (DD0)
Outside Rearview Mirror - Driver (D49 or DP2)
Outside Rearview Mirror - Passenger (DD0)
Outside Rearview Mirror - Passenger (D49 or DP2)
System Diagram
Need a step-by-step guide?
Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2009 Chevrolet.
Component Connector End Views

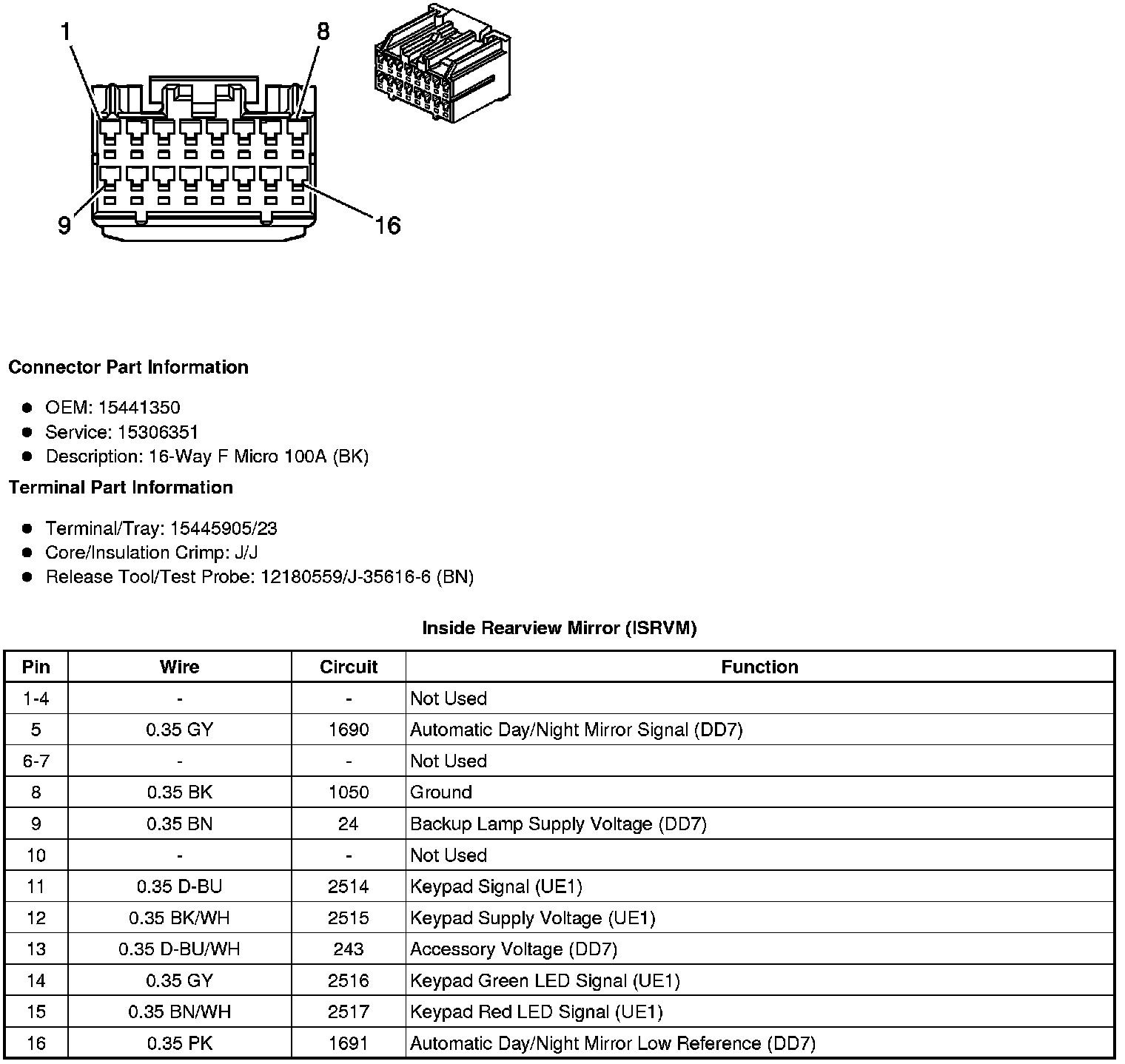

Inside Rearview Mirror (ISRVM)

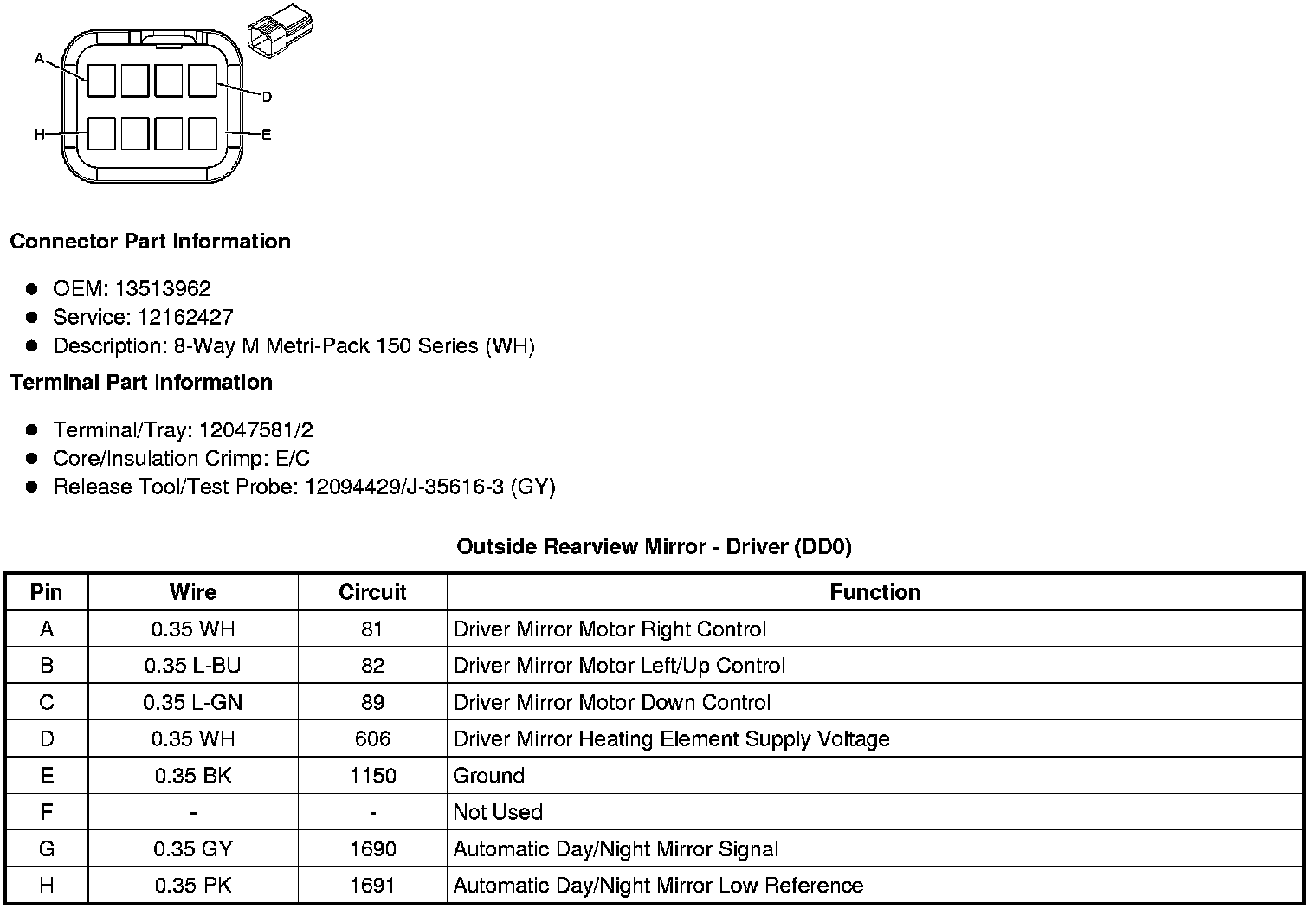

Outside Rearview Mirror - Driver (DD0)

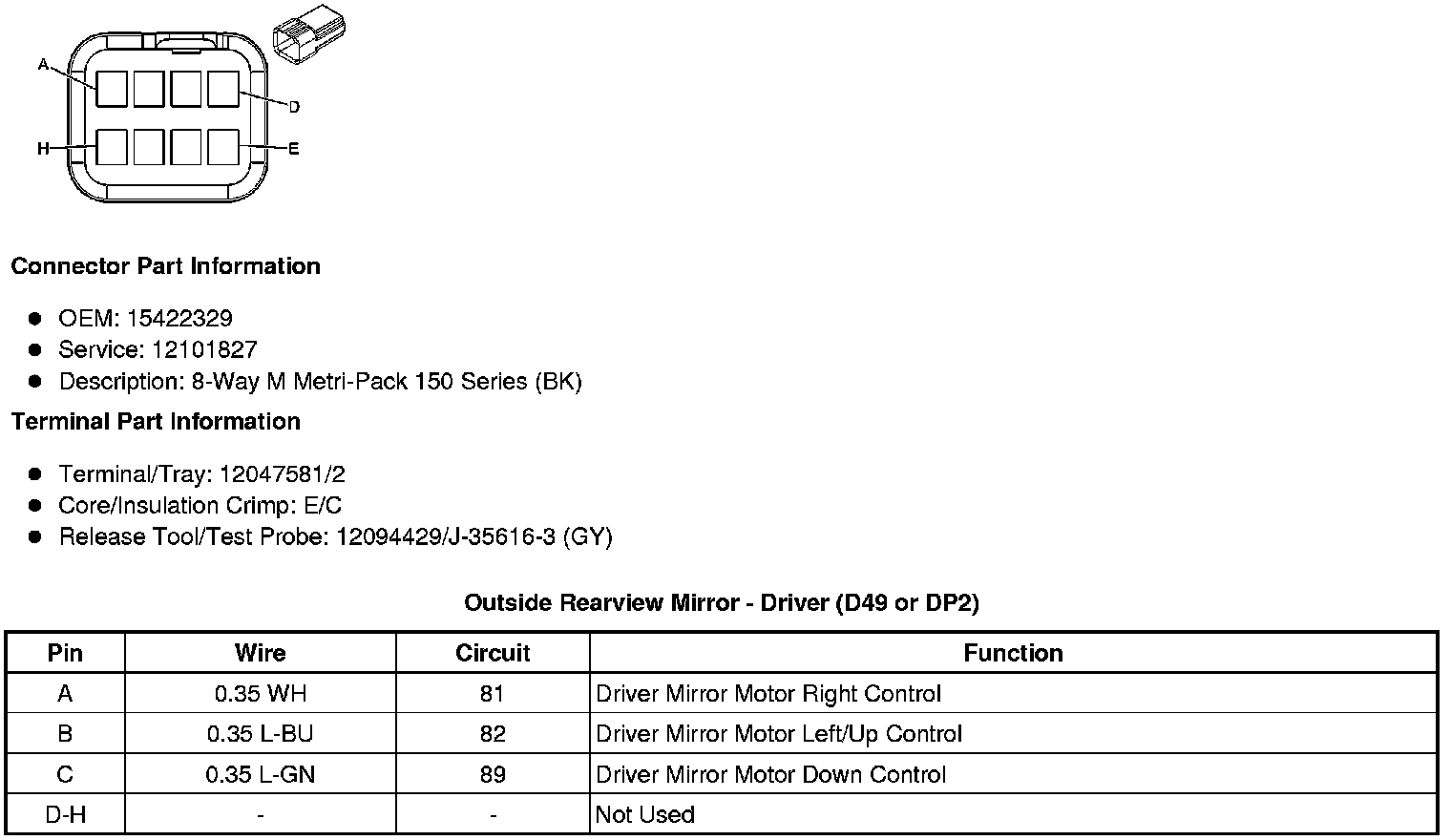

Outside Rearview Mirror - Driver (D49 or DP2)

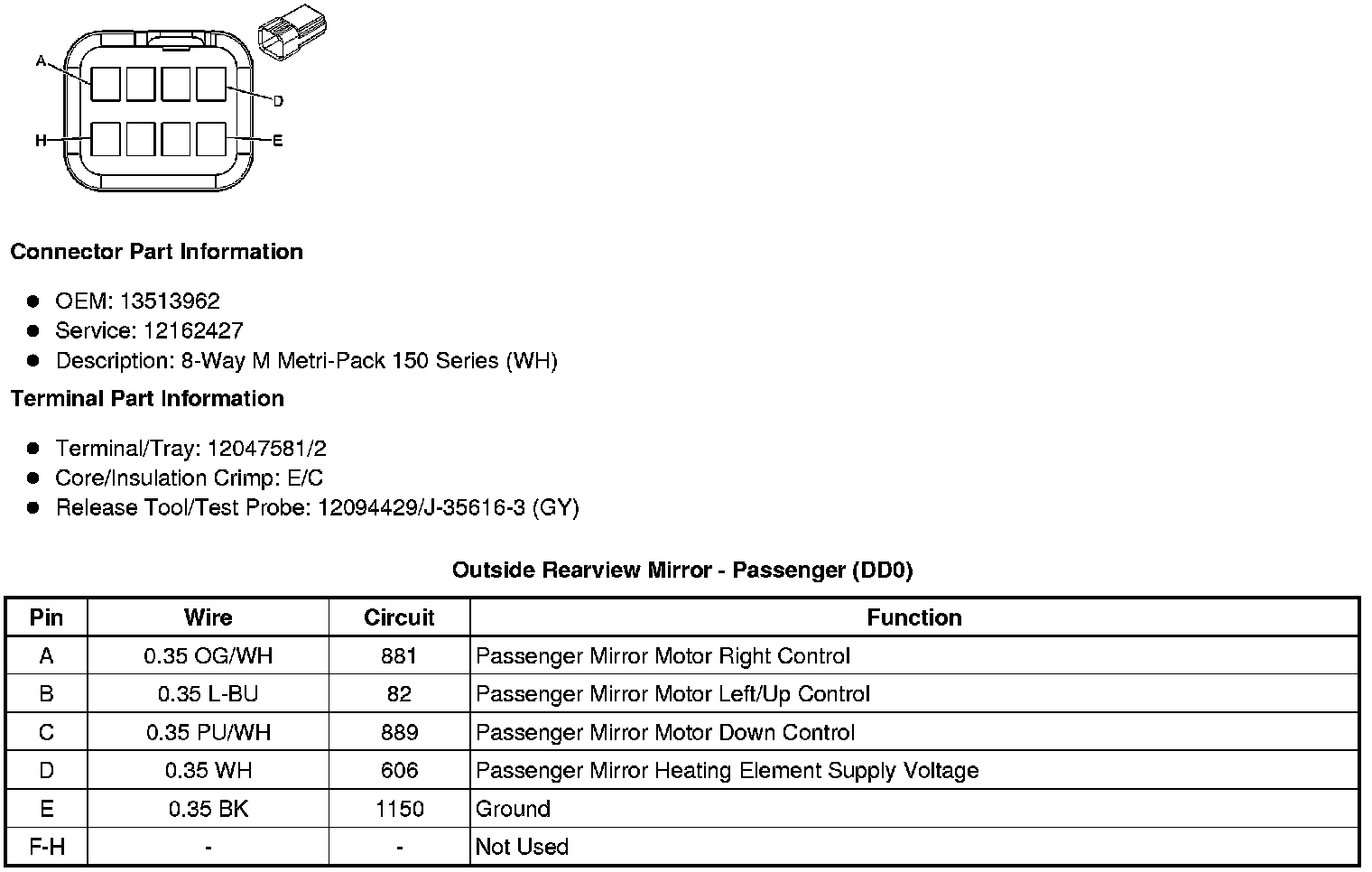

Outside Rearview Mirror - Passenger (DD0)

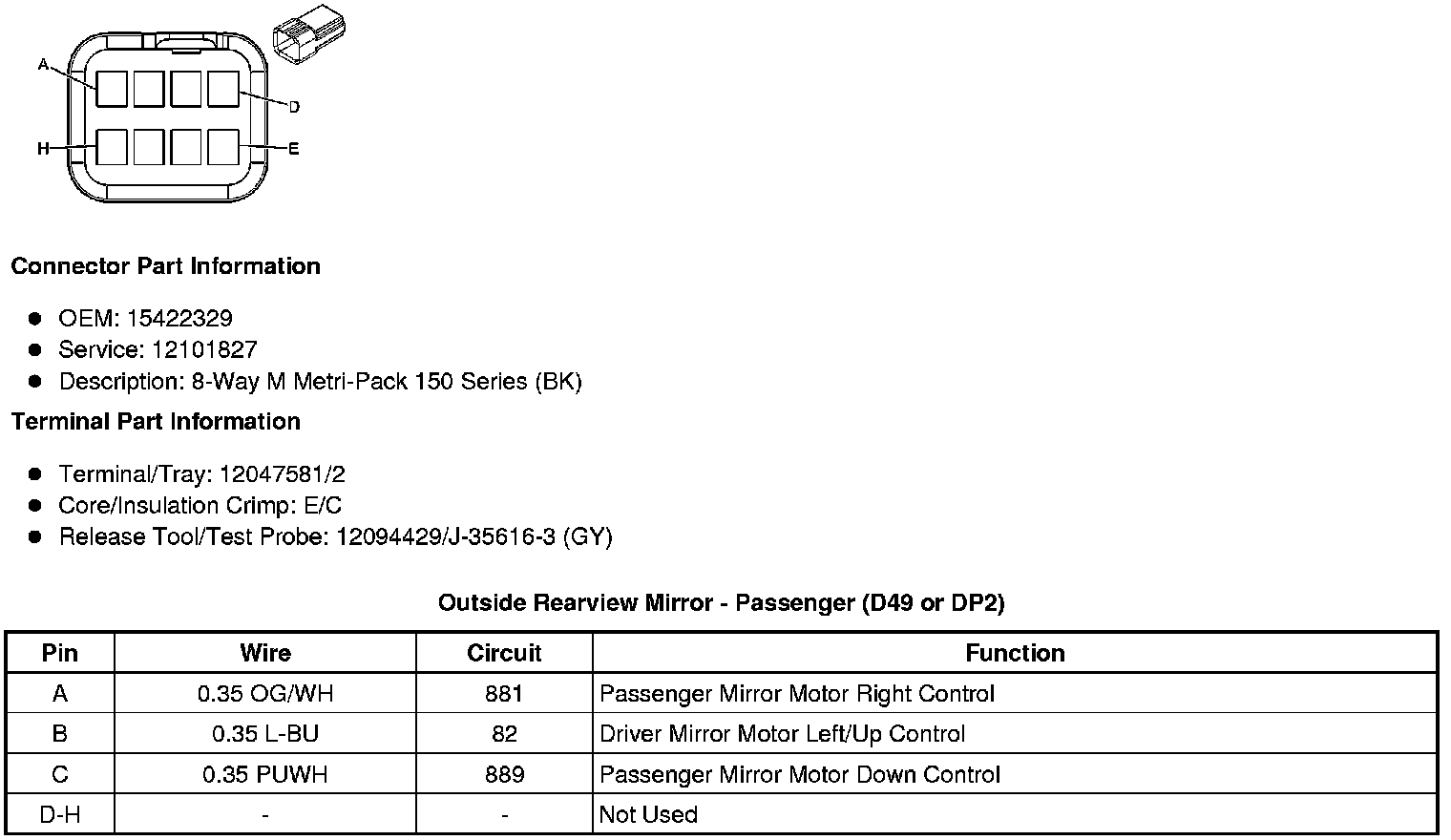

Outside Rearview Mirror - Passenger (D49 or DP2)
