Component Connector End Views

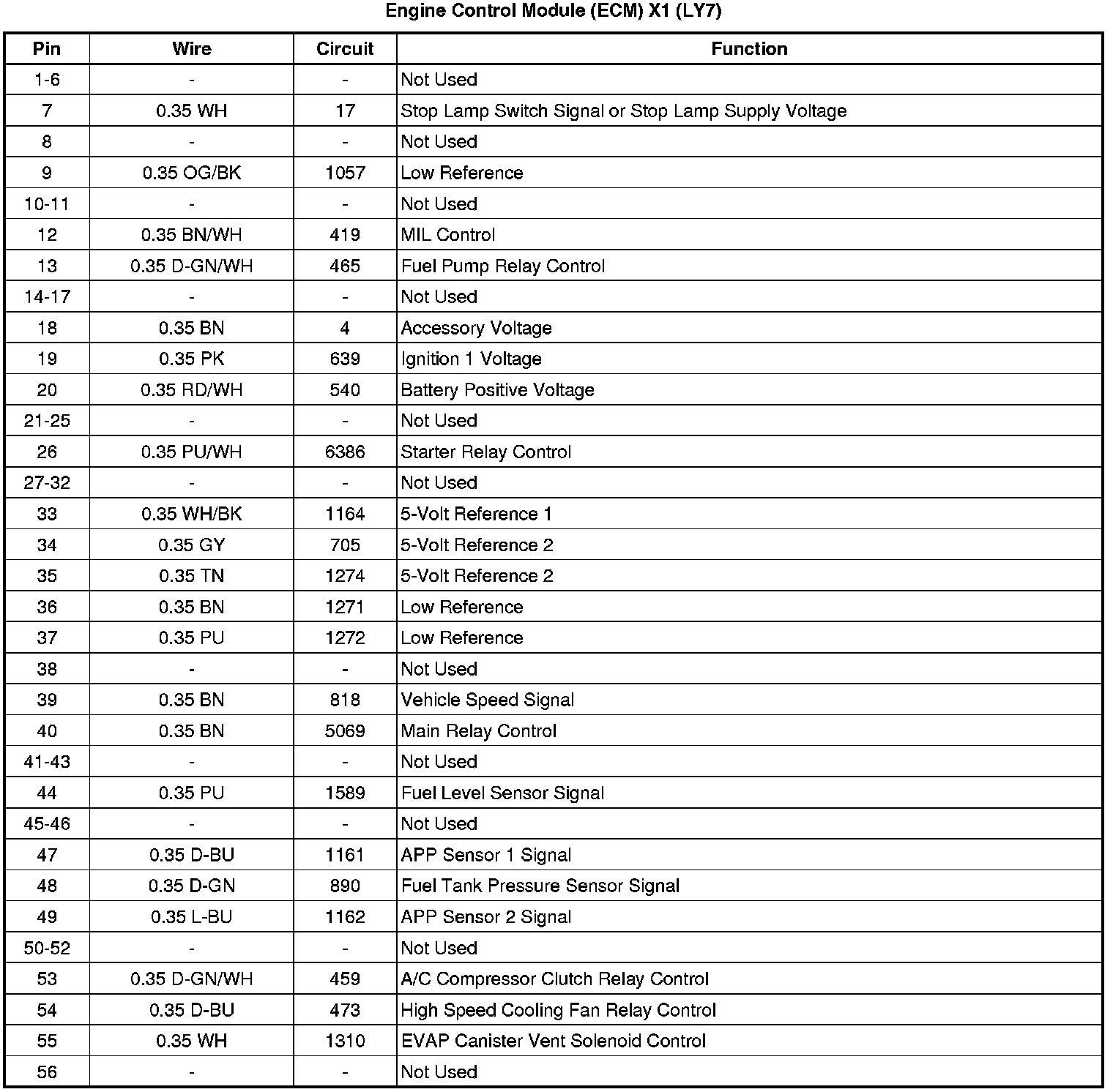

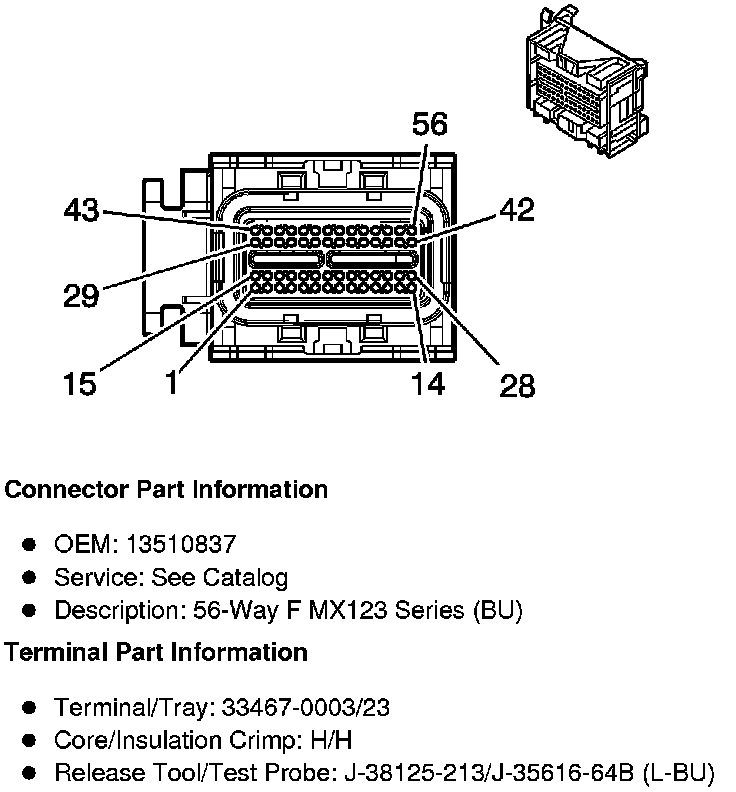

Engine Control Module (ECM) X1 (LY7)

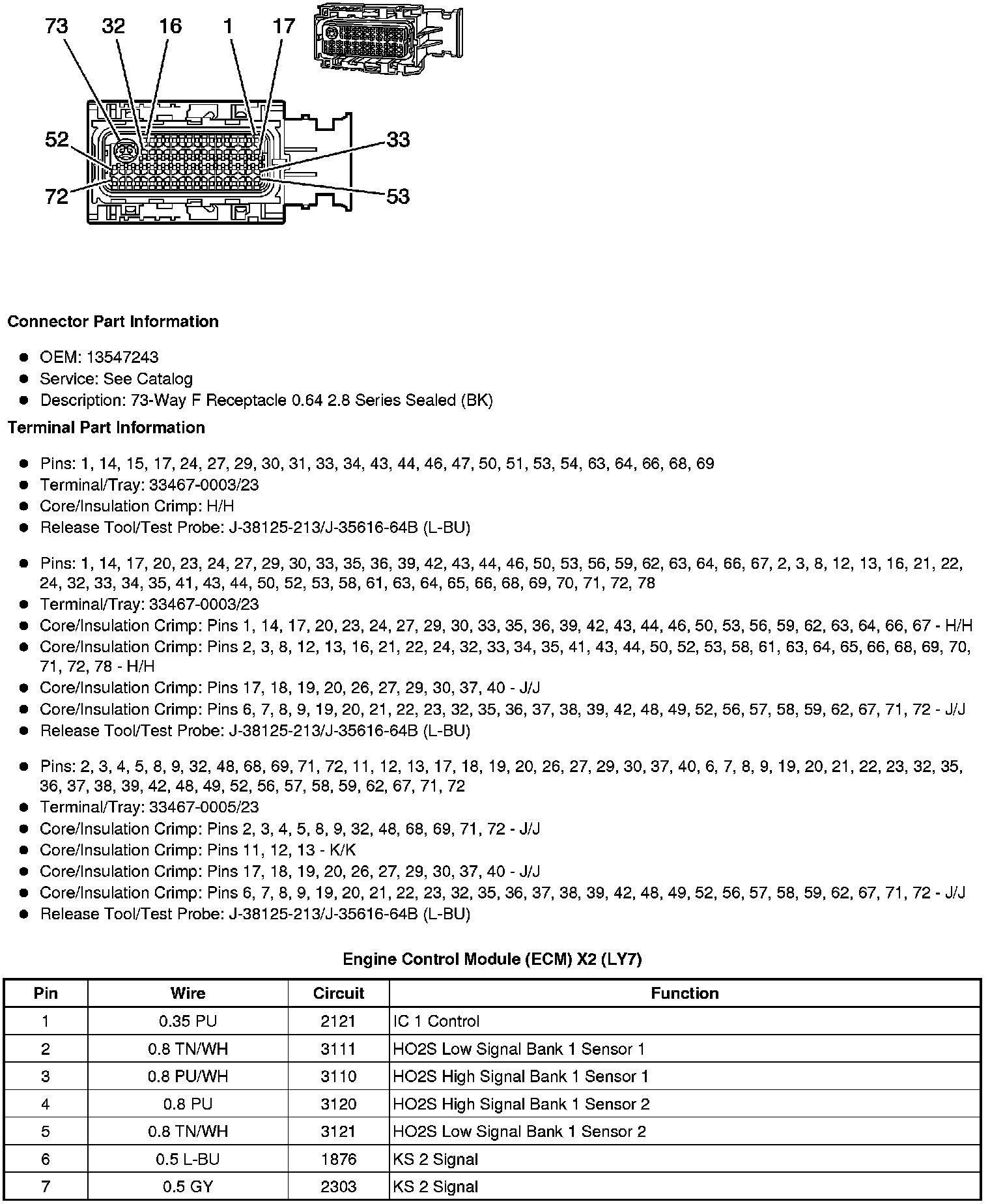

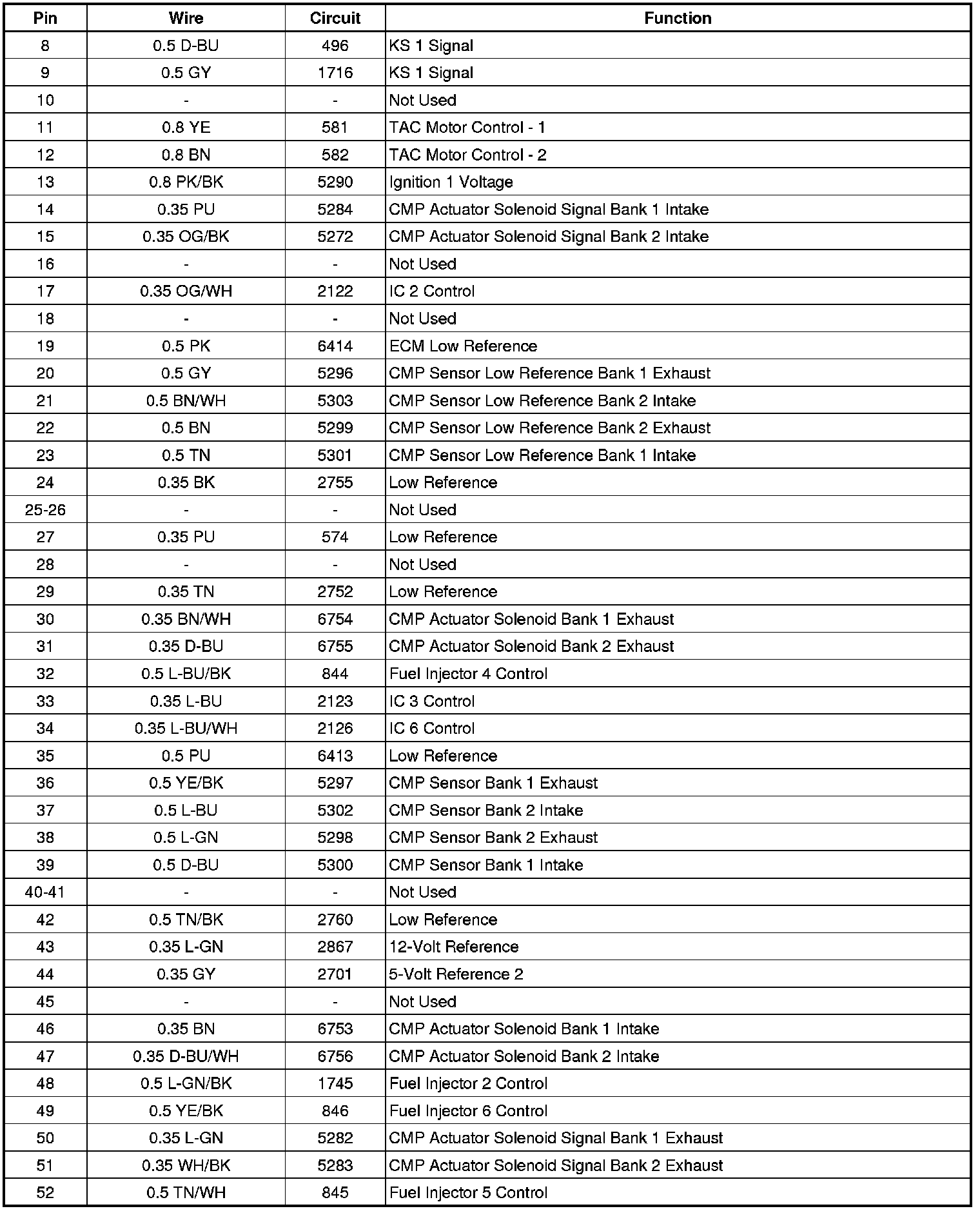

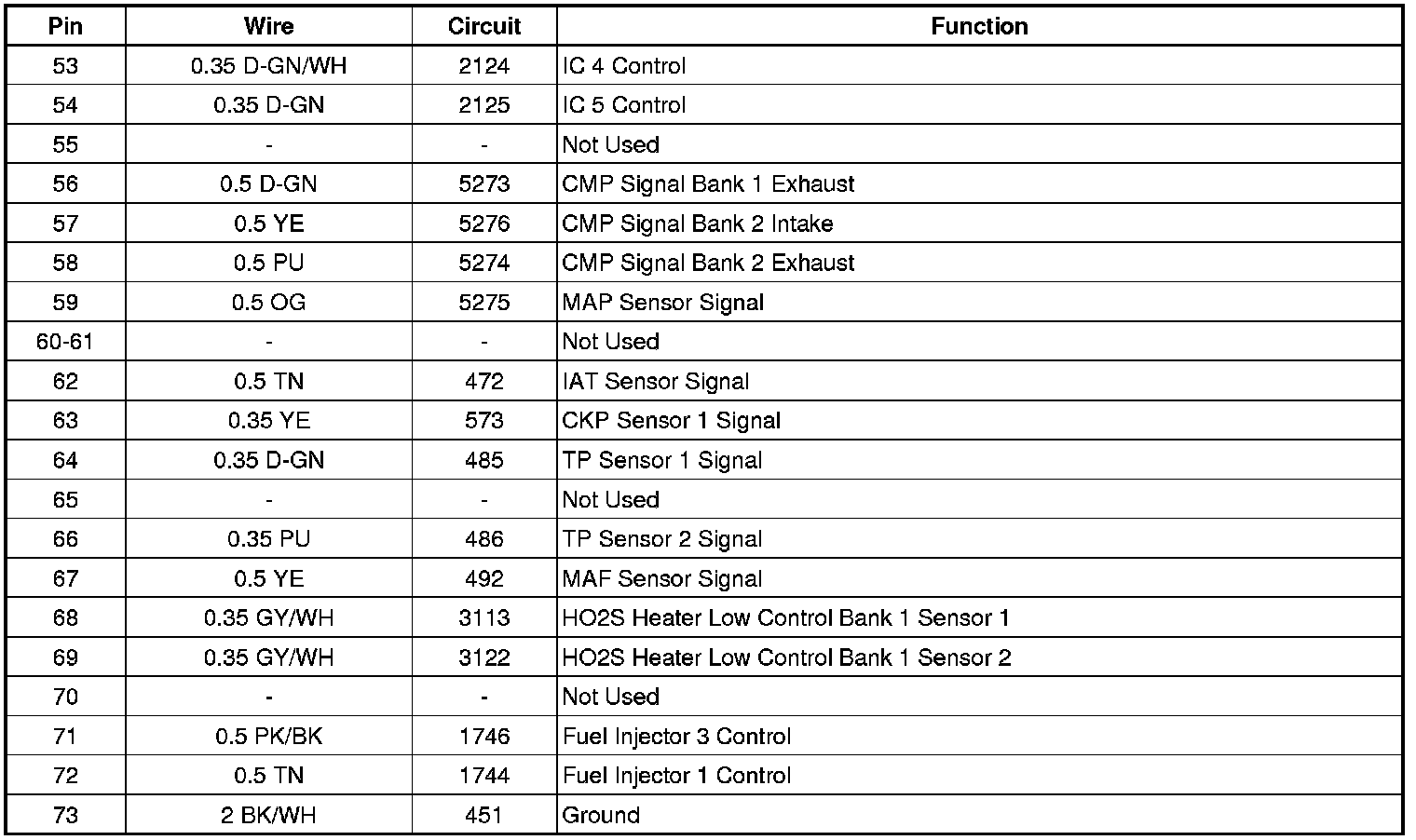

Engine Control Module (ECM) X2 (LY7)

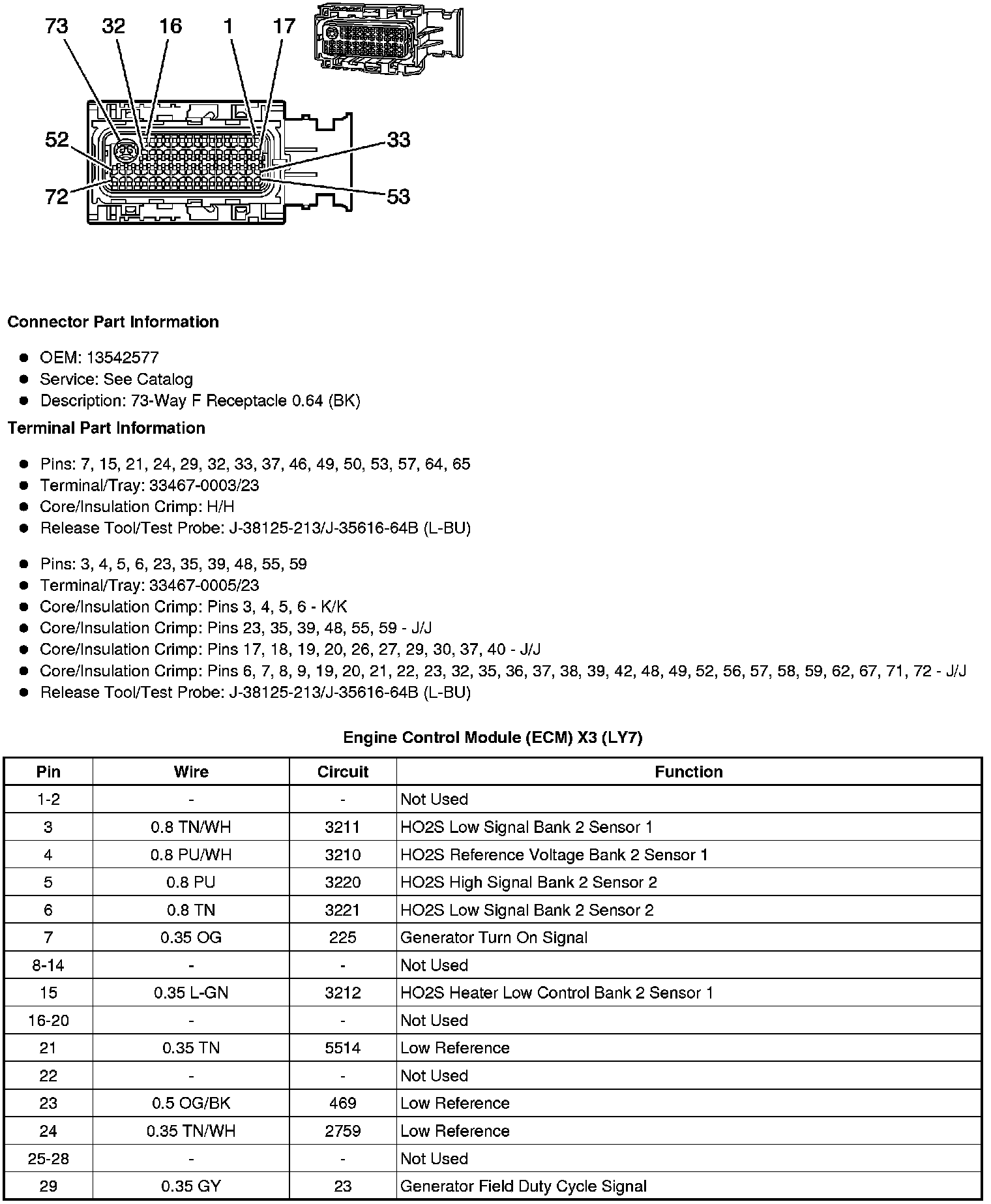

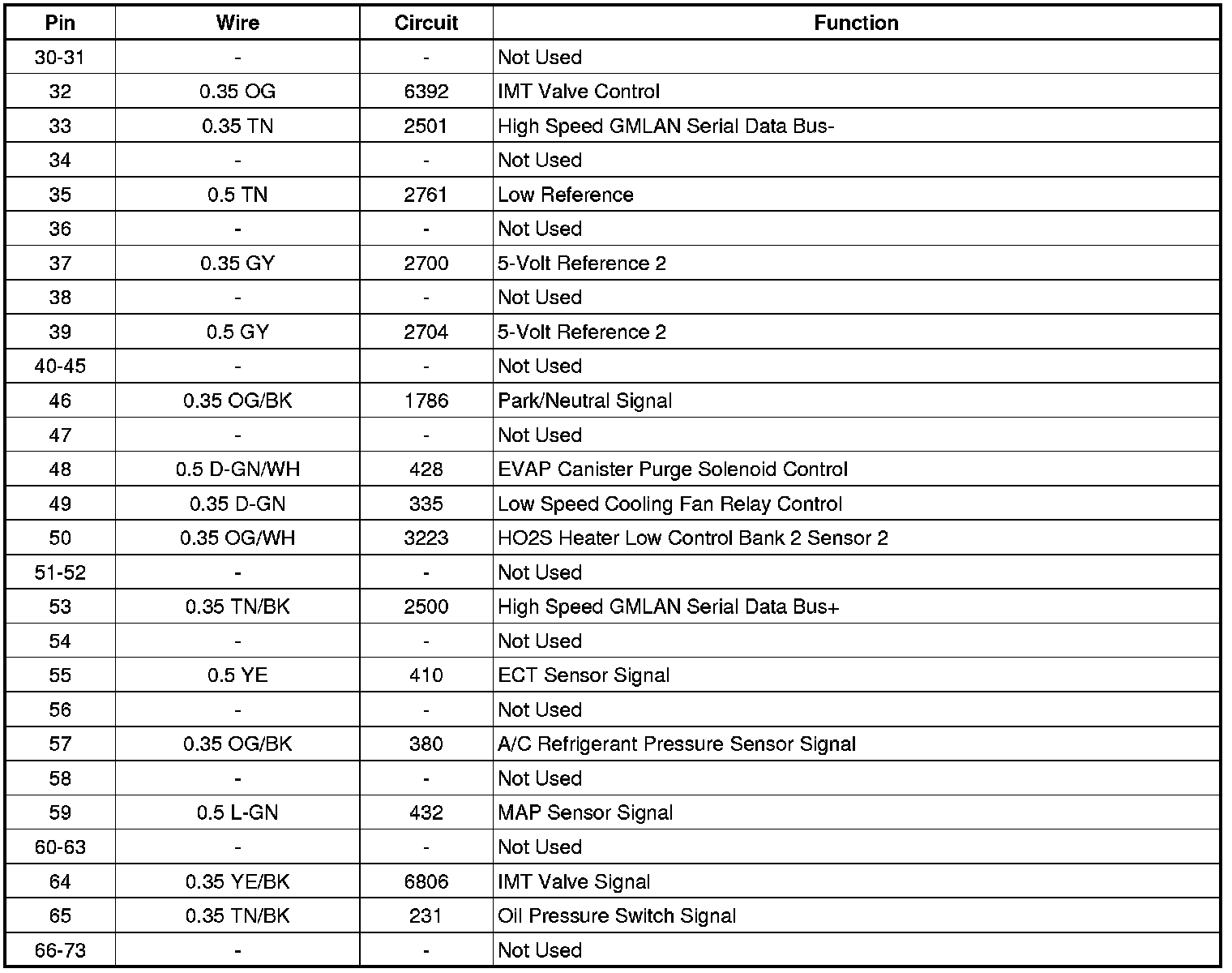

Engine Control Module (ECM) X3 (LY7)
Engine Control Module
