Component Connector End Views

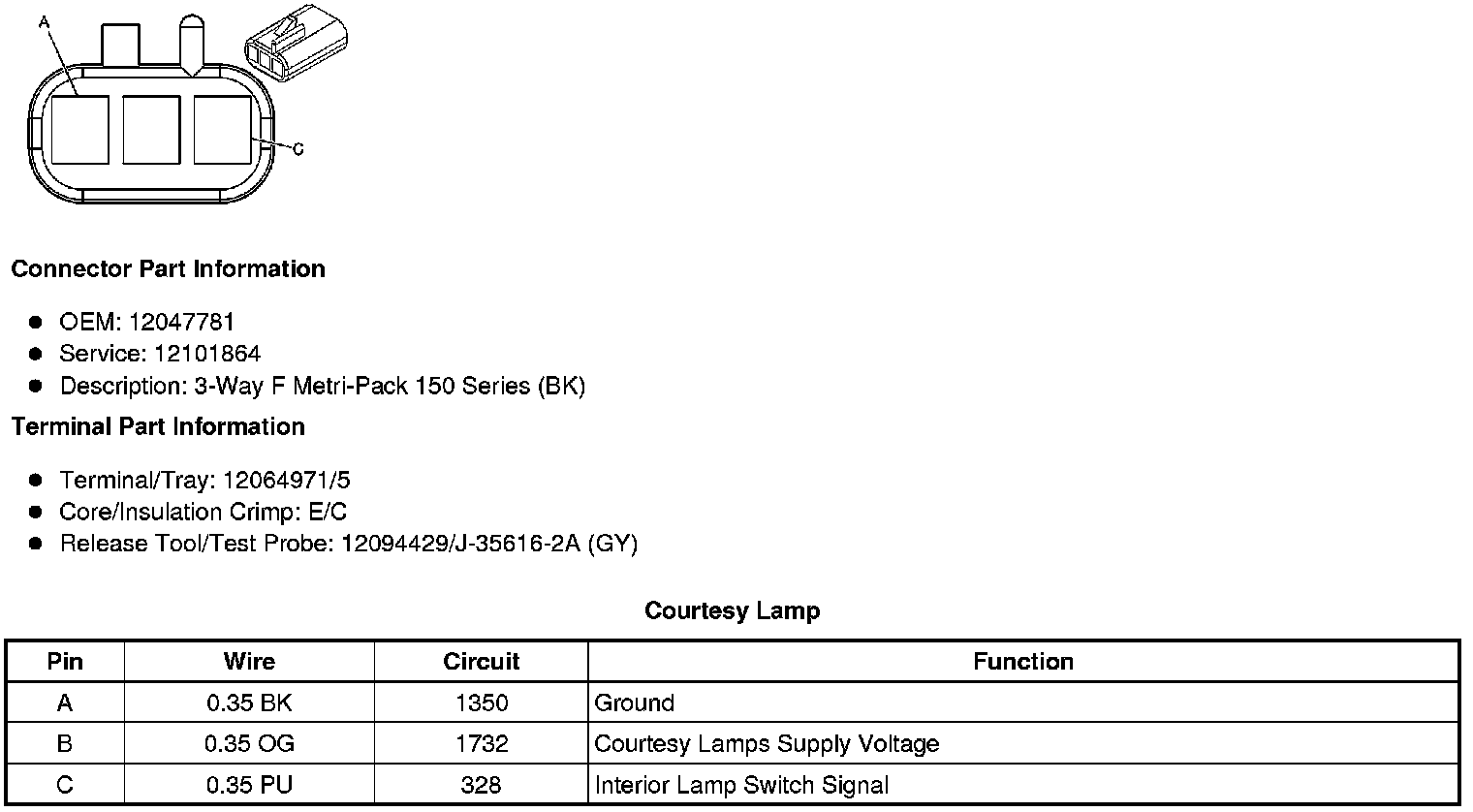

Courtesy Lamp
Courtesy Lamp - Left Front Door

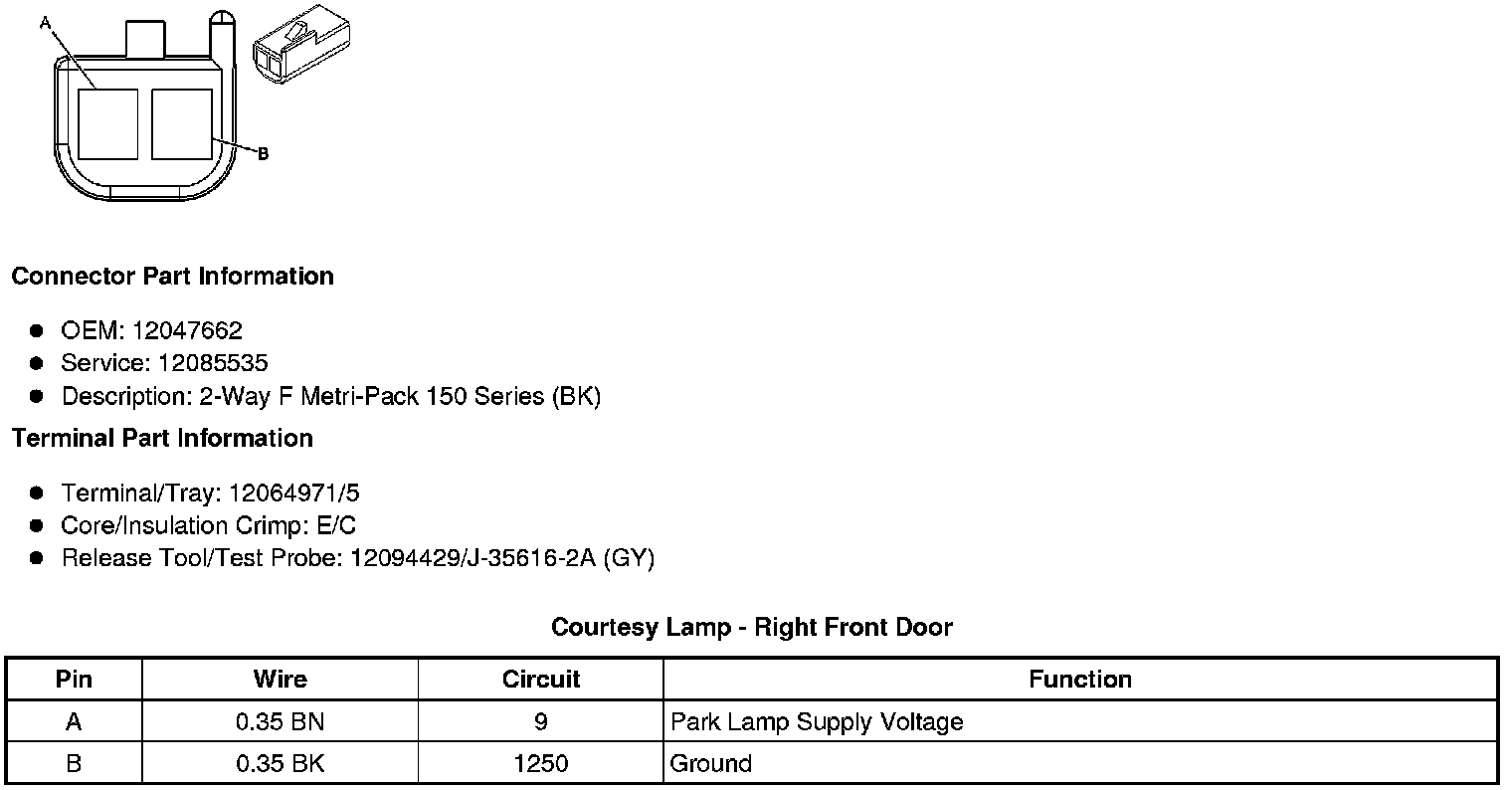

Courtesy Lamp - Right Front Door

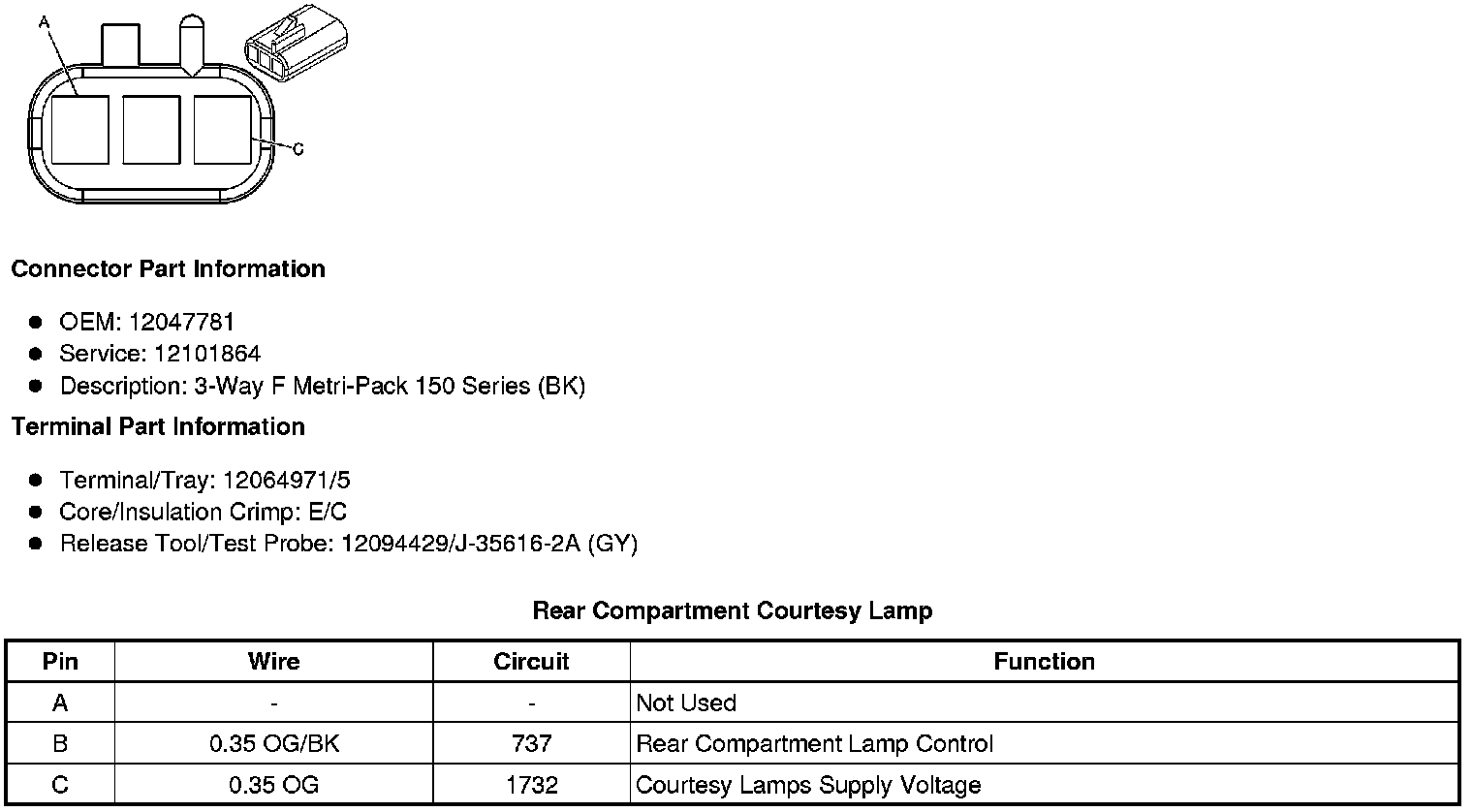

Rear Compartment Courtesy Lamp
Courtesy Lamp
Need a step-by-step guide?
Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2009 Chevrolet.
Component Connector End Views
Courtesy Lamp
Courtesy Lamp - Left Front Door
Courtesy Lamp - Right Front Door
Rear Compartment Courtesy Lamp
